Default Neodymium magnets..

Had a discussion with Cody about putting magnets on the outside of the trans pan to catch particles on the inside.
I suggested neodymium magnets, since they are so strong that you can use a small one that won't get snagged, and still have more than enough power to collect particles through the steel of the pan...
Anyway, Googled up and found two sites that do nothing but sell neodymium magnets.

http://www.kjmagnetics.com/categorie...FQMsFQodS1A3Nw
There'* some neat stuff on here, lot'* of possibilities for small projects. I ordered some discs with counter-sunk screw-holes. Gonna use them to keep the cats out of the cabinets...they're 3/4"x1/8" and they can lift over 33lbs...

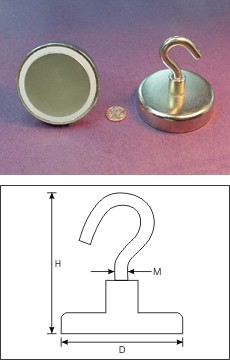

Need some place to hang a work light, and don't have a handy projection?
http://www.kjmagnetics.com/proddetai...od=MM%2DE%2D75
# Weight: 19.8 oz. (561 g)
# Pull Force: 361.6 lbs


They also sell some real monsters, this site has a 6"X1" disc that has a pull force of 540 pounds!

https://www.magnet4sale.com/xcart4/p...cat=256&page=9


Anyway, on the original topic, these are the ones they recommend for oil pans. They're high temp material, so they can go to 300* without losing strength. Regular Nd magnets can only go to 175* before they begin to lose strength.
http://www.kjmagnetics.com/proddetai...=D82SH&cat=167
GonneVille is offline   Reply With Quote
Old 01-29-2008, 01:37 AM   #2
Senior Member
Posts like a Turbo

Join Date: Jul 2007
Location: Joplin, Missouri
Posts: 354
Thanks: 0
Thanked 0 Times in 0 Posts
Alibi is on a distinguished road
Default

If you've got some old hard drives laying around you can always hack 'em open and take the magenets out of them. I'm not sure what they're made out of, but they're pretty strong.
Alibi is offline   Reply With Quote
Old 01-29-2008, 01:40 AM   #3
Senior Member
Posts like a Northstar

Join Date: Jan 2008
Posts: 513
Thanks: 0
Thanked 0 Times in 0 Posts
erics00ls is on a distinguished road
Default

500+ pounds of pull from a 6" big magnet? holy ****!
erics00ls is offline   Reply With Quote
Old 01-29-2008, 01:58 AM   #4
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

anyone got an old used monitor?
petraman is offline   Reply With Quote
Old 01-29-2008, 02:04 AM   #5
Senior Member
Posts like a Northstar

Join Date: Jan 2008
Posts: 513
Thanks: 0
Thanked 0 Times in 0 Posts
erics00ls is on a distinguished road
Default

that'* what i was thinking..
erics00ls is offline   Reply With Quote
Old 01-29-2008, 05:02 AM   #6
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Bloomington, MN
Posts: 3,693
Thanks: 0
Thanked 0 Times in 0 Posts
GoldenBullet is on a distinguished road
Default

jesus, i want that big one, i can imagine there would be alot of injuries from that tho, lol. that would probably mess with the internals of the trans huh?
GoldenBullet is offline   Reply With Quote
Old 01-29-2008, 10:03 AM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

This is what I did last year.

(long thread but worth the read plus some cool home videos in there)
http://www.bonnevilleclub.com/forum/...n+magnet+order

Definitely the best magnets to use! I did not get high temp ones because though they may operate better in higher temps their strength isn't nearly as good. I haven't had any problems with the NdFeB magnets I've used (strength grade N42 IIRC). Plus they only BEGIN to lose strength at 175*, and these magnets will not get that hot or much hotter on the outside of the pan.

Objects can become airborne if you have a big enough magnet. Fun stuff but potentially extremely dangerous (deathly).
bonnie94ssei is offline   Reply With Quote
Old 01-29-2008, 06:32 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

Yeah the high-temp ones aren't totally necessary for a trans pan, ours trans shouldn't get hot enough to kill a regular one.

BTW, that 540lb magnet would have to be handled with EXTREME care. Not only could it could SERIOUS injuries, but if it was allowed to slap onto a piece of steel without control, it would probably shatter...
GonneVille is offline   Reply With Quote
Old 01-30-2008, 02:30 AM   #9
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

IIRC Haro broke a few...

Mine made it on the bonne without a scratch, but damn they were strong...

Wish I had taken them off..
BonneMeMN is offline   Reply With Quote
Old 01-30-2008, 08:39 AM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

I broke a few too playing around with them in my videos, and these were the small (but still strong!) ones. I had blood blisters and red marks on my hands for weeks. Those very large ones WILL shatter if not handled with care. They'll also shatter bones.
bonnie94ssei is offline   Reply With Quote
