what is that little screen for on the side of the fuel injector.

Thread Tools

Search this Thread

Old Aug 28, 2015 | 07:05 PM
  #1
wes104's Avatar
Thread Starter
Senior Member
Posts like a 4 Banger

Joined: Mar 2014
Posts: 131
Likes: 6
wes104 is on a distinguished road
Default what is that little screen for on the side of the fuel injector.

i replaced all my seals on my truck but notice i forgot to replace a little screen on the side of the injector is it important.the circle part in the picture is what i was talking about.
Attached Thumbnails what is that little screen for on the side of the fuel injector.-%24_57.jpg
Reply
Old Sep 1, 2015 | 07:44 PM
  #2
1.8TTony's Avatar
Senior Member
Posts like a Supercharger

Joined: Jul 2015
Posts: 160
Likes: 21
From: Chico, California (USA)
1.8TTony will become famous soon enough1.8TTony will become famous soon enough
Default

Nobody has replied to your question.............I've seen holes like that on other manufacturers' injectors, some had screens, some didn't.

I hate guessing!!!! But if I were to bet on it, and I had to guess......I would say that is a vent hole to help heat escape from the interior portion of the injector body. Some injector bodies get very hot due to under hood temps......

My best guess.....maybe someone has a factual answer.
Reply
Old Sep 9, 2015 | 05:04 AM
  #3
WilliamE's Avatar
Senior Member

True Car Nut

Joined: Jun 2011
Posts: 3,480
Likes: 602
From: VA
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Your image does not show up.
The only screens I know of are in the top portion of the injector, and are supposed to keep dirt from getting in and clogging the injectors.
Can you try to repost your pic?
Reply
Old Sep 12, 2015 | 01:44 AM
  #4
1.8TTony's Avatar
Senior Member
Posts like a Supercharger

Joined: Jul 2015
Posts: 160
Likes: 21
From: Chico, California (USA)
1.8TTony will become famous soon enough1.8TTony will become famous soon enough
Default

Originally Posted by WilliamE
Your image does not show up.
The only screens I know of are in the top portion of the injector, and are supposed to keep dirt from getting in and clogging the injectors.
Can you try to repost your pic?

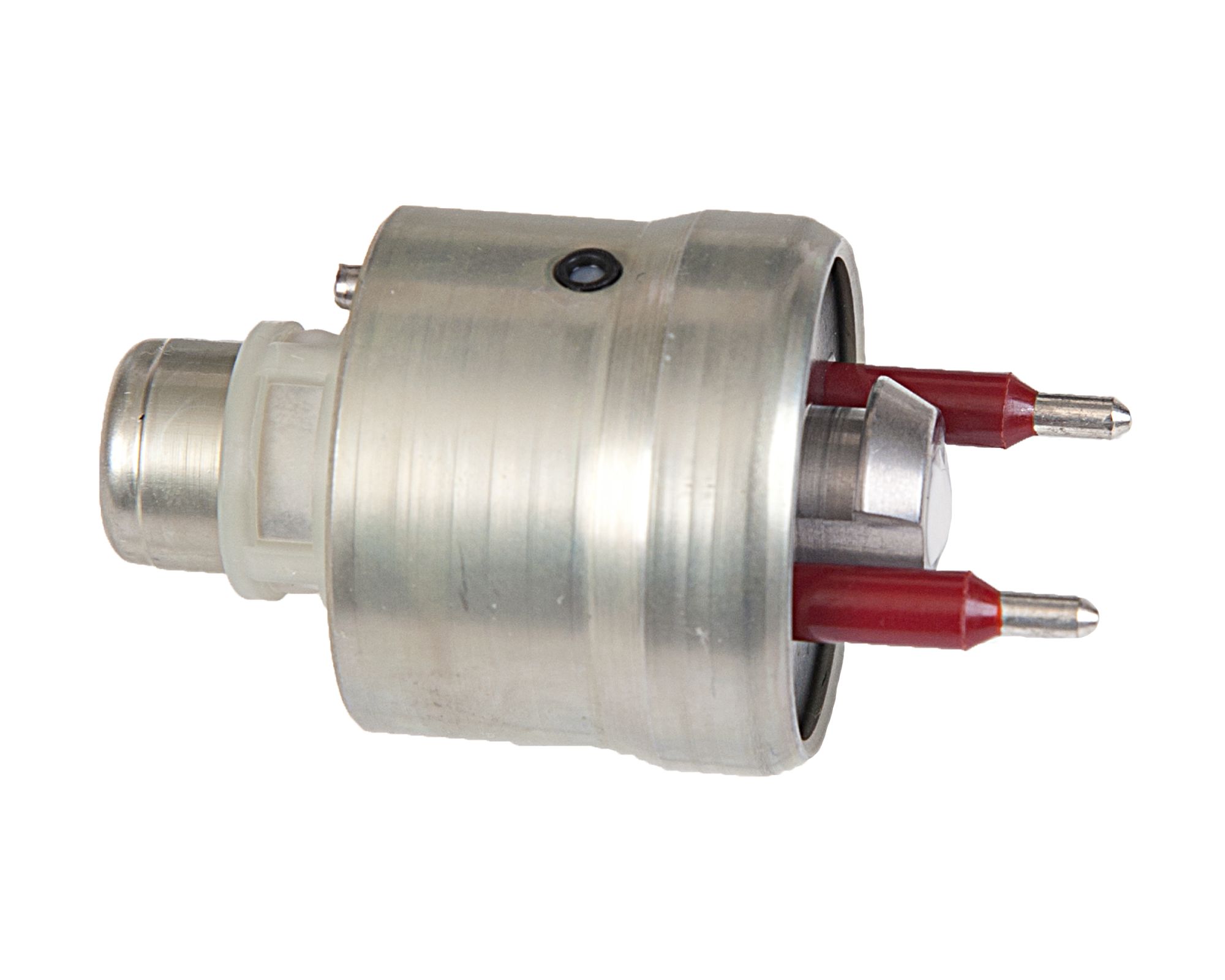

I can see his pic....the injector is the TBI type of injector, not a port style.

I'll try to find a similar injector and post a picture.....the screen is located at that black circle.


Attached Thumbnails what is that little screen for on the side of the fuel injector.-80-47_7685_46c11adea2a13078906f11688644f0ea9e268c51.jpg
