Default Re: 03 Yukon Denali coolant issue

I'm new to the site I have an 03 Yukon Denali 6.0 and I notice on the passenger side on the ground there'* a lil puddle of coolant so I check my reservoir tank and I have to add coolant not much like a bottle a month. Now before I spend money in taking it some where what should I check it not the radiator cause it would of cap out by now I no from previous experience so I had a list of some parts
Waterpump
Radiator lower hose
The radiator tank
Lower intake manifold.
So that'* all I could think of any help and also I have a Crack exhaust manifold on driver side taps on cold start then when warm goes away thank you

Last edited by denaliman03; 11-07-2015 at 03:26 PM.
denaliman03 is offline   Reply With Quote
Old 11-09-2015, 02:50 PM   #2
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

If its the passenger side Id take a close look at the coolant tank and the heater core. Very rarely see a head gasket, buts its possible. Lower intake manifold and gasket are separate from the cooling system.

Last edited by chevy82; 11-09-2015 at 02:51 PM.
chevy82 is offline   Reply With Quote
Old 11-09-2015, 07:38 PM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Thanked 1 Time in 1 Post
denaliman03 is on a distinguished road
Default

What should I look at on the coolant tank. The inside of it has a haze to it it'* original. Maybe the rad cap possible if not the maybe or hopefully it'* the tank I would have to take it out to see if that'* all good the heater core you mention but highly doubt that but give it a look
denaliman03 is offline   Reply With Quote
Old 11-09-2015, 07:44 PM   #4
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Thanked 1 Time in 1 Post
denaliman03 is on a distinguished road
Default

I notice my temperature was reading low at times then it would read at the half mark then now it reads between 160-210 that would be 185. I changed the thermostat and it would do the same thing i change it could it be my coolant temp sensor going bad.
denaliman03 is offline   Reply With Quote
Old 11-10-2015, 02:48 PM   #5
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

To get a most accurate diagnosis on where its leaking. You may have to pressurize the cooling system to find the leak. Either rent or buy and coolant pressure tester. If its leaking bad enough just look for the coolant trail and follow it.
chevy82 is offline   Reply With Quote
Old 11-10-2015, 05:22 PM   #6
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by denaliman03 View Post
I notice my temperature was reading low at times then it would read at the half mark then now it reads between 160-210 that would be 185. I changed the thermostat and it would do the same thing i change it could it be my coolant temp sensor going bad.
Large temperature fluctuations in the cooling system can also be a sign of being very low on coolant.
2kg4u is offline   Reply With Quote
The Following User Says Thank You to 2kg4u For This Useful Post:
WilliamE (11-10-2015)
Old 11-10-2015, 10:22 PM   #7
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Thanked 1 Time in 1 Post
denaliman03 is on a distinguished road
Default

Thanks all for the advice will keep an update
denaliman03 is offline   Reply With Quote
Old 11-13-2015, 09:40 PM   #8
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Thanked 1 Time in 1 Post
denaliman03 is on a distinguished road
Default

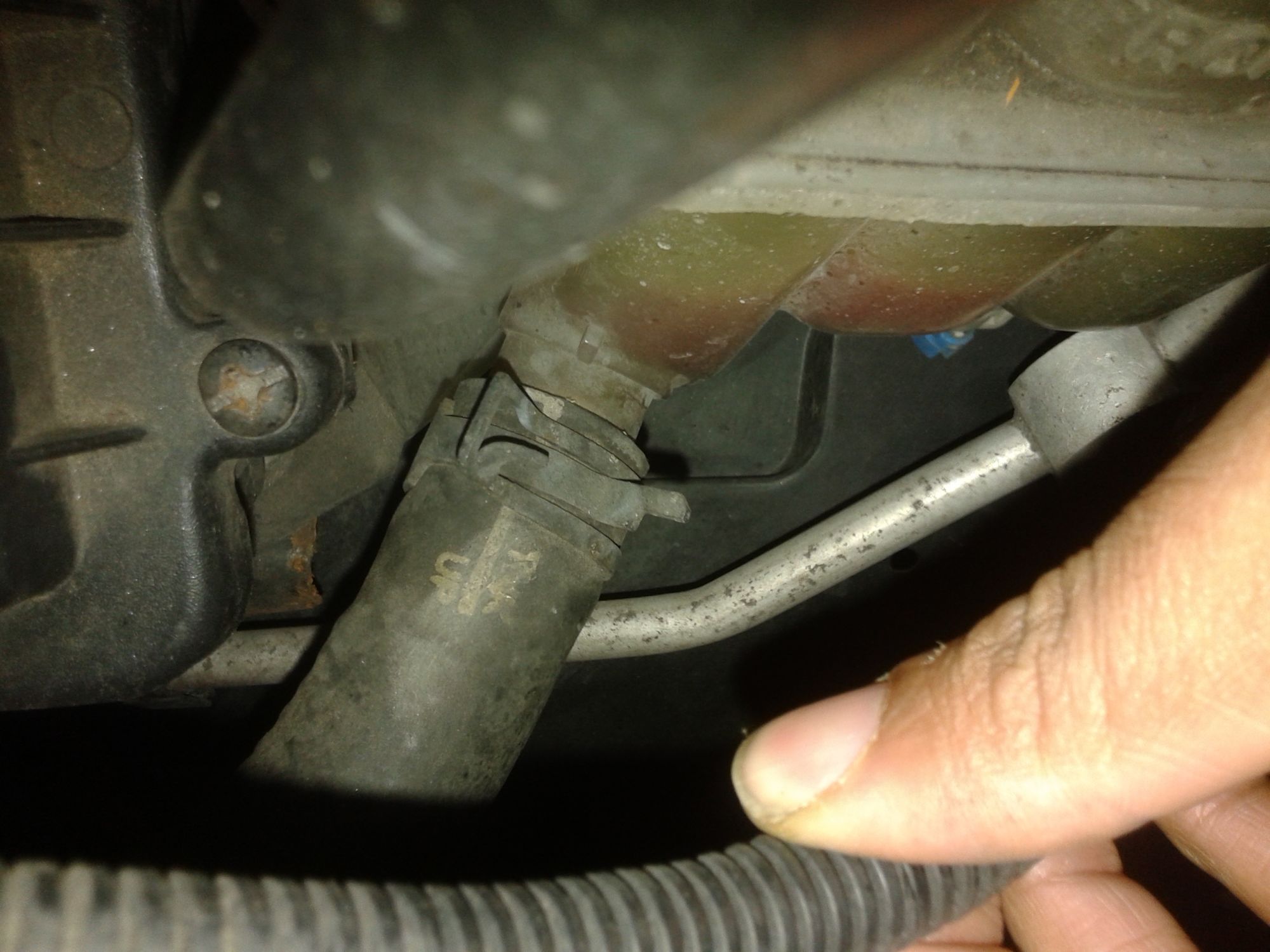

As mentioned I checked the hoses and all this time my low coolant must of been this hose connected to the coolant reservoir. Most be off by .25 inch so I moved the hose up and filled it to the correct measure so hopefully all is good
Attached Thumbnails
Re: 03 Yukon Denali coolant issue-80-20151113_181914_317a7b8f488bc87550f2546855749b307724d60d.jpg
denaliman03 is offline   Reply With Quote
Old 11-21-2015, 02:31 AM   #9
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Thanked 1 Time in 1 Post
denaliman03 is on a distinguished road
Default

It'* been a week now and I still losing coolant but before I take it for a pressure test what else besides the hoses and reserivor tank should I look for. I wonder if my water pump gasket could be dryed rotted
denaliman03 is offline   Reply With Quote
Old 11-30-2015, 09:47 PM   #10
Senior Member
Posts like a Supercharger

Join Date: Jul 2015
Location: Chico, California (USA)
Posts: 158
Thanked 20 Times in 18 Posts
1.8TTony will become famous soon enough1.8TTony will become famous soon enough
Default

Under the hood, the plastic "quick connect" fittings where the heater hoses connect onto the heater core will rot from the inside out. When rotten, they become very weak and may allow the coolant to seap out when the engine is warm and coolant system is under pressure.

Also, if you look on the passenger side of the water pump, you will see two smaller hoses coming off the water pump. Of these two hoses, the forward one comes off the pump, enters a "Y" pipe and splits up into two hoses. The Y pipe is made of plastic as well and will rot out over time.

The "Quick Connect" fittings mounted on the heater core. The fitting on the left is new, the fitting on the right is broken and old. They are both supposed to look like the one on the left. The heater hoses clamp onto these fittings.




And here is a picture of a water pump. If you look closely at the left side edge of the picture, you can get a partial view of the Y pipe.....they get rotten over time.

Attached Thumbnails
Re: 03 Yukon Denali coolant issue-80-656950b1_056e93b603a1064fddb29bc82d53d1668f0e32ae.jpg   Re: 03 Yukon Denali coolant issue-80-hqdefault_c0be3117aec429e88f518915c37f53d1b618478a.jpg
1.8TTony is offline   Reply With Quote
The Following User Says Thank You to 1.8TTony For This Useful Post:
denaliman03 (12-02-2015)
