Default installing power seat into non power truck

I was hoping for some help regarding a seat install that sounds very similar to this.
We have a pair of 98 Denali leather seats and I have been tasked with putting them into a 94 Yukon. I was able to figure out which wires were needed to get power to the passenger seat and all the functions are working. The driver seat has a black box underneath it and I cannot seem to get anything to work. It looks completely different underneath. Any help would be much appreciated.
Conner is offline
Reply With Quote
Old 01-14-2014, 09:31 AM
  #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

will have to see if i can find anything on that.
jwfirebird is offline
Reply With Quote
Old 01-14-2014, 09:45 AM
  #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default


(1) Front Tilt Motor
(2) Forward/Back Motor
(3) Heated Seat Element
(4) Rear Tilt Motor
(5) Seat Harness
(6) Power Seat Lumbar Motor and Solenoid Assembly
(7) C212 (RH) / C229 (LH)
( Crossbody Harness
(9) Seat Riser
(10) Power Seat Lumbar Switch
(11) Power Seat Adjuster Switch
(12) Heated Seat Module (Typical)

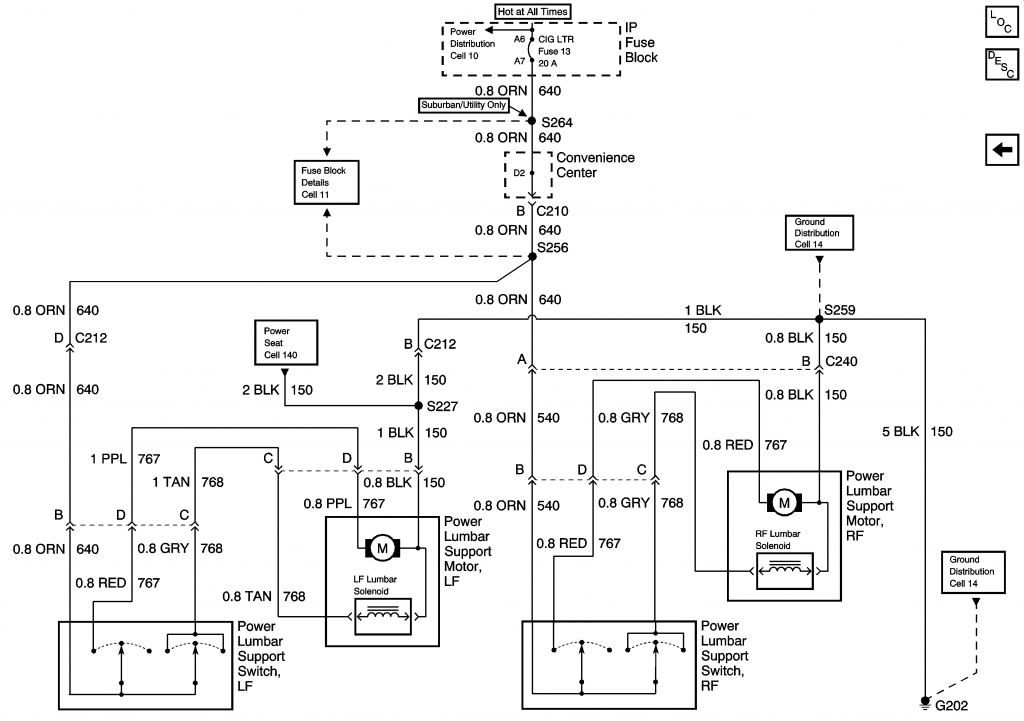

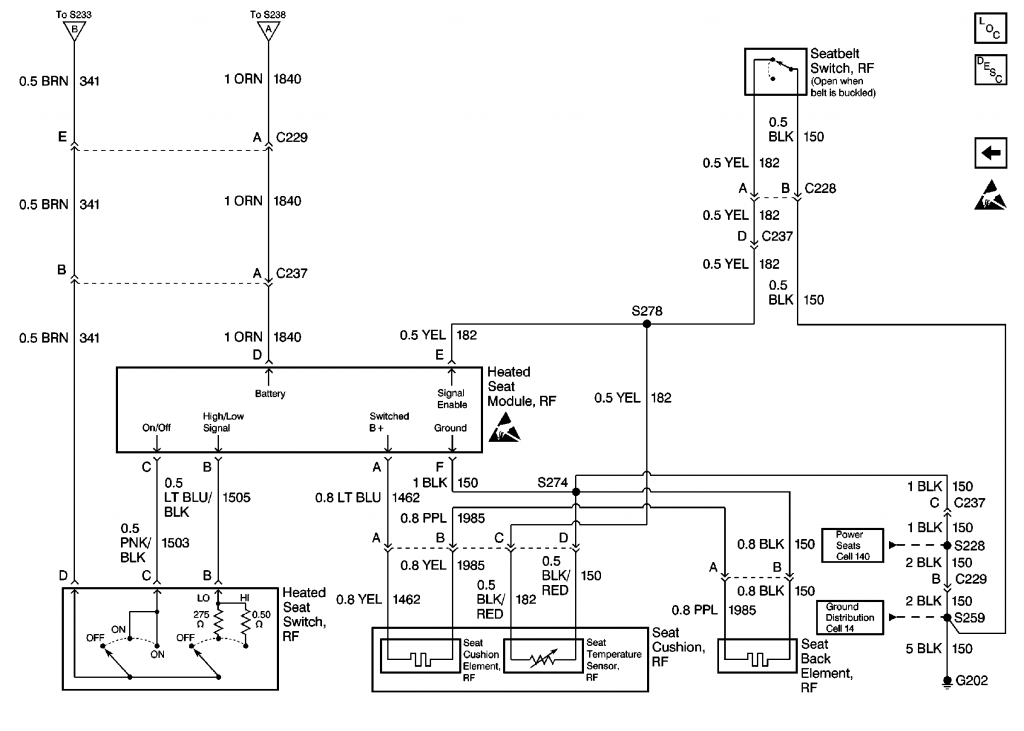

Attached Thumbnails installing power seat into non power truck-locator_zps8ab83003.png   installing power seat into non power truck-1_zps05b6c73e.png   installing power seat into non power truck-2_zpsa4f8b4a9.png   installing power seat into non power truck-4_zps0a42ef88.png   installing power seat into non power truck-3_zpsf73b2504.png
