Default 94 K1500 5.7 Quitting

Hi Guys, my pick-up starts fine and run for about 5 minutes. Then stalls from any rpm 5 to 10 times for about 10 minutes. Starts right up each time. Then seems to improve. Doesn't look like I'll be stranded for now but it'* a PITA. Get error code 54 (low fuel pump voltage) each time. Not really an intermittent problem because it happens every time the engine warms up. Fuel pump and distributor are fairly new with about 10K km'* on them. Changed the CTS and fuel pressure reg. but didn't help. Disconnected connection at oil pressure switch and engine continues to run fine via the pump relay. Disconnected the EGR and didn't change anything. Maybe ECM?
JeffC is offline   Reply With Quote
Old 01-11-2016, 02:25 AM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Welcome to the forums!
Have you tried a new fuel pump relay to see if that'* it...??

Also on a side note, have you changed fuel filter?

Last edited by Soft Ride; 01-11-2016 at 02:27 AM. Reason: filter
Soft Ride is offline   Reply With Quote
The Following User Says Thank You to Soft Ride For This Useful Post:
JeffC (01-12-2016)
Old 01-11-2016, 11:17 PM   #3
Junior Member
Thread Starter

Join Date: Jan 2016
Location: BC
Posts: 8
Thanked 3 Times in 2 Posts
JeffC is on a distinguished road
Default

Thanks. No, not yet. I think I'll get a fuel pressure gauge setup first to see what'* going on with that when it quits. The fuel pressure regulator was just a kit without a new spring. I wonder if the spring is weak. Took my ECM apart just to see if anything obvious wrong on the circuit board but looks perfect. Oh, and it got a new Cat Converter and O2 sensor last summer. I also checked voltage at the 20 amp fuel pump fuse and it stayed at 14 volts while the engine quit. It'* the fuse on the firewall passenger side. Not sure where it is in the circuit from the pump or relay?
JeffC is offline   Reply With Quote
Old 01-11-2016, 11:30 PM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I think 11 psi is minimum 13 normal range...
Is your relay on the firewall?
Test info here.. Part 1 -1994 Fuel Pump Circuit Tests (GM 4.3L, 5.0L, 5.7L)
Soft Ride is offline   Reply With Quote
Old 01-12-2016, 12:04 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2016
Location: BC
Posts: 8
Thanked 3 Times in 2 Posts
JeffC is on a distinguished road
Default

Thanks, I'll let you know what I get for pressure. Yes relay is near the fuse on firewall. It was easy to check voltage at the fuse but I think I need to poke into wires at the relay.
JeffC is offline   Reply With Quote
The Following User Says Thank You to JeffC For This Useful Post:
Soft Ride (01-12-2016)
Old 01-16-2016, 06:13 PM   #6
Junior Member
Thread Starter

Join Date: Jan 2016
Location: BC
Posts: 8
Thanked 3 Times in 2 Posts
JeffC is on a distinguished road
Default

Update:
Replaced fuel filter. Still stalling.
Plumbed a 0-30 psi gauge into the filter and shows 11 psi while running. I squeezed the return line a bit with a vise grip and boosted the pressure to 14 psi. Still quit while pressure steady at 14 psi. So pump and its wiring/relay all good. Now wondering what'* next?
JeffC is offline   Reply With Quote
Old 01-17-2016, 03:09 AM   #7
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

hmmm...That'* a tbi system ...
You got any bright, clear, engine bay shots with air cleaner off that you could post ?
I am going to call in one of our GearHeads & ask for further input...

Last edited by Soft Ride; 01-17-2016 at 03:11 AM. Reason: add GH
Soft Ride is offline   Reply With Quote
Old 01-17-2016, 02:33 PM   #8
Junior Member
Thread Starter

Join Date: Jan 2016
Location: BC
Posts: 8
Thanked 3 Times in 2 Posts
JeffC is on a distinguished road
Default

Yes it'* got TBI fuel system.
JeffC is offline   Reply With Quote
Old 01-17-2016, 02:47 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2016
Location: BC
Posts: 8
Thanked 3 Times in 2 Posts
JeffC is on a distinguished road
Default

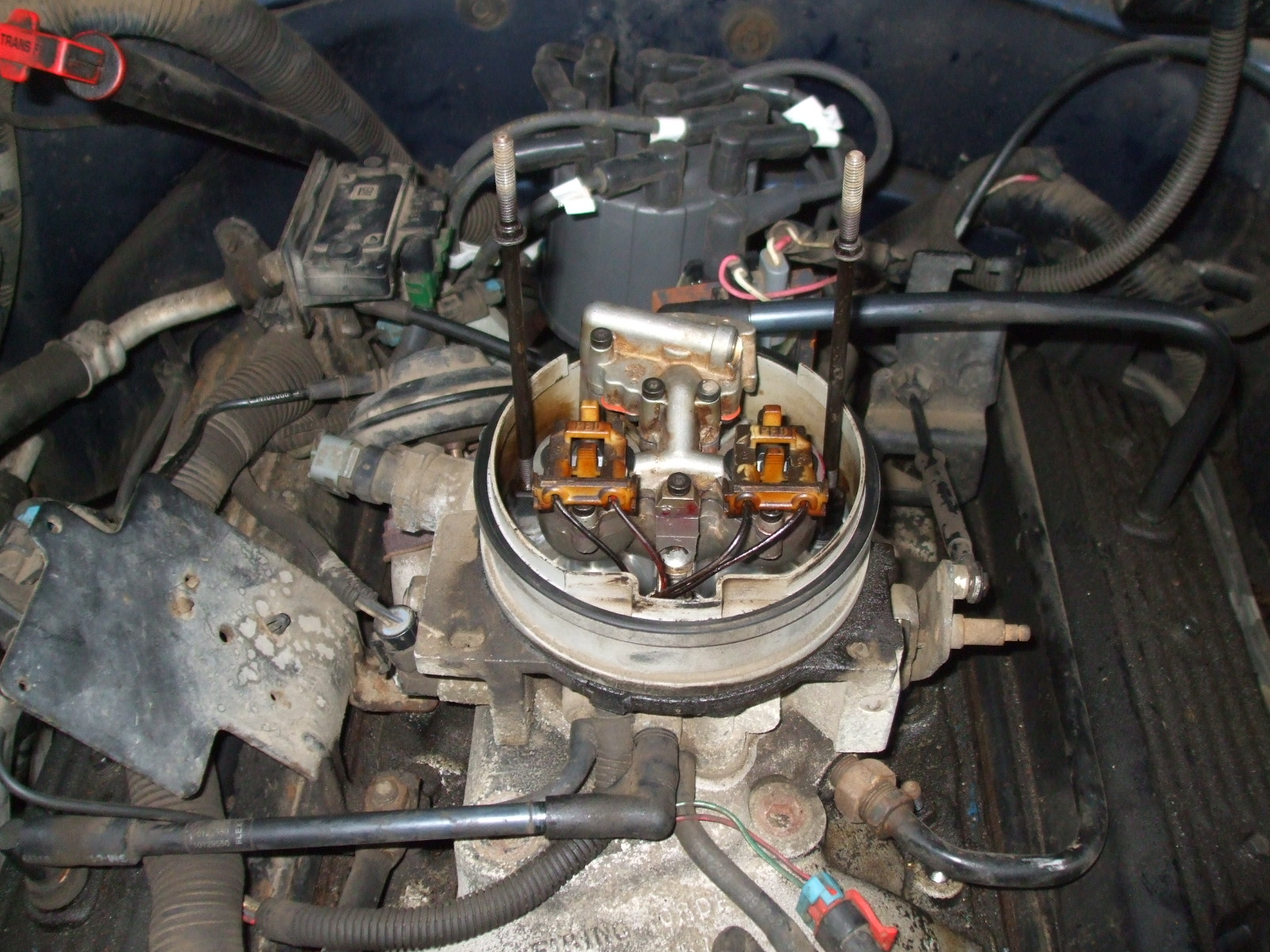

Not sure if photo got attached. Here it is again. I'm thinking now maybe something on the distributor. It'* getting harder to start now when it stalls. Last time when I poured a bit of fuel into the throttle body it started right away then ran for about a minute before stalling again.
Attached Thumbnails
94 K1500 5.7 Quitting-dscf2529.jpg
JeffC is offline   Reply With Quote
Old 01-17-2016, 11:37 PM   #10
Junior Member
Thread Starter

Join Date: Jan 2016
Location: BC
Posts: 8
Thanked 3 Times in 2 Posts
JeffC is on a distinguished road
Default

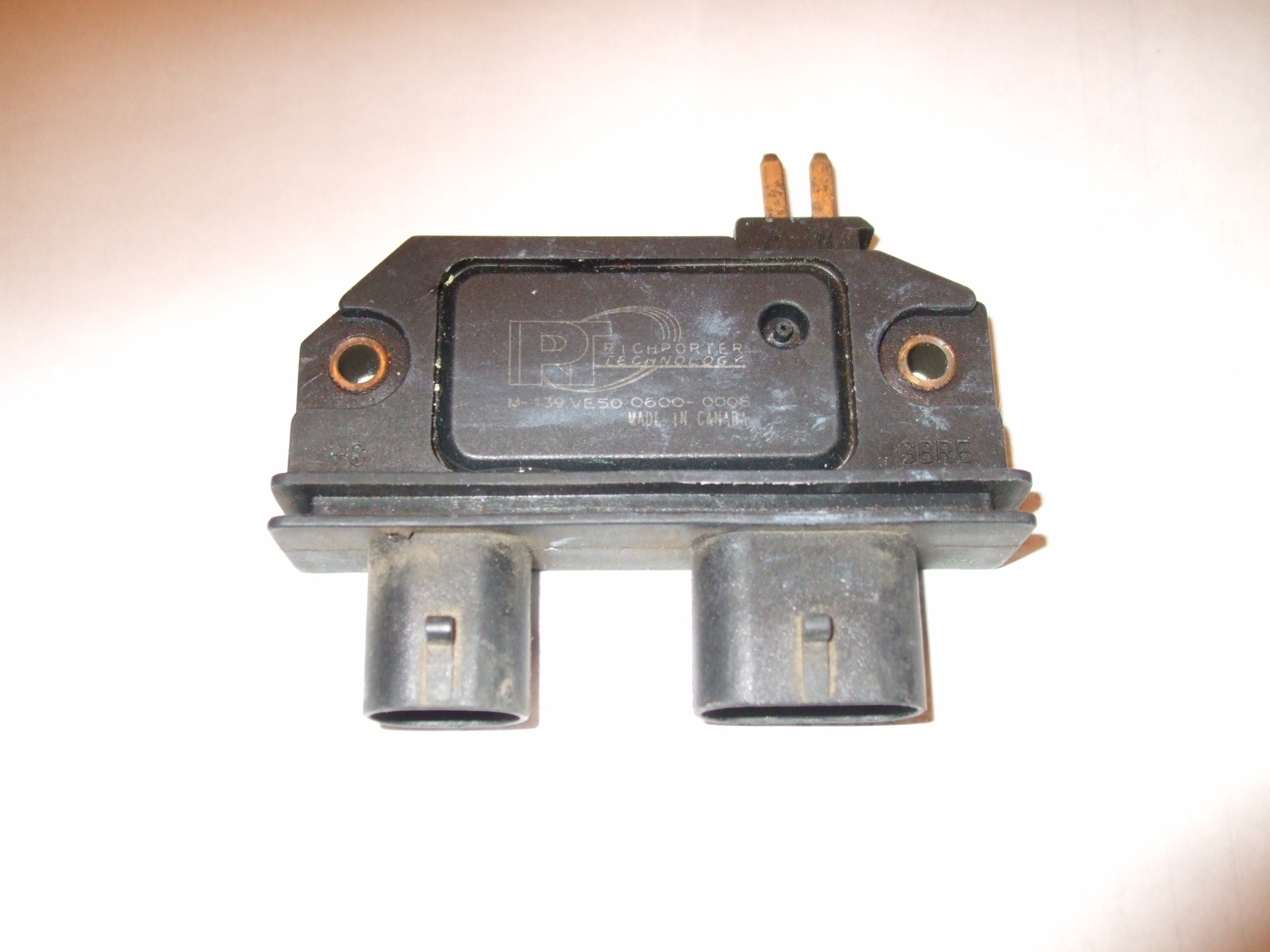

Removed the ICM. Possibly the problem. The heat sink grease was pretty much gone and one of the 2 mounting screws was loose. Does anyone know how to test these? Maybe it'* working until it gets too hot? Don't want to replace any more good parts to find a bad one.
Attached Thumbnails
94 K1500 5.7 Quitting-dscf2531.jpg
JeffC is offline   Reply With Quote
