Default 09 Suburban Climate Control Problem

Hello, I have a 09 Suburban 1500 LTZ. I am having problems with the a/c. It blows cold air on drivers side, heat on passenger side and rear vents. When you select the air vents on dash it blows for a few seconds then changes to defroster vent and show dash vents on display. If you reselect the dash vents it will change back to dash vents and then return back to defrosters. When I turn off the climate controls I can hear a clicking sound on the drivers side under the dash. I have reset the system by pulling the HVAC fuse, but didn't make any difference. Thanks for any advice!
Brian0445 is offline   Reply With Quote
Old 05-27-2015, 10:32 PM   #2
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

Just that clicking sound by itself makes me think of the door actuators on the HVAC Module.

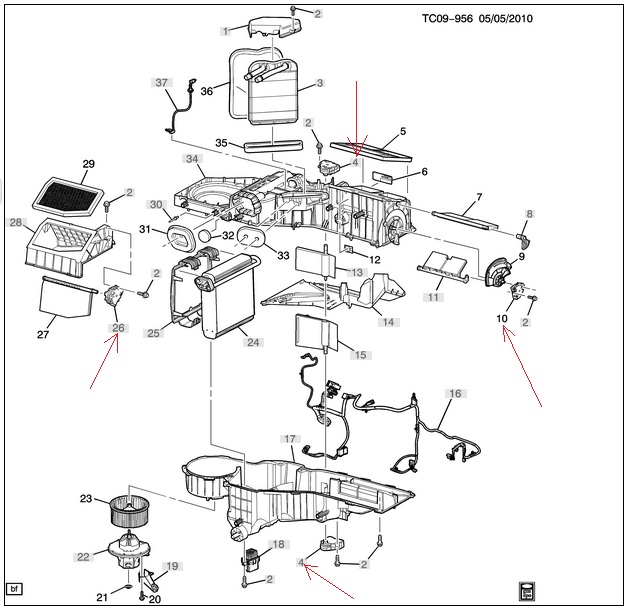

Here'* a pic of an '09 2WD Frt Module: You've got 2 # 4 Actuators; a # 10 Actuator; and a # 26 Actuator - indicated with red arrows.
Attached Thumbnails
09 Suburban Climate Control Problem-2cctm5g.jpg

Last edited by John01; 05-27-2015 at 10:33 PM.
John01 is offline   Reply With Quote
Old 05-28-2015, 03:03 PM   #3
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Good possibility you have a bad actuator/*. Gain access to the actuators and watch them while operating the modes on the controller. The gears inside the actuators like to strip, and the position sensor inside also like to go bad, causing the actuators to sometimes hunt for a position.
chevy82 is offline   Reply With Quote
Old 06-04-2015, 09:10 AM   #4
Junior Member
Thread Starter

Join Date: May 2015
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Brian0445 is on a distinguished road
Default

Thanks for the info! I currently unplugged the actuators for ac! I think I am going to replace them!
