Very nice! So, this L32 will now have a more awesome cam to go with its new trans? What else is being done? Aren't the rockers modified 1.9s?
radomirthegreat is offline   Reply With Quote
Old 10-14-2010, 07:57 AM   #12
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Jumped back on the car tonight. The trans is ready to come out once the new trans has been checked out. I'm at the point of lowering the subframe and the trans is out in a couple of minutes. There'* only two bolts partially holding it to the motor.
Pushed it up the driveway (yes by myself)
Name:  IMG_6883.jpg
Views: 1
Size:  95.7 KB
Cleaned the garage and ....where did it go?
Name:  IMG_6884.jpg
Views: 1
Size:  125.9 KB

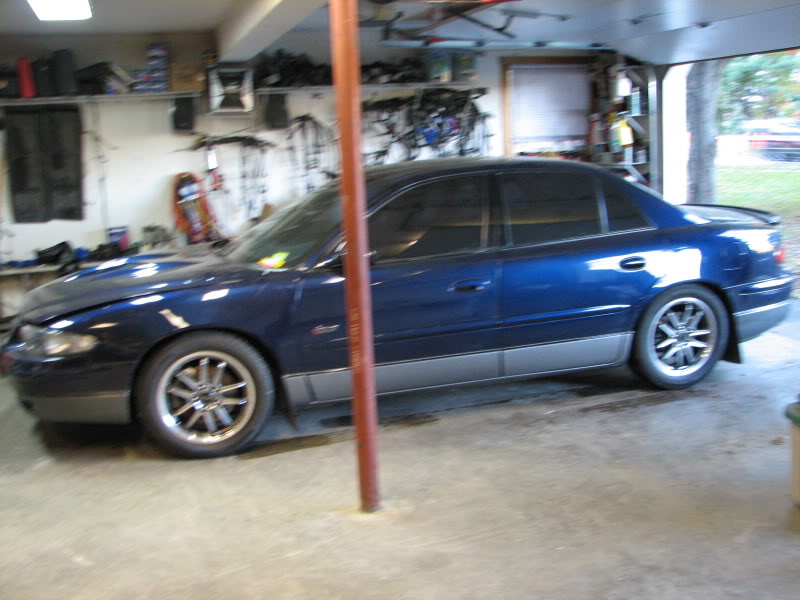

Again .. solo, slid it into the preferred bay for trans swaps.
Name:  IMG_6885.jpg
Views: 1
Size:  92.0 KB
Name:  IMG_6886.jpg
Views: 2
Size:  82.5 KB
The plugs
Name:  IMG_6887.jpg
Views: 1
Size:  68.8 KB
Acquainting them...
Name:  IMG_6888.jpg
Views: 3
Size:  123.0 KB
Name:  IMG_6889.jpg
Views: 1
Size:  122.7 KB

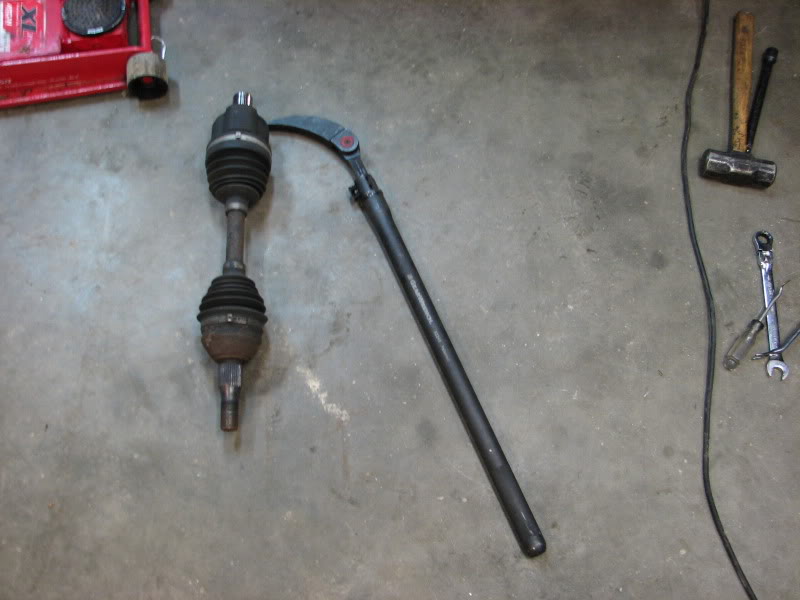

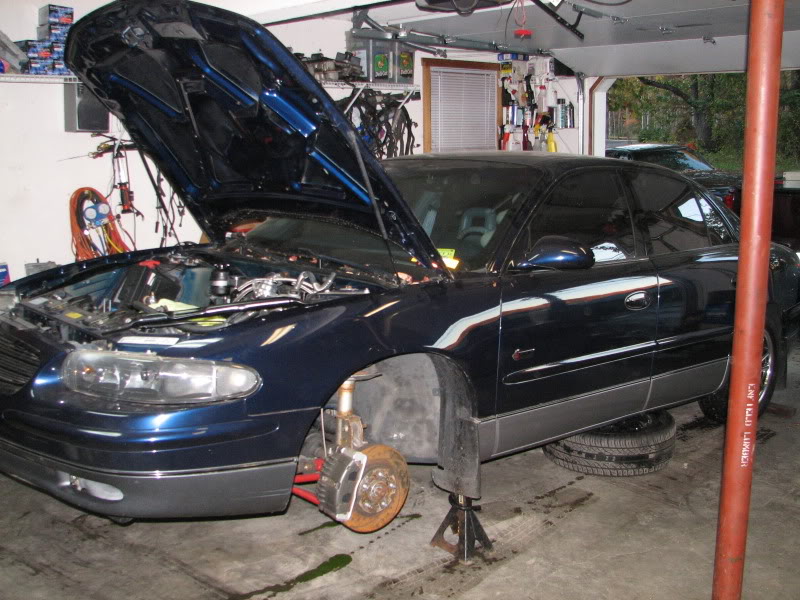

If you don't have a prybar like this..you gotta be fighting the driverside axle. This baby makes it jump out.
Name:  IMG_6890.jpg
Views: 1
Size:  62.6 KB
Name:  IMG_6891.jpg
Views: 1
Size:  112.0 KB

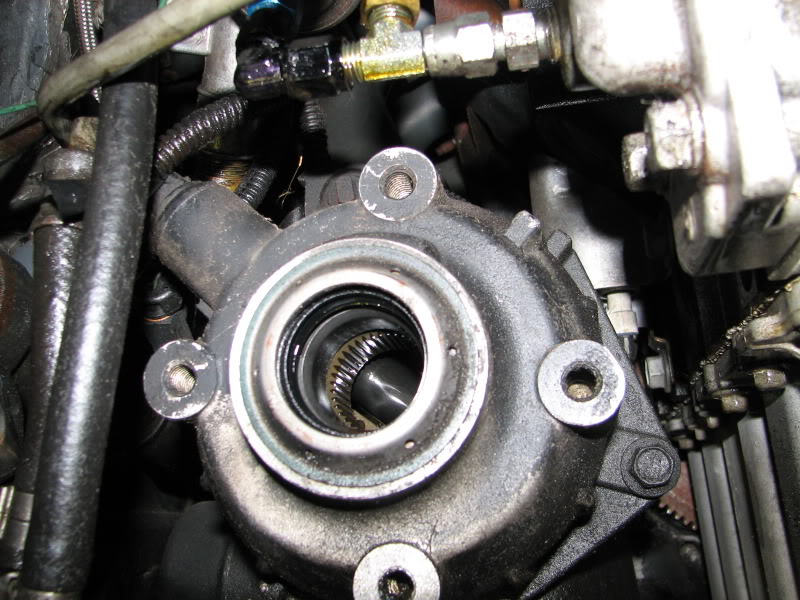

Uhhhhh... I didn't remove anything over here.

Name:  IMG_6893.jpg
Views: 1
Size:  121.7 KB
Diff to engine bracket is missing. Luckily Paul sent one and I've got a couple of extras hanging out too.

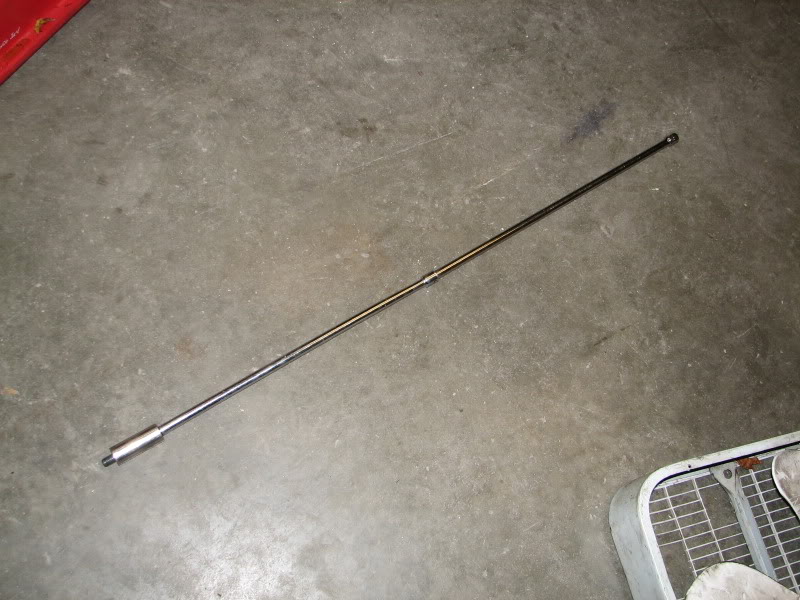

Backwards bolt..lol
Name:  IMG_6894.jpg
Views: 1
Size:  97.0 KB
Name:  IMG_6895.jpg
Views: 2
Size:  129.9 KB
Power steering rack is unbolted, starter is out, flex to TC bolts out, ps line to frame..out.

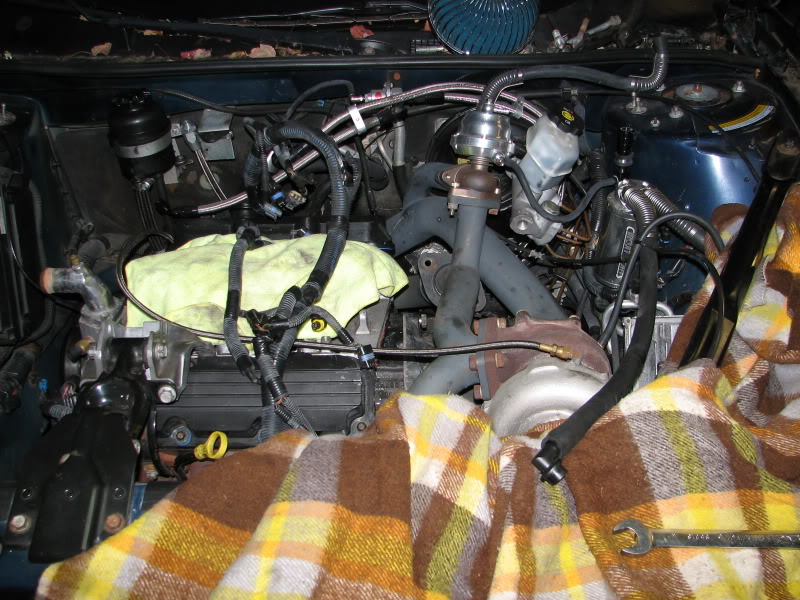

Cruisin
Name:  IMG_6896.jpg
Views: 1
Size:  139.0 KB
Name:  IMG_6897.jpg
Views: 1
Size:  126.2 KB
Name:  IMG_6898.jpg
Views: 1
Size:  119.8 KB

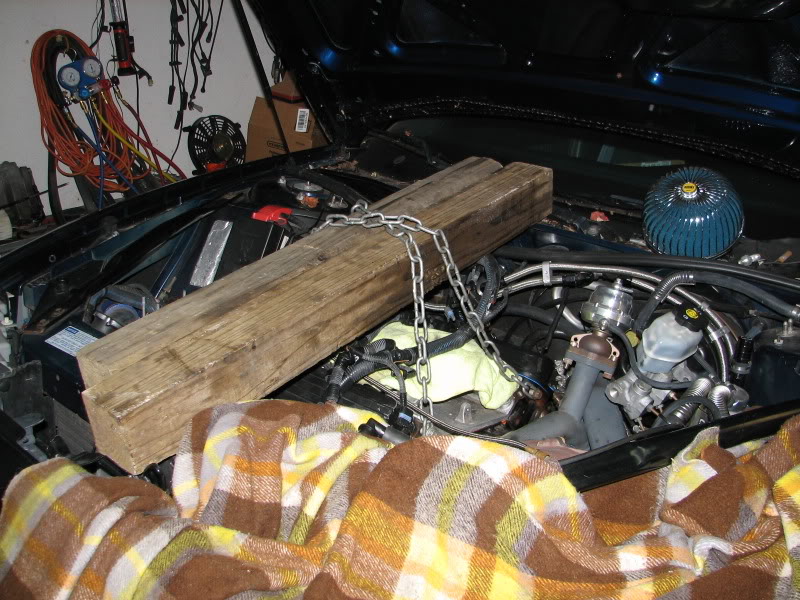

Usually it'* 1 4x4 and 1 chain. I'm being super careful on this one of a kind car.
Name:  IMG_6899.jpg
Views: 1
Size:  138.9 KB
Name:  IMG_6900.jpg
Views: 1
Size:  119.1 KB

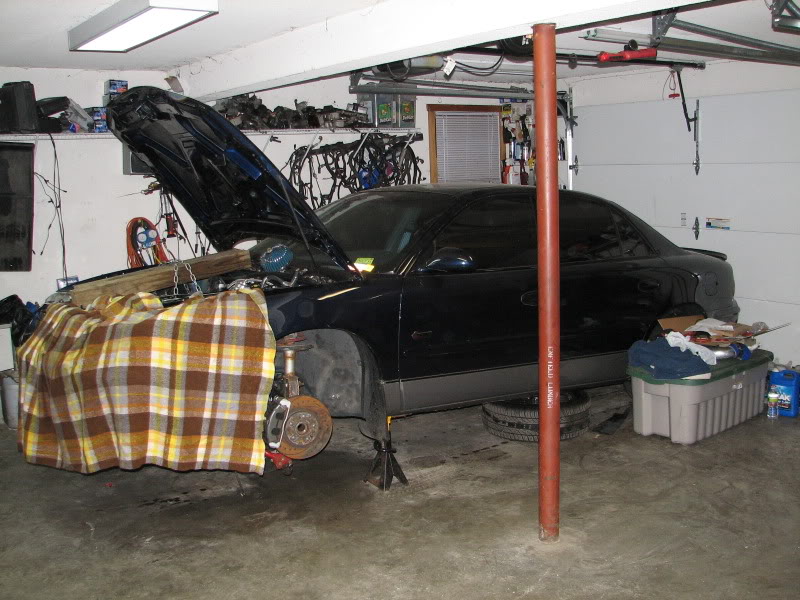

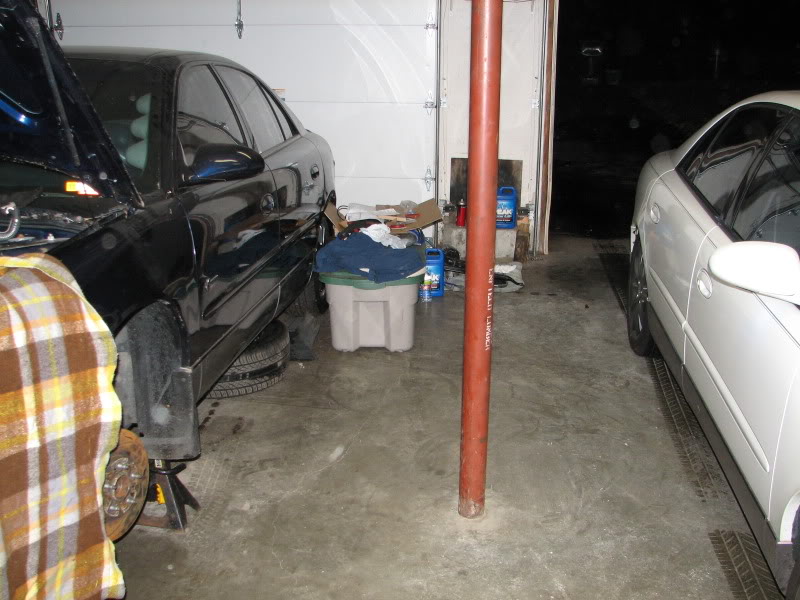

Chilling
Name:  IMG_6901.jpg
Views: 1
Size:  114.6 KB
Name:  IMG_6902.jpg
Views: 1
Size:  98.7 KB
Hanging with a friend
Name:  IMG_6903.jpg
Views: 1
Size:  74.7 KB
BillBoost37 is offline   Reply With Quote
Old 10-15-2010, 07:46 AM   #13
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

A little tired tonight. Neighbors want to go out for dinner, sounds like a plan. I'll pick up a trans filter while out and finish prepping the trans. Install is likely for tomorrow night.

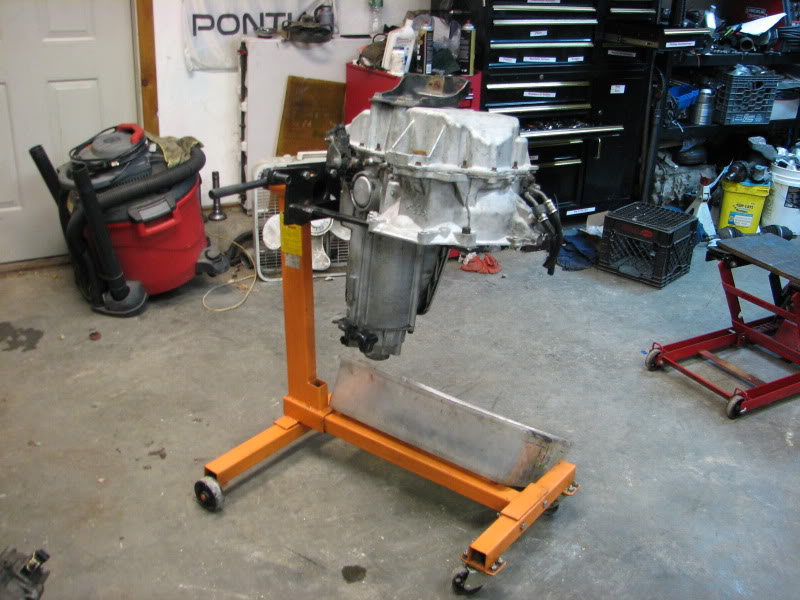

Here'* Merv!
Name:  IMG_6904.jpg
Views: 3
Size:  100.4 KB

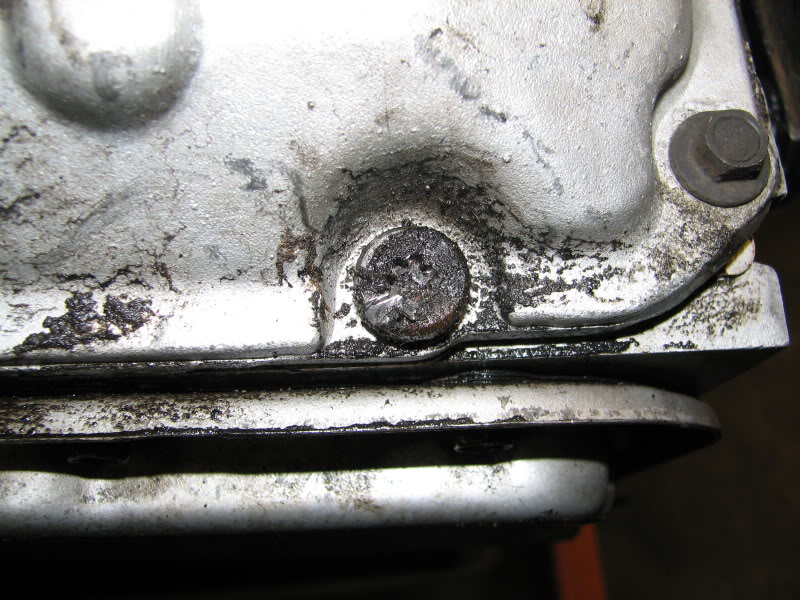

GM uses torx head for the bottom four bolts...no reason. There'* usually one that fights. We see who lost that battle.
Name:  IMG_6907.jpg
Views: 1
Size:  134.9 KB
Name:  IMG_6907.jpg
Views: 1
Size:  134.9 KB

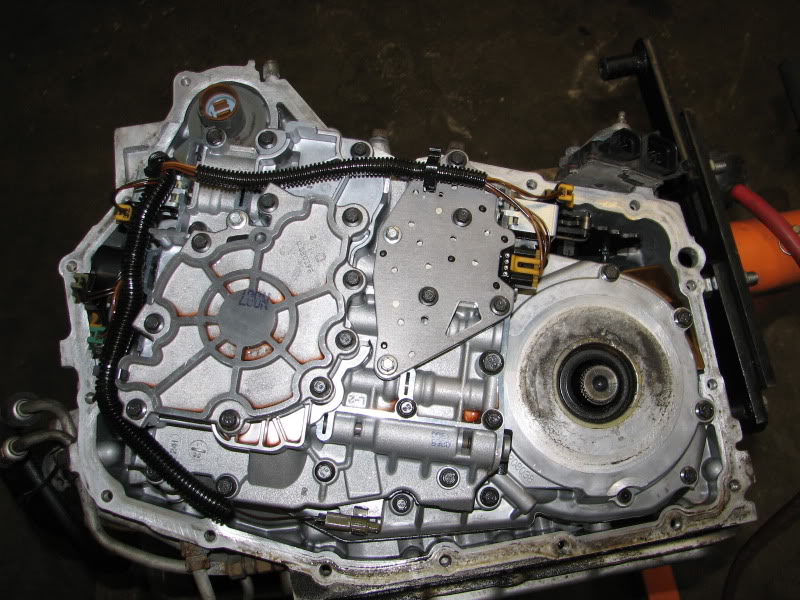

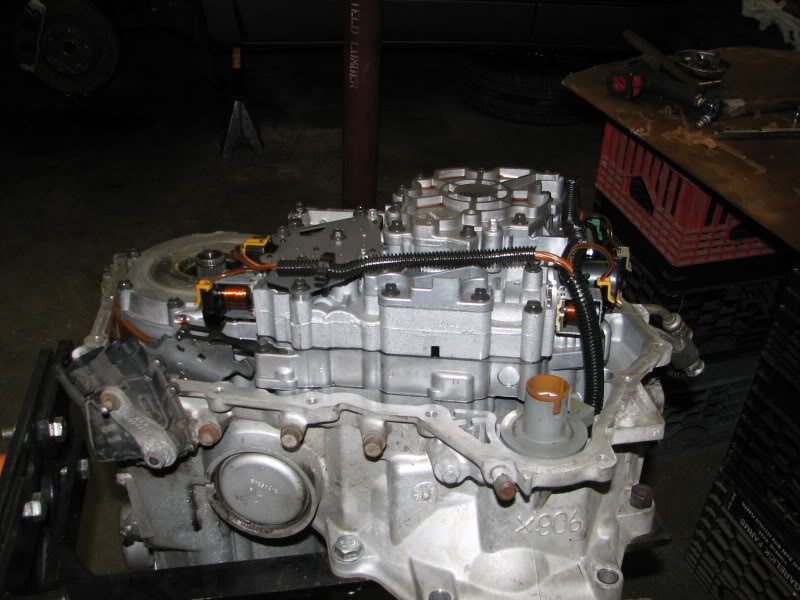

Pulled the cover
Name:  IMG_6909.jpg
Views: 1
Size:  126.9 KB
Name:  IMG_6910.jpg
Views: 1
Size:  96.8 KB
Name:  IMG_6911.jpg
Views: 1
Size:  86.0 KB

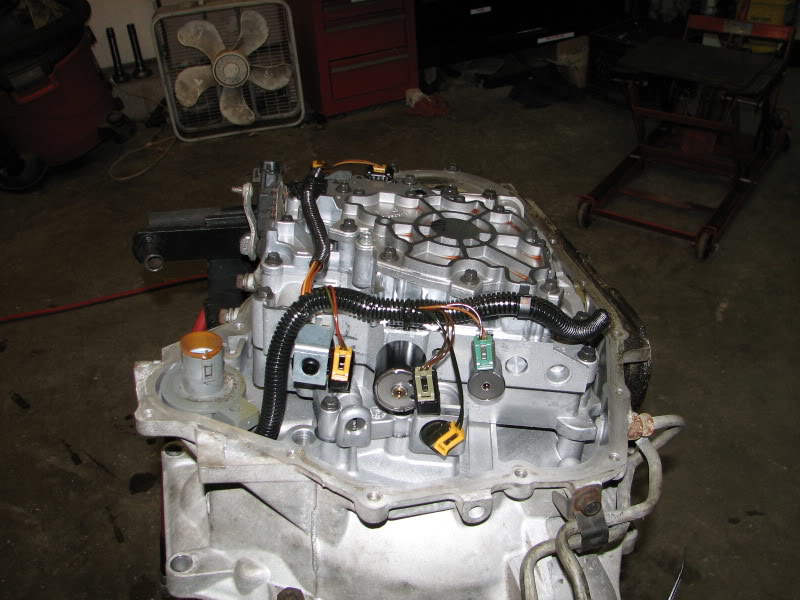

Name:  IMG_6912.jpg
Views: 2
Size:  93.6 KB

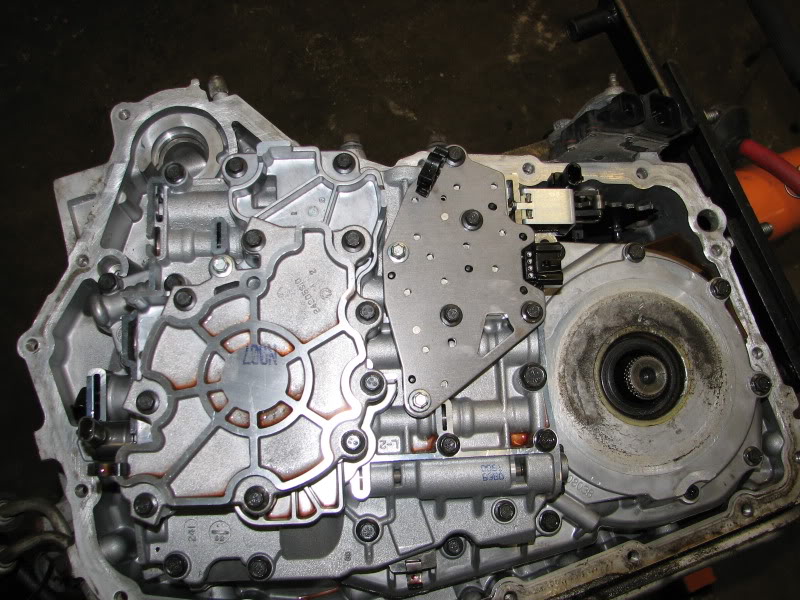

Wiring harness off
Name:  IMG_6914.jpg
Views: 1
Size:  126.8 KB
Pump off
Name:  IMG_6915.jpg
Views: 4
Size:  132.8 KB
Remove only required bolts to pull valve body and channel plate as one.

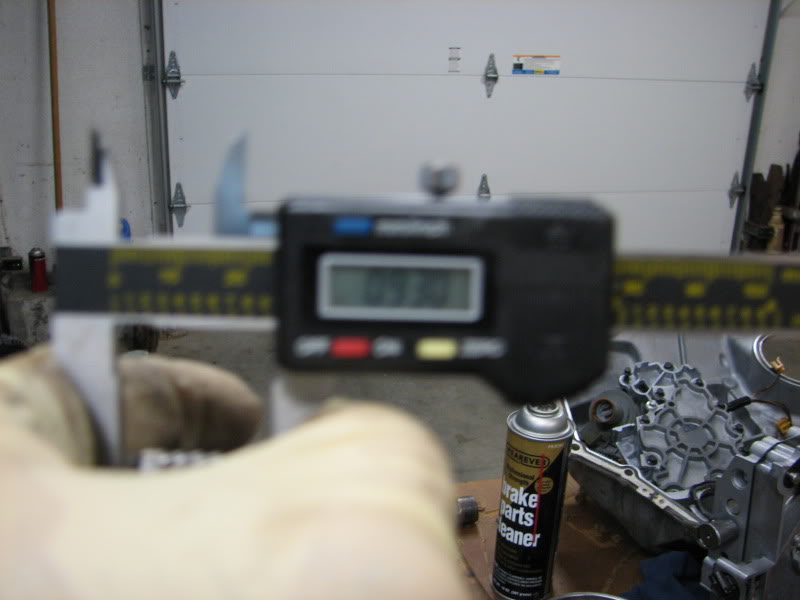

Size of 15/16" chain I have laying around
Name:  IMG_6922.jpg
Views: 1
Size:  53.7 KB
Size of Andrews chain
Name:  IMG_6923.jpg
Views: 1
Size:  89.6 KB

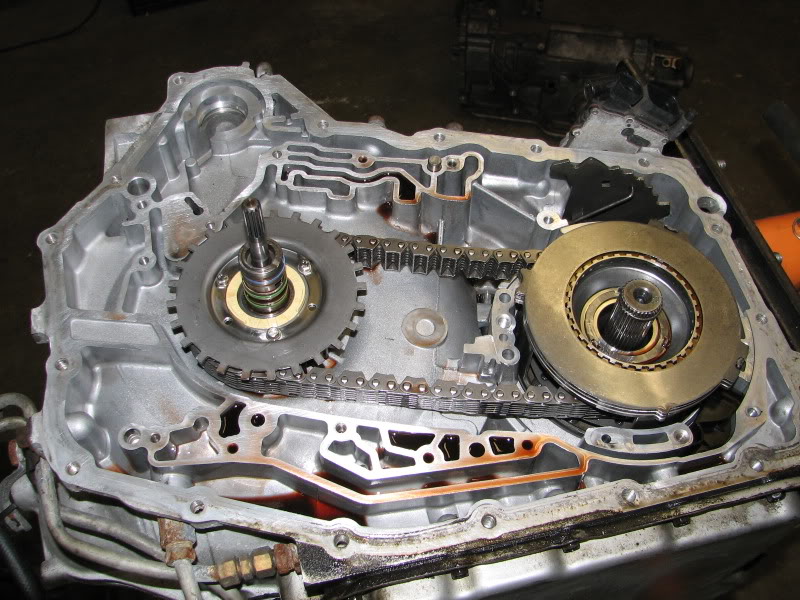

The view
Name:  IMG_6925.jpg
Views: 1
Size:  131.5 KB

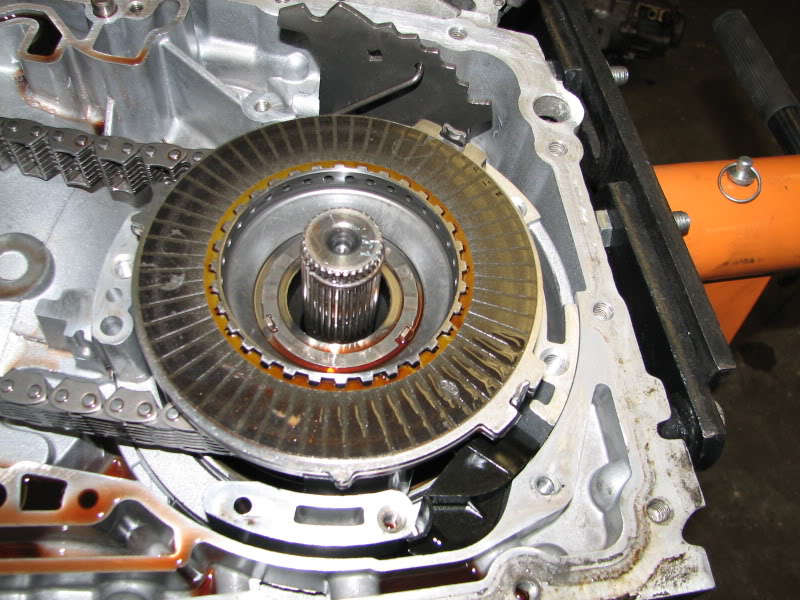

4th Clutches
Name:  IMG_6926.jpg
Views: 1
Size:  127.2 KB
Hardened 4th clutch hub
Name:  IMG_6927.jpg
Views: 2
Size:  130.8 KB

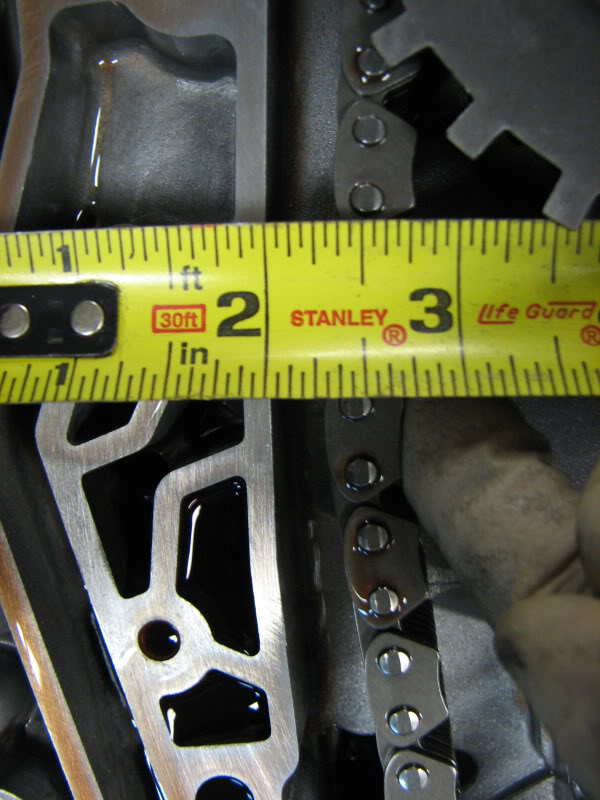

Manual states you should have 1/8" or more to reuse chain. Looks great
Name:  IMG_6931.jpg
Views: 1
Size:  86.5 KB
Someone adapted to use in a newer car
Name:  IMG_6934.jpg
Views: 1
Size:  82.1 KB

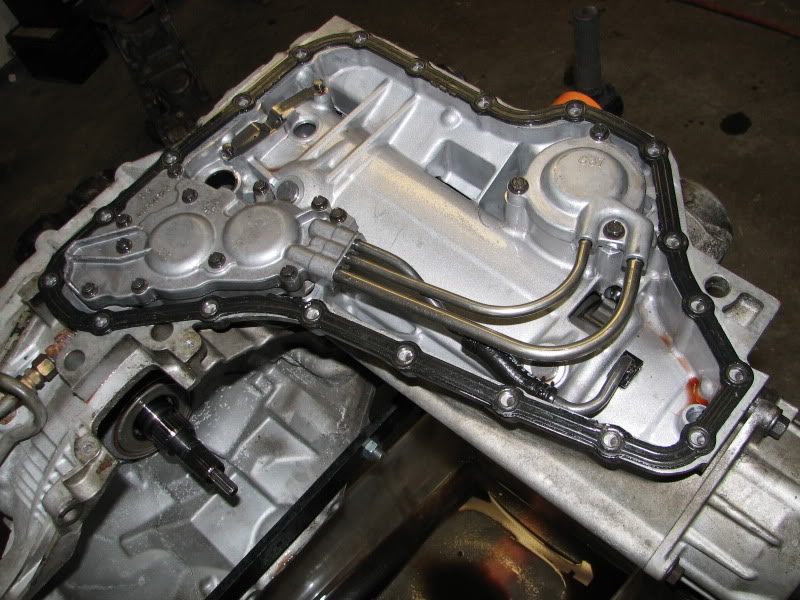

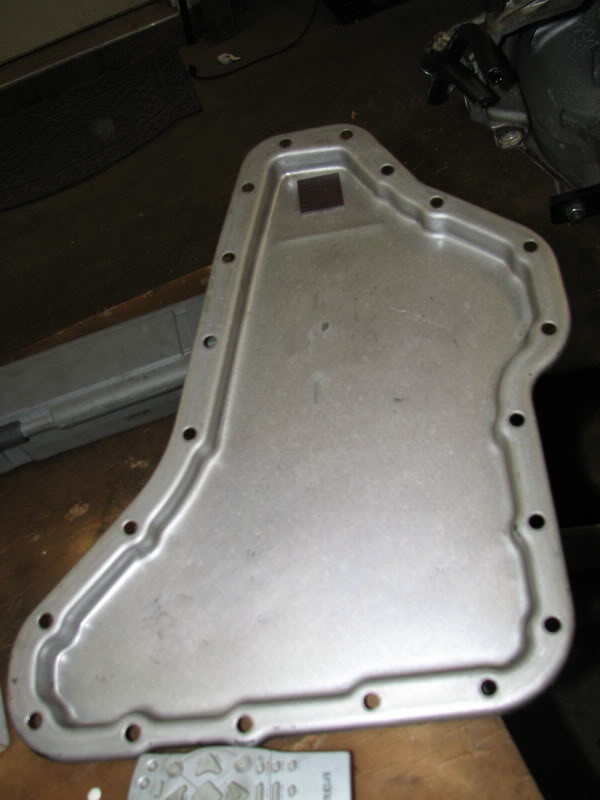

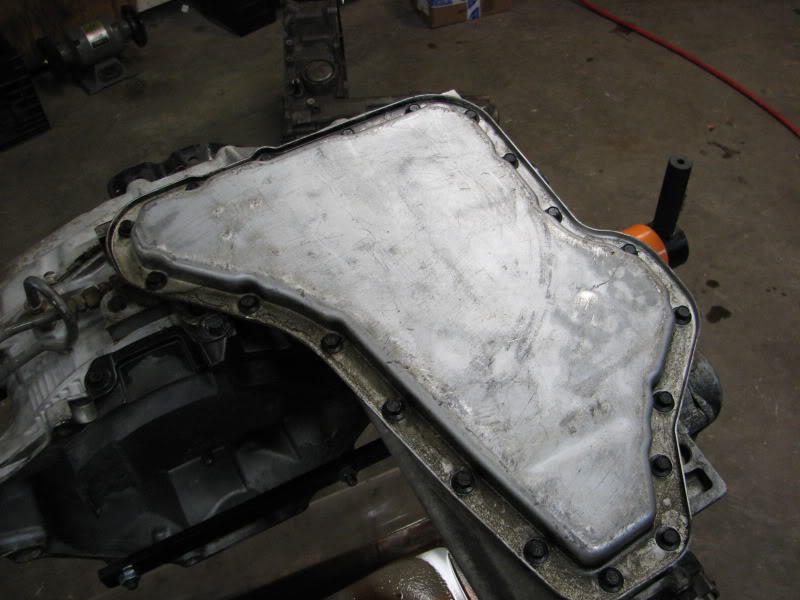

Readying for filter
Name:  IMG_6935.jpg
Views: 3
Size:  79.1 KB
Name:  IMG_6936.jpg
Views: 2
Size:  48.8 KB
Name:  IMG_6937.jpg
Views: 1
Size:  121.3 KB
I'm out for dinner
Got back from the Chowder Pot (Yeahhhhh), picked up the trans filter. Would you believe it didn't fit snug in the collar? The blind pilot bearing tool made quick work of removing the old collar and a large socket and rubber mallet installed the new one like butter. Filter now fits nice and snug like it should. Pan went back on and trans is wheeled over to the side for the night.
At this point it'* lower subframe and pop the old trans out, put the new trans in place and bolt it back up. The starter, axles diff bracket etc etc will go in and then the subframe will pop back on. Hopefully with new bushings. I think they are that for that style subframe.
Potentially I could be starting it up Monday/Tuesday.
Attached Images
File Type: jpg IMG_6907.jpg (134.9 KB, 1 views)
BillBoost37 is offline   Reply With Quote
Old 10-15-2010, 12:38 PM   #14
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Idle hangs for Bill is never an option
Nighthwk12 is offline   Reply With Quote
Old 10-15-2010, 08:16 PM   #15
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Where are the turbo oil lines connected to?
Mike is offline   Reply With Quote
Old 10-15-2010, 08:31 PM   #16
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Who'd like an update?

Subframe fell out of the car
Name:  IMG_6940.jpg
Views: 1
Size:  108.6 KB

Supported the turbo piping.

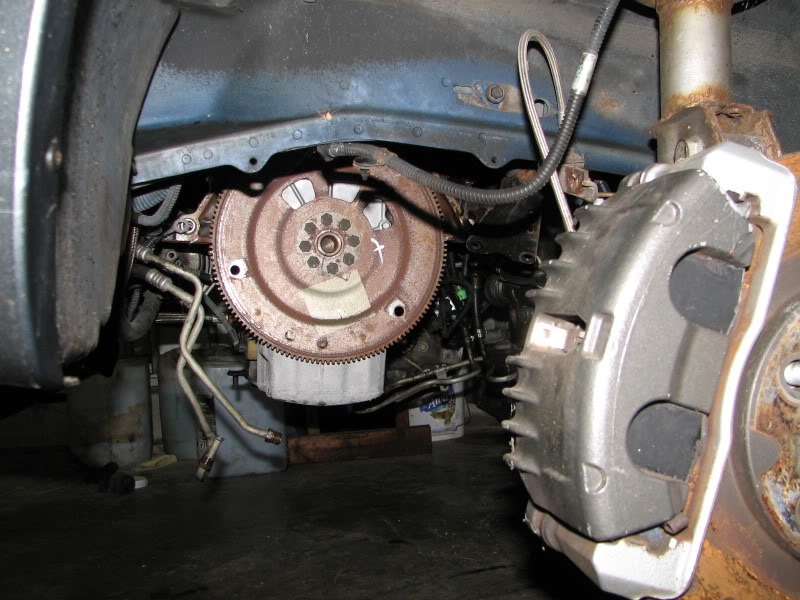

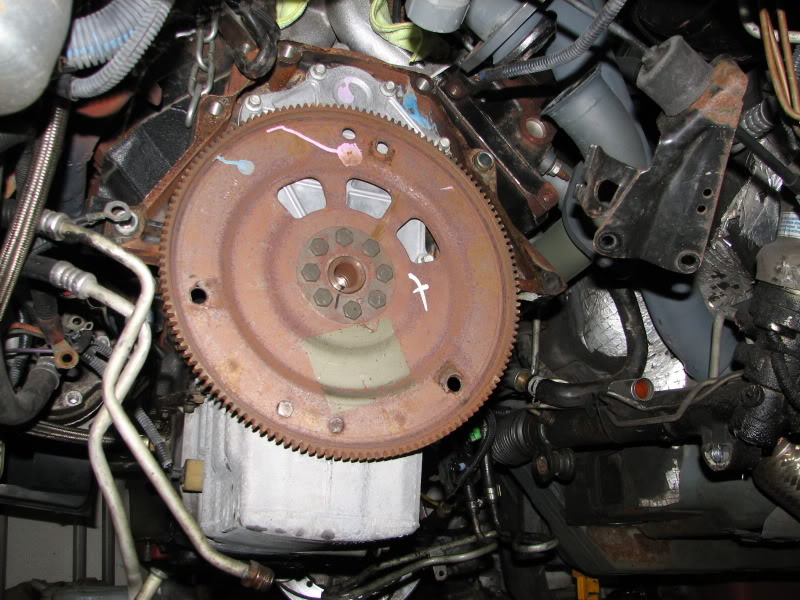

A few more pictures
Name:  IMG_6944.jpg
Views: 2
Size:  102.7 KB
Name:  IMG_6945.jpg
Views: 1
Size:  123.8 KB
Name:  IMG_6946.jpg
Views: 1
Size:  129.1 KB

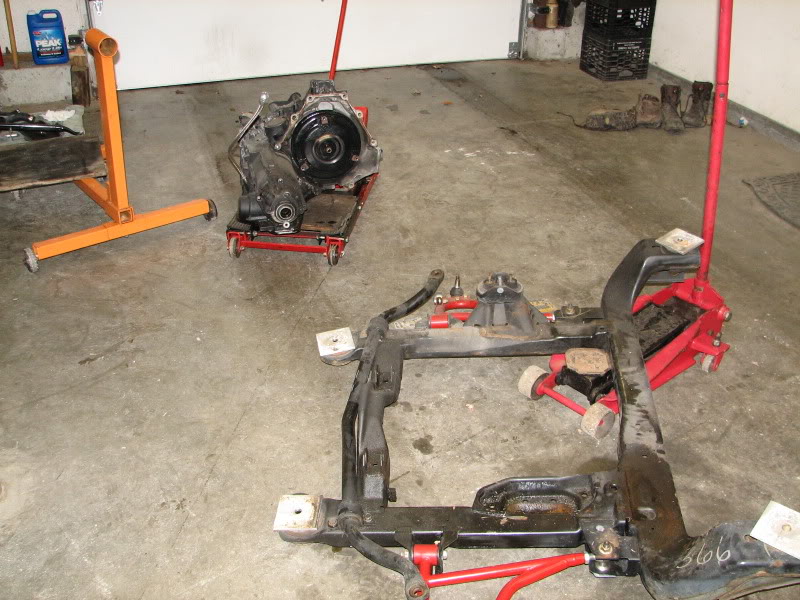

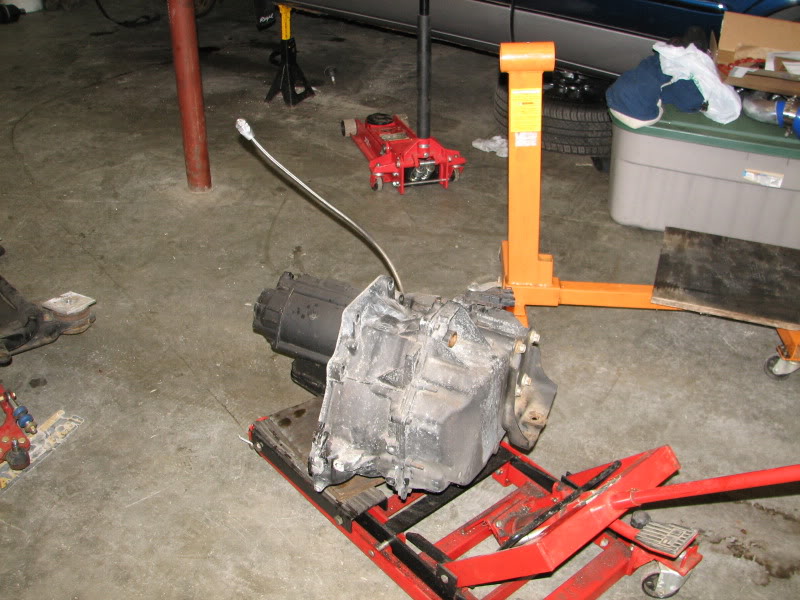

Trans fell out
Name:  IMG_6947.jpg
Views: 1
Size:  121.5 KB
Name:  IMG_6948.jpg
Views: 2
Size:  117.2 KB

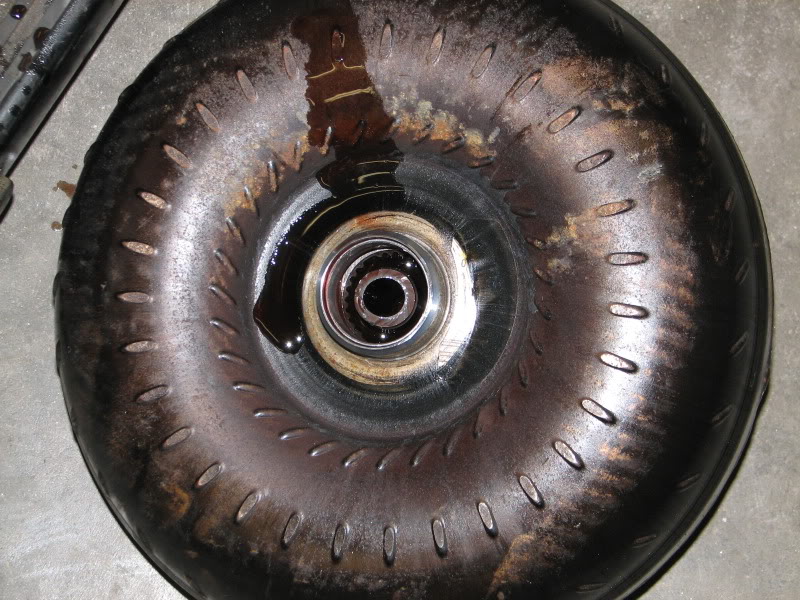

Pulled the converter off to drain it.
Name:  IMG_6949.jpg
Views: 1
Size:  134.7 KB
Name:  IMG_6950.jpg
Views: 3
Size:  112.6 KB

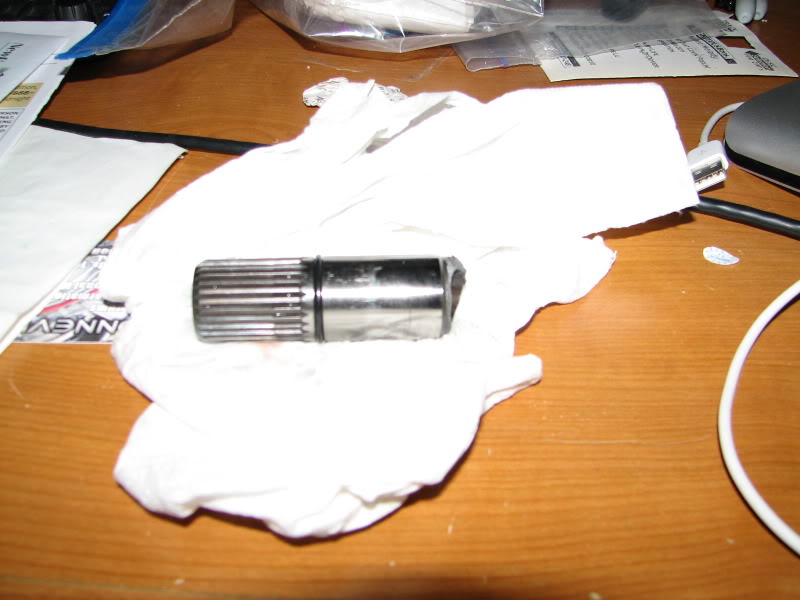

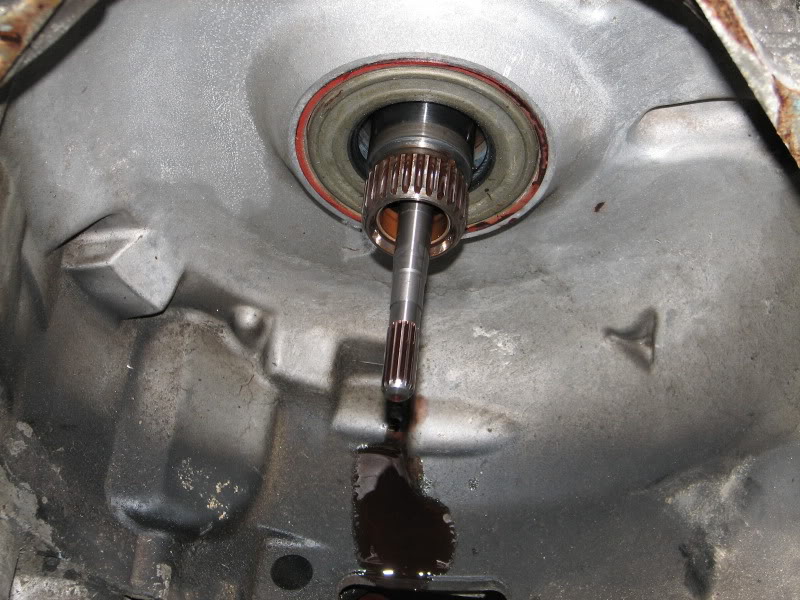

To the untrained eye, you may not know that something is out of place in those last couple pictures. If you turn the converter upside down to pick up the other half of the input shaft. I'm gonna pull out the JB Weld and put this trans back in. Then keep the super trans for myself. Superglue might not hold, but JB Weld is the way to go.
Name:  IMG_6951.jpg
Views: 2
Size:  68.0 KB

Andrew broke the input shaft!!!!!!!
BillBoost37 is offline   Reply With Quote
Old 10-15-2010, 08:32 PM   #17
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

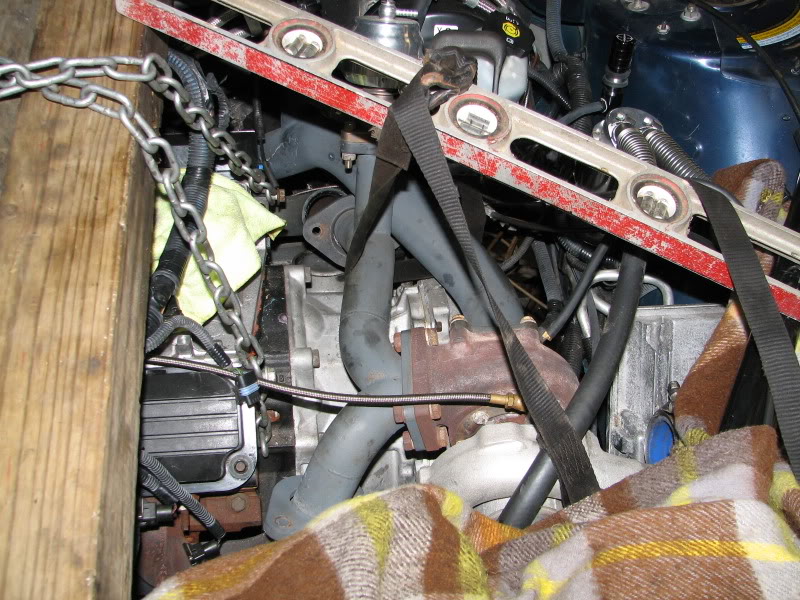

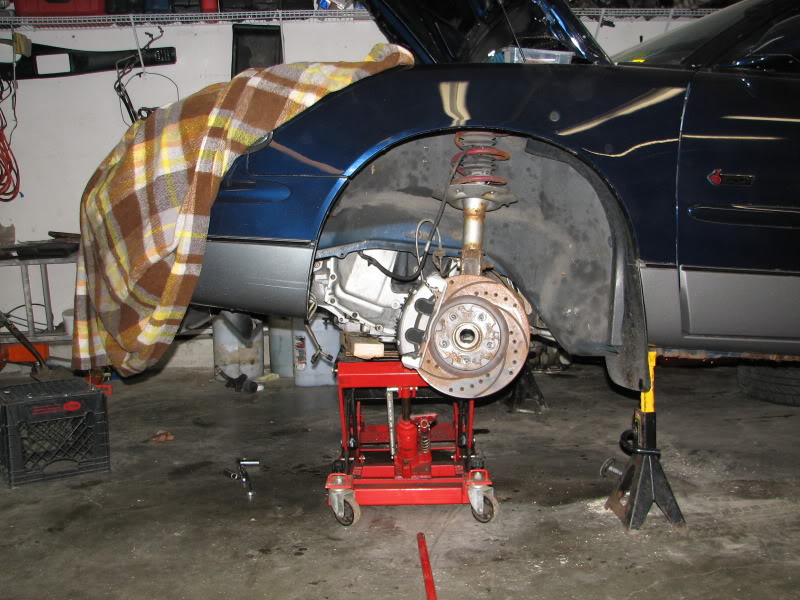

New trans is in and bolted to the engine. Thought you guys would like know.
Name:  IMG_6952.jpg
Views: 1
Size:  115.5 KB
Name:  IMG_6953.jpg
Views: 1
Size:  149.2 KB

I'm off to go hook it all up and put the subframe back in place.
BillBoost37 is offline   Reply With Quote
Old 10-15-2010, 08:33 PM   #18
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

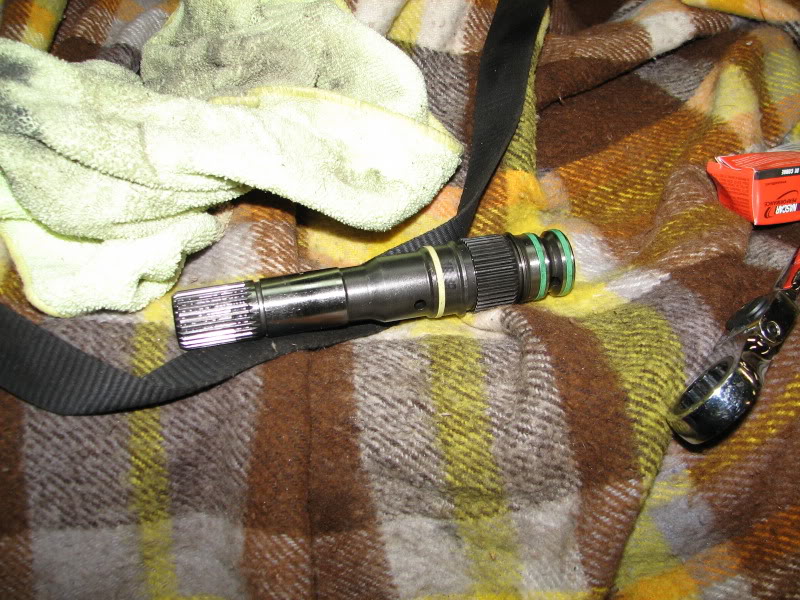

Already pulled a good input shaft out of the stash.
Name:  IMG_6954.jpg
Views: 4
Size:  148.0 KB

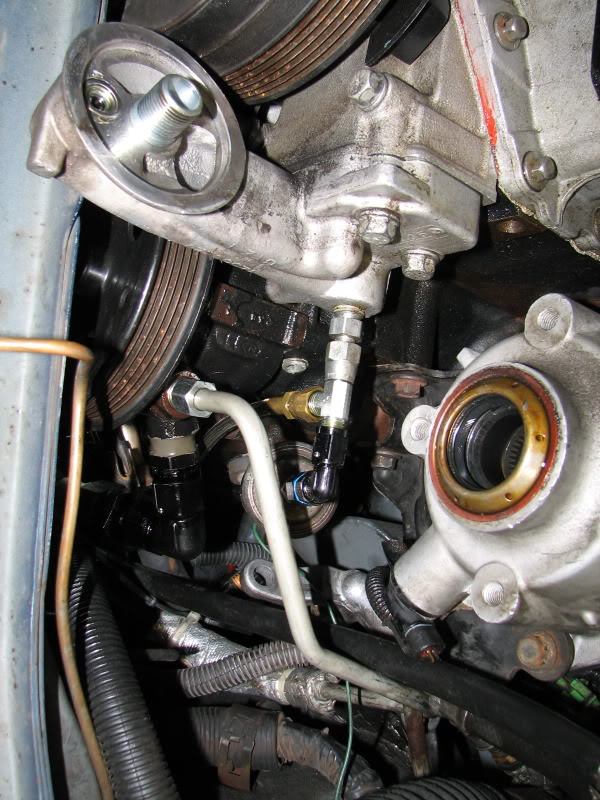

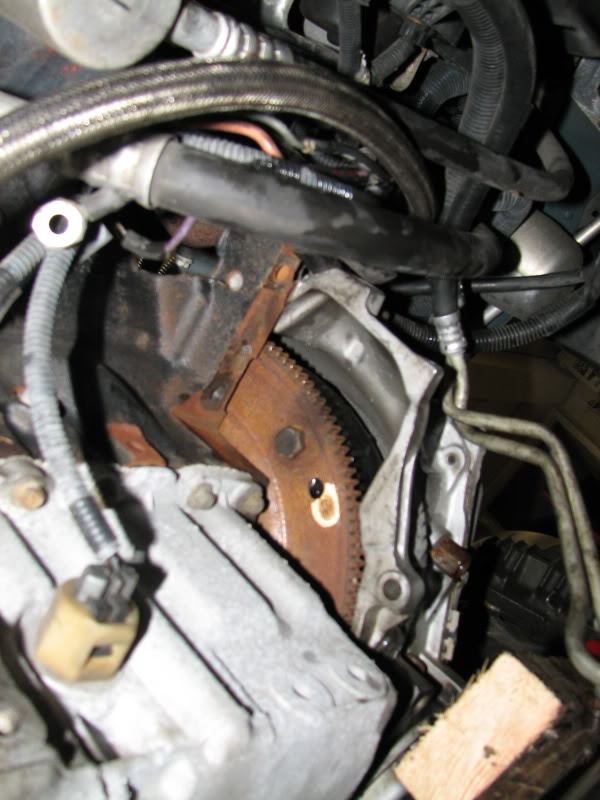

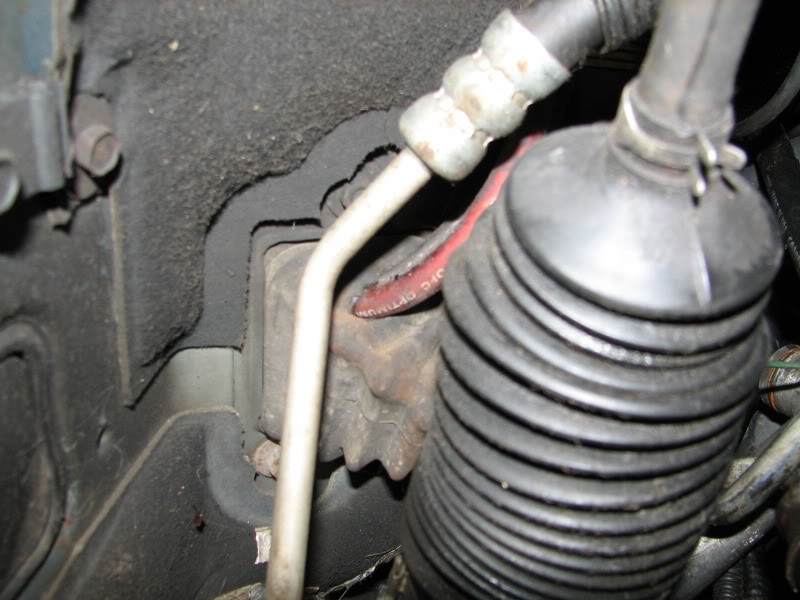

Some shots
Name:  IMG_6955.jpg
Views: 1
Size:  84.2 KB
Name:  IMG_6956.jpg
Views: 1
Size:  139.5 KB
Name:  IMG_6957.jpg
Views: 1
Size:  100.5 KB

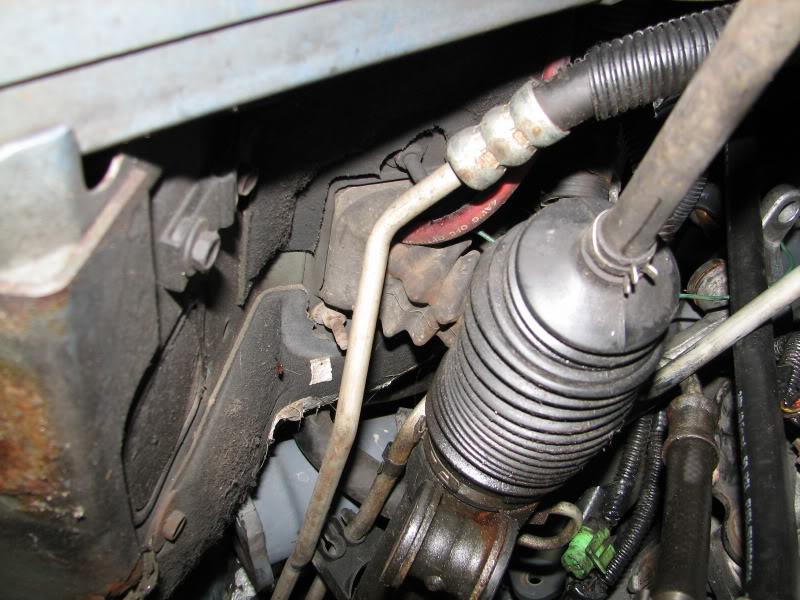

Name:  IMG_6960.jpg
Views: 1
Size:  108.4 KB
Name:  IMG_6961.jpg
Views: 1
Size:  77.4 KB
Name:  IMG_6962.jpg
Views: 1
Size:  60.6 KB
Name:  IMG_6963.jpg
Views: 1
Size:  101.3 KB

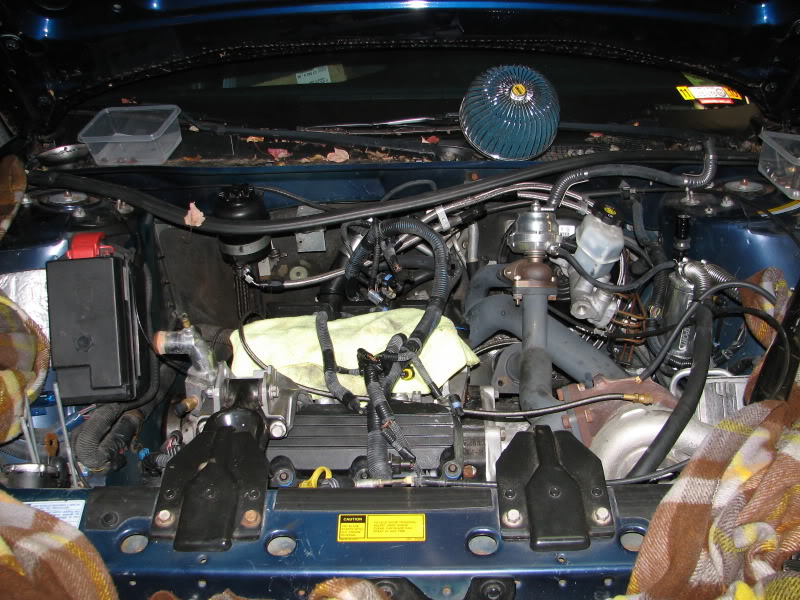

No more cross your heart chains
Name:  IMG_6964.jpg
Views: 1
Size:  135.0 KB

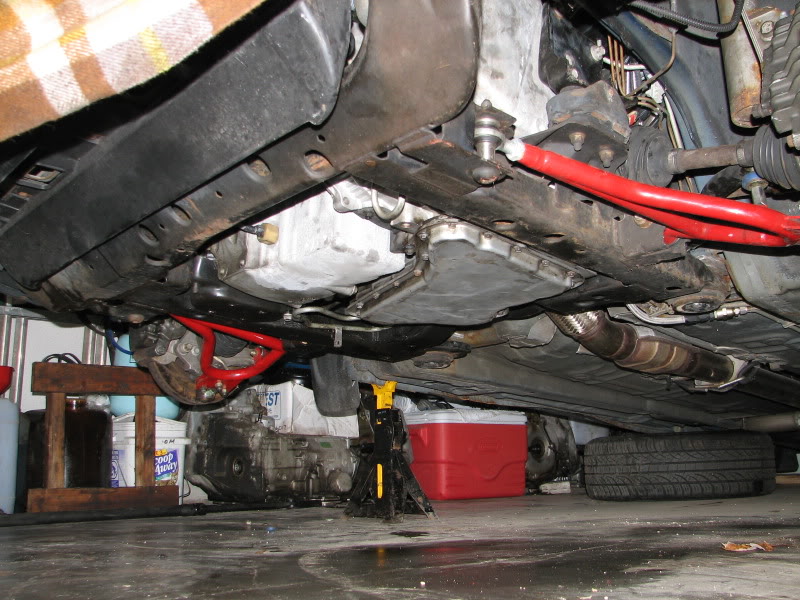

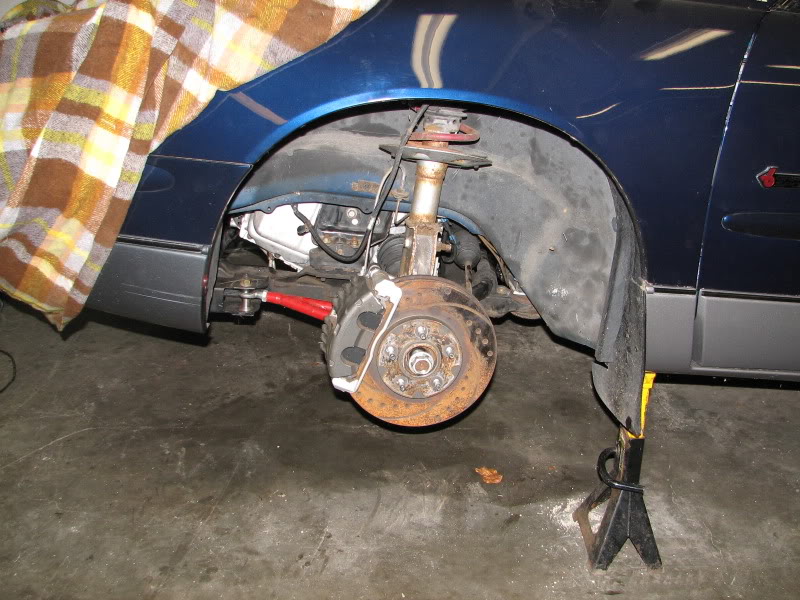

Subframe back in.. before it went in.. flex to TC bolts went in, starter, inspection shield, axles, you name it.. it was done before the sub went back in.
Name:  IMG_6965.jpg
Views: 2
Size:  117.2 KB
Name:  IMG_6966.jpg
Views: 2
Size:  134.4 KB

I need to connect one endlink, tighten the balljoints, reconnect abs sensors, bolt the ps cooler loop to the subframe, ps rack to subframe, then it'* reassemble the top end and figure out that coolant hose.

$50 for a ride around the block ... who wants to see what it can do?
BillBoost37 is offline   Reply With Quote
Old 10-15-2010, 08:34 PM   #19
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by Mike1995 View Post
Where are the turbo oil lines connected to?
One comes off a T from where the oil pressure sender would be and the return line is tapped into the oil pan in the front.
BillBoost37 is offline   Reply With Quote
Old 10-15-2010, 11:22 PM   #20
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Nice work, Bill! You make it look so quick & easy!
