Default Turbo Regal

A local asked me to put in a cam and transmission for him. 3 or so hours from the time I got home... It'* about time to go pick up a transmission. While waiting for the better time traffic wise I started in on the car.

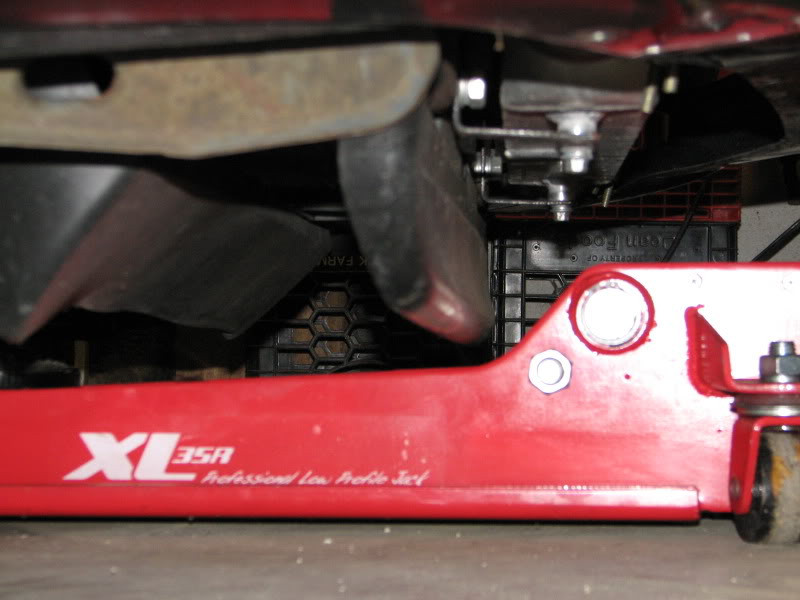

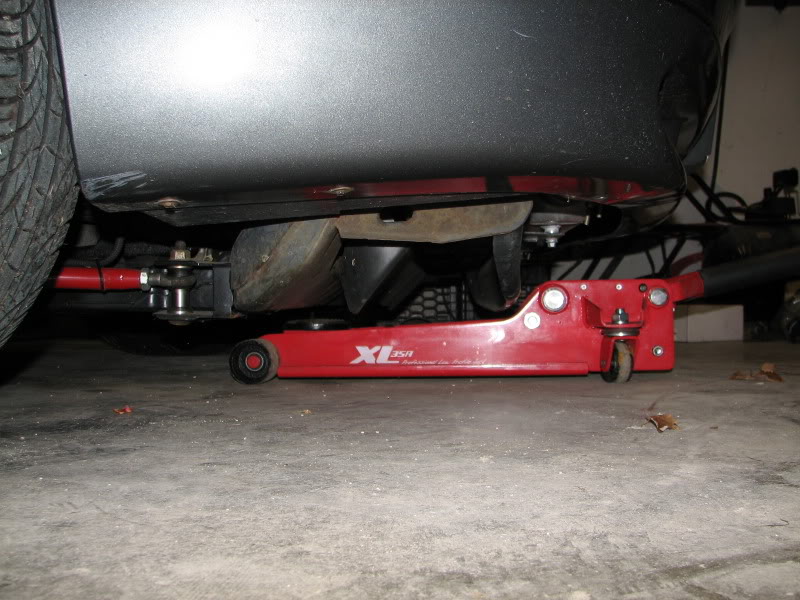

The jack was made for this car.
Name:  IMG_6792.jpg
Views: 2
Size:  101.5 KB
Name:  IMG_6793.jpg
Views: 2
Size:  62.9 KB

Moisture on the pan
Name:  IMG_6794.jpg
Views: 1
Size:  53.8 KB

Uh..yuck
Name:  IMG_6795.jpg
Views: 2
Size:  72.5 KB

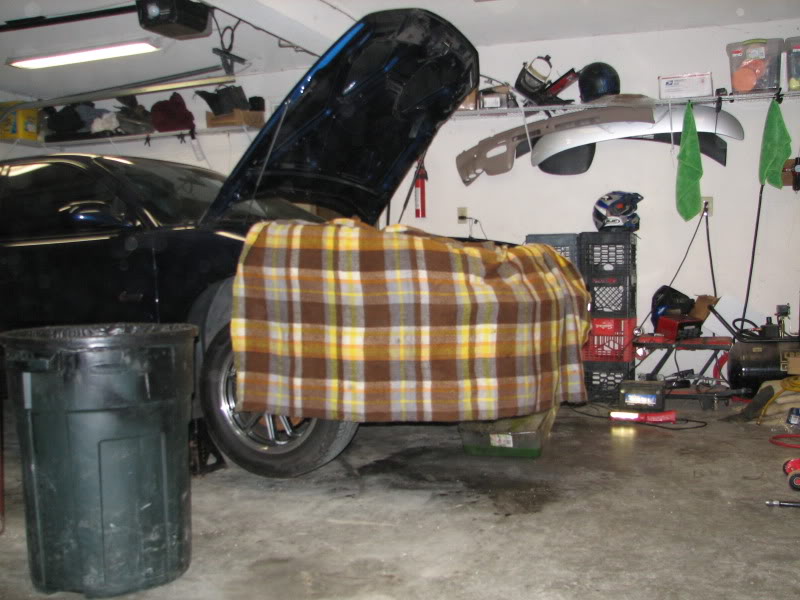

The car was cold
Name:  IMG_6798.jpg
Views: 1
Size:  90.2 KB

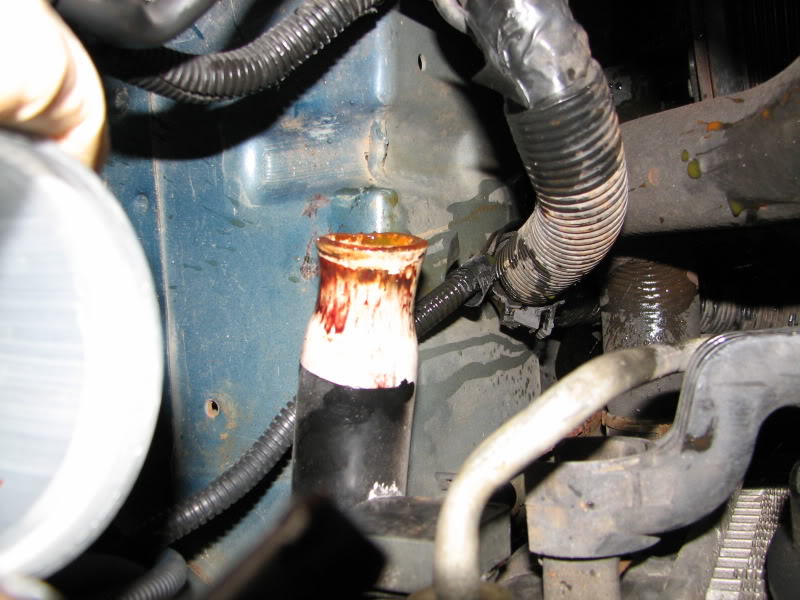

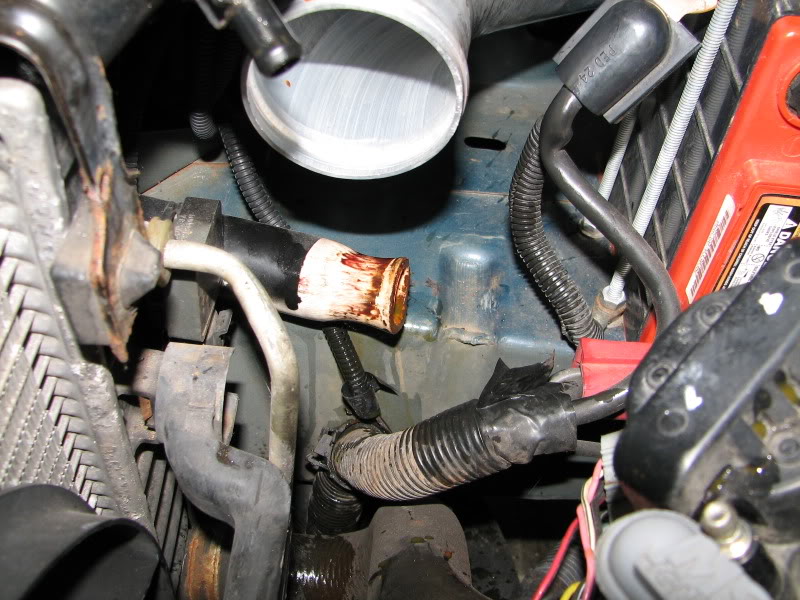

Here'* the coolant hose wrap around. I'm thinking the heat of the cooling system did this, Ben can you please confirm, thanks.
Name:  IMG_6799.jpg
Views: 1
Size:  118.8 KB
Name:  IMG_6800.jpg
Views: 2
Size:  94.0 KB

Aussie tensioner
Name:  IMG_6802.jpg
Views: 1
Size:  79.7 KB

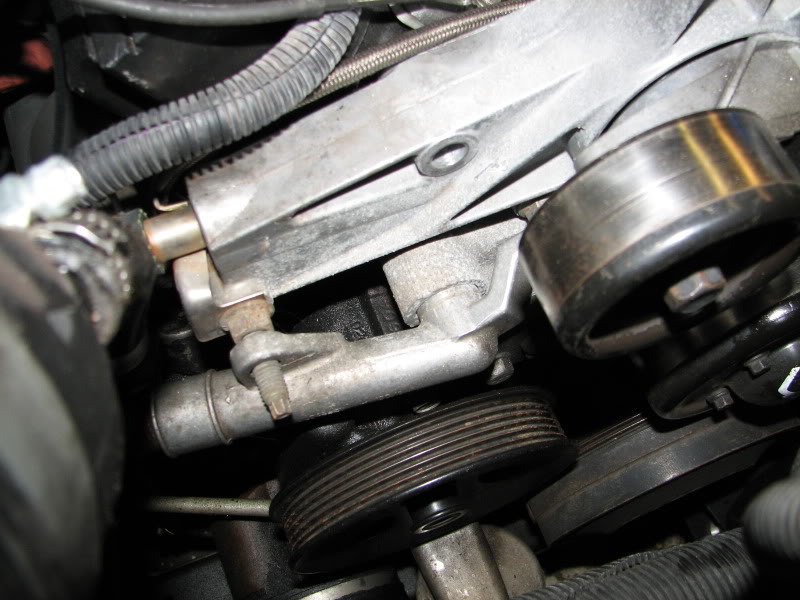

Name:  IMG_6804.jpg
Views: 2
Size:  90.3 KB

Located more moisture
Name:  IMG_6808.jpg
Views: 1
Size:  113.7 KB

Gettin in there
Name:  IMG_6809.jpg
Views: 2
Size:  154.7 KB
Name:  IMG_6810.jpg
Views: 1
Size:  145.7 KB

Who'* great idea at ZZP was it to not tap the metal of the flange? ZZFail I tell ya. It could have been much easier, much. Ben used 15mm nuts here, and 14'* on the downpipe. Kept me hopping to the toolbox, thanks for the exercise, lol

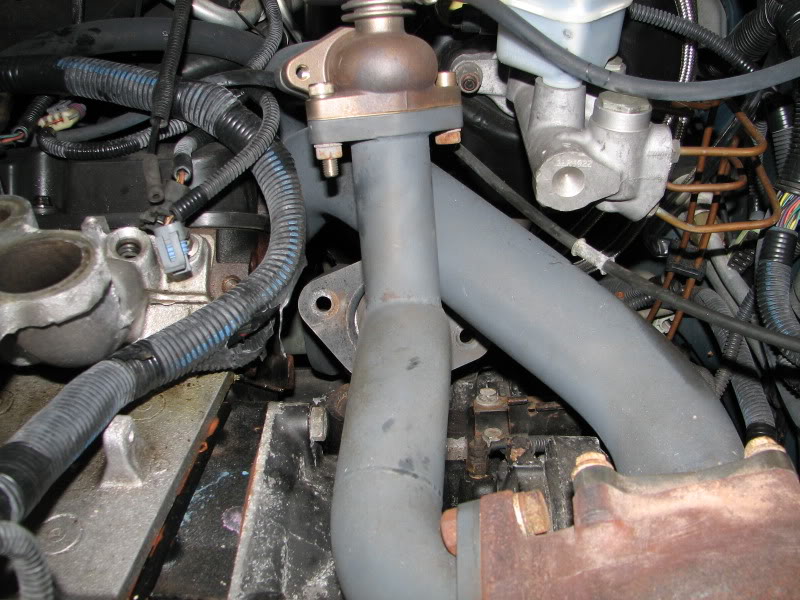

Name:  IMG_6815.jpg
Views: 2
Size:  118.2 KB

Here kitty kitty, this might rub in reverse. Although there were no signs that it ever did.
Name:  IMG_6817.jpg
Views: 2
Size:  77.6 KB
Name:  IMG_6818.jpg
Views: 2
Size:  92.2 KB

Now we can get into the valve cover.
Name:  IMG_6819.jpg
Views: 2
Size:  116.2 KB

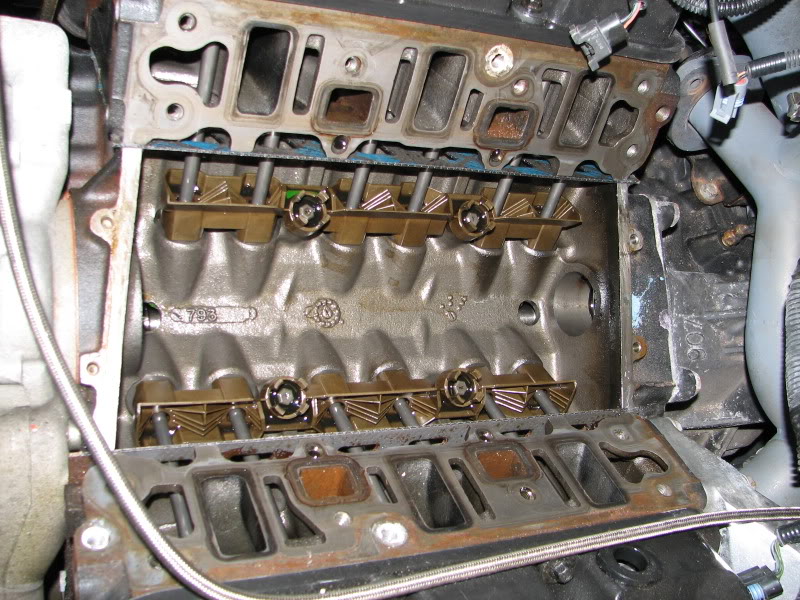

Here is a super clean engine.
Name:  IMG_6821.jpg
Views: 1
Size:  148.4 KB

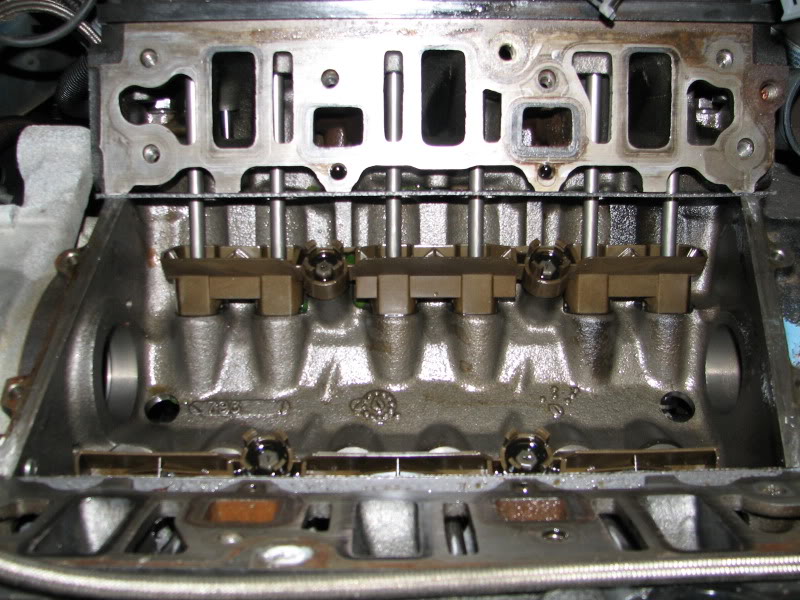

Name:  IMG_6822.jpg
Views: 2
Size:  120.7 KB
Name:  IMG_6824.jpg
Views: 2
Size:  154.0 KB

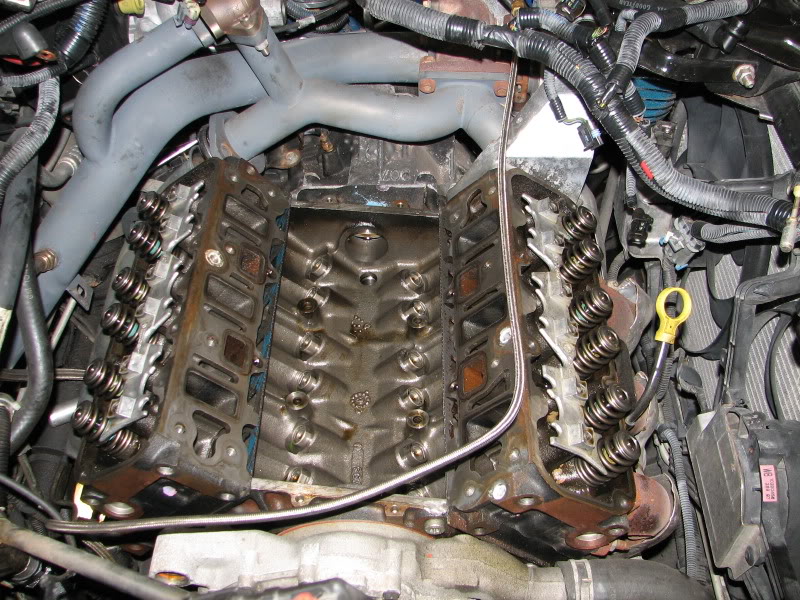

Name:  IMG_6827.jpg
Views: 1
Size:  163.7 KB

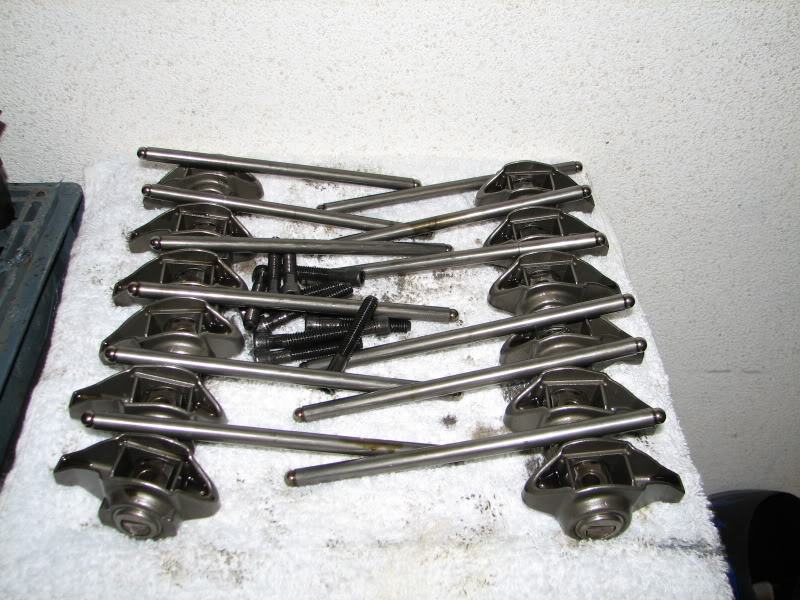

Name:  IMG_6830.jpg
Views: 2
Size:  126.2 KB

Paul..you want left or right?
Name:  IMG_6832.jpg
Views: 1
Size:  109.4 KB

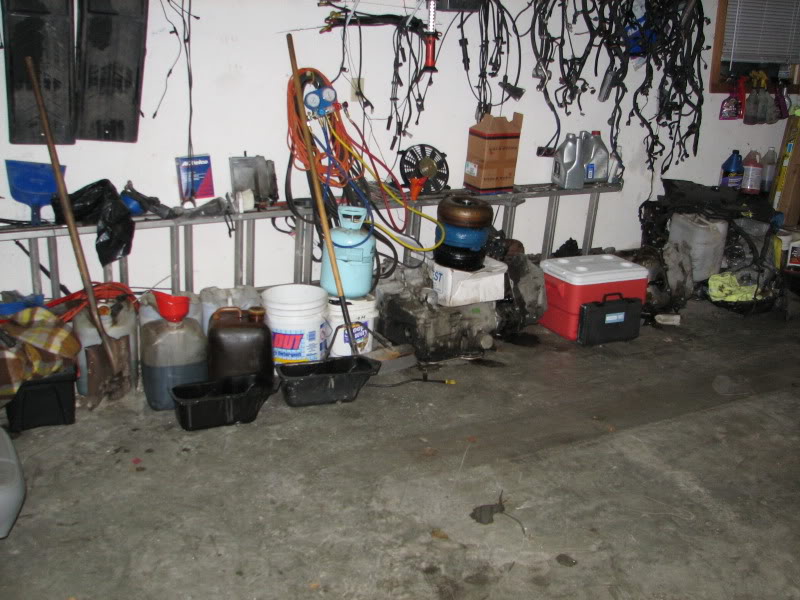

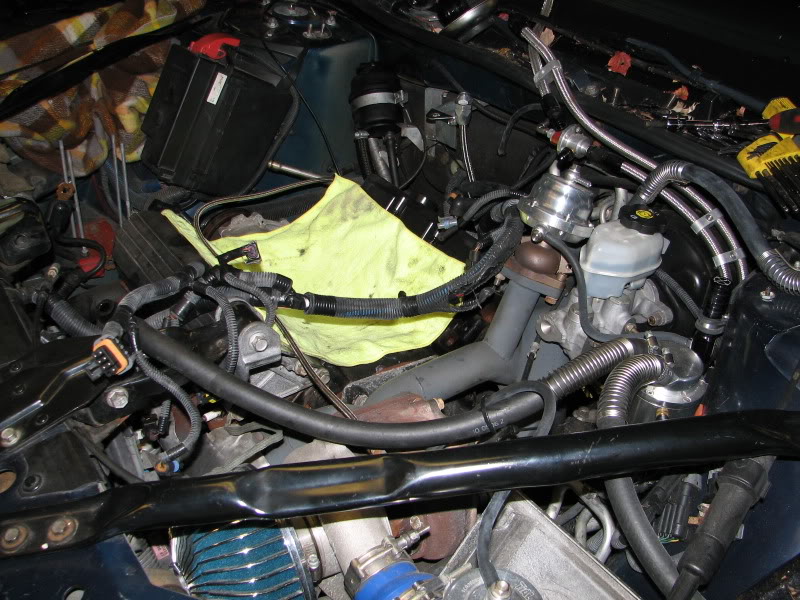

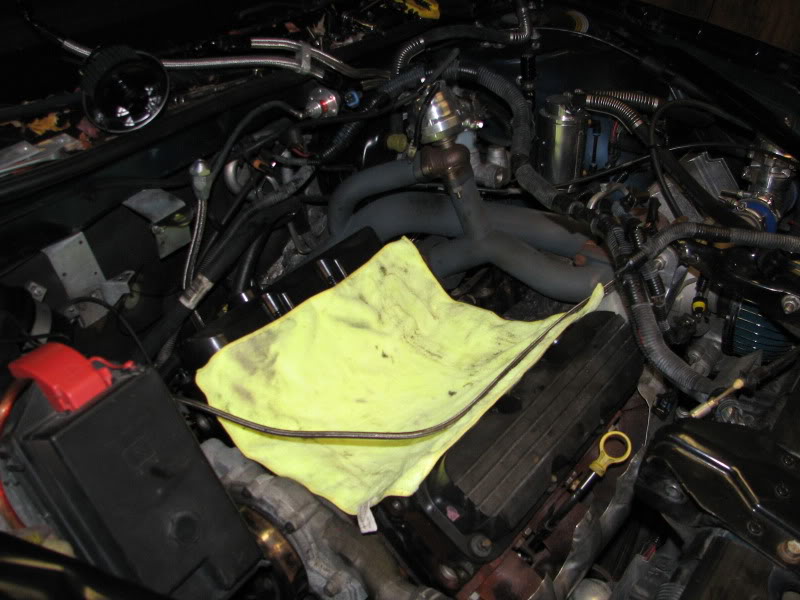

How it sleeps until I return with the trans and a small pan to put the lifters in to soak
Name:  IMG_6833.jpg
Views: 2
Size:  85.4 KB
Name:  IMG_6834.jpg
Views: 2
Size:  133.5 KB
BillBoost37 is offline   Reply With Quote
Old 10-04-2010, 09:02 PM   #2
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Cool!
Jonpro03 is offline   Reply With Quote
Old 10-04-2010, 11:10 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Great work Bill.
Danthurs is offline   Reply With Quote
Old 10-04-2010, 11:11 PM   #4
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

sweet chit man good job hope you dont hit any unexpected hold ups
sseidriver97 is offline   Reply With Quote
Old 10-05-2010, 07:34 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by sseidriver97 View Post
sweet chit man good job hope you dont hit any unexpected hold ups
Already got past the visible ones. My next concern is if the double roller timing chain gear on the crank was chamfered for the issue of it being an Aussie chain and this being a US crank. (different noses/chamfers that causes issues on the US ones not aligning properly.) If that'* out of whack then I need a crank gear to match up and drop at the machine shop.
BillBoost37 is offline   Reply With Quote
Old 10-05-2010, 01:54 PM   #6
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I could have imagined that the Aus setup had such a LIM, but I'm surprised nonetheless. That looks pretty awesome!
radomirthegreat is offline   Reply With Quote
Old 10-06-2010, 07:45 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

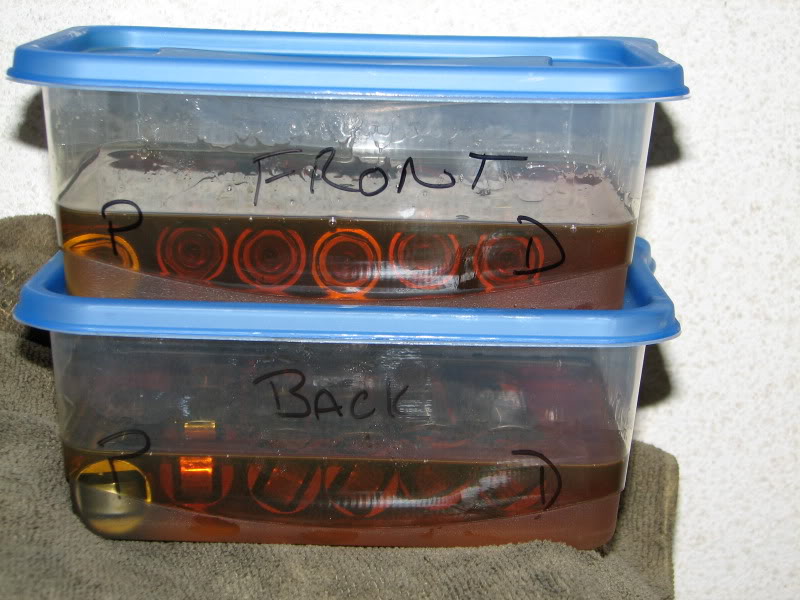

Pulled the lifters, labeled and soaking in oil.
Name:  IMG_6839.jpg
Views: 2
Size:  92.7 KB
Took the balancer off and oil pan bolts. This aluminum pan makes it easy, the mount stays on it. No need to jockey three jacks.
Name:  IMG_6840.jpg
Views: 1
Size:  113.6 KB
Water pump pulley is off, as are the timing cover bolts
Name:  IMG_6841.jpg
Views: 2
Size:  105.1 KB

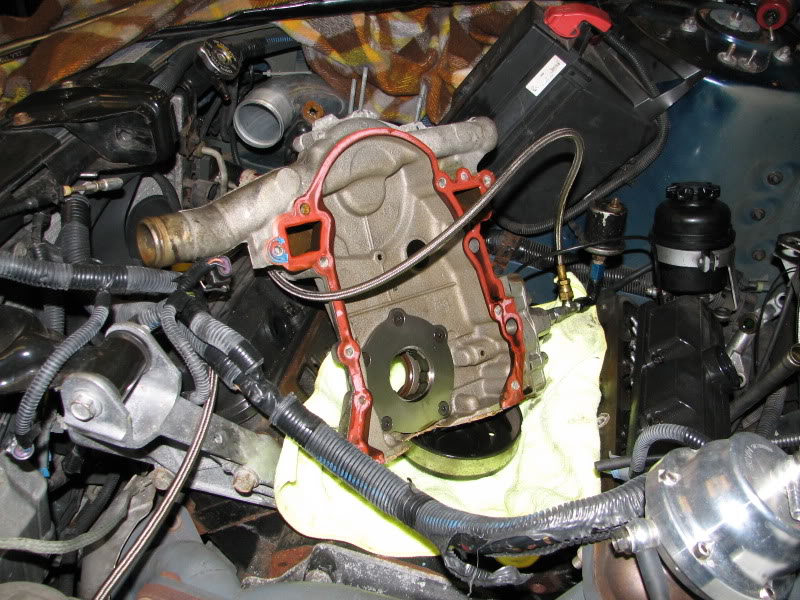

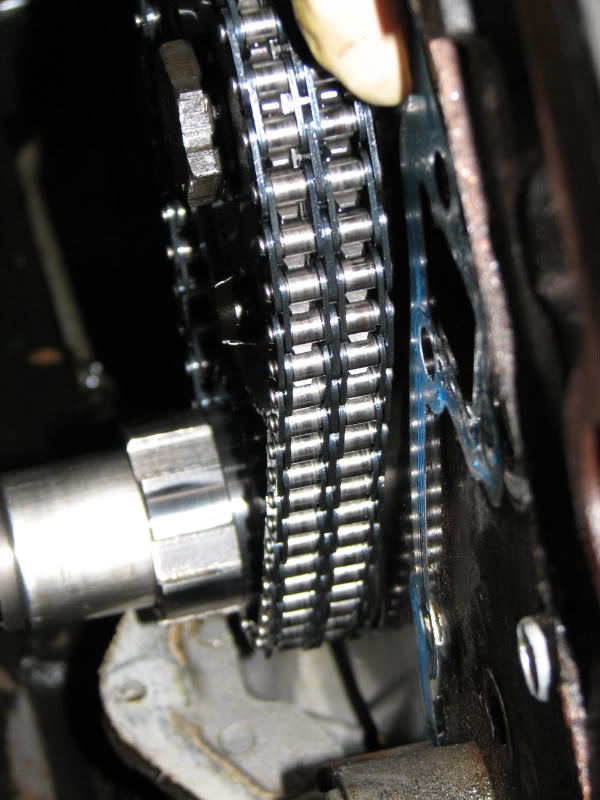

Timing cover off, no signs of issues from the double roller chain
Name:  IMG_6844.jpg
Views: 2
Size:  143.3 KB
Name:  IMG_6847.jpg
Views: 1
Size:  87.3 KB

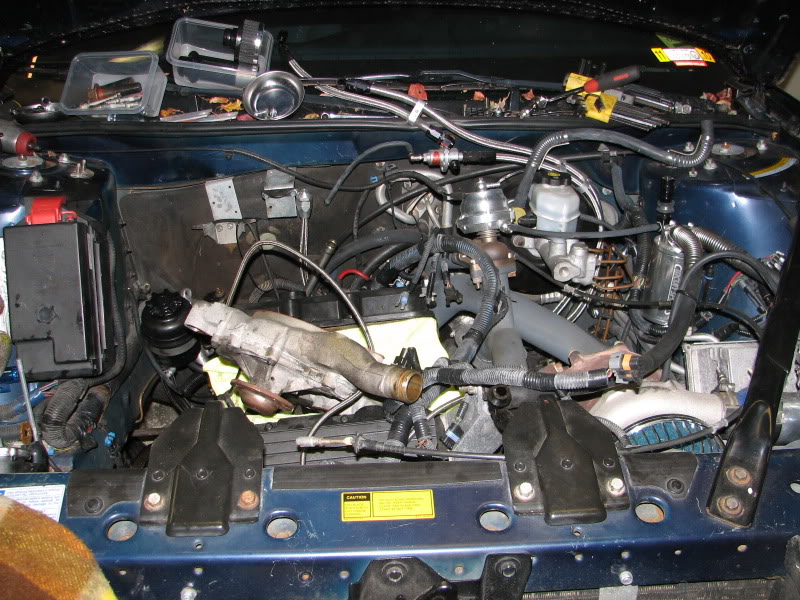

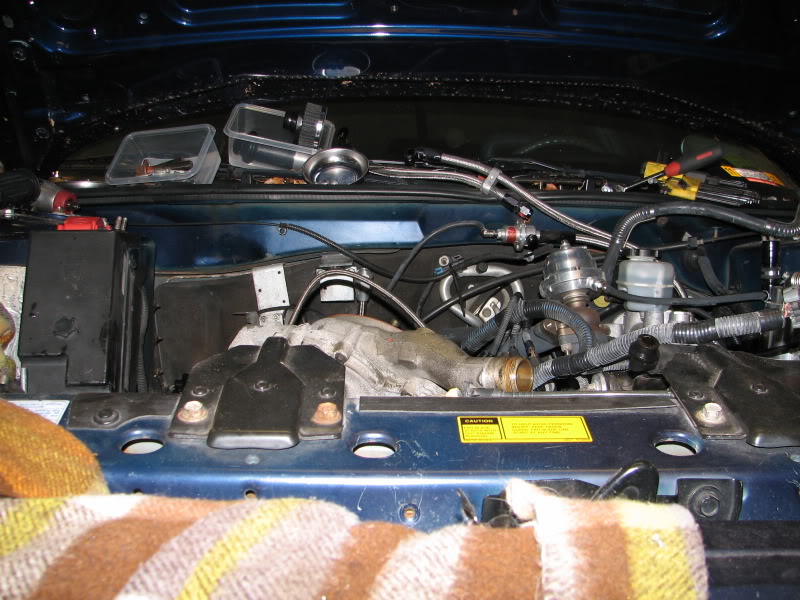

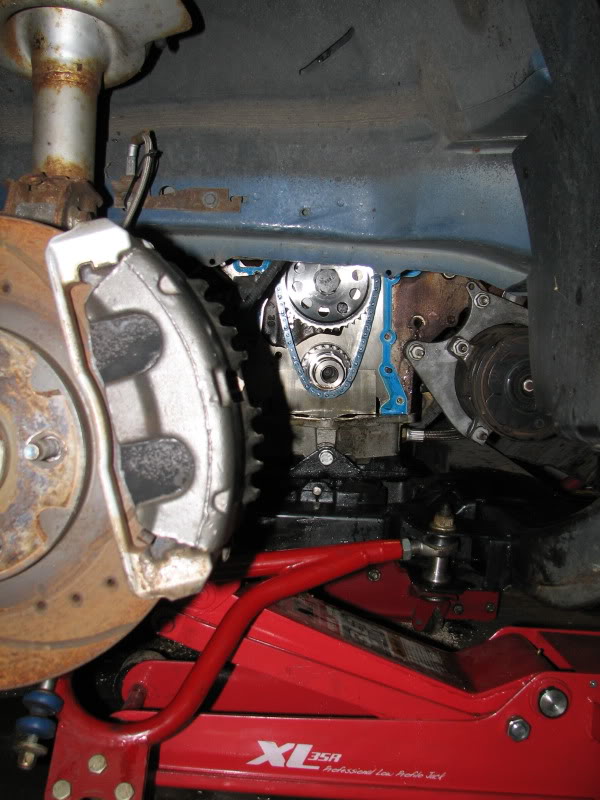

First time doing a cam through the wheel well. You nearly have to drop it on the ground
Name:  IMG_6848.jpg
Views: 2
Size:  114.4 KB
Name:  IMG_6849.jpg
Views: 2
Size:  147.1 KB
Name:  IMG_6851.jpg
Views: 2
Size:  95.7 KB

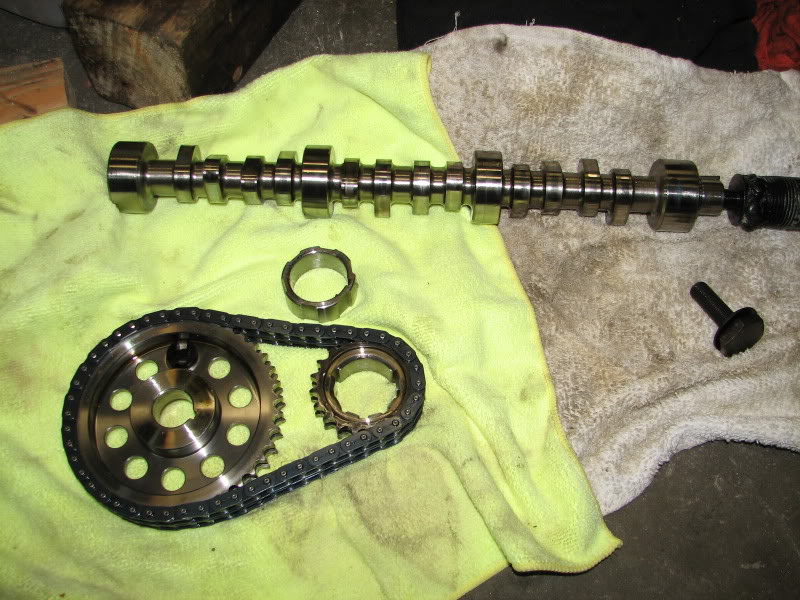

Timing chain is off. It was chamfered at home to accept the US crankshaft (timing set is Aussie and doesn't fit 100% out of the box)
Name:  IMG_6852.jpg
Views: 2
Size:  127.9 KB
Name:  IMG_6854.jpg
Views: 2
Size:  88.6 KB

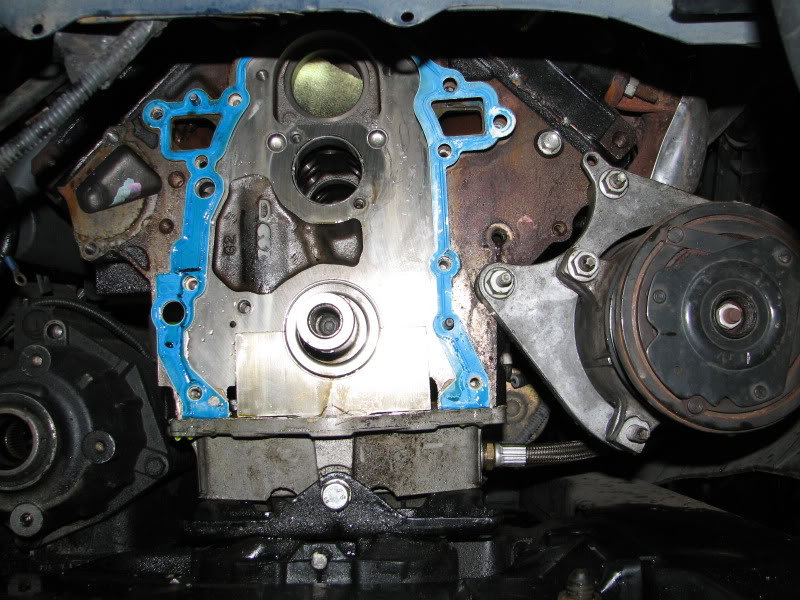

A holey situation
Name:  IMG_6855.jpg
Views: 1
Size:  126.3 KB

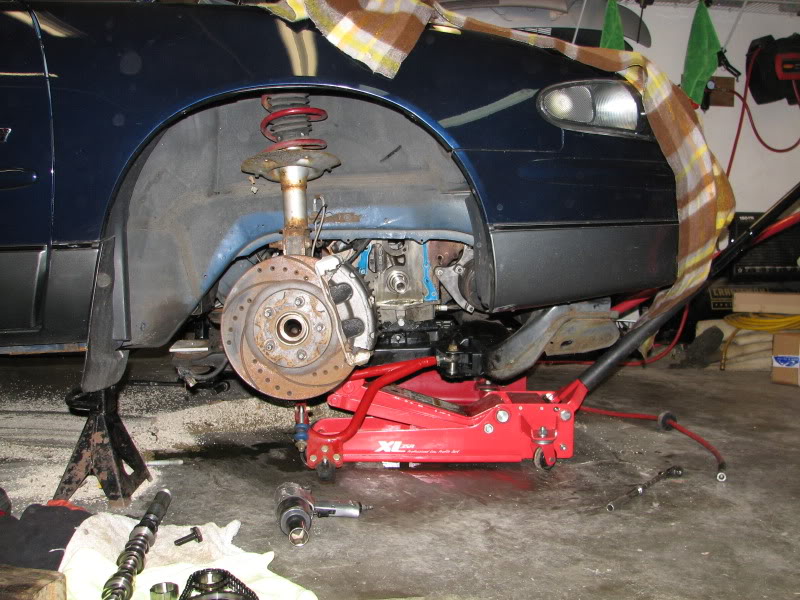

The way it looked
Name:  IMG_6856.jpg
Views: 0
Size:  123.9 KB
I think this cam was stored in a submarine
Name:  IMG_6857.jpg
Views: 1
Size:  113.4 KB

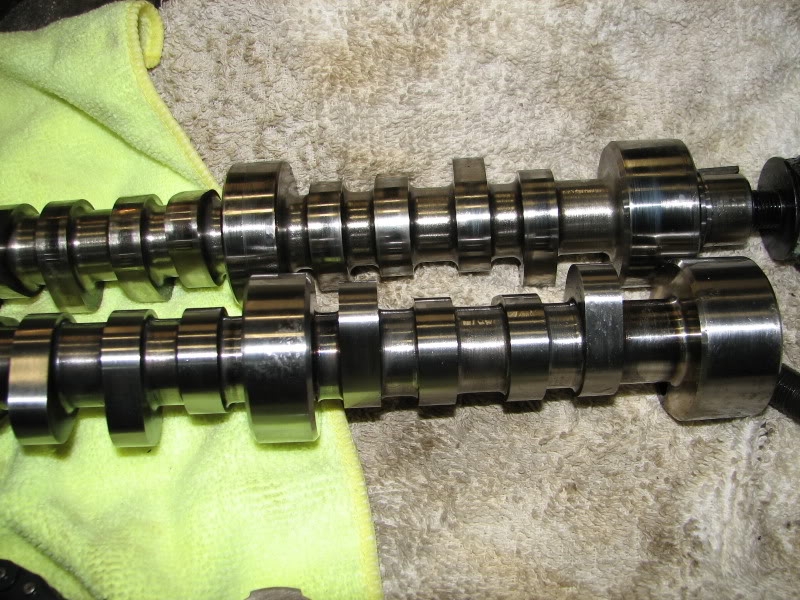

Machinist told me the last time I was there to polish a couple of cams that all they were doing was using an oily green scrubby pad to polish. It'* not very abrasive. Off to Home Depot. Hardly recognize it.
Name:  IMG_6864.jpg
Views: 1
Size:  136.4 KB

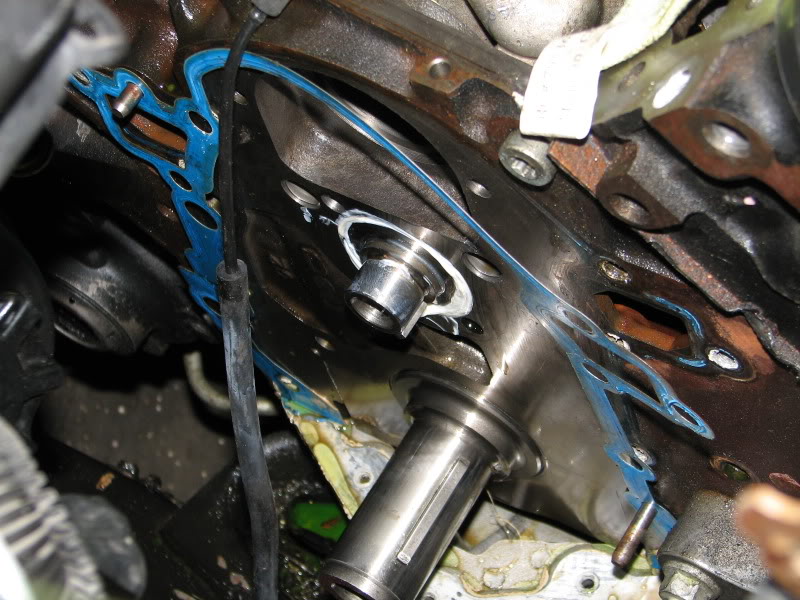

It'* in the motor and ready to be buttoned up
Name:  IMG_6866.jpg
Views: 0
Size:  116.8 KB
I always get dots lining up pictures
Name:  IMG_6868.jpg
Views: 1
Size:  89.3 KB
Timing cover back on, lower radiator hose reinstalled, subframe back in place
Name:  IMG_6872.jpg
Views: 1
Size:  150.0 KB
Power steering res and pump mounted again. Darn thing fought well
Name:  IMG_6875.jpg
Views: 1
Size:  119.0 KB

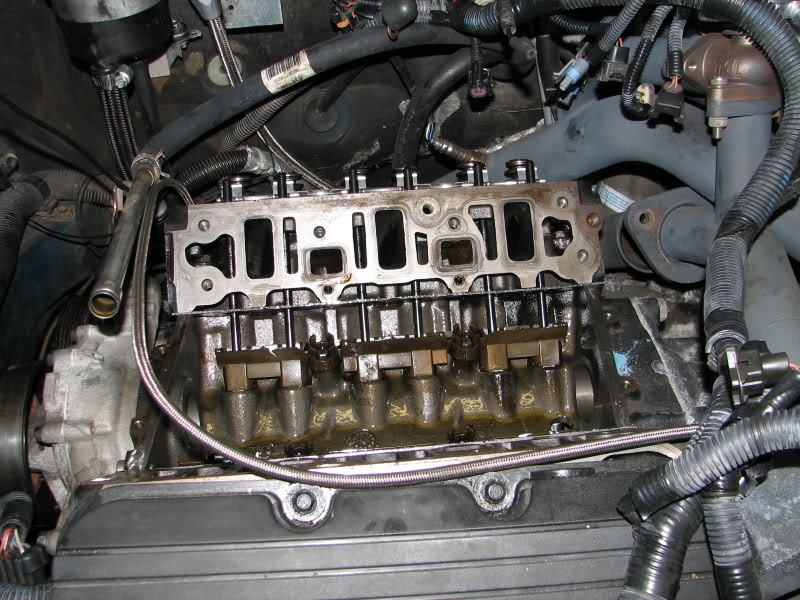

Pushrods in
Name:  IMG_6877.jpg
Views: 0
Size:  149.8 KB

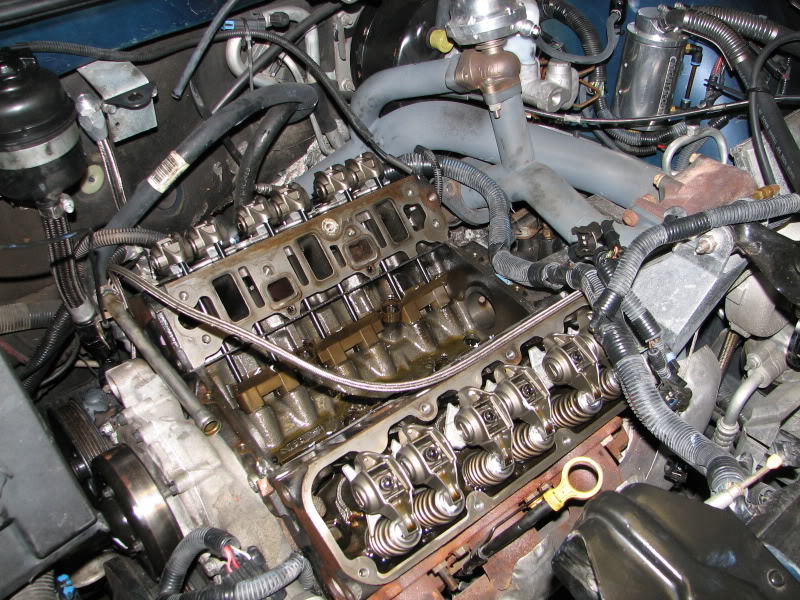

Rockers reinstalled and torqued
Name:  IMG_6878.jpg
Views: 0
Size:  173.1 KB
About to put the valve covers on and I notice.. the gaskets are L67/L32 (like I purchased) and the valve cover is for an L36/L26. Ordering the correct gaskets today. :bonk: Went in and took a shower.
BillBoost37 is offline   Reply With Quote
Old 10-06-2010, 08:25 AM   #8
Senior Member
Posts like a 4 Banger

86 T-type's Avatar

Join Date: Oct 2010
Posts: 106
Thanks: 0
Thanked 0 Times in 0 Posts
86 T-type is on a distinguished road
Default

Nice work! What size turbo? This is much more my area!!!
86 T-type is offline   Reply With Quote
Old 10-06-2010, 09:04 AM   #9
Senior Member
Posts like a Corvette

StealthGXP's Avatar

Join Date: Aug 2010
Posts: 1,337
Thanks: 0
Thanked 0 Times in 0 Posts
StealthGXP is on a distinguished road
Default

Bill, I guess there is a first for everything I have never seen a Cam removed from the wheel well haha
StealthGXP is offline   Reply With Quote
Old 10-06-2010, 09:44 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think it'* a PT61, not sure. I can get a better picture.

It'* my first time going through the wheel well. A lot of people do it this way. Overall it'* not much less work IMO than pulling the motor. Yet being my first time..it may seem that way because of the first time syndrome.
