Default Tuning a top swap

Went down to Germantown, that'* near Milwaukee. To finish up a top swap.

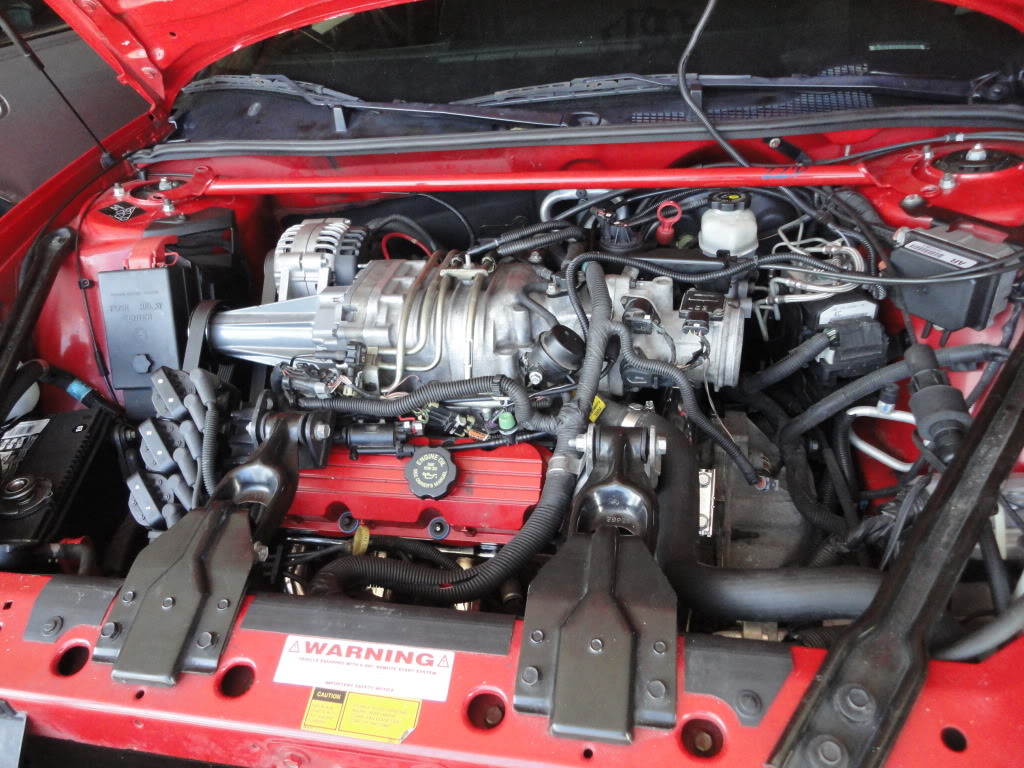

Name:  DSC02734.jpg
Views: 6
Size:  205.8 KB

Hooked up the computer and got right to work.

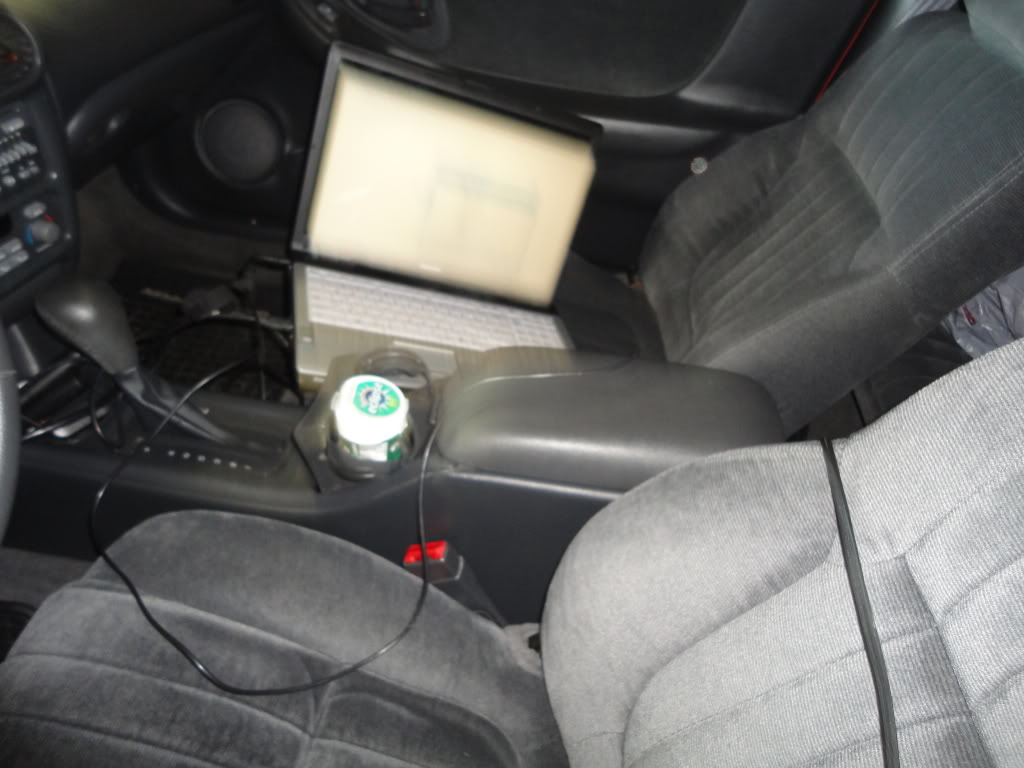

Name:  DSC02735.jpg
Views: 6
Size:  103.6 KB

After doing my TnT tune and uploading it to the PCM, we started it up. Ran a little funny. And it never went in to closed loop. Readings said it was running lean, really lean. But I could smell gas in the exhaust. It was idling high, started to slow a bit, then started to back fire out the tail pipe. Engine was running real rough. I shut it down and stated looking at my scan. Just didn't look right. But nothing in the tune should cause this. I looked at the injector tables, that didn't look right, so I checked another tune and changed that table. Started engine and still same problem. I again shut it down. Hmm, pull the supercharger belt. Start, same problem. Again, shut down. Scratched my head a bit. Seems like it'* not firing right. Just then Rich pulled up. He helped finish the top swap. We talked a bit, seems like it'* not firing right. So we checked the plug wires. Yep, 2 and 4 were reversed. So while Rich goes to switch them and brakes a fuel line. Well, now we need to fix that. After all was fixed the engine fired up and sounded great.

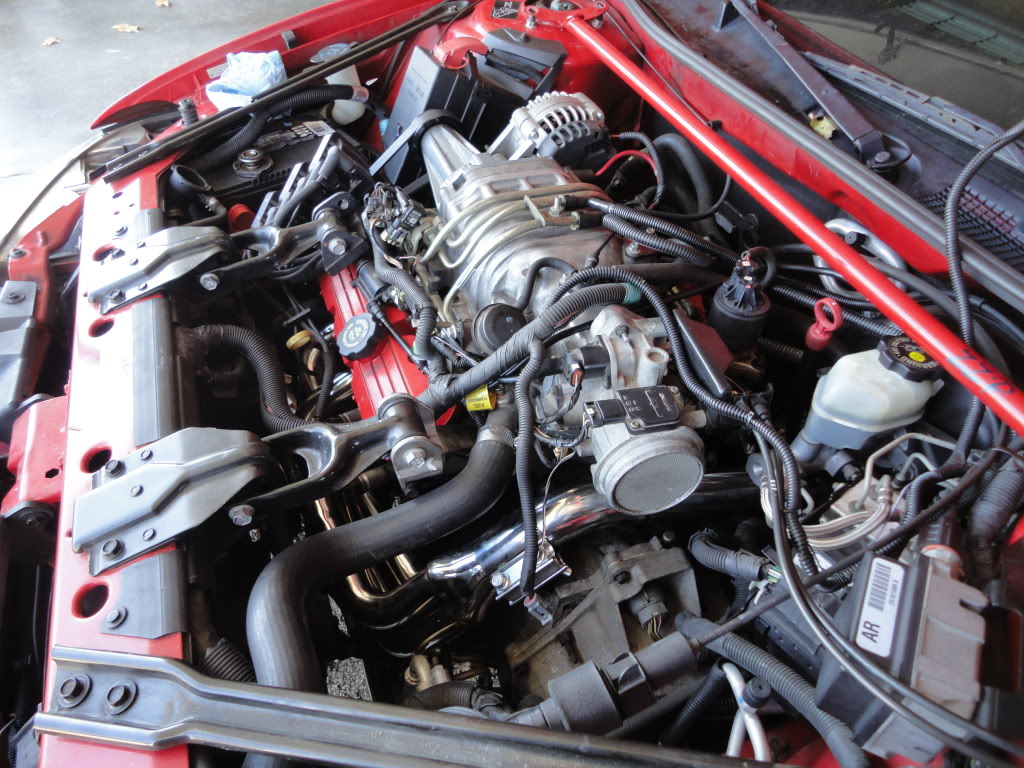

Name:  DSC02736.jpg
Views: 7
Size:  213.2 KB

Just need to top off the radiator.

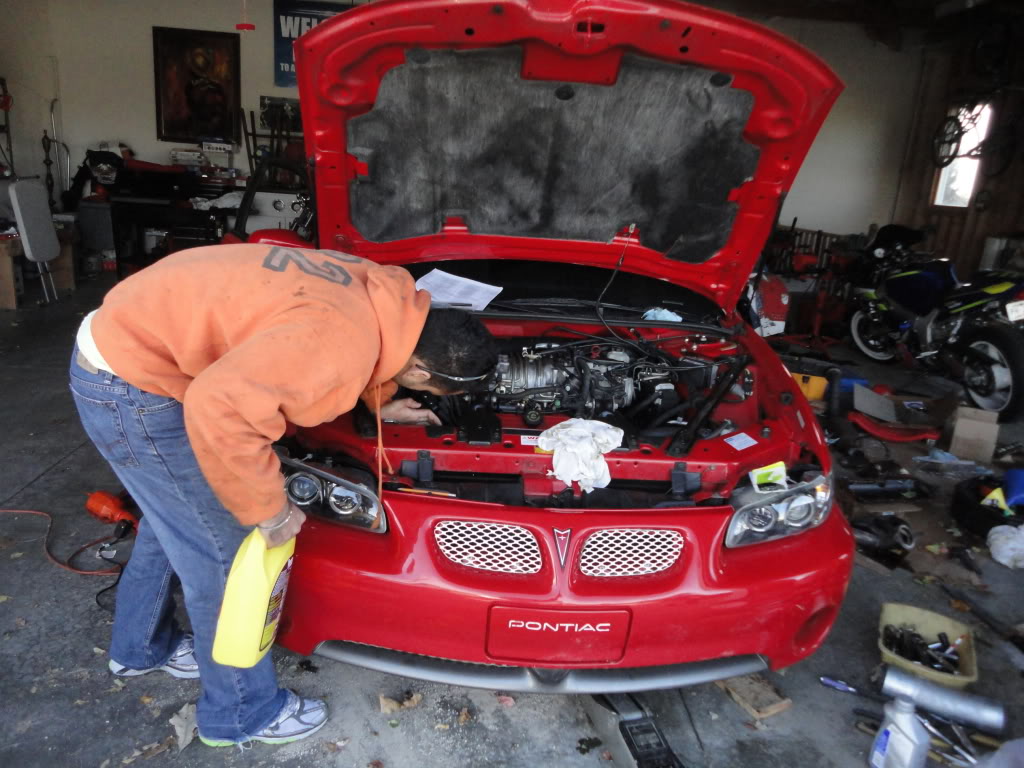

Name:  DSC02737.jpg
Views: 7
Size:  158.8 KB

Another tune in the can.
Danthurs is offline   Reply With Quote
Old 11-08-2010, 01:13 AM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Yay good job well aside from the broken feul line lol
sseidriver97 is offline   Reply With Quote
Old 11-08-2010, 07:45 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Dan.. what kind of timing did you use? Most say that you want to start wtih an L67 and bring the timing down a bit until you can drive it and tune it from a to z.

He'* a prime candidate for braided fuel lines. The L36 lines never do any justice on the L67 rail because they are just not routed/made in the same configuration. Being the nylon, he'll likely experience more issues down the road.

Looks good though, did you get a ride in it? Make you want to do it?
BillBoost37 is offline   Reply With Quote
Old 11-08-2010, 08:07 AM   #4
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I used a L67 timing table with lower timing.

Didn't get to ride in it, it wasn't totally ready to drive and I needed to get back home.

Yep, I want to do it.
Danthurs is offline   Reply With Quote
