Default Transmission Pics?

Does anyone have pictures of the extra harness that plugs into a 4t65e HD, I have been told that that tranny has any extra harness that the 4t60hd does not have, and that it goes directly to the PCM? Some pictures would really help out since I don't get the tranny for 2 weeks.
ChaseSmith is offline   Reply With Quote
Old 08-05-2005, 04:43 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

An extra harness? The connector is different.

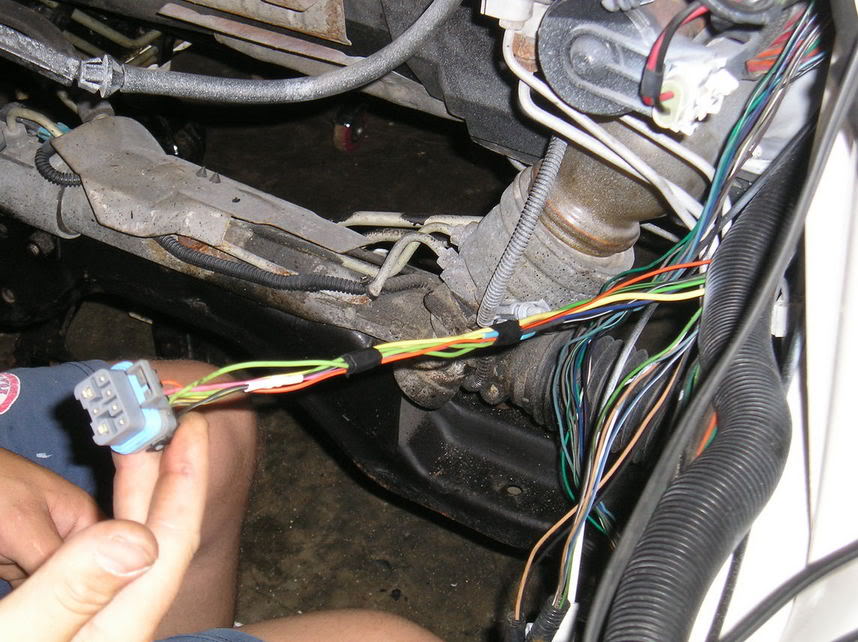

Here is a 97 connector for a 65E
Name:  071805Franksnewconnector.jpg
Views: 1
Size:  111.7 KB

I can look for an extra harness a little later.
BillBoost37 is offline   Reply With Quote
Old 08-05-2005, 05:23 PM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jun 2005
Location: Yulee , FL ___ SEBF Survivor
Posts: 700
Thanks: 0
Thanked 0 Times in 0 Posts
ChaseSmith is on a distinguished road
Default

Was that spliced into the PCM connector that the stock wiring harness has in my 1996, or will I need different PCM connector?
