Default Seat back.

How do you remove the seat back cover?
My head rest is lose at the bottom so it just moves back and forth, It stays stationary at the hole in the top of the cover so i know the problem is only at the bottom of the posts. so now i gotta get in there and find/fix the problem

Also if anyone has pics of a back thats skinless so i can see what in there and what ill be dealing with.

Thanks
Peterg22000 is offline   Reply With Quote
Old 10-22-2006, 09:16 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Undo the J channel at the absolute bottom edge of the seatback..then.

Seat back pulls from the bottom and the plastic clips release.


Then there are hog rings for the upper bolsters and C channels holding the lower bolsters on.
BillBoost37 is offline   Reply With Quote
Old 10-22-2006, 09:20 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

I cant see in that pic, but what in the hell holds it from moving around???
Peterg22000 is offline   Reply With Quote
Old 10-22-2006, 09:22 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The top is held by the headrest
The upper is held by hog rings
The lower is held in place by the bolsters and c channels.

The front has velcro that holds the cover to the cushion.
BillBoost37 is offline   Reply With Quote
Old 04-16-2007, 11:37 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Boosty, i know you wernt understanding what i was trying to say in this thread...

Im intentionaly digging this one from the grave...
I discovered what holds the headrest firm, and why mine moves around...

I striped a seat at the wreckers this weekend which has the same issue as mine (floppy headrest)

this is what is wrong for anyone that has the issue.

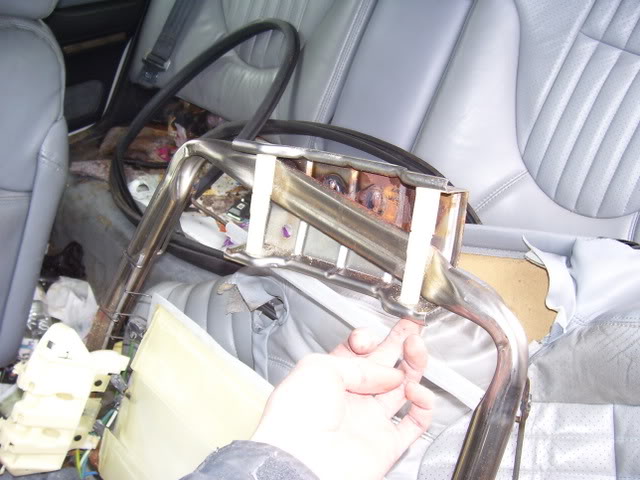

the welds that hold this bracket in place snap, leaving the head rest a flopy peice-o-junk
Name:  2007198.jpg
Views: 0
Size:  59.7 KB

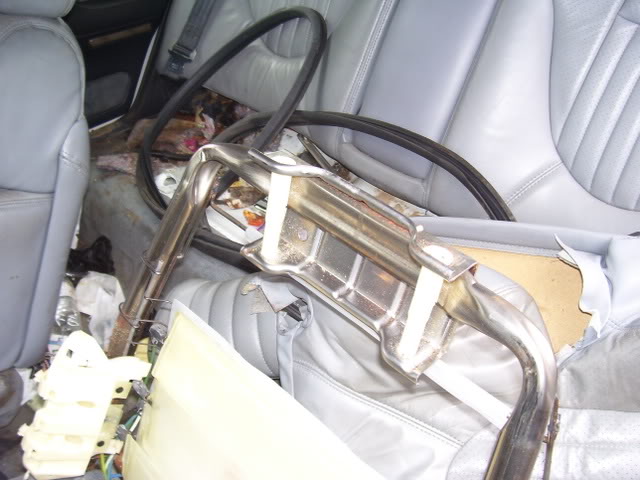

it should hold firm in this place
Name:  2007199.jpg
Views: 0
Size:  56.4 KB


The only fix i can see is to uncover it, and reweld the bracket, of possibly a **** load of JB weld and ducket tape
