Old 03-31-2007, 09:19 AM   #21
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

In this case it is necessary, I was using an engine leveler with the hoist and that brings the hoist up about another foot.. Poof move the hood, but have full ability to move the engine and tilt.

It'* a bunch of fun.. now the question is..

How many steps does it take to wake up a mod?
BillBoost37 is offline   Reply With Quote
Old 03-31-2007, 09:21 AM   #22
Senior Member
Posts like a Camaro

Join Date: Jun 2005
Location: n.h.
Posts: 1,066
Thanks: 0
Thanked 0 Times in 0 Posts
handdrumman is on a distinguished road
Default

Just one.....kick him in the Jimmy!!! Or cook ur famous breakfast burritos.....I know that would wake me up!!!
handdrumman is offline   Reply With Quote
Old 03-31-2007, 11:21 AM   #23
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by MACDRIVE
I'm feasting my eyes on the blue supercharger. . . never seen one before.
And you won't again. That'* a cheapo he bought for a short period of time, and it was already blue.

Read the 'The Proof is in" topic in Forced Induction about painting superchargers.
willwren is offline   Reply With Quote
Old 03-31-2007, 11:54 AM   #24
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

Quote:
Originally Posted by willwren
Quote:
Originally Posted by MACDRIVE
I'm feasting my eyes on the blue supercharger. . . never seen one before.
And you won't again. That'* a cheapo he bought for a short period of time, and it was already blue.

Read the 'The Proof is in" topic in Forced Induction about painting superchargers.
thats almost as bad as chroming it hold way to much heat.
ReallyAGXP is offline   Reply With Quote
Old 04-01-2007, 05:13 PM   #25
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Actually the charger didn't seem too bad. However..this topic isn't about my old charger.

Let'* see what'* going on with the new one.

Yesterday was very productive. In aiming to change cam bearings the connecting rod caps and main bearings need to come off for the crank to come out. Well..the main bearings are held in by two bolts straight down on each and 1-3 have bolts on their sides as well. I pulled all the bolts and couldn't get the main bearing caps off. They should come out easy enough from the information everyone tells me. I decide to start the springs. Flipped the motor back over.. put air to the #5 hear hissing (that'* not right???), try #3.. same..odd, GP buddy moves to cylinder #1 as I am looking up toward them to see what'* happenBOOM! Three of the main caps blew off, the last one is holding the crank in. #1 piston came out the bottom partially and the rings are holding it from going back in.

End result, piston is cracked. I should be able to get only a piston from the views of my mechanic buddy and an aircraft machinist. Things will be checked before it goes back together. Overall..bearings look great, only issue is a cracked/chipped piston.

No, it'* not a joke...beginner'* mistake.

Here'* the pics that we did get. Tony was moving and cruising so much no one really got many pictures. Since the head(*) had to come off to put the new piston in.. off to do the springs

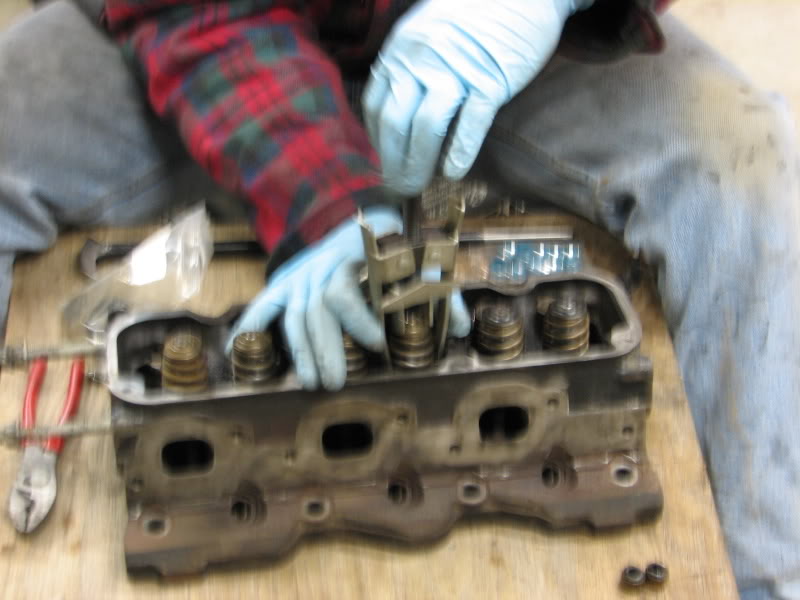

Name:  IMG_1576.jpg
Views: 0
Size:  60.5 KB

Maybe Tony can tell us what this one is of?
Name:  IMG_1578.jpg
Views: 0
Size:  35.9 KB

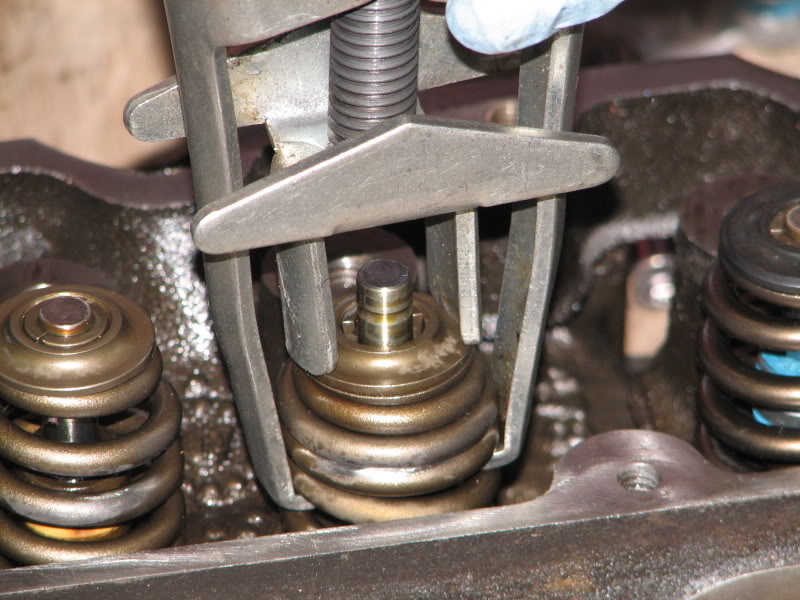

Name:  IMG_1579.jpg
Views: 0
Size:  92.1 KB

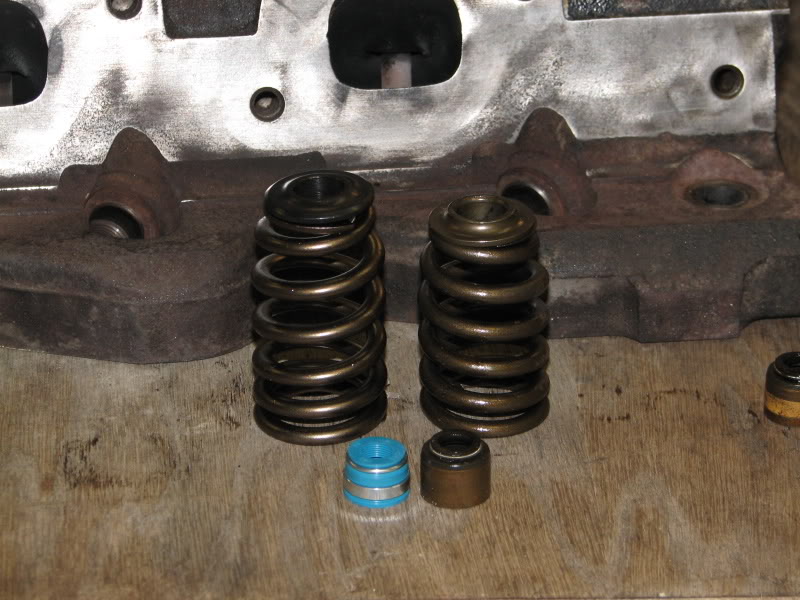

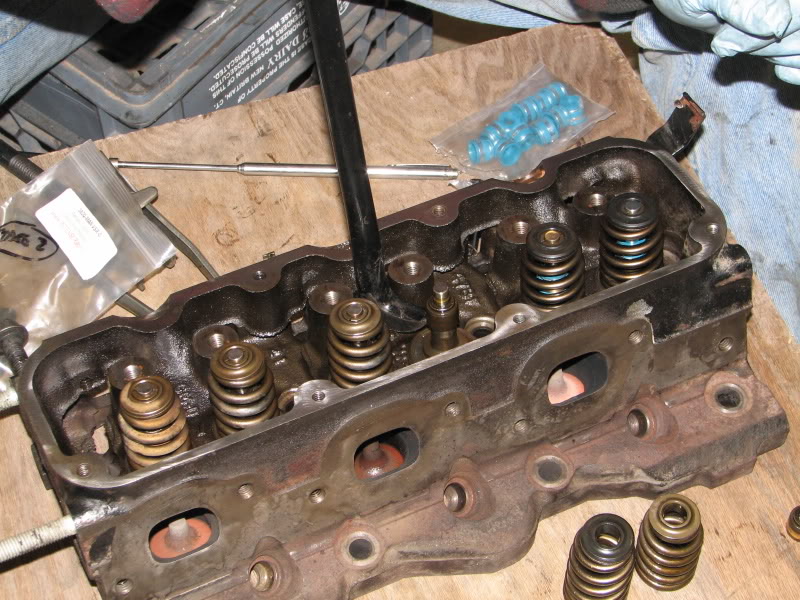

Old spring on the right
Name:  IMG_1580.jpg
Views: 0
Size:  91.5 KB
Name:  IMG_1581.jpg
Views: 0
Size:  128.4 KB
Haha.. Tony didn't see what he wanted to...
Name:  IMG_1582.jpg
Views: 0
Size:  46.2 KB
Name:  IMG_1583.jpg
Views: 0
Size:  118.6 KB

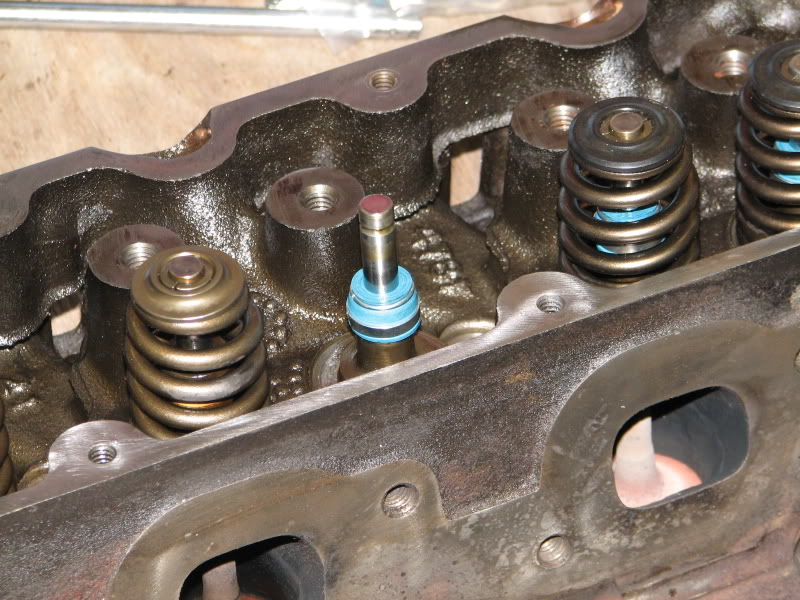

One is missing
Name:  IMG_1584.jpg
Views: 0
Size:  117.9 KB

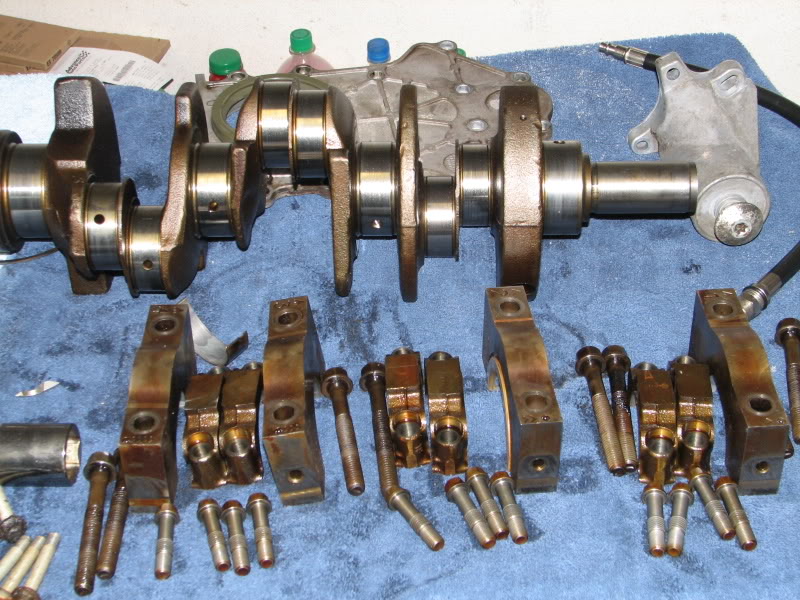

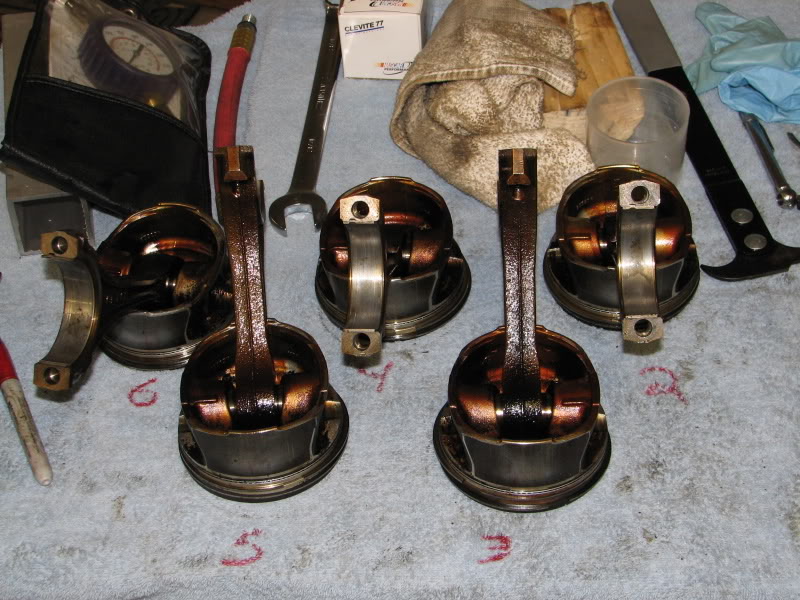

This is the bottom end. All bolts and caps/bearings in line left is #6 right is #1
Name:  IMG_1585.jpg
Views: 0
Size:  133.1 KB

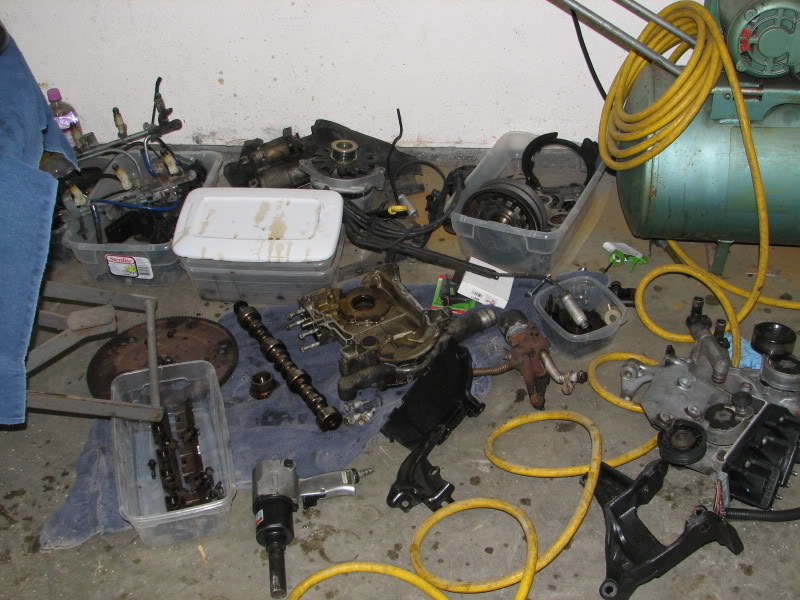

Took the time to clean the subframe of the car, all the parts and accessories that usually you wouldn't take the time to clean.. well.. it'* all clean now. Will be great to put it back together.
Name:  IMG_1586.jpg
Views: 0
Size:  99.1 KB

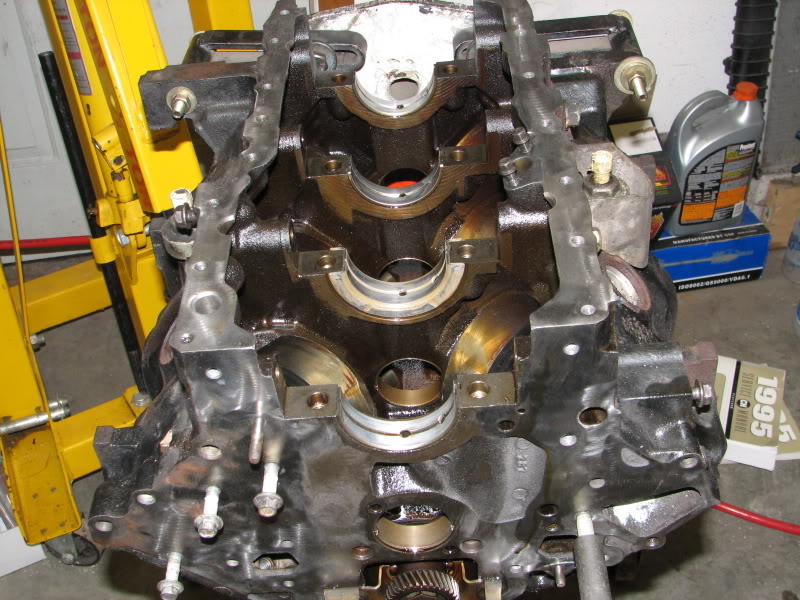

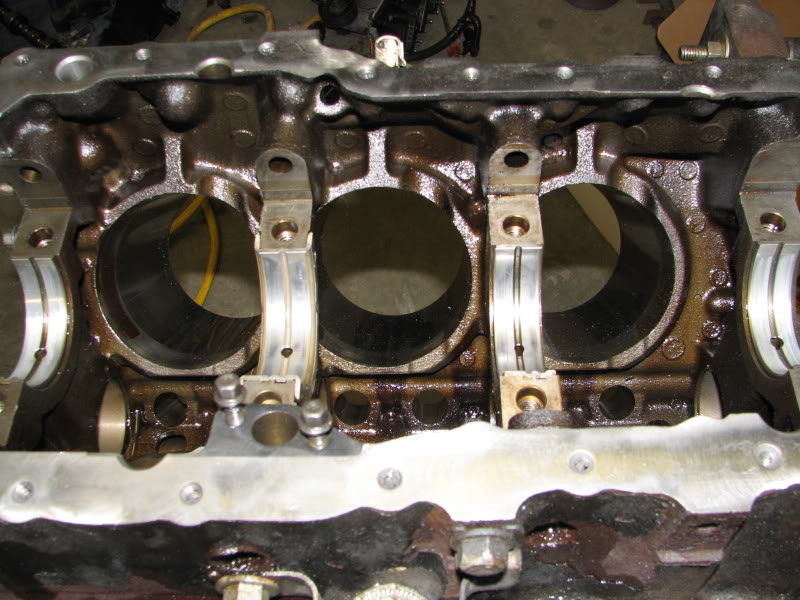

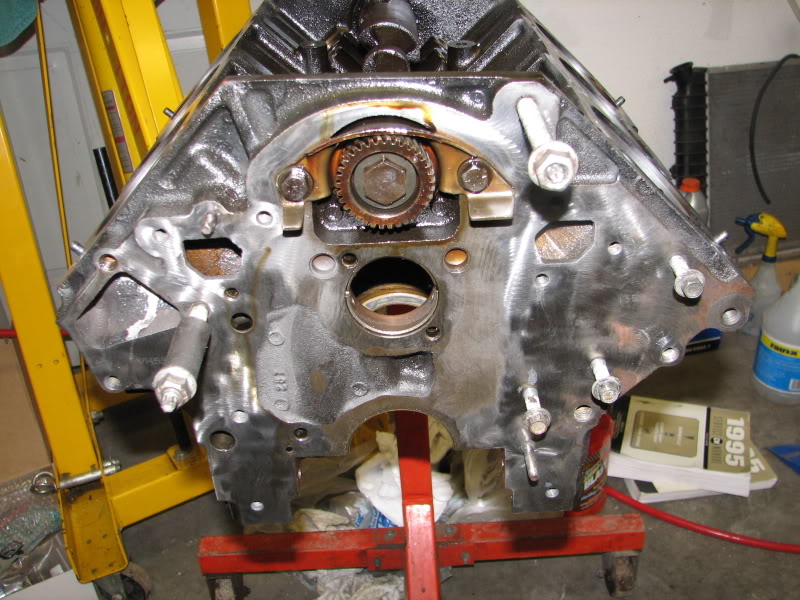

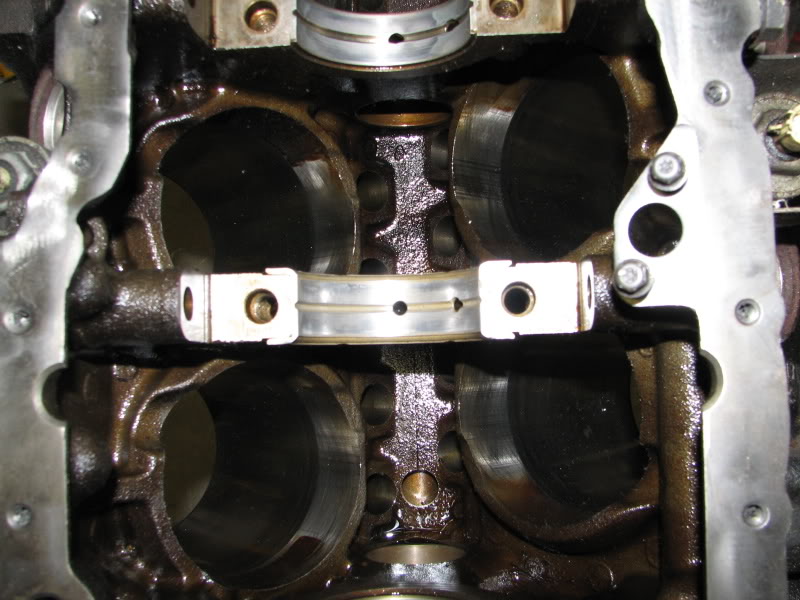

The only things left in the block are half of the main bearings, balance shaft, cam bearings and knock sensors.
Name:  IMG_1588.jpg
Views: 0
Size:  120.1 KB
Name:  IMG_1589.jpg
Views: 0
Size:  83.4 KB
Name:  IMG_1590.jpg
Views: 0
Size:  97.2 KB
Name:  IMG_1591.jpg
Views: 0
Size:  112.0 KB
Name:  IMG_1592.jpg
Views: 0
Size:  125.0 KB

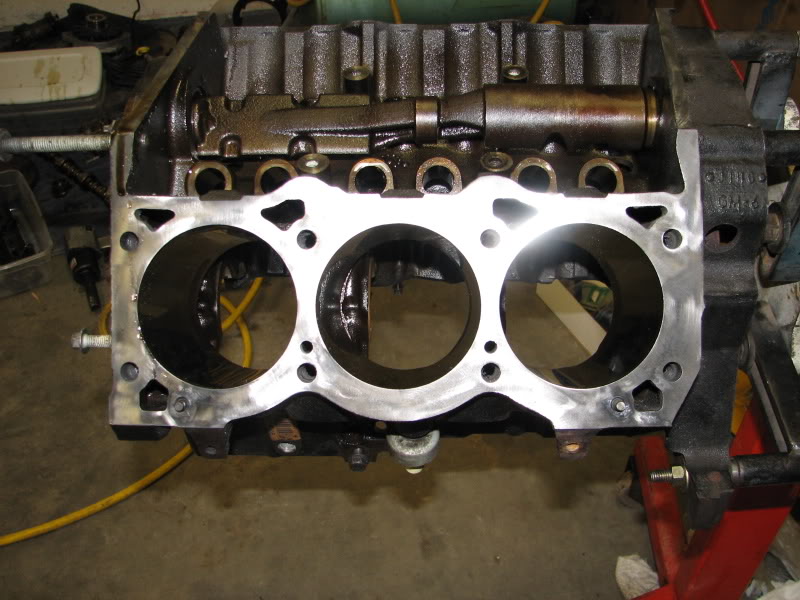

Name:  IMG_1593.jpg
Views: 0
Size:  89.1 KB

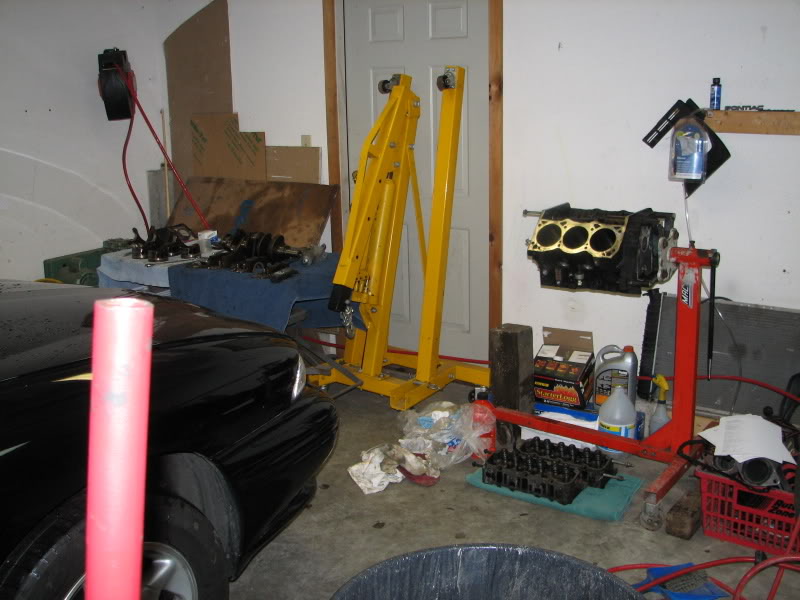

Name:  IMG_1599.jpg
Views: 0
Size:  77.1 KB

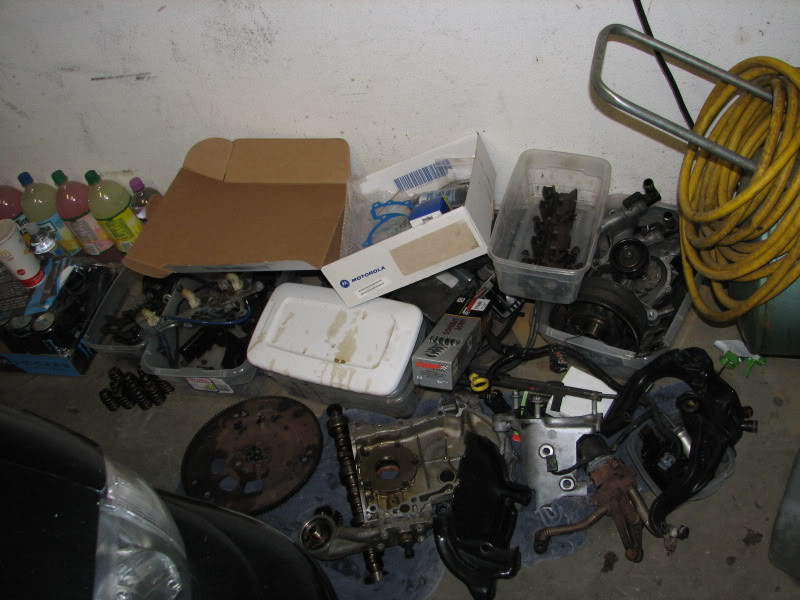

Name:  IMG_1600.jpg
Views: 0
Size:  75.5 KB

All gasket surfaces are clean, everything is ready to go back together except that one little piston and checking over a couple things.
BillBoost37 is offline   Reply With Quote
Old 04-01-2007, 06:03 PM   #26
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

It so happens that as soon as I arrived, not even two minutes later the mains let go and crunch went the piston....Bill said something about a white curse?? I donít know what heí* talking about.

Allot of the work was already done by the time I arrived, but that didnít mean there wasnít more to do. As Bill mentioned, we tore down the block to bare minimum and Iíve learned allot in the process.

I wish I was able to help more on this project, but Ill definitely be there when things start to go back on and eventually the engine goes back into the car.

After all was said and done and everyone headed in for the night, I accidentally gave Boosty, as well as half of the neighborhood, a wake up call at 3:30am

Since I had allot of things to do at home, I decided to leave Bills in the middle of the night. While trying to be quiet, I unlocked the door using my key to avoid the horn beep that usually accompanies the keyless entry.

So I get in, start the car, and as soon as I step on the brake, the godamn horn starts BLARING!!! I panic and try to shut the car off to disable the alarm, no go!! so I press the unlock button and its finally off......Whew!! I start the car once again and attempt to put the car into reverse, and the freaking horn starts blaring once again. DUH Iím a retard and now half the neighborhood is up.........

I finally get it and by the time Iím heading out of the driveway, I see Bill at the front door wondering WTF was going on....I gave a goodbye beep and headed on home. After getting on the highway, I chuckled to myself and finally made it in the door by 5pm. lol

Bill, Thanks for the good times as usual. It was nice to see the fellas again!!
BLACK94SSEi is offline   Reply With Quote
Old 04-01-2007, 07:50 PM   #27
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Good pictures.

Now start putting it back together already.

Are you going to over bore .020" to clean it up and buy a new set of forged pistons
2000SilverBullet is offline   Reply With Quote
Old 04-01-2007, 08:08 PM   #28
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

Why do pistons have to go in from the top esp if the crank is out?
I've wondered about that for a long time but I've never done one to actually know.
popatim is offline   Reply With Quote
Old 04-01-2007, 08:13 PM   #29
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Quote:
Originally Posted by popatim
Why do pistons have to go in from the top esp if the crank is out?
I've wondered about that for a long time but I've never done one to actually know.
because you have to compress the rings in with a ring tool and tap the piston into the cylinder with it still in the ring tool, so that they dont pop out wider then the cylinder diamiter...

I think that about sums it up...did i miss anything?
Peterg22000 is offline   Reply With Quote
Old 04-01-2007, 08:16 PM   #30
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

Haha, Tony, that'* funny. Good thing that didn't happen to me...I would have never known it.

Good job Bill, that looks daunting to me.
PRD2BDF is offline   Reply With Quote
