Default Need pics help

Can anyone get me pics of the rear sunroof drains and which parts of the interior I need to remove to get to them? I am assumong c-pillar trim and headliner. Any and all help is appretiate. Pictures of the mounting hardware on them would also be helpful. I am trying to see if my leak is from that or not. I cleaned out the front ones last weekend, which had some stuff in them. Thanks.
JimmyFloyd is offline   Reply With Quote
Old 06-11-2005, 11:00 AM   #2
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

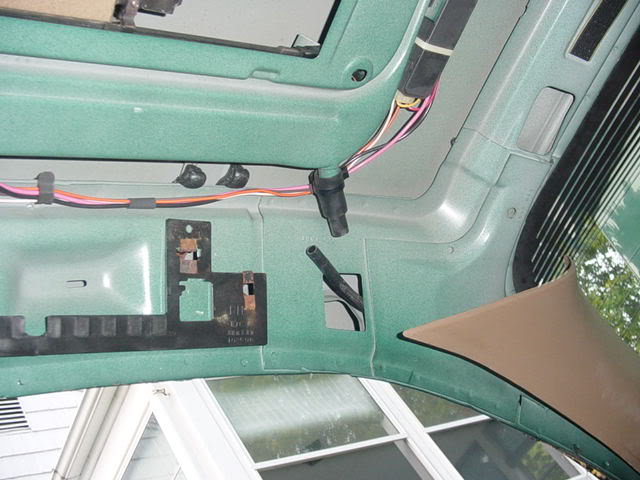

Right rear drain:
Name:  drain_1.jpg
Views: 2
Size:  51.1 KB

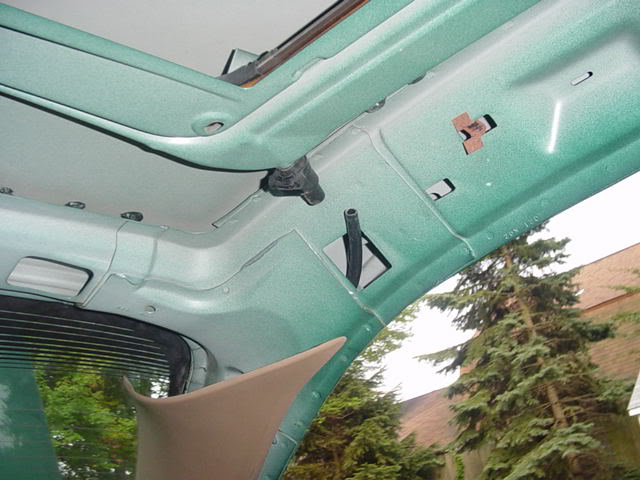

Left rear drain:
Name:  drain_2.jpg
Views: 2
Size:  51.9 KB

I don't have a close up of the connector but there is a "tooth type" hose clamp that holed the connector to the roof. As you can see, I found both of my lines disconnected. I used silicone to reattach.

The headliner will simply fall down if you remove the visors, A, B and C pillar trim and the sunroof gasket [last]. I'd suggest dropping it like this in order to prevent bending it as you reach your hands and arms up there.
randman1 is offline   Reply With Quote
Old 06-11-2005, 08:05 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

Thanks Randy. I'l be working on the car a little bit tonight. I got my bonneville a present I have pictures, but my server is down currently. Look for a post in the Rides section.
