Default My wheel swap problem.

So I recently bought these 16x7 Wheels with 225/60/16 Tires off a 1996 Grand Prix GT. They bolt up but one of the tires is rubbing the inside edge of the outer fender when I go over bumps or around turns.

The weird thing is that this only happens on the driver'* side of the car. The wheel gap is much smaller than that on the passenger'* side.

For reference, I have a 1998 Buick Lesabre custom. The stock wheel / tire combo was a 15x6 with 205/17/15 tires. I didn't really think this is that off unless I have the offset wrong. Is it possible that I have a saggy spring or strut?

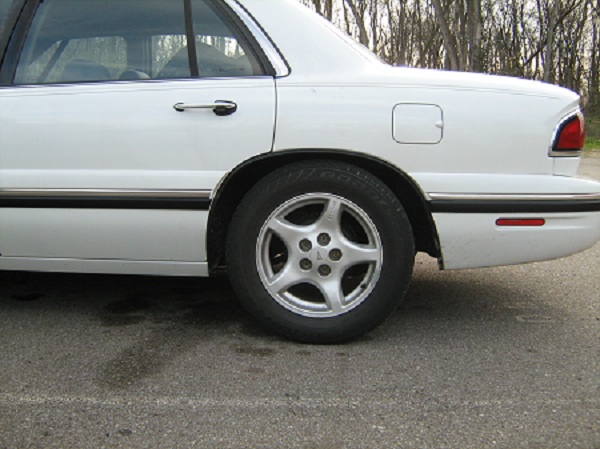

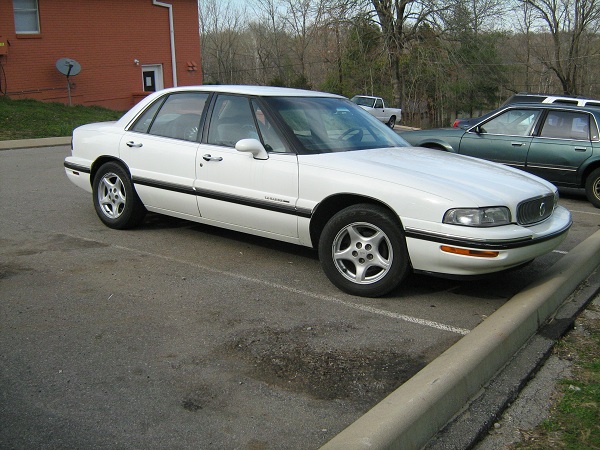

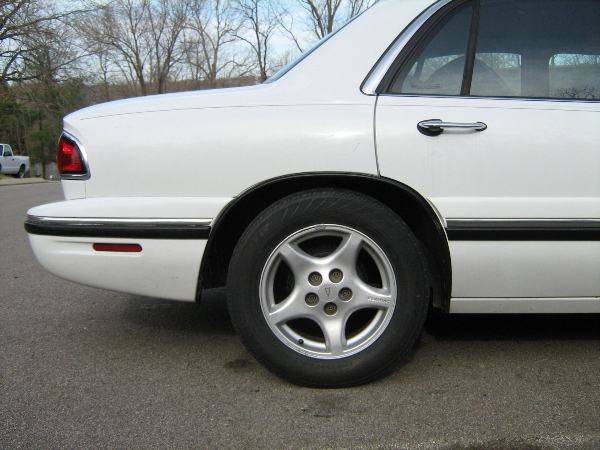

Here'* some pictures.
Attached Thumbnails
My wheel swap problem.-img_1068-600x450-.jpg   My wheel swap problem.-img_1069.jpg   My wheel swap problem.-img_10722.jpg
3800_cruiser is offline   Reply With Quote
Old 03-16-2011, 06:54 PM   #2
Member
Posts like a V-Tak
Thread Starter

3800_cruiser's Avatar

Join Date: Mar 2010
Location: Clarksville, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
3800_cruiser is on a distinguished road
Default

Quote:
Originally Posted by 3800_cruiser View Post
The stock wheel / tire combo was a 15x6 with 205/17/15 tires.
I meant to say 205 / 70 / 15
3800_cruiser is offline   Reply With Quote
Old 03-16-2011, 07:10 PM   #3
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

The width is the problem. You're going from a 205 to a 225. That'* nearly a 10% wider tread. The overall diameter is shorter by a bit over .25", but it may not be enough to make up for the change in width. Plus, those are ballpark figures, actual tires differ even more than that in some cases.
SilverSleeper8704 is offline   Reply With Quote
Old 03-16-2011, 07:13 PM   #4
Member
Posts like a V-Tak
Thread Starter

3800_cruiser's Avatar

Join Date: Mar 2010
Location: Clarksville, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
3800_cruiser is on a distinguished road
Default

The recommended size is a 215 /60 / 16 on a 16x6.5" wheel. I thought I could get away with the current tire, but I'm still wondering if even a 215/60/16 would work on the 16x7 wheel without rubbing. I may end up selling these but I would love to make them work.
3800_cruiser is offline   Reply With Quote
Old 03-16-2011, 07:17 PM   #5
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

Actually just re-read the post.
So one side has less gap than the other, in a vertical sense? Not as in from outer edge of tire to the lip of the fender?

I say put the car on level ground, and measure from axle centerline to the fender lip. Do on both sides. If there is a difference, I'd opt for new rear springs. You may have had a sagging spring before, but with the width difference now, you just didn't notice it, because it didn't have a clearance issue before. With the extra 10% width, now it makes a difference.
SilverSleeper8704 is offline   Reply With Quote
Old 03-16-2011, 07:40 PM   #6
Member
Posts like a V-Tak
Thread Starter

3800_cruiser's Avatar

Join Date: Mar 2010
Location: Clarksville, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
3800_cruiser is on a distinguished road
Default

Quote:
Originally Posted by SilverSleeper8704 View Post
Actually just re-read the post.
So one side has less gap than the other, in a vertical sense? Not as in from outer edge of tire to the lip of the fender?

I say put the car on level ground, and measure from axle centerline to the fender lip. Do on both sides. If there is a difference, I'd opt for new rear springs. You may have had a sagging spring before, but with the width difference now, you just didn't notice it, because it didn't have a clearance issue before. With the extra 10% width, now it makes a difference.
That'* precisely what I'm saying. I parked it on level ground earlier, I hopped in the trunk and I could only bottom the fender out on the tire on the driver'* side. The passenger side won't bottom out no matter how hard I try.
3800_cruiser is offline   Reply With Quote
Old 03-17-2011, 12:49 AM   #7
Member
Posts like a V-Tak
Thread Starter

3800_cruiser's Avatar

Join Date: Mar 2010
Location: Clarksville, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
3800_cruiser is on a distinguished road
Default

http://www.jcwhitney.com/air-lift-10...299d198y1998j5

I'm looking at installing a set of these helper airbags inside the coils to help the car sit properly. Anyone know much about these? If they do the job as well as replacing the coils this is what I'm leaning toward.
3800_cruiser is offline   Reply With Quote
Old 03-17-2011, 01:35 AM   #8
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

If those are what I think they are, you have to take the springs out anyway to put those in. Why not just replace the springs if they are getting weak?
Besides, with those, it will ride like crap. Those are more meant to help launch cars at a drag strip, or to put in more load carrying capacity to help tow a trailer. They shouldn't be a band-aid to your problem.
Heck, you may have a broken or bent spring already. Have you checked to see?
If it sits tweaked (one side higher than the other) replace your springs. If it doesn't compress at the same rate, but returns to the same height on either side, then maybe its time for new rear shocks. Putting airbags in there isn't going to do much for you.
SilverSleeper8704 is offline   Reply With Quote
Old 03-17-2011, 01:38 AM   #9
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

hmm my 90 lesabre has 235/55/17'* on it no problems
sseidriver97 is offline   Reply With Quote
Old 10-03-2011, 12:07 PM   #10
Member
Posts like a V-Tak
Thread Starter

3800_cruiser's Avatar

Join Date: Mar 2010
Location: Clarksville, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
3800_cruiser is on a distinguished road
Default

Old post, but I ordered the MOOG Cargo control springs (# CC653) I think... These are made for the Bonneville SSEi but they fit perfectly on my Lesabre. The ride is stiffer, less swaying, and the car sits up where it belongs, I should have no issue putting the wheels on after winter'* over. Just thought I'd put this out in case anyone runs into the same issue.
3800_cruiser is offline   Reply With Quote
