Default how does my car determine how much fuel ive burned? just curious.

so as many of you know ive got the gas guage that reminds me of the front of kitt from knight rider any time im under 1/2 tank. i know its the sensor on the sending unit, i just dont have the $ or the desire really to fix it. but driving home on what *i think* is barley enough gas i wondered, how exactly does it measure how much gas im burning? i know the maf has something to do with it, but on topgear i remember when they tested it on a jag or something it measured the width of the injector spray (it was ungodly inaccurate if i remember correctly)

my car tends to be up to a gallon optimistic when i run it pretty dry. say 5 gallons left or so. i was just wondering how it works, so i could *maybe* gauge where its actually at a little better.

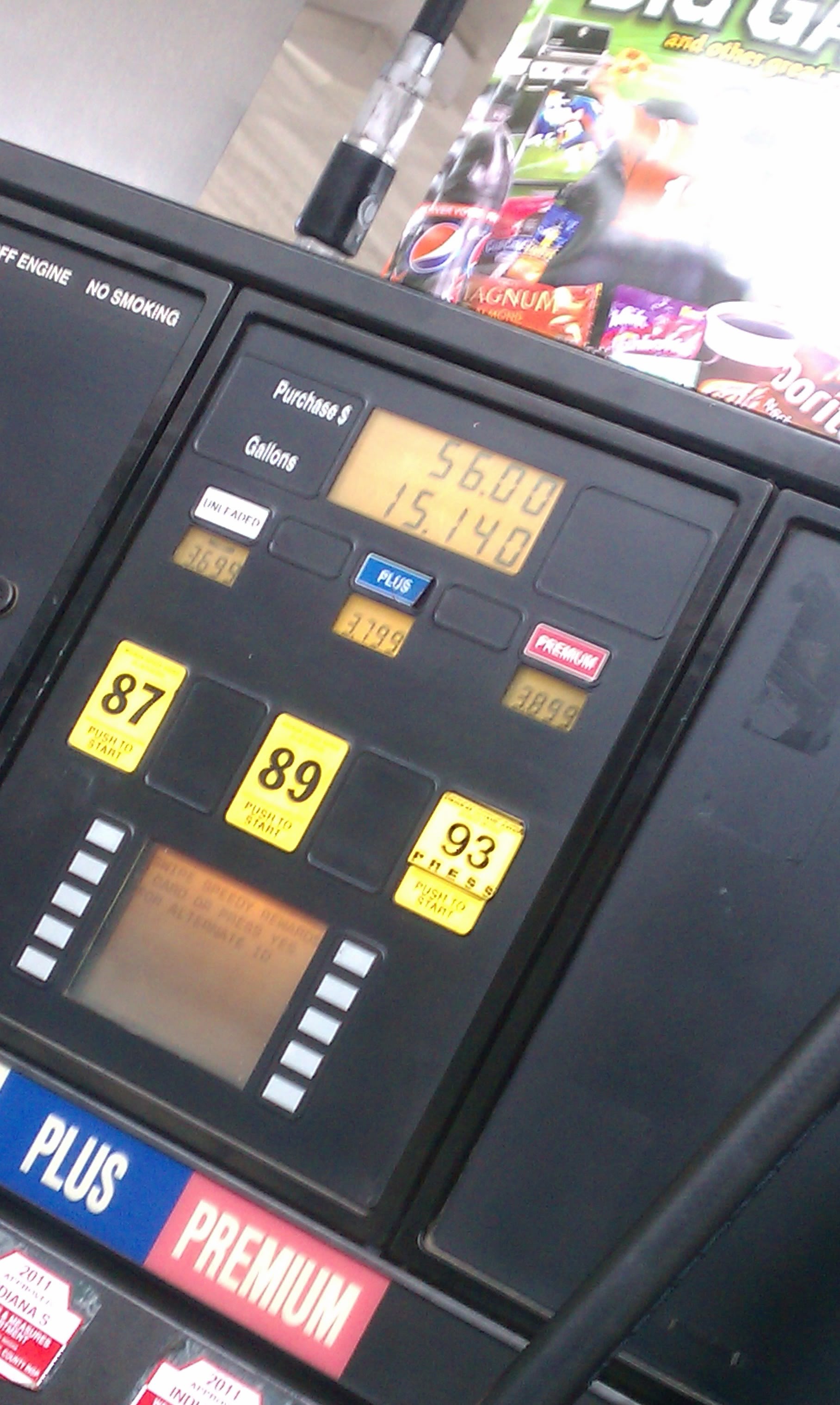

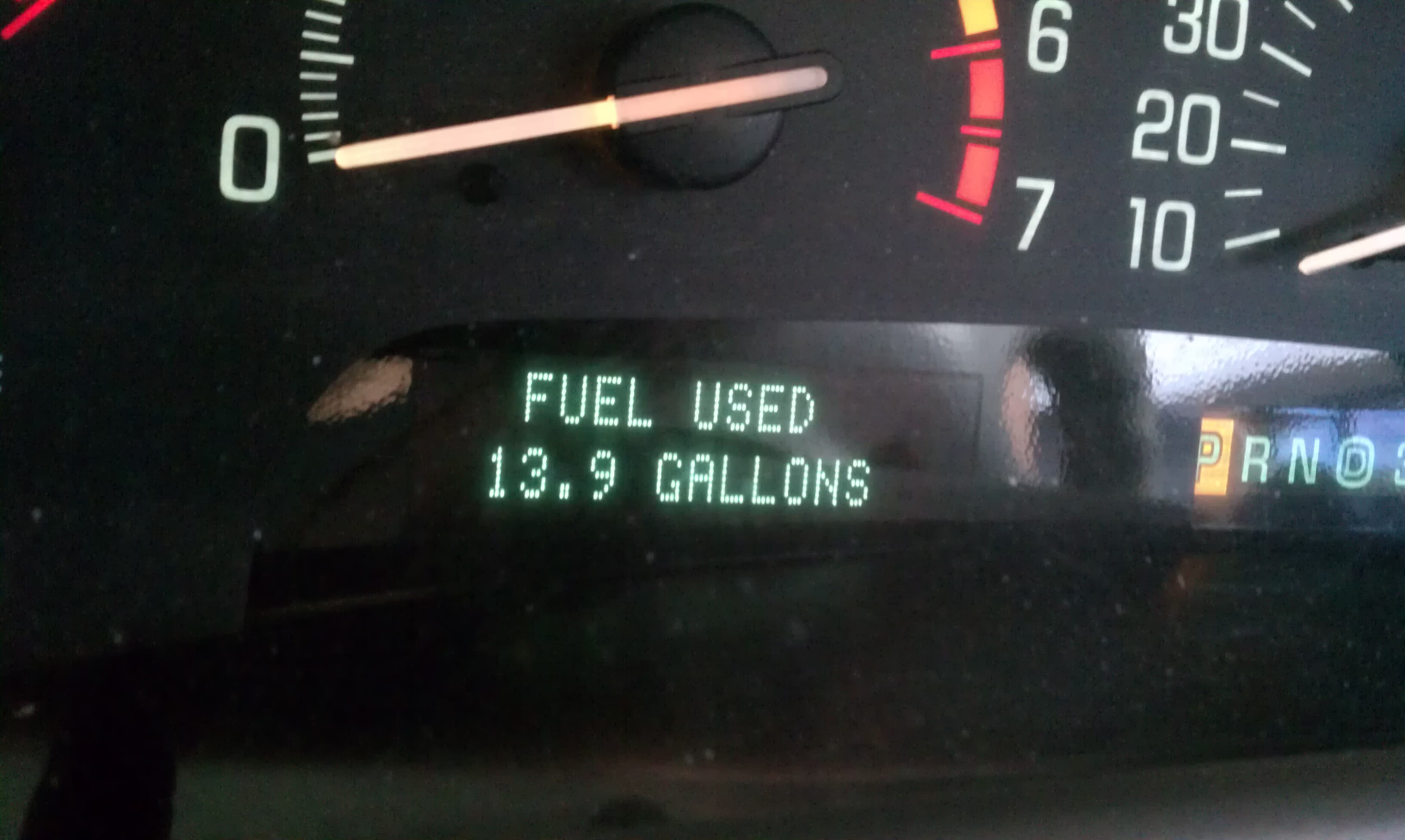

these pics are from labor day when i filled up before coming back to memphis.

Name:  IMAG0156.jpg
Views: 55
Size:  307.0 KB
Name:  IMAG0157.jpg
Views: 53
Size:  495.9 KB

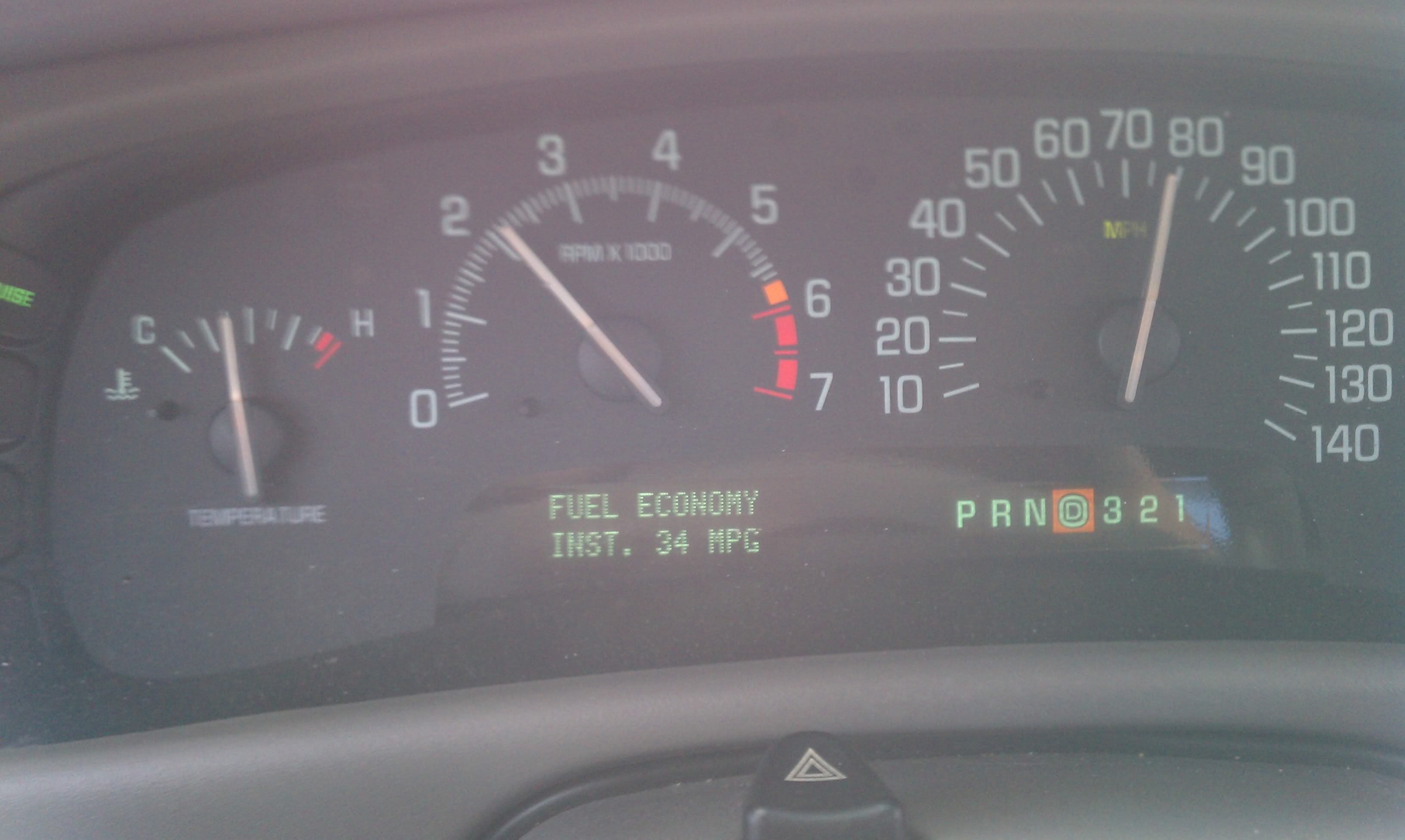

it also makes me wonder how far off the instant mpg is... cause there is no way in hell im getting this good of mileage at 80mph lol
Name:  IMAG0159.jpg
Views: 54
Size:  313.8 KB
eltatertoto is offline   Reply With Quote
Old 09-09-2011, 03:37 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It expects X amount of fuel to be sprayed with each injector pulse. If the fuel pressure is off, then that amount is different from what it expects.
Danthurs is offline   Reply With Quote
Old 09-09-2011, 03:39 PM   #3
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

Quote:
Originally Posted by Danthurs View Post
It expects X amount of fuel to be sprayed with each injector pulse. If the fuel pressure is off, then that amount is different from what it expects.
so in theory, if i cleaned and or replaced my injectors and seals would it make it more accurate? im all for fixing things that will actually improve my mpg, instead of fixing things that tell me how crappy it is lol.
eltatertoto is offline   Reply With Quote
Old 09-09-2011, 03:41 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Has more to do with fuel pressure. Lets say you get X amount at 48psi, well, at 45psi you get a little less fuel. This will throw off the readings a bit.
Danthurs is offline   Reply With Quote
Old 09-09-2011, 03:47 PM   #5
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

Quote:
Originally Posted by Danthurs View Post
Has more to do with fuel pressure. Lets say you get X amount at 48psi, well, at 45psi you get a little less fuel. This will throw off the readings a bit.
well what im saying is, im reasonably sure one of my injectors' seal has a small leak, because you can smell gas around it and at idle it almost has a missfire, if that makes any sense. ive never bothered with it though because i figured between that and my blowing muffler the backpressure would have more of an ill effect on the fuel economy...

im jjust wondering if a leak that small would have any effect at all?
eltatertoto is offline   Reply With Quote
Old 09-09-2011, 03:49 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Every little thing adds up. I suggest fixing it.
Danthurs is offline   Reply With Quote
Old 10-02-2011, 12:57 AM   #7
Member
Posts like a V-Tak

Join Date: Mar 2011
Location: St. Charles, MO
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
jedwards83 is on a distinguished road
Default

Fuel pressure has a big effect on the accuracy. I just replaced my fuel pump because my pressure was 38 PSI.

With the old pump, the MPG displayed was always lower than I actually got, and gallons used on the DIC was always higher. It'* because the PCM increases pulse width to compensate for the low pressure, and MPG / fuel used computer is using that pulse width in its calculations. Since the injectors are open longer, the PCM thinks it'* using more gas than it really is.

Now that I have a new pump with normal pressure, it'* close to actual mpg / fuel used, but it does tend to be a little optimistic.
jedwards83 is offline   Reply With Quote
Old 10-02-2011, 07:26 AM   #8
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

That'* the stupidest way to calculate fuel useage. Why not instead go by the capacity of the tank (x gallons) the amount actual fuel in the tank upon fill up (y gallons) and then use the gauge sensor to figure out how much actual fuel has been used?

It seems to me they over-complicated the thing.
MouSe is offline   Reply With Quote
Old 10-02-2011, 01:47 PM   #9
Member
Posts like a V-Tak

Join Date: Mar 2011
Location: St. Charles, MO
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
jedwards83 is on a distinguished road
Default

Quote:
Originally Posted by MouSe View Post
That'* the stupidest way to calculate fuel useage. Why not instead go by the capacity of the tank (x gallons) the amount actual fuel in the tank upon fill up (y gallons) and then use the gauge sensor to figure out how much actual fuel has been used?

It seems to me they over-complicated the thing.
Well then they can't really measure MPG on the fly.

Plus the fuel level senders are not sensitive enough, nor are they very linear-- Mine sits at full for 100 miles, then starts to fall for the remaining 300 miles.

Nearly every automaker that incorporates a MPG computer calculates it with fuel injector pulse width as the primary variable.
jedwards83 is offline   Reply With Quote
Old 10-02-2011, 05:54 PM   #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

they should put a fuel flow sensor on it, how much could it be relative to the cost of the rest of the car
