Default My Sunday evening projects

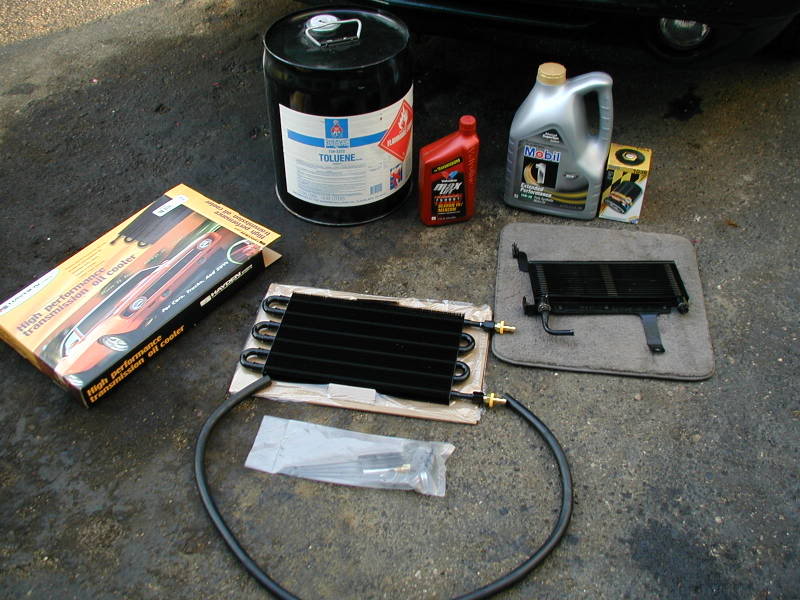

New larger Hayden Performance Transmission Oil cooler, with enough Valvoline Synthetic oil to top off tranny fluid, Mobil One Extended Performance 10W30 Synthetic oil with a over-sized NAPA Gold oil filter (1995 Chevy Blazer 4.3L filter to be exact).

Name:  sundaynight.jpg
Views: 0
Size:  84.1 KB

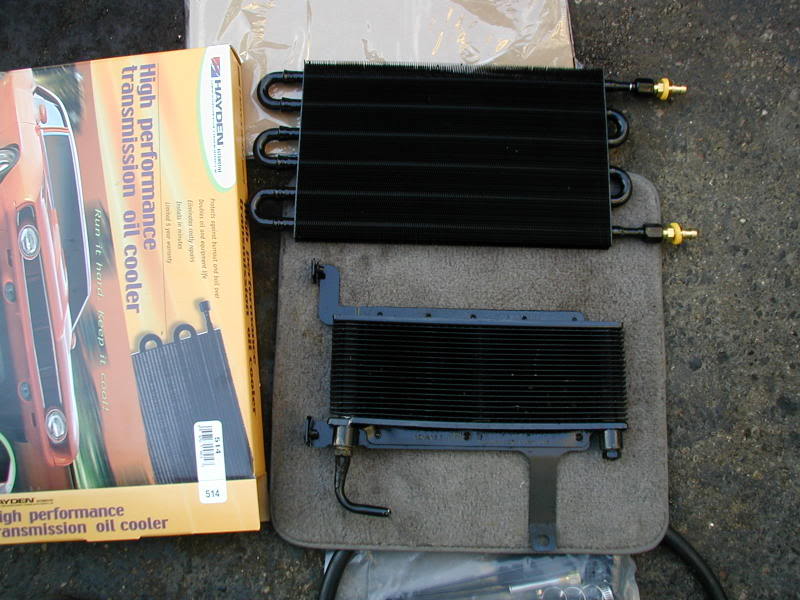

Name:  newcooler.jpg
Views: 0
Size:  78.4 KB
OLBlueEyesBonne is offline   Reply With Quote
Old 05-21-2006, 11:26 PM   #2
Senior Member
True Car Nut
Thread Starter

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Transmission cooler installed, engine/transmission warmed up for tranny fluid filling and engine oil draining.

Here are a couple pics.
I cut the original upper trans cooler line close to the cooler so less rubber can go bad, and ran the new rubber around the radiator to the end of the lower line that comes from the transmission. Already had the rubber in the middle of the to lines to trans replaced so my transmission, lines and cooler are all fresh.

Tranny cooler install is only a 1 beer job. 2 beers and you are working WAY to slow. :P

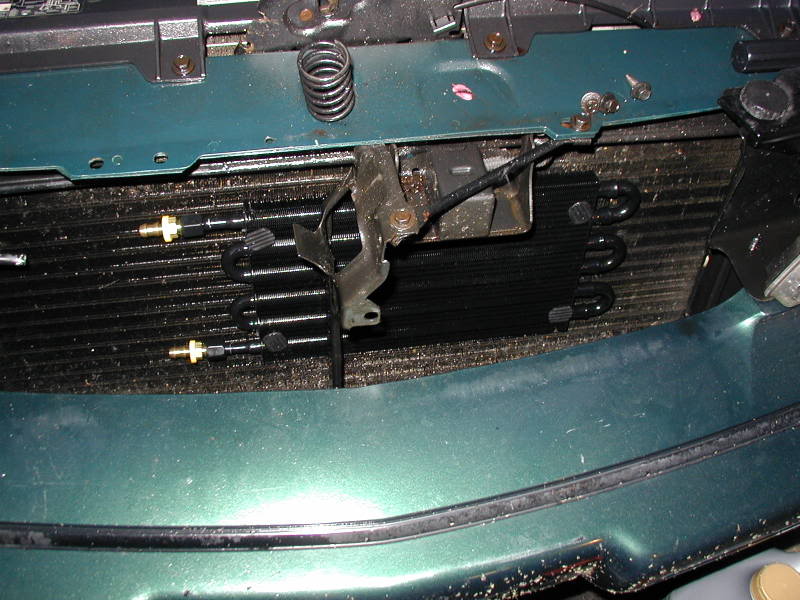

Name:  Install1.jpg
Views: 0
Size:  83.8 KB

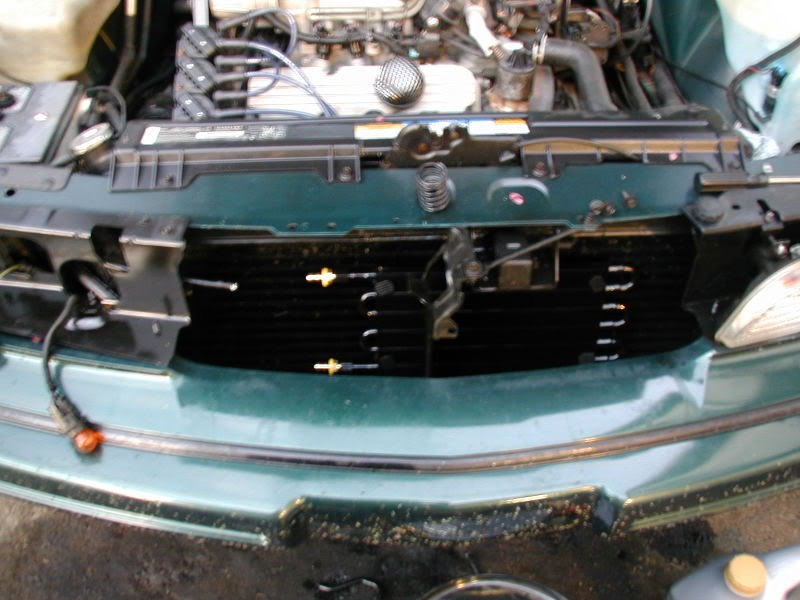

Name:  Install2.jpg
Views: 0
Size:  70.4 KB

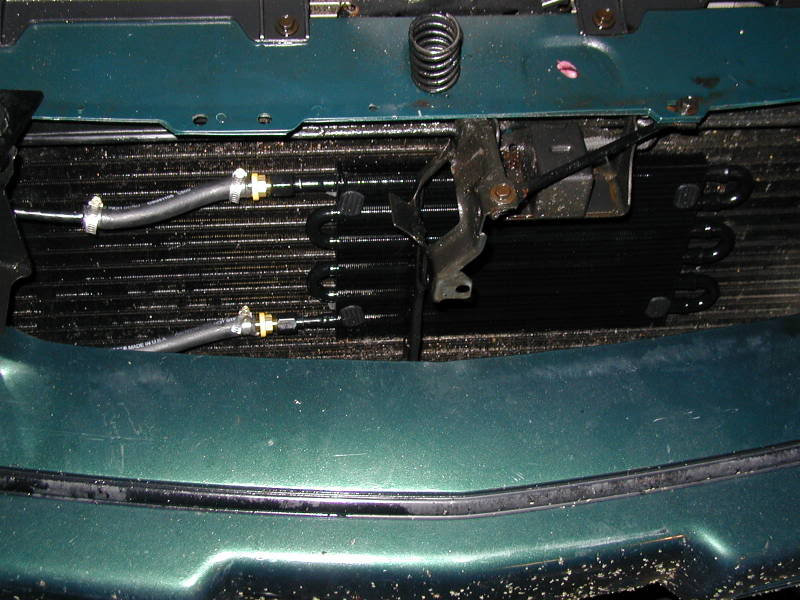

Name:  InstallCompleted.jpg
Views: 0
Size:  79.5 KB
OLBlueEyesBonne is offline   Reply With Quote
Old 05-21-2006, 11:38 PM   #3
Senior Member
Posts like a Camaro

Join Date: Sep 2003
Location: Bad Axe,MI.
Posts: 1,025
Thanks: 0
Thanked 0 Times in 0 Posts
daman is on a distinguished road
Default

Nice choice on the motor oil and over sized NAPA Gold filter.... very good quality
daman is offline   Reply With Quote
Old 05-22-2006, 02:06 AM   #4
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: Coon Rapids, Minnesota
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
GreenMachine98 is on a distinguished road
Default

hmm must have been a fluid changing weekend in MN. you lakevilleSSEI and myself changed fluids.... only you had some add ons!
GreenMachine98 is offline   Reply With Quote
Old 05-22-2006, 02:12 AM   #5
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Did you bypass the radiator? Srry if thats a dumb ?
95naSTA is offline   Reply With Quote
Old 05-22-2006, 02:15 AM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Quote:
Originally Posted by 95naSTA
Did you bypass the radiator? Srry if thats a dumb ?
No. Should I have? It'd be no real problem.... just a 2' piece of hose would be all I need.
OLBlueEyesBonne is offline   Reply With Quote
Old 05-22-2006, 02:18 AM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

any idea on how many degrees colder it will run with that? or is it mainly so the trans does not overheat in the city?
Hans is offline   Reply With Quote
Old 05-22-2006, 02:19 AM   #8
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by OLBlueEyesBonne
Quote:
Originally Posted by 95naSTA
Did you bypass the radiator? Srry if thats a dumb ?
No. Should I have? It'd be no real problem.... just a 2' piece of hose would be all I need.
Well, from what I know from Bill W, all the rad core does is help pre-heat the fluid. It doesn't do much in the way of cooling.
He bypassed his with a large rad cooler. I'm not sure if yours is large enough?
95naSTA is offline   Reply With Quote
Old 05-22-2006, 03:04 AM   #9
Senior Member
Posts like a Northstar

Join Date: Apr 2004
Location: Minneapolis, MN
Posts: 566
Thanks: 0
Thanked 0 Times in 0 Posts
CSFiend is on a distinguished road
Default

Yes, bypass the radiator completly. Not only does it help warm the fluid you're trying to air-cool, but if the radiator does develop a leak between the transmission cooler and the inside of the radiator, you'll start running coolant through your tramission and vice versa. An unlikely occurance, but one that has happened to me in my 91 Lumina and caused the failure of my transmission.
CSFiend is offline   Reply With Quote
Old 05-22-2006, 06:24 AM   #10
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Well hell, we all should just met up somewhere and done this all together here? Hahaha

Tranny coolers next on my list.....I'm looking for something that has fans on it though....so in traffic I can still get the air flow....

Seeing how I live in the cities....Traffic'* a *****.
LakevilleSSEi is offline   Reply With Quote
