Default Motor mount upgrade

My front trans mount had a lot of play, and I could see that part of the rubber had pulled away from the metal. I've also been seeing a lot of odd KR. So I decided to upgrade the mount.

This mount right here.
Name:  DSC02351.jpg
Views: 2
Size:  172.4 KB

Wasn't to hard, but it'* now out.
Name:  DSC02352.jpg
Views: 3
Size:  198.8 KB

When under there, I noticed my drag radials, well, what was left of them. Changed over to my winter tires. I always wait till November for this, but considering what is left of my tires, and the way the weather has been, thought I better do it now.
Name:  DSC02353.jpg
Views: 2
Size:  106.8 KB

So I drill a hole, dang, the bolt don't fit. Ahh, I have a 1/2" hardened bolt, and a 3/8 drill. Great, my 1/2" bit don't fit. And my wife is gone and my car is short one motor mount. So I had to walk to Menards, only about 3/4 miles, so no big deal.

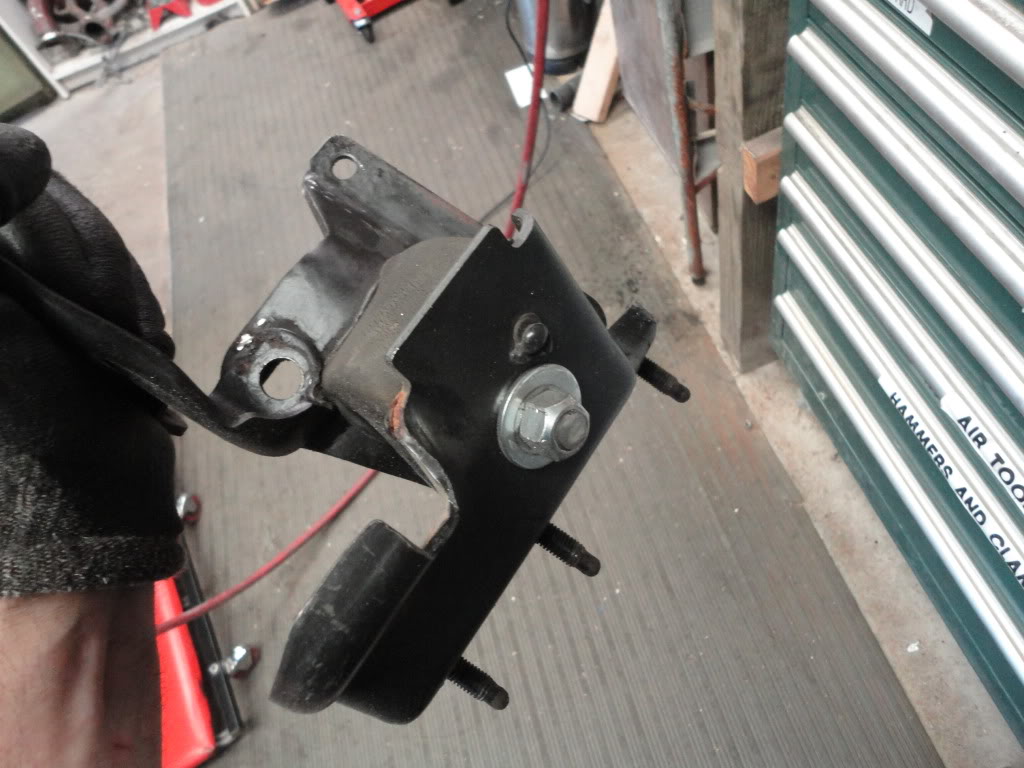

Made the hole the correct size, cut off the extra and it'* ready to put back in.
Name:  DSC02354.jpg
Views: 1
Size:  130.6 KB

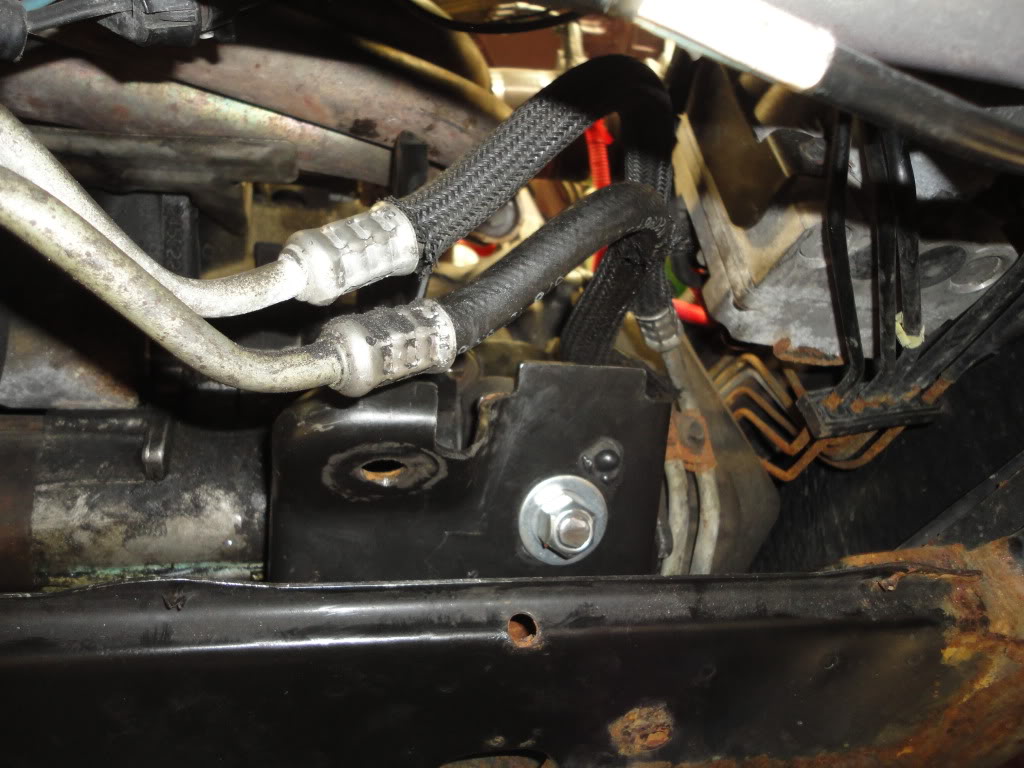

Was a pain, but I got it back in.
Name:  DSC02355.jpg
Views: 1
Size:  140.1 KB

No more movement on the engine now. I took it for a drive. So far the weird KR seems to be gone, but we will see. I thought I fixed it several times in the past only to have it show back up. I did a little WOT and chirped the tires when it shifted in to 2nd gear at 45.
Danthurs is offline   Reply With Quote
Old 09-27-2010, 03:32 PM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

nice sorry about the mount you wanted from me i just picked the ssei up today and brought it to my new house so i planned to pull it for ya today but seems you dont need it lol nice job hope you recurring KR stays gone
sseidriver97 is offline   Reply With Quote
Old 09-27-2010, 04:51 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looks like it'* better, but still have some. I'll have to dig deeper. Something is causing false KR. I will say, solid mounting that mount really sharpened up the shifts. There was times I could feel the engine moving back and forth causing the RPMs to move.
Danthurs is offline   Reply With Quote
Old 09-27-2010, 05:28 PM   #4
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

I'm not sure if that'* a nylon lock nut but if not you may want to get one.
I had a regular nut with a lock washer and it wouldn't stay tight.
(I should have mentioned that)
95naSTA is offline   Reply With Quote
Old 09-27-2010, 06:01 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* a locking nut. If I happen to see it moving I'll hit it with the welder.
Danthurs is offline   Reply With Quote
Old 09-27-2010, 06:36 PM   #6
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Good idea.
95naSTA is offline   Reply With Quote
Old 09-27-2010, 06:39 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Also why I wanted the nut on the outside. I must say, it really holds the engine in place now. Hardly moves at all.
Danthurs is offline   Reply With Quote
Old 09-27-2010, 07:20 PM   #8
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

My mount is doing the same thing. Been pondering weather to replace it or...but, you gave me an idea to fix mine.
Mike is offline   Reply With Quote
Old 09-27-2010, 09:50 PM   #9
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Also why I wanted the nut on the outside. I must say, it really holds the engine in place now. Hardly moves at all.
True story. Plus it'* cheap and easy.
I went from this:
http://www.youtube.com/watch?v=29zY_tQc030
To the bolt mount and I was pretty happy about it.. lol.
I actually snapped that small metal shaft connecting the two plates before that vid.. that'* why it moves to much. I made the bolt mount out of a new mount because of that.
95naSTA is offline   Reply With Quote
Old 09-27-2010, 10:02 PM   #10
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

That'* a nice mount. Glad to hear it helped you out. Would you recommend a solid front mount to others?
