I've had a trans sitting here for nearly a year, got a good deal on it and figured I'd get to it some day. Well, today was that day.

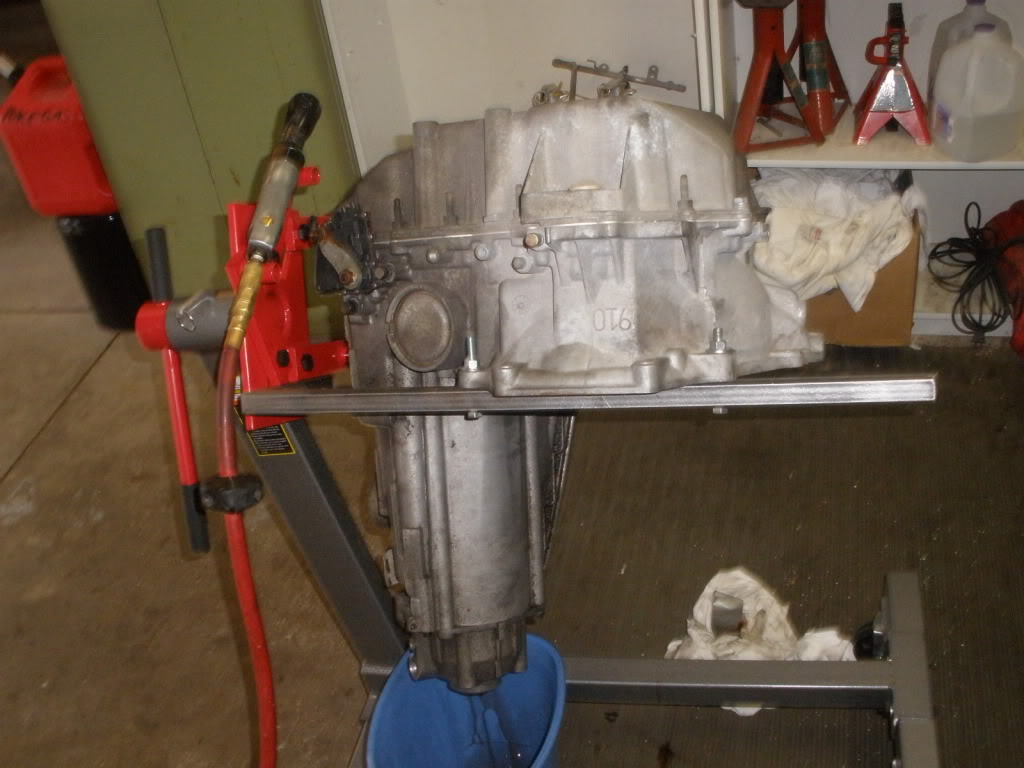

Got it mounted on the stand and started removing the side cover.
Name:  PB230330.jpg
Views: 18
Size:  114.0 KB

Got all the bolts out.
Name:  PB230331.jpg
Views: 20
Size:  125.9 KB

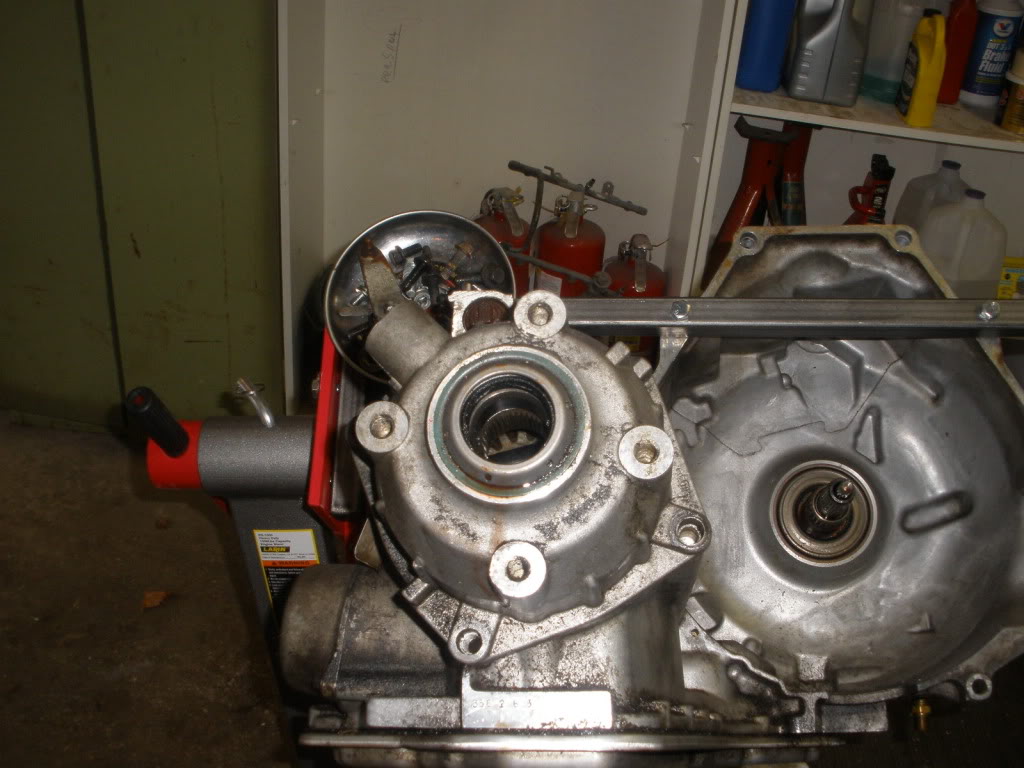

Before removing the cover I flipped it and removed the diff cover.
Name:  PB230332.jpg
Views: 20
Size:  129.9 KB

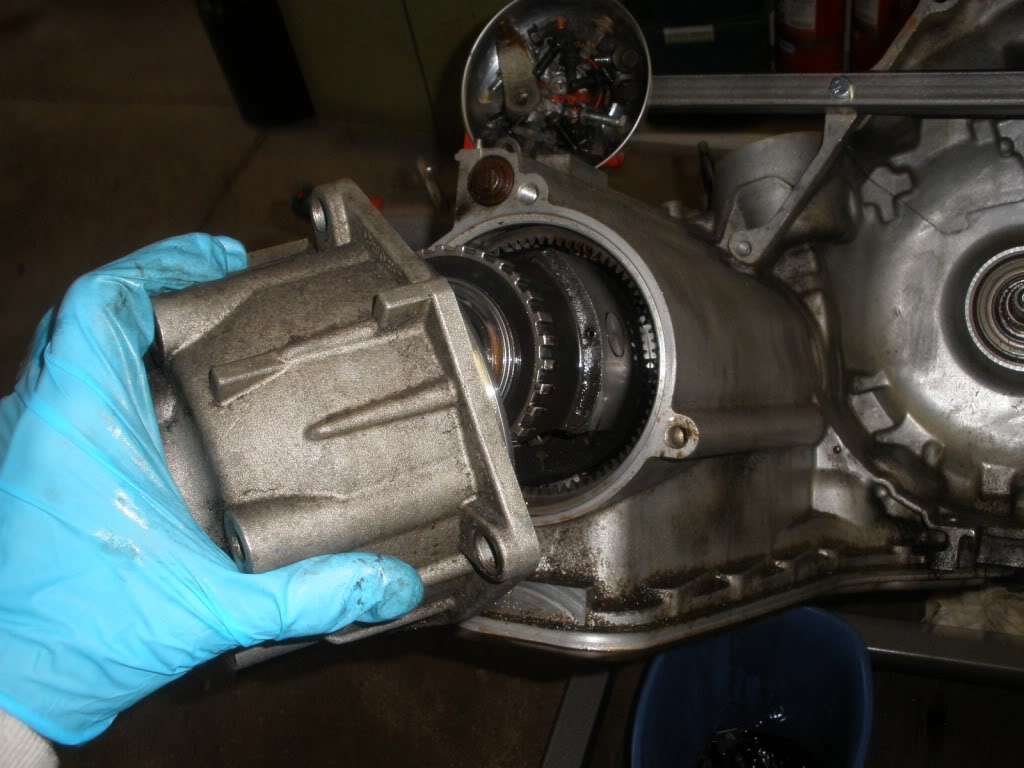

Comes off easy enough.
Name:  PB230333.jpg
Views: 20
Size:  129.9 KB

One HD diff.
Name:  PB230334.jpg
Views: 22
Size:  132.1 KB

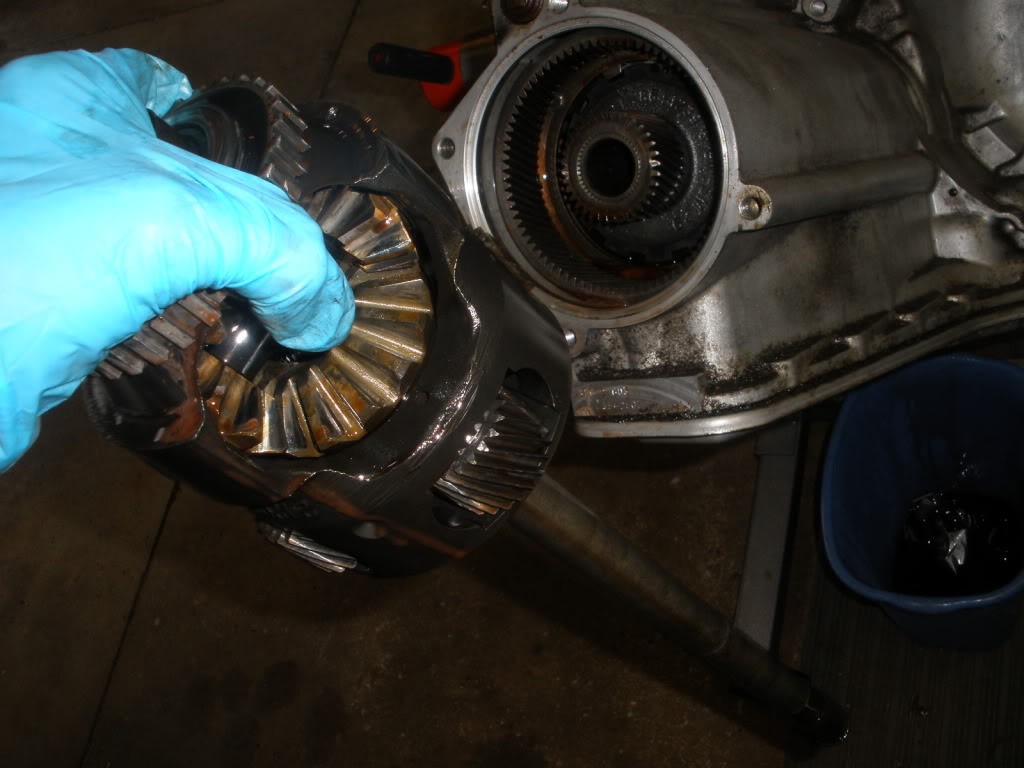

Comes out easy too, output shaft came with it, I think that was to go out the other way.
Name:  PB230335.jpg
Views: 16
Size:  107.8 KB

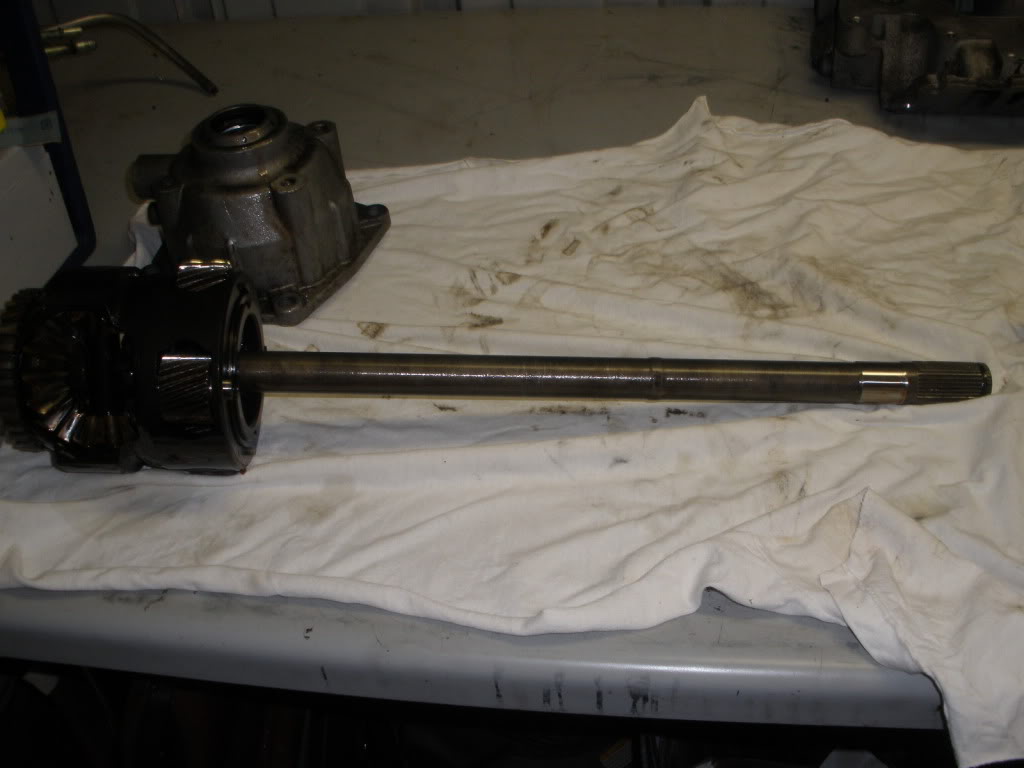

And on the bench with it.
Name:  PB230336.jpg
Views: 18
Size:  80.6 KB

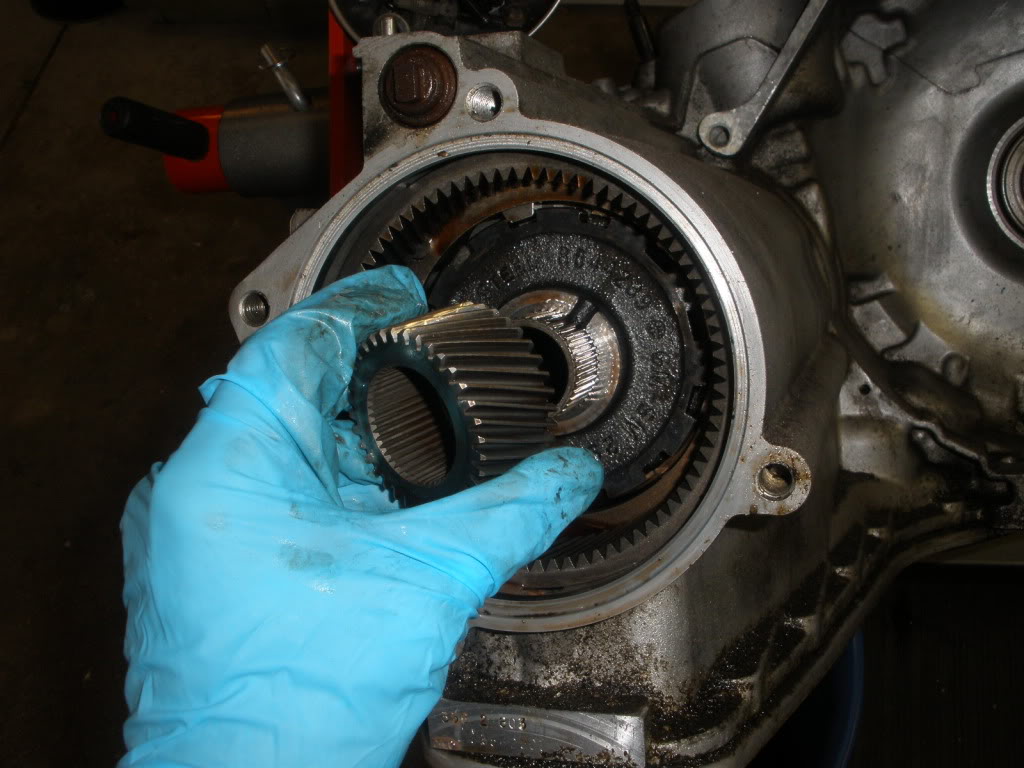

Removing sprockets.
Name:  PB230337.jpg
Views: 18
Size:  131.5 KB

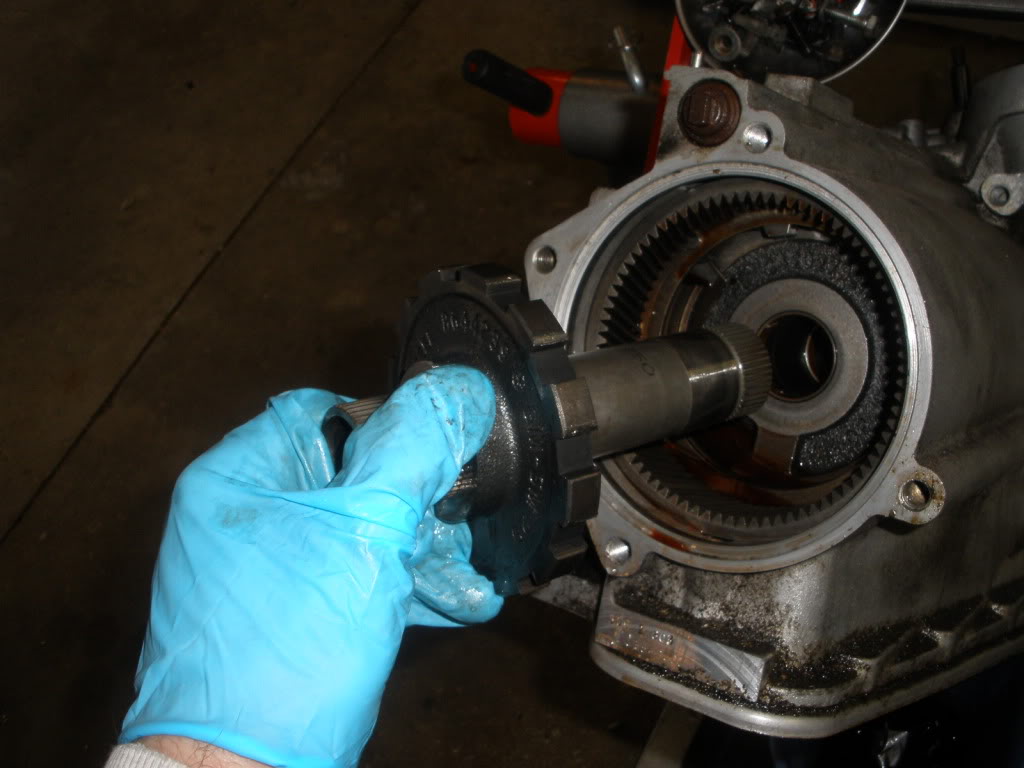

Pulling the shaft.
Name:  PB230338.jpg
Views: 17
Size:  100.8 KB

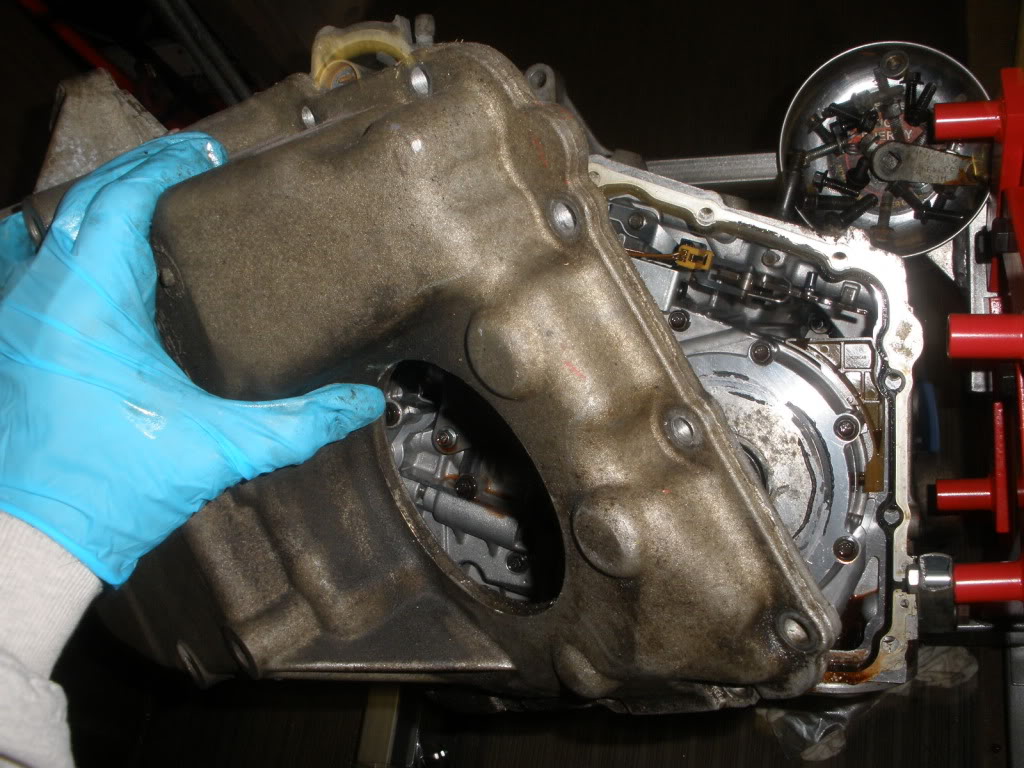

Flip t back over and remove the cover
Name:  PB230339.jpg
Views: 19
Size:  162.7 KB

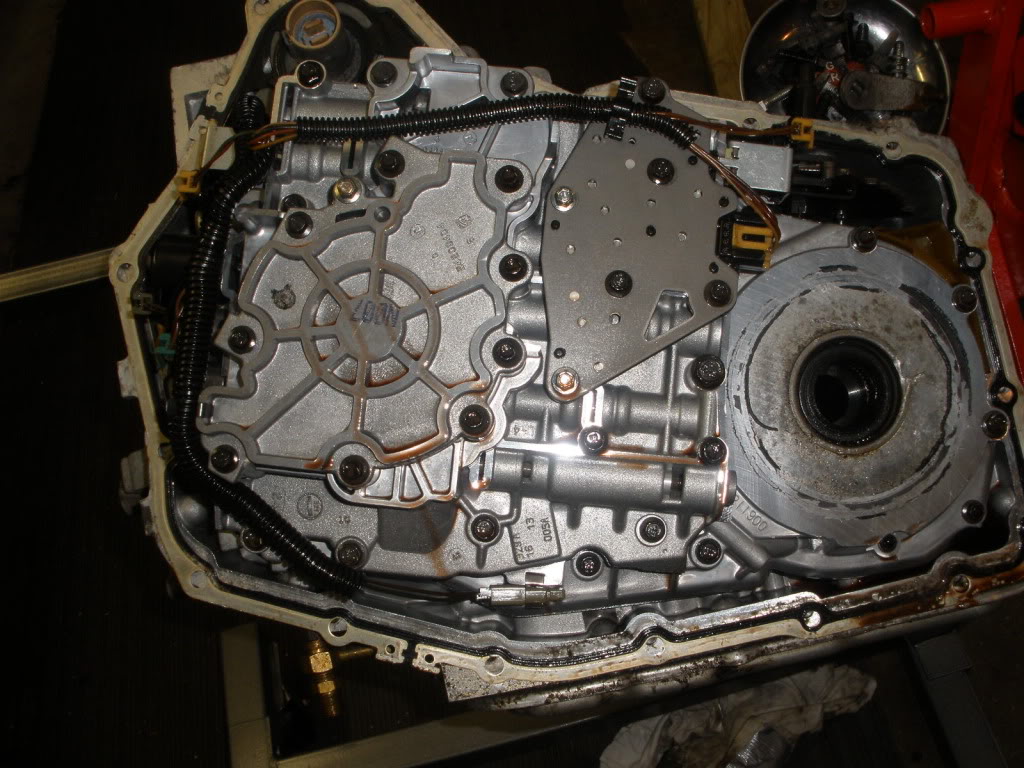

Here'* the innards Sensors, and valve body
Name:  PB230340.jpg
Views: 17
Size:  181.4 KB

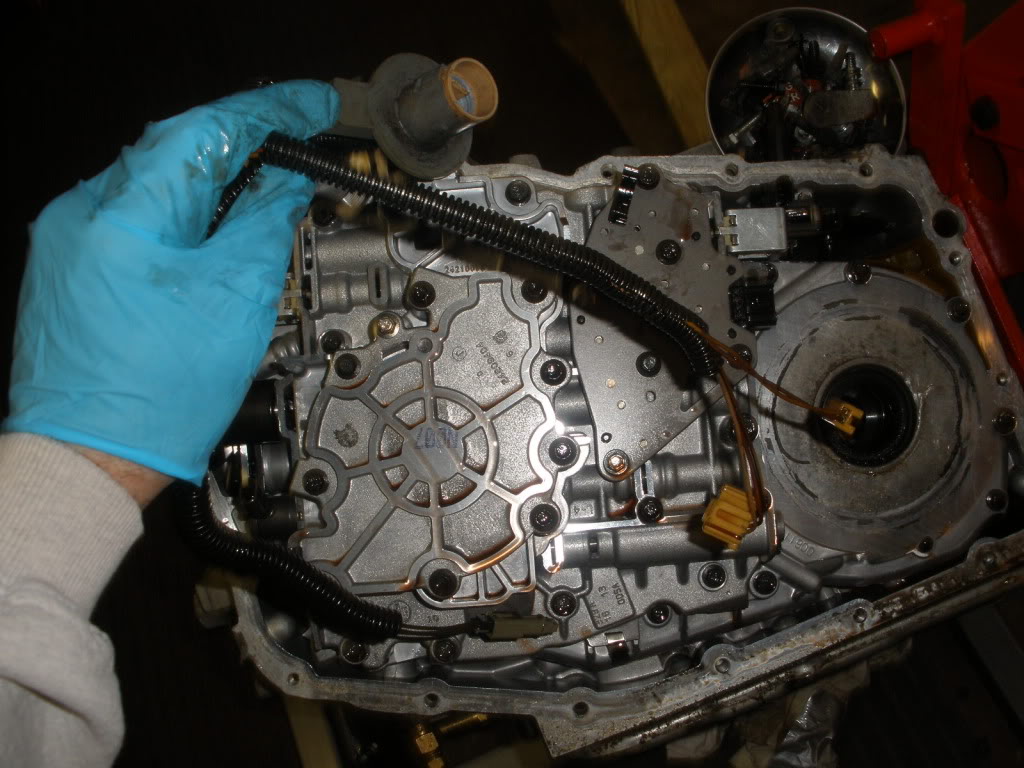

Removing the wiring harness.
Name:  PB230341.jpg
Views: 14
Size:  152.6 KB

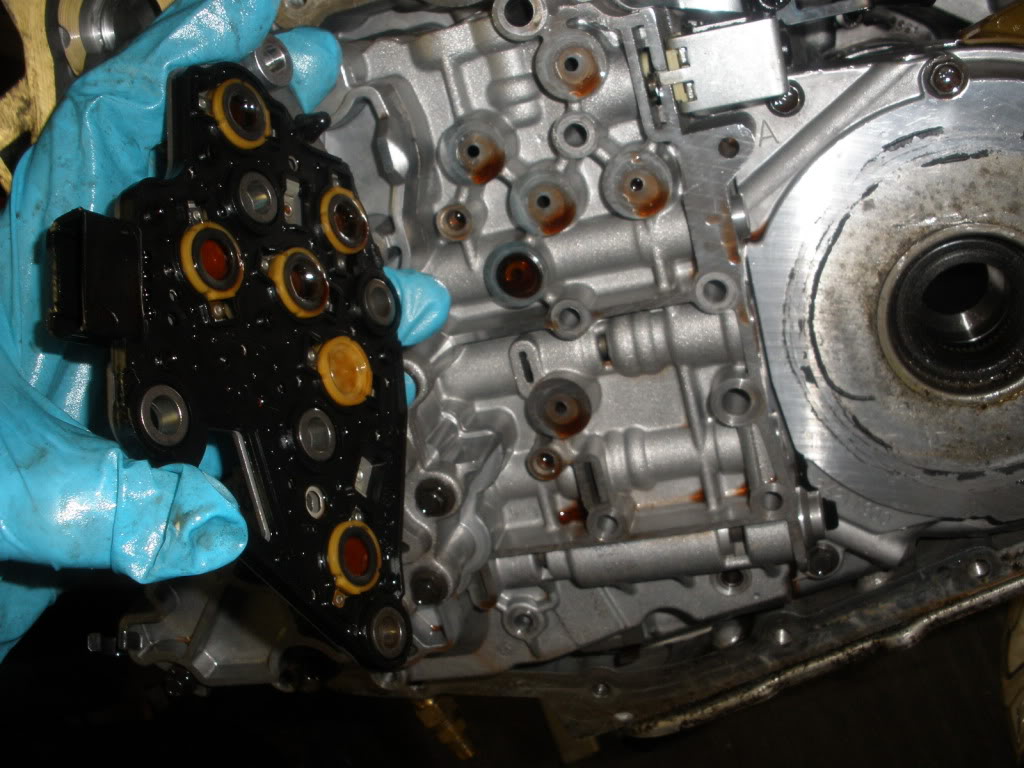

Pulled the pressure switch.
Name:  PB230342.jpg
Views: 18
Size:  145.0 KB

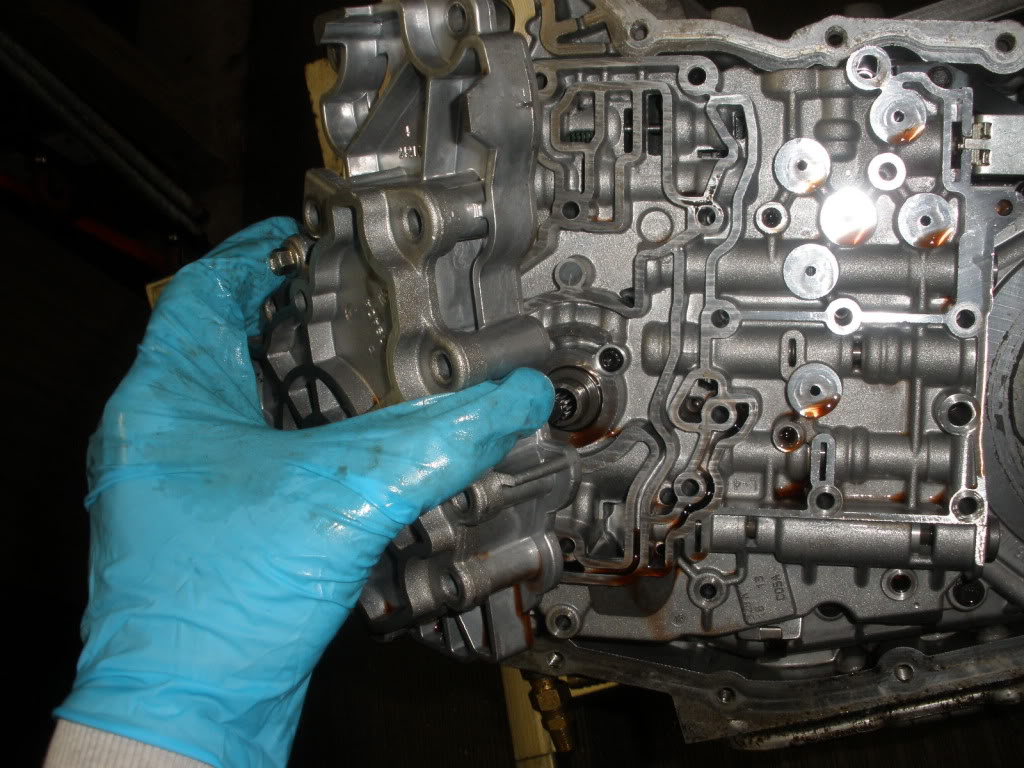

Now off with the oil pump.
Name:  PB230343.jpg
Views: 17
Size:  167.8 KB

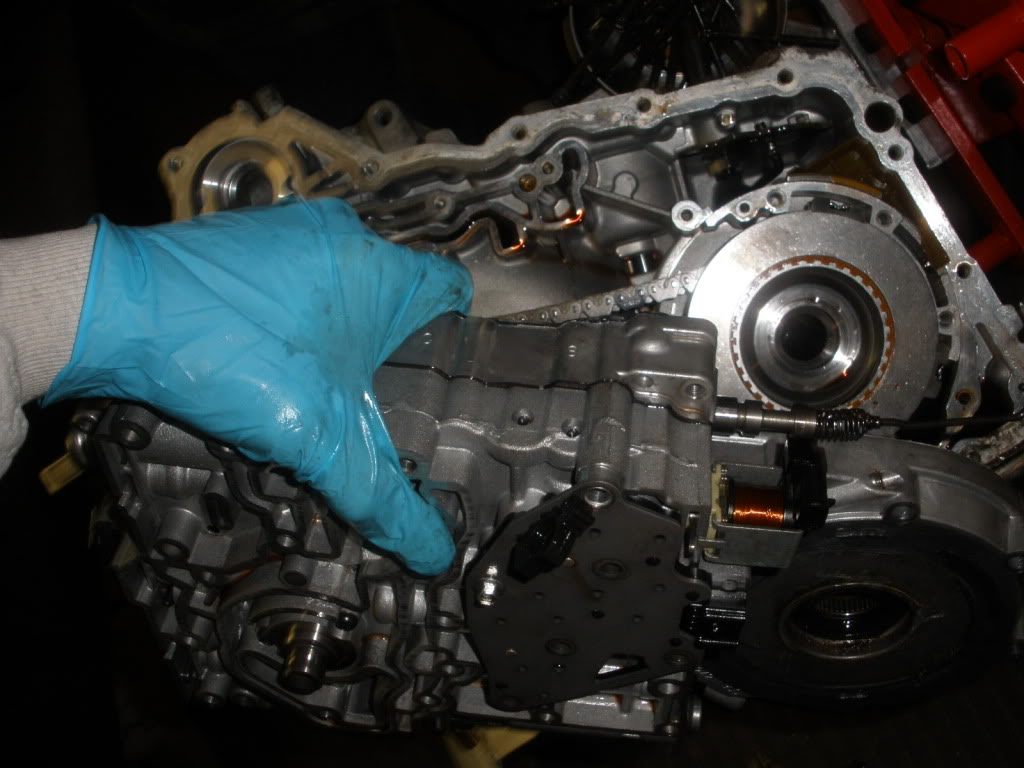

And finally the valve body.
Name:  PB230344.jpg
Views: 16
Size:  118.1 KB

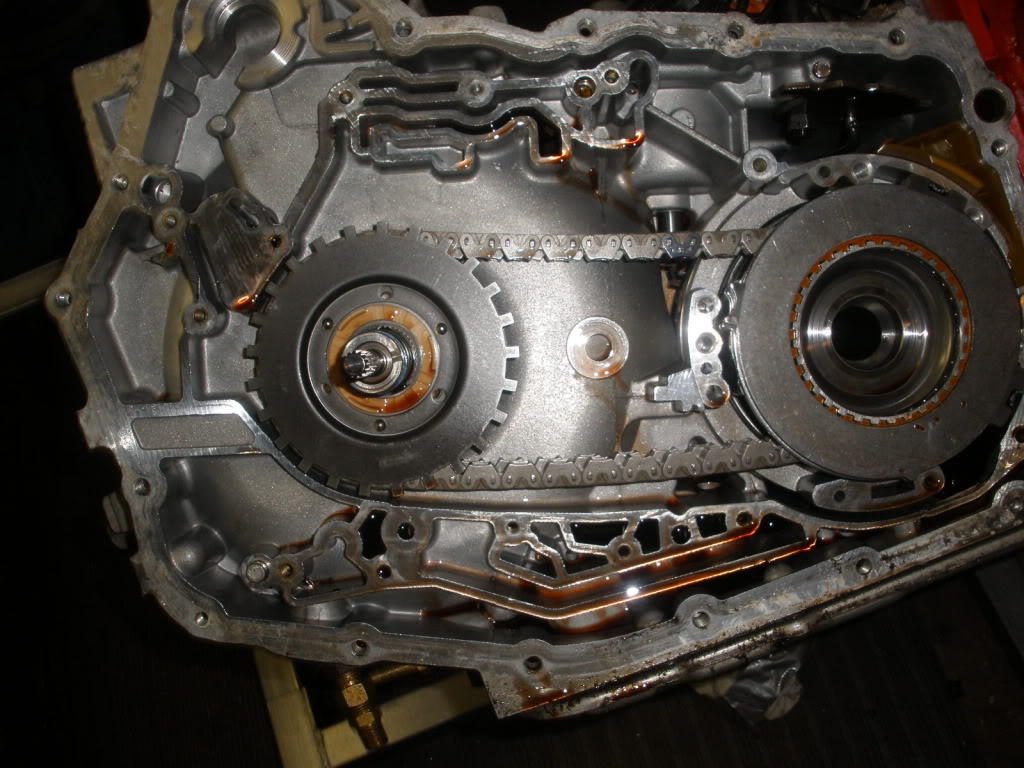

Now we have the gears.
Name:  PB230345.jpg
Views: 16
Size:  166.7 KB

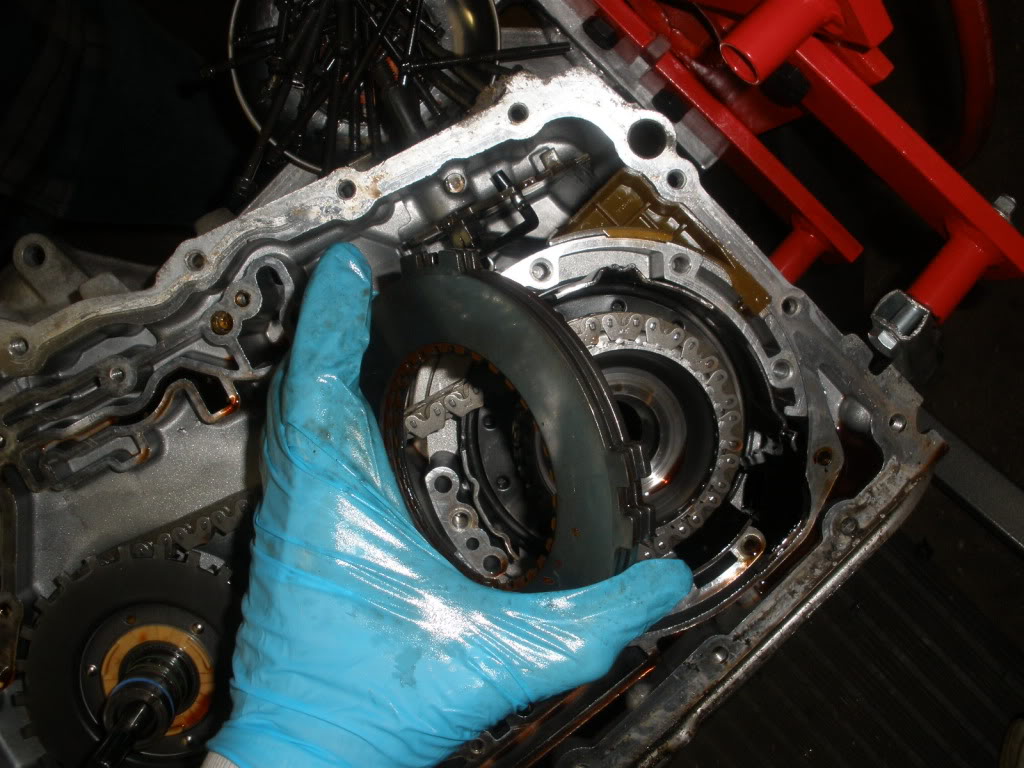

4th gear clutch
Name:  PB230346.jpg
Views: 20
Size:  155.0 KB

Hmm, what have we hear? a trans from a 98 with a 4th gear clutch shaft with 09/27/04 date on it. Looks like this trans has been repaired with a new hardened clutch shaft.

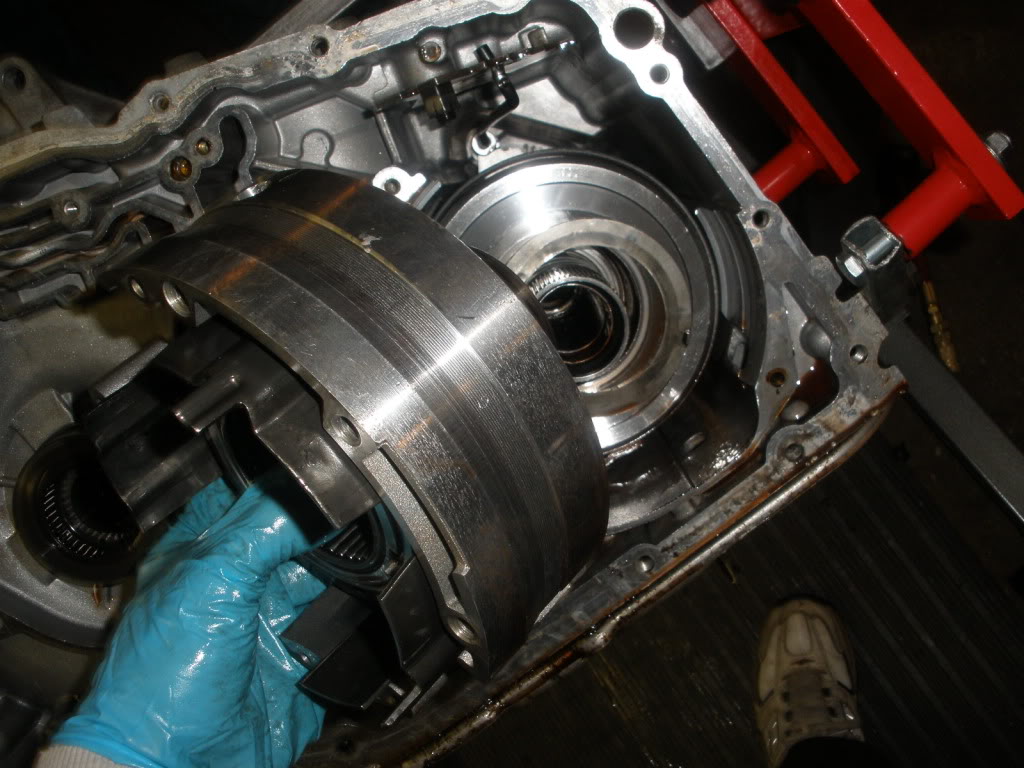

Removing more parts.
Name:  PB230348.jpg
Views: 18
Size:  143.6 KB

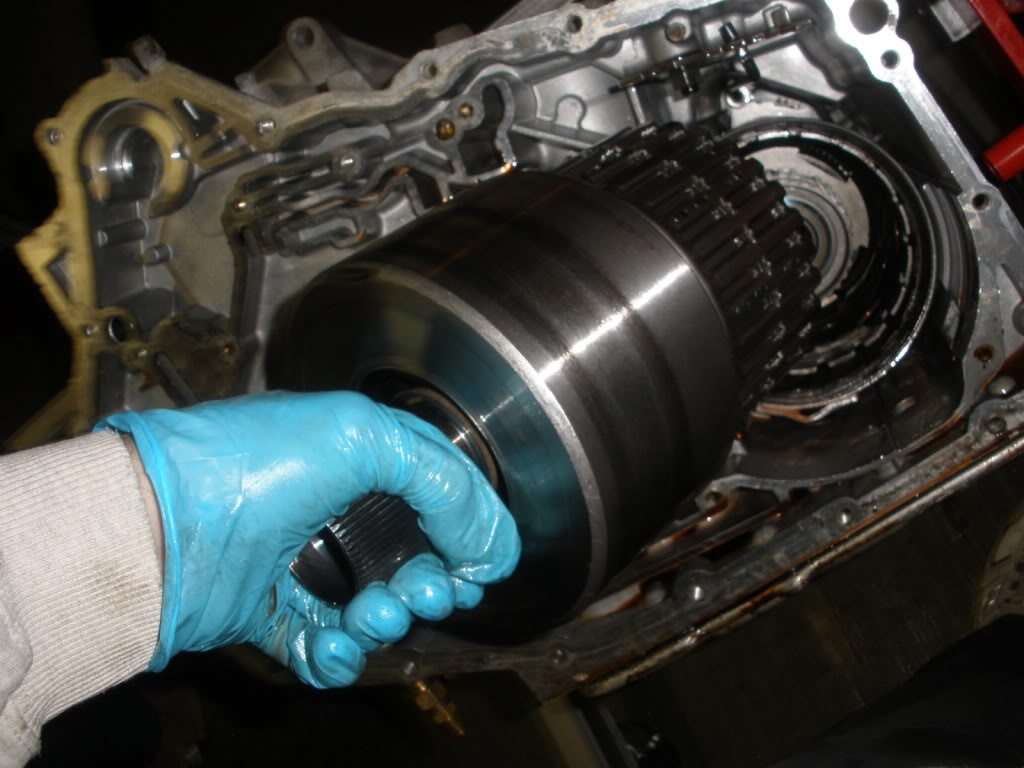

Input clutch drum
Name:  PB230349.jpg
Views: 15
Size:  116.2 KB

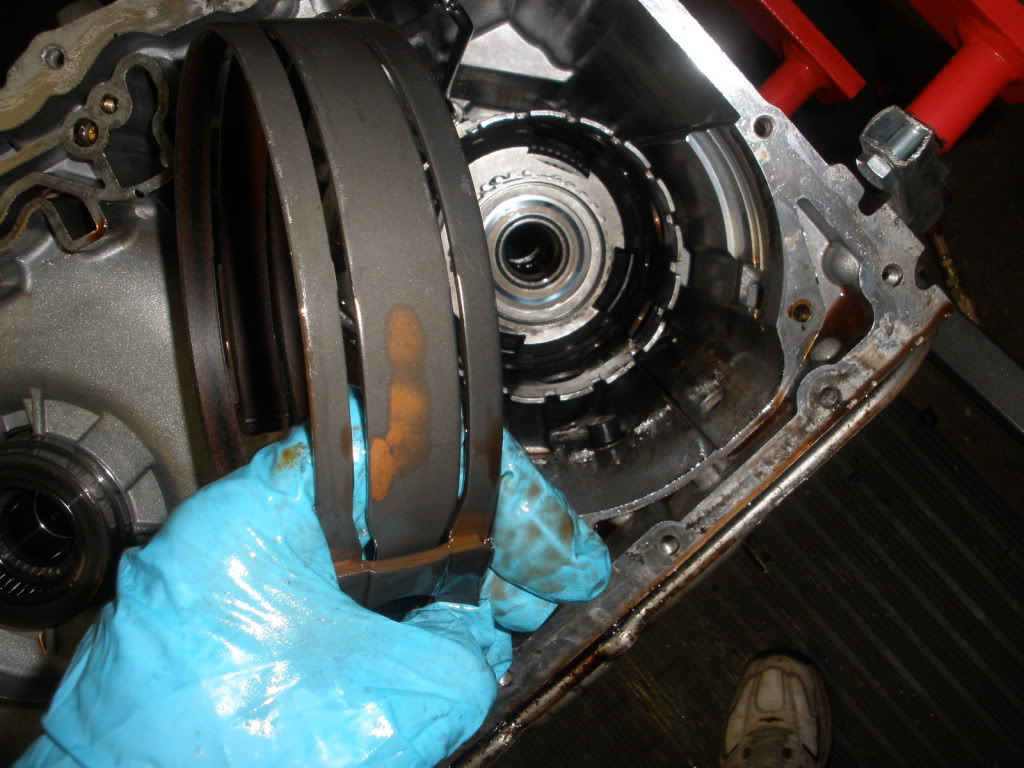

A band
Name:  PB230350.jpg
Views: 15
Size:  144.4 KB

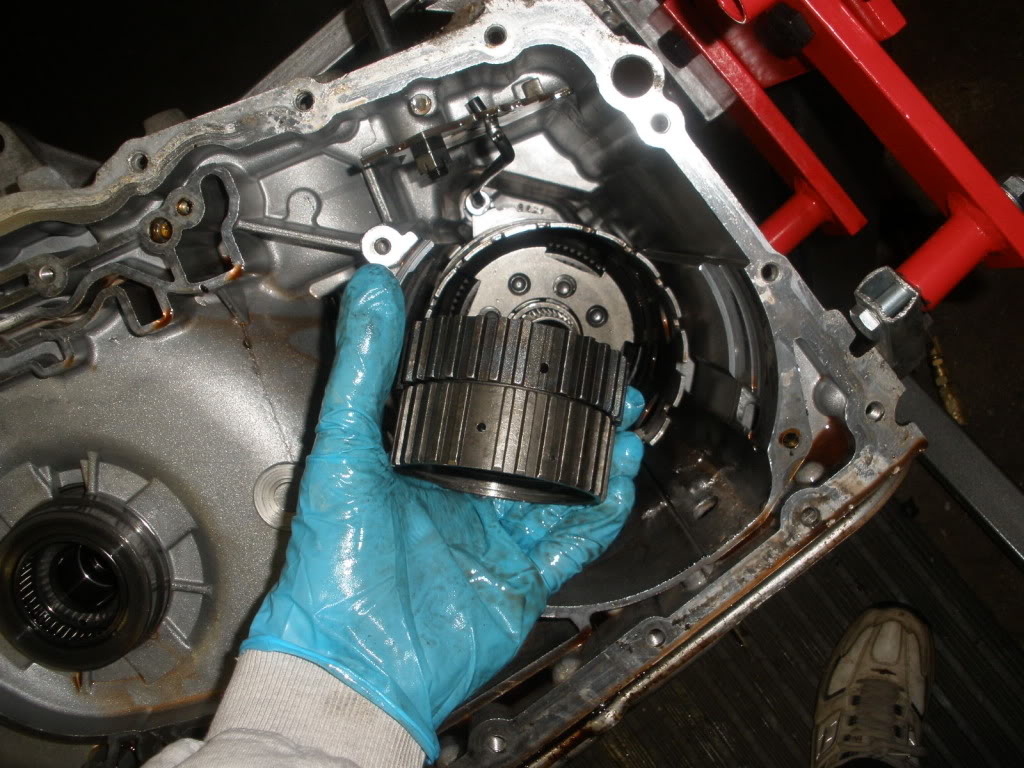

I just keep pulling more parts out.
Name:  PB230351.jpg
Views: 16
Size:  175.2 KB

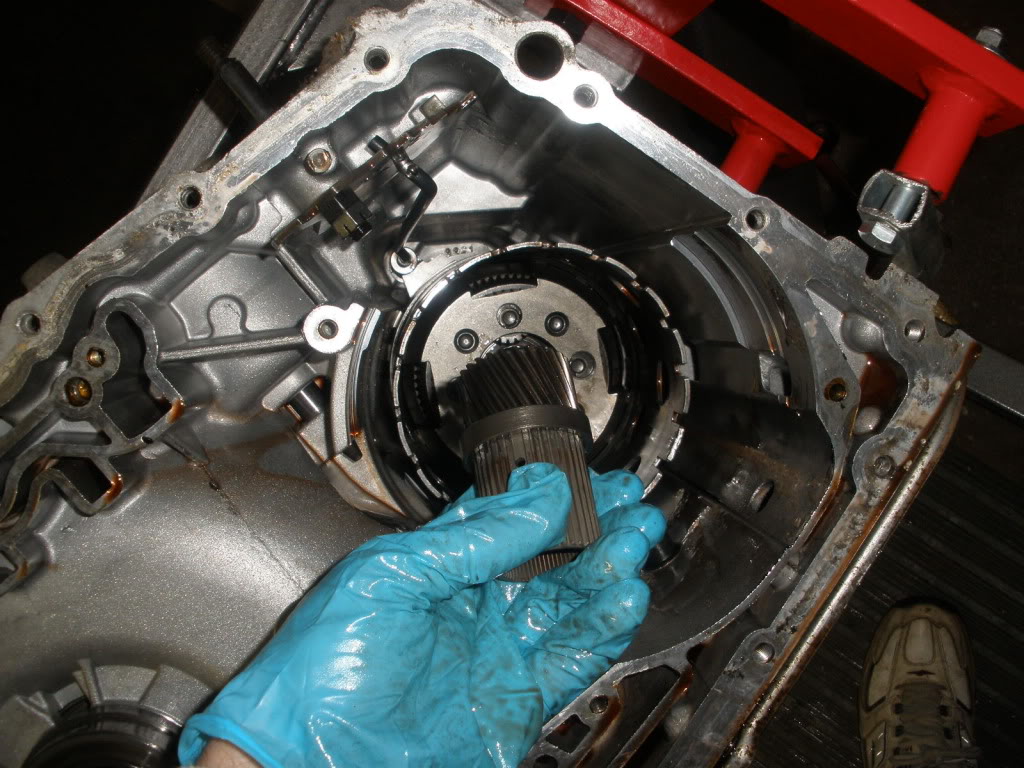

See, it'* like magic.
Name:  PB230352.jpg
Views: 19
Size:  175.3 KB

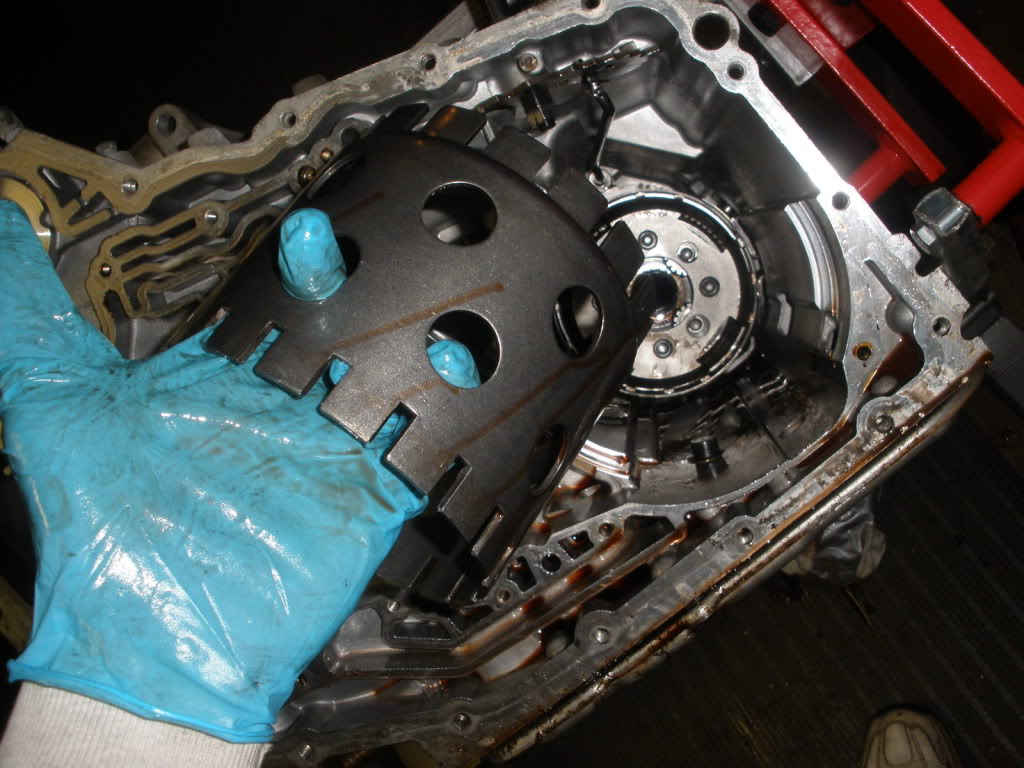

Reverse Reaction Shell
Name:  PB230353.jpg
Views: 18
Size:  159.1 KB

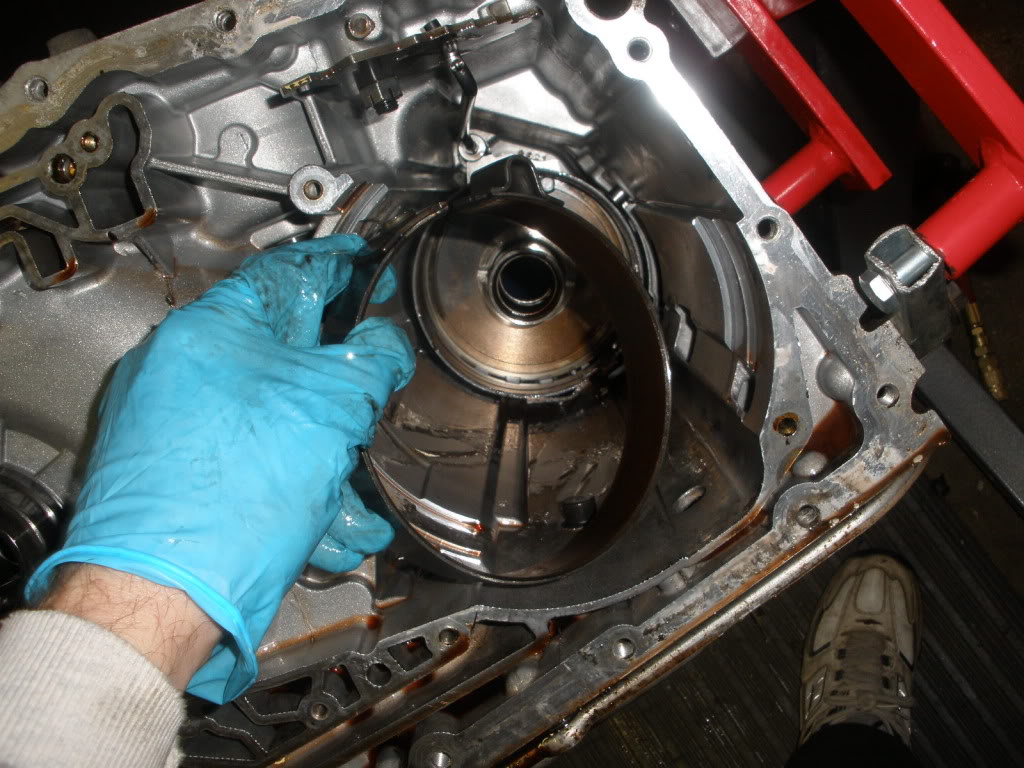

Another band.
Name:  PB230354.jpg
Views: 15
Size:  164.1 KB

It'* the last one, I swear.
Name:  PB230355.jpg
Views: 16
Size:  172.7 KB

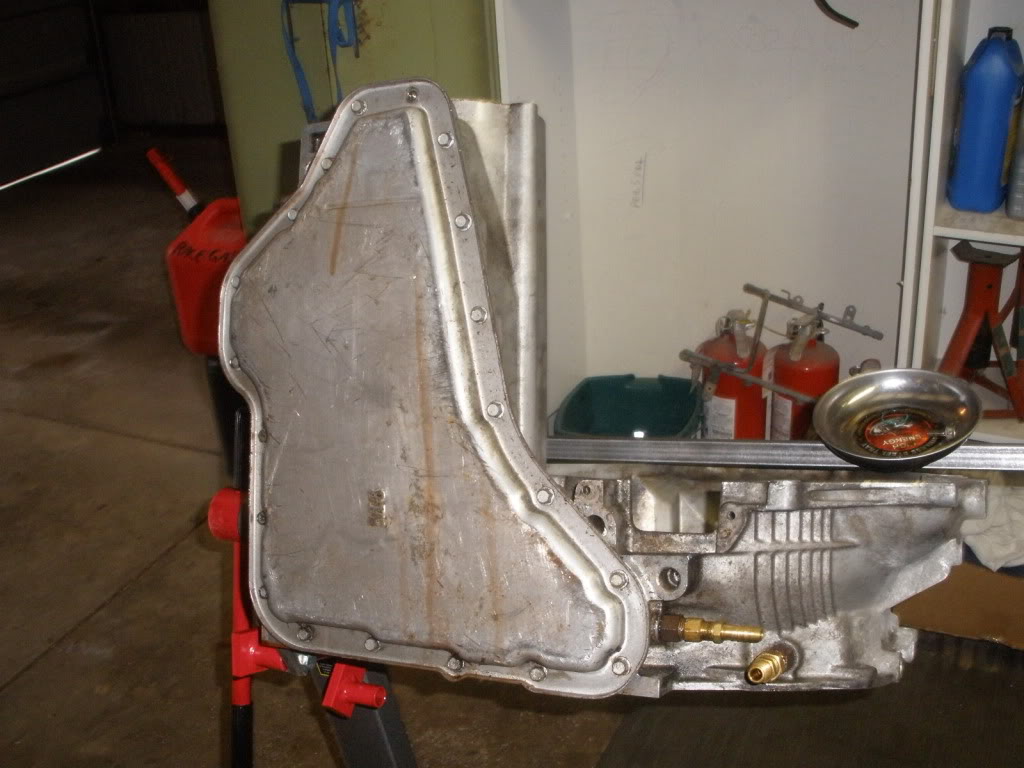

Flip the trans over again to remove the pan.
Name:  PB230356.jpg
Views: 19
Size:  122.7 KB

Chris showed up to change his thermostat.
Name:  PB230358.jpg
Views: 18
Size:  119.4 KB

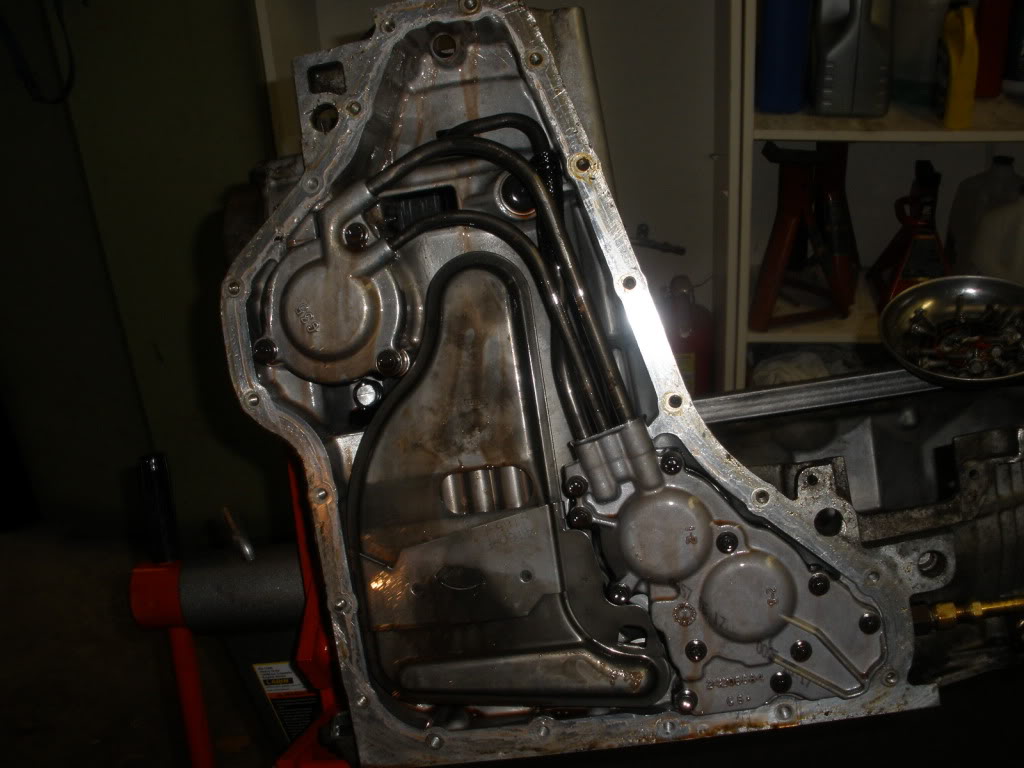

So much easier then when your laying under the car.
Name:  PB230359.jpg
Views: 19
Size:  117.3 KB

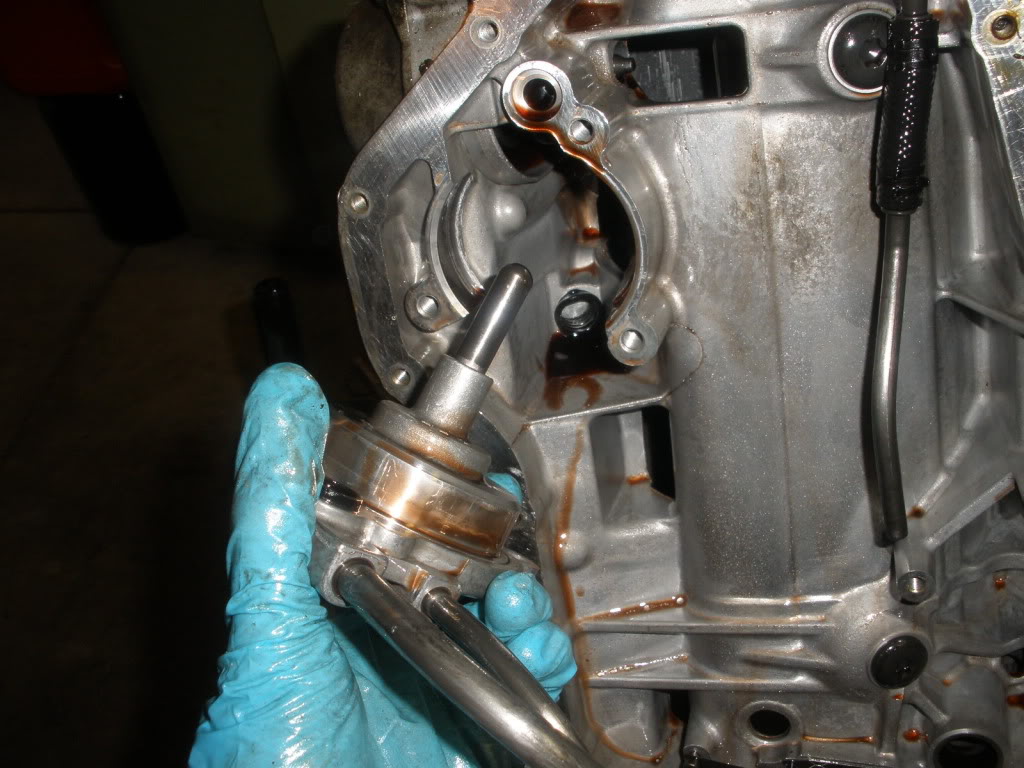

Last of the parts
Name:  PB230360.jpg
Views: 15
Size:  146.3 KB

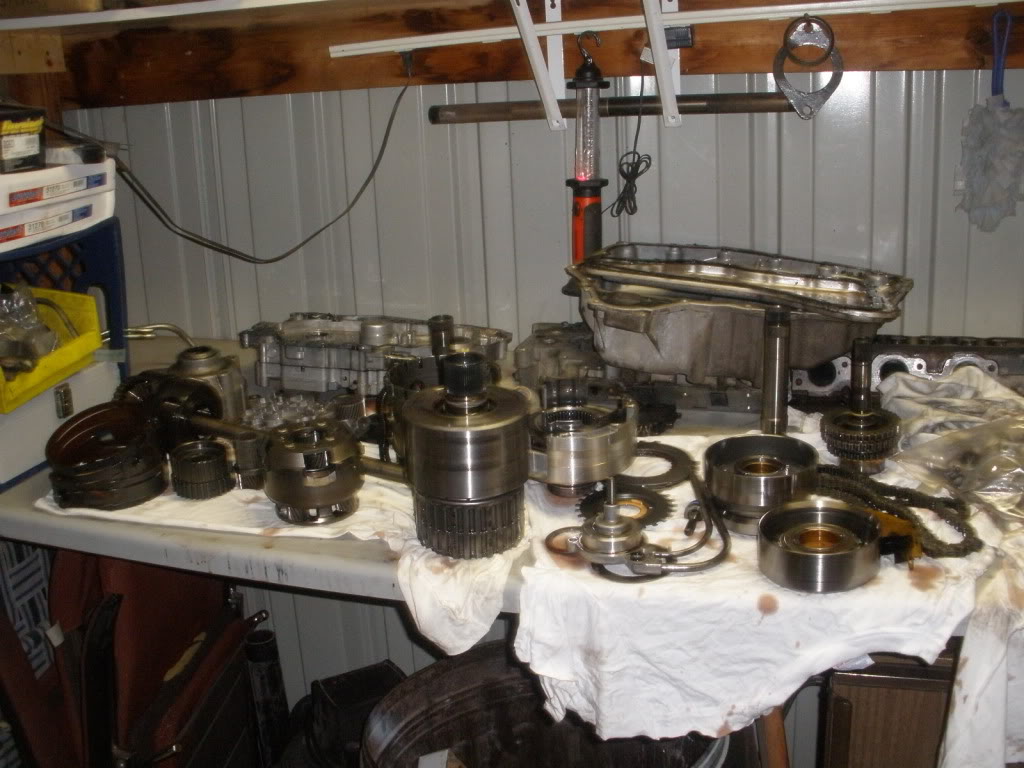

Now that is a big pile of parts.
Name:  PB230361.jpg
Views: 20
Size:  139.9 KB

Taking it apart was easy, now to put it back together.
Danthurs is offline   Reply With Quote
Old 11-23-2009, 05:01 PM   #2
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

yup the fun part is always putting it back together good thing you took pictures
sawgunner is offline   Reply With Quote
Old 11-23-2009, 05:05 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

And I have a very detailed manual on rebuilding transmissions.
Danthurs is offline   Reply With Quote
Old 11-23-2009, 05:32 PM   #4
Member
Posts like a V-Tak

Join Date: Apr 2009
Location: Indy
Posts: 62
Thanks: 0
Thanked 0 Times in 0 Posts
Tedro951 is on a distinguished road
Default

Go, Dan, go! I'm dying to do an automatic, and since mine is nearing 200K I'm thinking of buying a donor to rebuild before mine goes.
Tedro951 is offline   Reply With Quote
Old 11-23-2009, 06:15 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* really not all that hard. Having the engine stand and the bracket I made, thanks to billboost for that idea, and a few tools, it'* rather a easy job. Get a trans service manual, big help there. Just wear rubber gloves and keep everything real clean. I plan to put this one back together, then rip it down again, and do this several times.
Danthurs is offline   Reply With Quote
Old 11-23-2009, 07:32 PM   #6
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Not bad! I could give myself a new transmission, if I only I had the: space, stand, tools, manual, donor transmission, jack stands, lift…

Best of luck on your rebuild!
SignOfZeta is offline   Reply With Quote
Old 11-23-2009, 07:36 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Well, best to start a list.
Danthurs is offline   Reply With Quote
Old 11-23-2009, 08:33 PM   #8
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by Danthurs View Post
Well, best to start a list.
Sure. Here'* the condensed version:
  • BillBoost'* garage
  • Contents of BillBoost'* garage.

Someday, but not today.
SignOfZeta is offline   Reply With Quote
Old 11-23-2009, 08:42 PM   #9
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

Quote:
Originally Posted by SignOfZeta View Post
Sure. Here'* the condensed version:
  • BillBoost'* garage
  • Contents of BillBoost'* garage.

Someday, but not today.
good list
now can you make it happen without bill thinking that your taking over?
sawgunner is offline   Reply With Quote
Old 11-23-2009, 08:51 PM   #10
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Dan, when you rebuild this trans, make sure that you tighten the clutch clearance in the 2nd and 3rd clutch. GM does not give a spec for this, but we use 1 or 2 oversized steels for the 2nd clutch and use a few early 440-T4 3rd clutches to tighten things up in the 3rd clutch.
sgp358 is offline   Reply With Quote
