Default how the... center console question

any ideas on how to get this piece of to get my new cup holder piece in...
Name:  DSC02016.jpg
Views: 0
Size:  63.1 KB

view from the bottom...those 2 bolts need to come off...but there is NO ROOM!

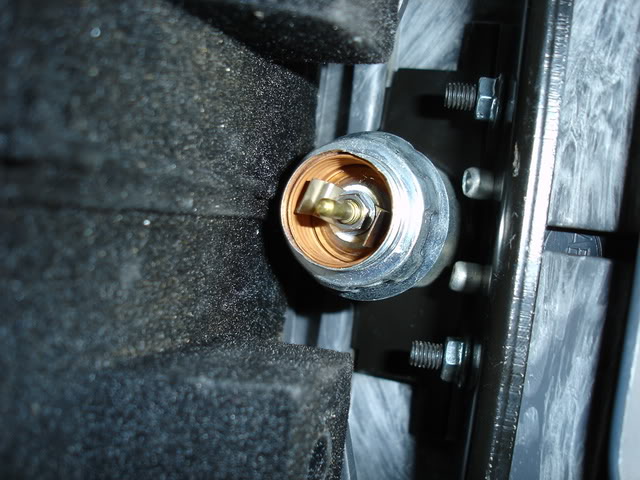

Name:  DSC02018.jpg
Views: 0
Size:  67.1 KB

my socket set laughed at me when i tried it

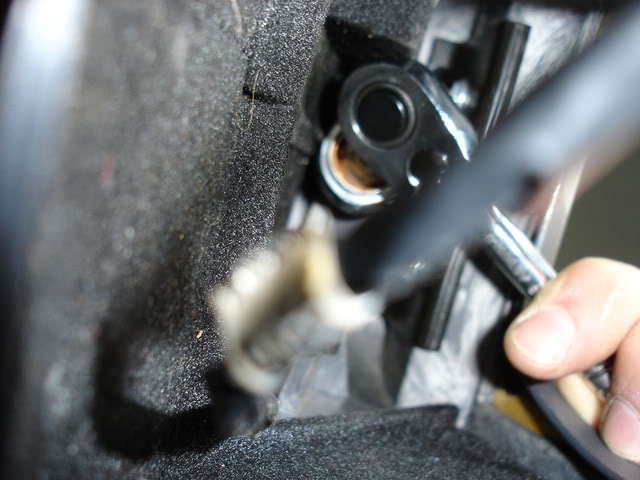

Name:  DSC02022.jpg
Views: 0
Size:  49.4 KB

do i need to go buy open end wrenches? there is only about 1/8" room to turn it...

do i need to take out the power outlet??

any help thanks
harofreak00 is offline   Reply With Quote
Old 03-24-2005, 05:40 PM   #2
Senior Member
Certified Car Nut

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

EVERYBODY needs a good set of box wrenches. If you're really lazy, they even have the ratcheting kind....
MOS95B is offline   Reply With Quote
Old 03-24-2005, 06:43 PM   #3
Senior Member
Posts like a Camaro

Join Date: Feb 2003
Location: Indianapolis, IN / West Lafayette
Posts: 1,004
Thanks: 0
Thanked 0 Times in 0 Posts
Plurr is on a distinguished road
Default

or try the good ol cresent wrench
Plurr is offline   Reply With Quote
Old 03-24-2005, 06:51 PM   #4
Senior Member
Certified Car Nut

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

Quote:
Originally Posted by Plurr
or try the good ol cresent wrench
Oooooooo..... Evil!! Tool of the devil!!! They have always demanded blood sacrifices when I've used 'em anyways....
MOS95B is offline   Reply With Quote
Old 03-24-2005, 07:16 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

What a beautiful thing. Who'* the jerk that designed this?

The idea is to move the inner duct/box assembly, slide down and access the two nuts through the rear vent opening. I've only been able to do this with the console removed from the car. There are 4 7mm screws that secure the duct. You already found the two behind the access panel near the lighter plug. The other two are on the bottom of the console to the rear of the rear mounting slots. The duct assembly can then be slid downward and forward to access the two nuts.

Here are some pics. Sorry, I don't have any imaging programs on this computer so I couldn't add arrows to point out locations. Note: all of the fasteners have been removed so you will not see ant screw heads... just holes.





randman1 is offline   Reply With Quote
Old 03-24-2005, 08:36 PM   #6
Senior Member
True Car Nut

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

[yankee twang]Ayup, GearWrench, that'* the ticket.[/yankee twang]
GonneVille is offline   Reply With Quote
Old 03-25-2005, 01:01 AM   #7
Member
Posts like a V-Tak

Join Date: Sep 2004
Location: St. Michael, MN
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
DebinMN is on a distinguished road
Default

try a crowbar and a BIG hammer!
