Old 01-12-2007, 02:21 PM   #21
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by two bonnies
Quote:
actually its the exact opposite from what i have seen and experienced.....it your compressor is loud, its prolly on the way out
Oh.... Well then hooray for me. My GXP compressor is quite loud so I though quiet must mean bad.
na my compressor on my 03 is quite loud....its a totally different compressor

my above statemtnt was for the 96-99

and Guys.....this car is a F41 with ELC.....
1993 SLE is offline   Reply With Quote
Old 01-12-2007, 09:02 PM   #22
Junior Member
Posts like a V-Tak

Join Date: Oct 2005
Location: Fremont, CA
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
1997SESC is on a distinguished road
Default ELC compressor

Don't know if it will apply to your 1998 Lesabre but my 1997 Bonneville SLE was missing a section of wiring harness for the ELC from the time the car was new. It goes from the rear lighting harness through a hole in the trunk on the right hand side and then into the ELC compressor. It is about 18 inches long. Mine still had factory sticky tape on the hole in the frame. Got harness from junked Bonny and it works great. BTW since mine has never run in 9 years the pump is nearly silent since I got it working. SO, I guess if you can hear it clearly it maybe ready to go???
1997SESC is offline   Reply With Quote
Old 01-12-2007, 09:10 PM   #23
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

are you saying that your car was missing the Inflator On/Off switch??? or what part were you missing the ELC selector valve??...im confused

do you have the Performance Ride and Touring Ride next to the shifter??
1993 SLE is offline   Reply With Quote
Old 01-13-2007, 01:15 AM   #24
Junior Member
Posts like a V-Tak

Join Date: Oct 2005
Location: Fremont, CA
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
1997SESC is on a distinguished road
Default ELC compressor

1993SLE...who are you asking this question of? I HAD the selectable suspension [CCR] and still have inflator in the trunk with the on/off switch. It was a section of wiring that was missing in my car. I don't think any Buick Lesabre had CCR or inflator that I know of. Never saw any anyway in all my years in Buick/Pontiac dealerships.
1997SESC is offline   Reply With Quote
Old 01-13-2007, 01:16 AM   #25
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default Re: ELC compressor

Quote:
Originally Posted by 1997SESC
1993SLE...who are you asking this question of? I HAD the selectable suspension [CCR] and still have inflator in the trunk with the on/off switch. It was a section of wiring that was missing in my car. I don't think any Buick Lesabre had CCR or inflator that I know of. Never saw any anyway in all my years in Buick/Pontiac dealerships.
im asking the question to you 1997.....what section of harness were you missing was my question

and the buicks never had CCR or the inflator in the trunk
1993 SLE is offline   Reply With Quote
Old 01-13-2007, 01:29 AM   #26
Junior Member
Posts like a V-Tak

Join Date: Oct 2005
Location: Fremont, CA
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
1997SESC is on a distinguished road
Default

The harness that actually plugs into ELC motor. It goes from the pump through the frame and into the trunk near the pump and attaches to a pigtail that comes out of harness to rear lamps. It was never there from day one. It is a separate piece of harness about 18" long. I don't know what years were wired this way. I had the car for about a year before I noticed that ELC wasn't working. I am second owner so ELC never worked for first owners. Car now has working ELC and Gabriel Ultra struts in all four corners. These struts are very firm but the control is excellent. Greatly reduced lean in corners and dive and squat while braking/accelerating.
1997SESC is offline   Reply With Quote
Old 01-13-2007, 01:31 AM   #27
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 1997SESC
The harness that actually plugs into ELC motor. It goes from the pump through the frame and into the trunk near the pump and attaches to a pigtail that comes out of harness to rear lamps. It was never there from day one. It is a separate piece of harness about 18" long. I don't know what years were wired this way. I had the car for about a year before I noticed that ELC wasn't working. I am second owner so ELC never worked for first owners. Car now has working ELC and Gabriel Ultra struts in all four corners. These struts are very firm but the control is excellent. Greatly reduced lean in corners and dive and squat while braking/accelerating.
WOW that is pretty interesting
1993 SLE is offline   Reply With Quote
Old 01-13-2007, 01:32 AM   #28
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

Quote:
Originally Posted by sonoma_zr2
Quote:
Originally Posted by J Wikoff
Does it have a valve in the trunk that you could hook a hose up to and inflate stuff like a Bonny would?
only the bonne got that
Could you add such a valve?
rogers is offline   Reply With Quote
Old 01-13-2007, 01:38 AM   #29
Junior Member
Posts like a V-Tak

Join Date: Oct 2005
Location: Fremont, CA
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
1997SESC is on a distinguished road
Default

Look at the factory service manual for the ELC on a Pontiac and you will decide you don't really need it. It is quite complicated as it use a valve to shut off air to struts when you want to fill a tire or beach ball. There are many extra parts and relays. I guess if you got the whole thing from a junker including rear trunk trim you COULD do it.
1997SESC is offline   Reply With Quote
Old 03-23-2013, 08:36 PM   #30
Junior Member
Posts like a Ricer Type-R

Join Date: Jan 2013
Location: Milwaukee
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
trikeusa is on a distinguished road
Default rear leveling compressor

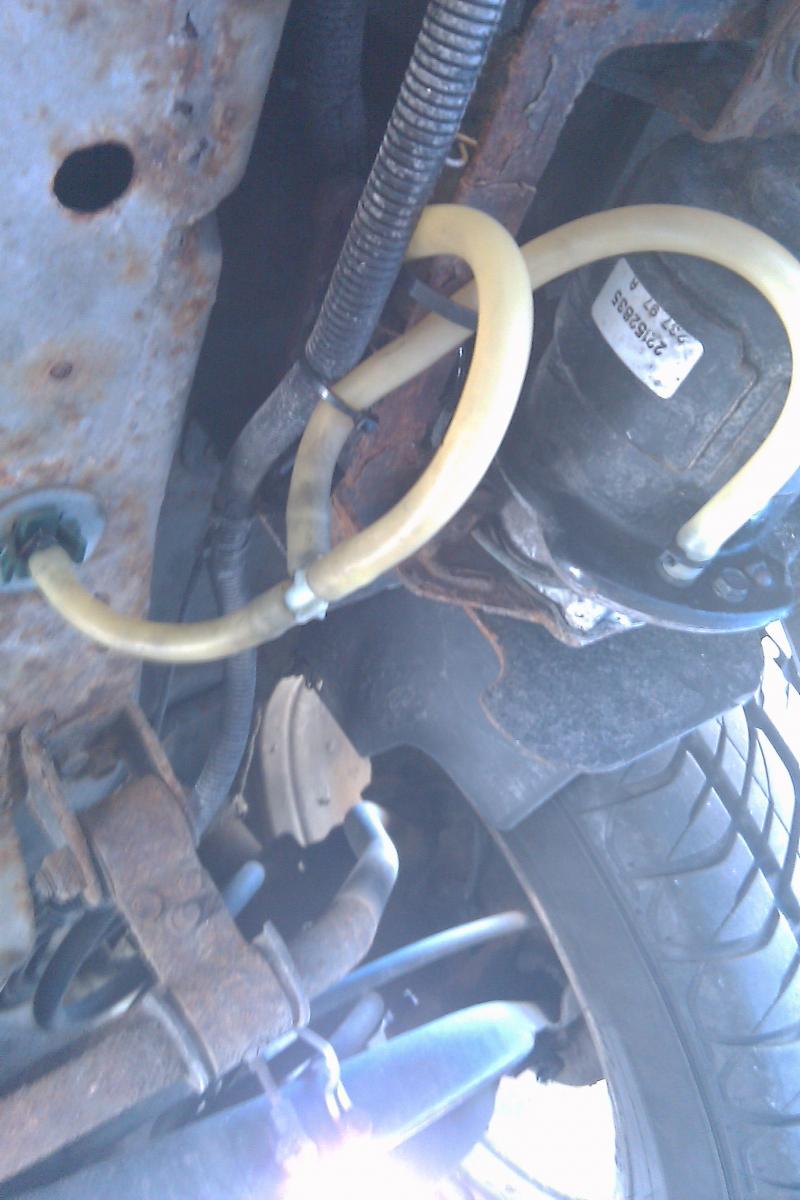

I own a 1998 Pontiac Bonneville SSE. At 45,000 miles ago (now at 160k)...I noticed when I purchased this vehicle, my rear end was low. Thought nothing of it cause I had junk in the trunk. After a year or so, I noticed a hose hanging down in the rear right of the car. After further inspection, it was a hose that went to a T-fitting, and all of the hose was deteriorated. I removed it. My check engine light came on some time later, and the code was a vapor leak. My thought was this hose was to the evap canister, I didn't even know I had air ride in the rear, or that there was a compressor. I'm just now learning that this is indeed the hose. I actually replaced the hose with nylon weather resistant hose. I passed emissions, and C.E. light is still on. I now know that was not the source of the problem. I had the rear struts done last year, one of them was actually broken, and I notice no difference in the level of the vehicle. I have yet to test the compressor, but I noticed another pump in the trunk behind the matting. Any suggestions with any of this is appreciated, Thanks!
Attached Thumbnails
How can I tell if I have the auto leveling rear struts?-air-ride-comp-hose-fix.jpg   How can I tell if I have the auto leveling rear struts?-pump-trunk.jpg
trikeusa is offline   Reply With Quote
