Angry heater hose fitting aka "the elbow"

recently i had my water pump and head gaskets replaced on my 97 bonnie- 3.8 (duh) no */c. however i noticed a constant leak of a/f - using half a gallon daily pushed me to ask around- and noticed a drip coming from the heater hose fitting. yesterday, i bought one. tried to install it and noticed that the two pack had one that was a little too long and one thats a little too short.... i put the shorter one on and had antifreeze gush EVERYWHERE. the longer one doesnt quite fit at all. HOW DO I PUT THIS LITTLE PIECE OF PLASTIC ON MY MOTOR? its really becoming a huge headache now, seeing as how i cant drive my car at all. can anyone help me? am i missing a step? i have removed the alternator, the bracket to hold it and taken the belt off to add a few inches of space. in addition, i dug out the old h h f pieces from the holes and even tried using some heater core hose instead- still i have a leak..help please!!!
Ape Lee is offline   Reply With Quote
Old 05-05-2010, 09:35 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Take a close look, make sure the LIM lower intake manifold is not cracked. Also make sure the hole is clean. I put a little bit of red RTV on the O ring of the elbow to help it slid in and then seal.
Danthurs is offline   Reply With Quote
Old 05-06-2010, 09:24 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

What year is our car? We are assuming you are talking about a 95+ Series II NA motor here and what you said, kinda threw me off.

Personally I'm against RTV in this area. It makes things tougher to clean if you have to go back in later. A little oil or vasoline for lube works well.

BTW Pictures are a big help.

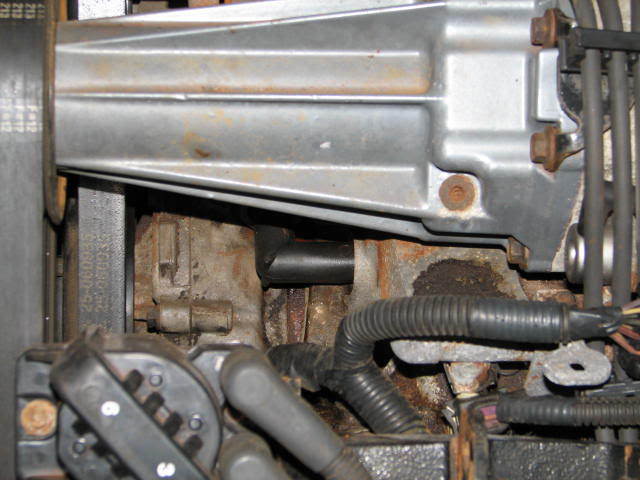

Here'* the elbow we are talking about on an SC motor. Same location and elbow on your motor.
Name:  IMG_3190.jpg
Views: 56
Size:  48.1 KB
BillBoost37 is offline   Reply With Quote
Old 05-06-2010, 09:30 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

No picture Bill.
Danthurs is offline   Reply With Quote
Old 05-06-2010, 09:34 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Give a guy a second to switch over and get it will ya Danno?
BillBoost37 is offline   Reply With Quote
