Default fuel pressure regulator pic request...

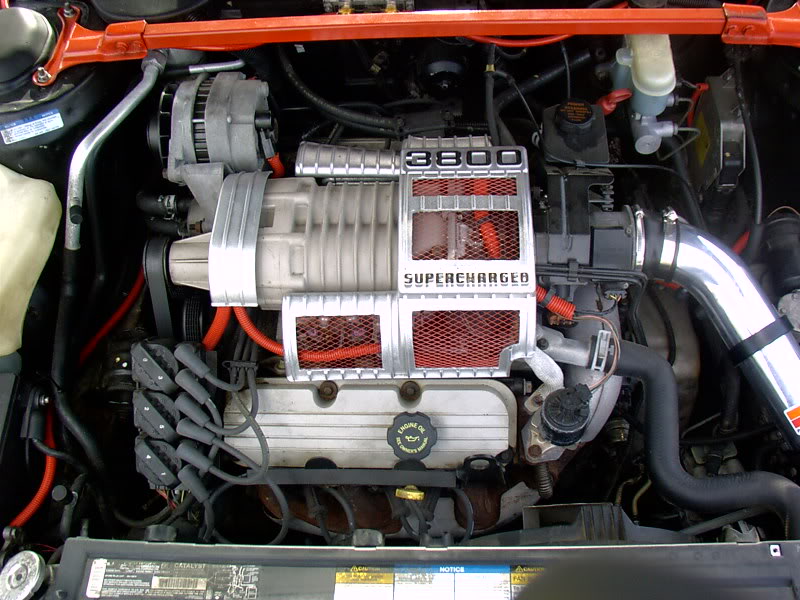

can someone describe where the fuel pressure regulator hose is on my car...i think its dead...car runs like **** sometimes, but eventually smoothes out after 30 secs of running...

Name:  PDR_0004.jpg
Views: 2
Size:  103.4 KB
harofreak00 is offline   Reply With Quote
Old 03-07-2005, 11:37 PM   #2
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

Mine is under the plastic cover just on top of the engine, but it'* an 89. If you have the vacuum diagram handy/know where they are there should be a line going to it.

Heres a picture
captainmiller is offline   Reply With Quote
Old 03-07-2005, 11:39 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

thank u very much...

my dad said i need to test and see if fuel is coming out after the engine is shut off...

like its choking itself...
harofreak00 is offline   Reply With Quote
Old 03-08-2005, 01:37 AM   #4
Senior Member
Posts like a Camaro

Join Date: Aug 2003
Location: Oshkosh, WI
Posts: 819
Thanks: 0
Thanked 0 Times in 0 Posts
glorkar is on a distinguished road
Default

Shouldn't the fuel pressure regulator hose be attached to the fuel pressure regulator?? and isn't the fuel pressure regulator usually on the fuel rail? Just a guess.
glorkar is offline   Reply With Quote
Old 03-08-2005, 01:45 AM   #5
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by glorkar
Shouldn't the fuel pressure regulator hose be attached to the fuel pressure regulator?? and isn't the fuel pressure regulator usually on the fuel rail? Just a guess.
yeah thats what i assumed...

gonna look at it inthe morning..
harofreak00 is offline   Reply With Quote
Old 03-08-2005, 10:29 AM   #6
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

Quote:
Originally Posted by glorkar
Shouldn't the fuel pressure regulator hose be attached to the fuel pressure regulator?? and isn't the fuel pressure regulator usually on the fuel rail? Just a guess.
It is, but there is also a vacuum hose. I was just suggesting to follow the vacuum hose to find it.
captainmiller is offline   Reply With Quote
Old 03-08-2005, 01:55 PM   #7
Senior Member
Posts like a Camaro

Join Date: Aug 2003
Location: Oshkosh, WI
Posts: 819
Thanks: 0
Thanked 0 Times in 0 Posts
glorkar is on a distinguished road
Default

gotcha
glorkar is offline   Reply With Quote
Old 03-08-2005, 07:57 PM   #8
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Quote:
Originally Posted by glorkar
Shouldn't the fuel pressure regulator hose be attached to the fuel pressure regulator?? and isn't the fuel pressure regulator usually on the fuel rail? Just a guess.
THat'* where it is.....but you're gonna have a hell of a time trying to see it because it'* buried under a bunch of stuff. Find your MAP sensor and follow the vaccum line off that to the FPR. The FPR is covered up by the fuel lines running into the rail and part of the rail.
