Default fuel filter surprise

Changed my fuel filter today. When I got if off, something was rattling inside when I shook it. Cut it open and saw ...
fuel filter surprise-fuel-filter.jpg

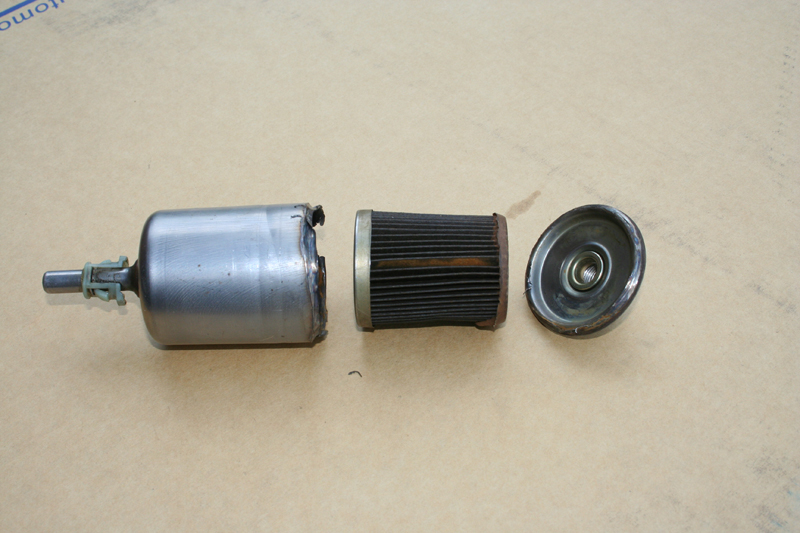

fuel filter surprise-fuel-filter-open.jpg

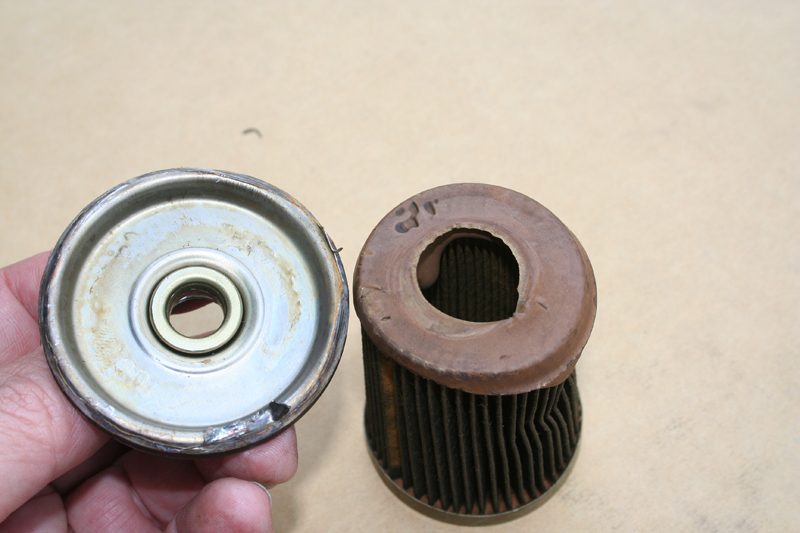

The filter element is supposed to be glued to the top of the housing. You can see traces of adhesive on the metal top, but the filter element had become detached ...

fuel filter surprise-fuel-filter-top.jpg

This means fuel was flowing through the filter housing and bypassing the filter element.

I'm thinking this is why I had to replace an injector a couple of weeks ago.
Reply
Old Sep 27, 2009 | 04:50 PM
  #2
Danthurs's Avatar
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

If you have debris moving past the filter then it will get stuck in the injectors. Might want to run some seafoam threw the tank to help clean out anything that might be stuck in the injectors.
Reply
Old Sep 27, 2009 | 04:51 PM
  #3
2kg4u's Avatar
Thread Starter
Senior Member
True Car Nut

Joined: Sep 2006
Posts: 4,816
Likes: 245
From: Windsor, Ontario / Detroit, Michigan
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Should I change the filter again after the Sea Foam?
Reply
Old Sep 27, 2009 | 04:58 PM
  #4
Danthurs's Avatar
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

No, the seafoam will help remove any water and dissolve and debris in the fuel system.
Reply
Old Sep 27, 2009 | 07:43 PM
  #5
azu's Avatar
azu
Senior Member
Posts like a Turbo

Joined: Apr 2007
Posts: 254
Likes: 0
From: Sellersville, PA
azu is on a distinguished road
Default

Holy SH$%
Reply
Old Sep 27, 2009 | 07:58 PM
  #6
2kg4u's Avatar
Thread Starter
Senior Member
True Car Nut

Joined: Sep 2006
Posts: 4,816
Likes: 245
From: Windsor, Ontario / Detroit, Michigan
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Originally Posted by azu
Holy SH$%

My sentiments exactly. Makes me wonder how long it was like that.
Reply
Old Sep 27, 2009 | 08:29 PM
  #7
Purplehazeir's Avatar
Senior Member
True Car Nut

Joined: Sep 2008
Posts: 7,979
Likes: 2
From: Arlington, WA
Purplehazeir is on a distinguished road
Default

They certainly don't work right when they fall of the inner lid like that. I saw this happen to a water filter on a diesel fire pump once....that was not at all pretty!
Reply
Old Sep 28, 2009 | 08:28 AM
  #8
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Had that happen on a Grand Am I used to own. In the part makers defense...it was on the car for 120K miles.
