Old 06-09-2011, 06:58 PM   #11
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

Quote:
Originally Posted by eltatertoto View Post
oh and btw mouse depending on what part of Missouri youre in we should meet up the next time im heading home or coming down to memphis. id love to see a bonnie in person thats that clean..... makes my car look like sheeit lol.
When I'm in Missouri, I'm nowhere near that side. I hang out in SW Missouri.

And I don't wanna hear it about hills LOL, I know plenty about them. Curves too.

I keep my highs on until I'm about 200 yards away, even if I'm on a part that makes it uneven. I'm not sacrificing my safety just because you don't wanna look at my bright lights from a good distance away.
MouSe is offline   Reply With Quote
Old 06-10-2011, 03:45 AM   #12
Senior Member
True Car Nut

Buick96's Avatar

Join Date: Jan 2011
Location: Michigan
Posts: 3,344
Thanks: 0
Thanked 0 Times in 0 Posts
Buick96 is on a distinguished road
Default

If your bumper stuck out more like mine does id say go for the bumper, I was going to do this but my parents talked me out of it because they had alot of problems with them shorting out and corroding in the winter.. I also wanted to put them behind my grill as well but then you dont have much room to mount them because the grill is flimsy and they wouldnt do well with opening and closing the hood... I had rectangle ones from autozone that i was going to use.
Buick96 is offline   Reply With Quote
Old 06-22-2011, 12:14 PM   #13
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

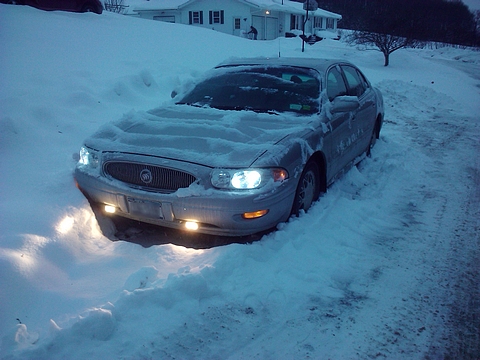

Mine are Hella'* I got through Amazon. I drive roads like that every day. They work pretty well, and are relayed to trigger off the low beams. So they are only on when the low beams are on.
Attached Thumbnails
fog lights needed? advice please-tn1480llesabre_snowdrift.jpg
SilverSleeper8704 is offline   Reply With Quote
Old 06-22-2011, 07:15 PM   #14
Senior Member
True Car Nut

Buick96's Avatar

Join Date: Jan 2011
Location: Michigan
Posts: 3,344
Thanks: 0
Thanked 0 Times in 0 Posts
Buick96 is on a distinguished road
Default

Id like someone to show me how to wire them because id really like to get some
Buick96 is offline   Reply With Quote
Old 06-22-2011, 08:20 PM   #15
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

If you get some and come for a visit ill show ya how to wire em up lol
sseidriver97 is offline   Reply With Quote
Old 06-22-2011, 09:45 PM   #16
Senior Member
True Car Nut

Buick96's Avatar

Join Date: Jan 2011
Location: Michigan
Posts: 3,344
Thanks: 0
Thanked 0 Times in 0 Posts
Buick96 is on a distinguished road
Default

that'd be cool im not working anymore.. just getting unemployment at the moment so i have time right now
Buick96 is offline   Reply With Quote
Old 06-24-2011, 10:56 AM   #17
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

Its easy to wire.
You need a relay, a switch (if you want to switch them on and off with low beams), wire, female spade terminals (x4), waterproof connectors to your foglight wires, and a fuse. (And probably some other terminals, whatever you decide to use for connections).
Run a trigger wire off the positive wire into one of your low beams. (Check for + voltage with a DVOM). One is +, one is -. You need to tap into the + wire. Run that to the switch (if you want to switch them, then from the switch to the coil), or to the coil side of the relay. Run a ground off the other end of the coil. This will be the trigger to turn them on and off. Then you find a constant 12V source, and run a fused wire to your relay. Then the other side goes out to your fog lights as their +12V input. Run your grounds off the lights to a piece of metal behind the bumper. Use waterproof connections to your lights, as they will be out in the elements (at least mine are, since the leads are very short).
That'* it.
Now you should be able to turn on your low beams, and fogs should come on (or flip the switch if you wired it in). Now turn on your high beams. The fogs should go out on their own. Without a +12V reference from the low beams, the relay opens and shuts them off.
Not that difficult.
SilverSleeper8704 is offline   Reply With Quote
