Default EVAP Lines

I got a P0440 today, while pulling in the driveway of course. I found a couple of the rubber connectors that are worn out and cracked. I want to use some rubber tubing to replace them. I need to know what size of hose to get. Can anyone help?

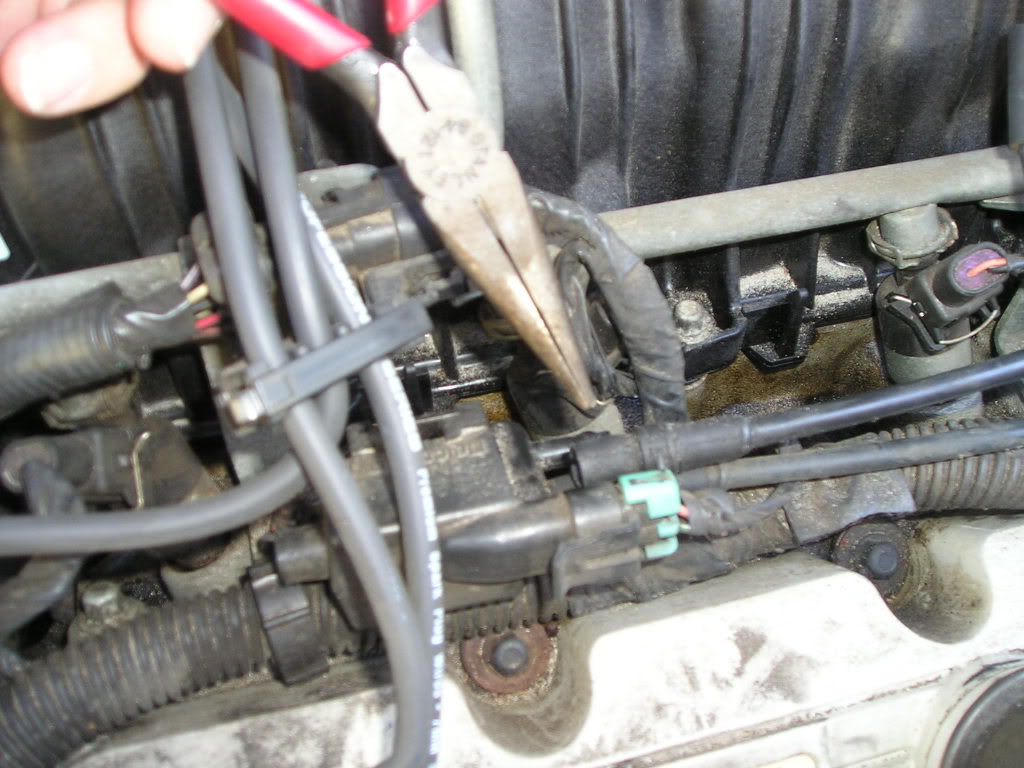

These are the things I'm talking about. (This isn't my picture. I found it in another thread, thanks to whoever took it.)
Name:  LooseVacuumHose102905.jpg
Views: 4
Size:  110.7 KB
anathema05 is offline   Reply With Quote
Old 03-31-2010, 09:45 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I can't remember the size. Best to take it in to your auto parts store. they have rolls of bulk hose, they will match it up and give you what ever length you need.
Danthurs is offline   Reply With Quote
Old 03-31-2010, 11:35 PM   #3
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

You're in luck zeta and I have been working on a little something something
Nighthwk12 is offline   Reply With Quote
Old 03-31-2010, 11:36 PM   #4
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Mind if I get in this boat? I'm getting a P0442, but for the same reason.

Most of your tubing will be 7/32" inner diameter. Get about five feet of this. The line to your fuel pressure regulator is 1/4" ID, and there'* also some ⅜" ID tubing; you'll need a foot of each, because I'm told you'll mess up.

Adapters… that'* tricky.

Last edited by SignOfZeta; 03-31-2010 at 11:40 PM. Reason: Looks like Nighthwk beat me to the punch. I knew I should have clicked "Submit" before getting up for a snack.
SignOfZeta is offline   Reply With Quote
Old 03-31-2010, 11:42 PM   #5
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Nighthwk12 is offline   Reply With Quote
Old 04-01-2010, 06:15 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

anathema05's Avatar

Join Date: Nov 2009
Location: Brockport, New York
Posts: 271
Thanks: 0
Thanked 0 Times in 0 Posts
anathema05 is on a distinguished road
Default

I got the hoses today, most of the connections I have are 1/4".

About two weeks ago, I accidentally overfilled my tank. I figured I better check my charcoal canister to be sure it'* not full of gas. Today when I took out the canister, about a teaspoon of liquid gas came out. I can shake the can and hear the charcoal moving around in there. Is the canister ruined or is it OK to put it back in?
