Default Changing the Reverse lights

My right reverse light has went out, and I wanted to know if the plastic covering on the rear lights pops off? I tried to pull it off and it didn't want to come easily and I didn't want to tear up nothing that going to cost me money to fix. I like to change my own bulbs because I figure I can save the money a mechanic would charge. Any tips guys this is for a 1990? Thanks a bunch.
BonnevilleLErocks is offline   Reply With Quote
Old 02-03-2007, 12:22 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Your lights are mounted on the trunk lid right? You should be able to go in behind the lid and get the bulbs that way.
Mike is offline   Reply With Quote
Old 02-03-2007, 12:29 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

DO NOT pull off the lense...

99% sure you need to take off the entire tailight to get to the bulbs... should be several 10mm nuts behind the carpet
harofreak00 is offline   Reply With Quote
Old 02-03-2007, 12:32 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Change the bulbs from inside the trunk, not from outside.
willwren is offline   Reply With Quote
Old 02-03-2007, 05:41 PM   #5
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2007
Location: Detroit MI,
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
BonnevilleLErocks is on a distinguished road
Default Pics

Here are some photos.I dont see how I can reach the bulbs from inside the trunk for the earlier Bonneville models.

Name:  rearlamps007.jpg
Views: 1
Size:  43.3 KB
Name:  rearlamps001.jpg
Views: 1
Size:  32.6 KB

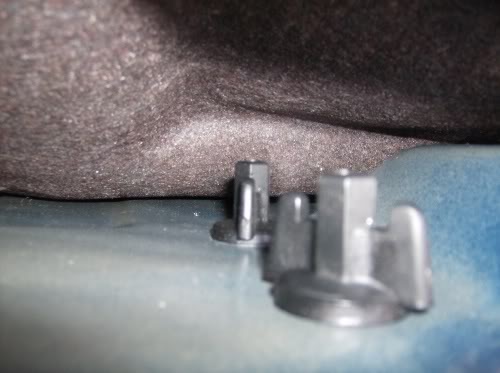

When I remove the trunk carpet all I see are these two things and blue steel. I don't see how I can remove the bulb. By removing them.
Name:  rearlamps002.jpg
Views: 1
Size:  37.3 KB

Name:  rearlamps006.jpg
Views: 1
Size:  28.9 KB

But looking at the plastic leans here, you can see where it looks as if can just use a screwdriver to pop it and reach the bulbs.
Name:  rearlamps005-1.jpg
Views: 1
Size:  28.5 KB
Name:  rearlamps001.jpg
Views: 1
Size:  32.6 KB
Attached Images
File Type: jpg rearlamps001.jpg (32.6 KB, 5 views)
BonnevilleLErocks is offline   Reply With Quote
Old 02-03-2007, 05:45 PM   #6
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

See the little "black thingies"? Unscrew them. The whole taillight will come off, then you can replace the bulbs.
Bonneville92V688 is offline   Reply With Quote
Old 02-03-2007, 05:48 PM   #7
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2007
Location: Detroit MI,
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
BonnevilleLErocks is on a distinguished road
Default

Quote:
Originally Posted by Bonneville94V688
See the little "black thingies"? Unscrew them. The whole taillight will come off, then you can replace the bulbs.
Thank you so much, so simple, but yet I couldn't figure that out lol. Pepboys here I come!!!
BonnevilleLErocks is offline   Reply With Quote
