Default 300/Magnum wheels on a Bonneville? I got some, pics added...

I searched and found a lot of discussion on it, but didn't really find a clear answer. We know they are 5x115, but what is the offset? Will they work on any generation Bonnie?

(we will find out tomorrow)
harofreak00 is offline   Reply With Quote
Old 03-12-2008, 12:48 AM   #2
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

300C wheels fit, as do mustang ones, so who knows.
JimmyFloyd is offline   Reply With Quote
Old 03-12-2008, 12:50 AM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

They're RWD, so the offset won't be the same. How far, I don't know.
willwren is offline   Reply With Quote
Old 03-12-2008, 12:03 PM   #4
Member
Posts like a V-Tak

Join Date: Mar 2008
Location: MURDER CITY
Posts: 98
Thanks: 0
Thanked 0 Times in 0 Posts
Daver is on a distinguished road
Default

Some where I seen a guy that has Mustang bullit wheels on a bonne.
Daver is offline   Reply With Quote
Old 03-12-2008, 01:43 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2003
Location: Toronto, Ontario, Canada
Posts: 5,158
Thanks: 0
Thanked 0 Times in 0 Posts
repinS is on a distinguished road
Default

There may still be hope however, some RWD cars do have FWD compatible offsets. Don't know about the Chryslers, but as an example, you can mount a Lexus IS300'* 5x114.3 wheels on a Camry.
repinS is offline   Reply With Quote
Old 03-12-2008, 02:37 PM   #6
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

thats because an is300 basically IS a RWD camry
Bonnevillan is offline   Reply With Quote
Old 03-12-2008, 03:18 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2003
Location: Toronto, Ontario, Canada
Posts: 5,158
Thanks: 0
Thanked 0 Times in 0 Posts
repinS is on a distinguished road
Default

Quote:
Originally Posted by Bonnevillan
thats because an is300 basically IS a RWD camry
The IS300 is as much a Camry as a Caprice is a RWD Bonneville, they're completely different platforms. but that'* getting off topic.

A quick search on tirerack tells me the offsets between the Chrysler and Bonne are different... but these are aftermarket wheels.
repinS is offline   Reply With Quote
Old 03-12-2008, 04:00 PM   #8
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

While the offset is different, 22mm on the magnum wheels and 38 on the Bonneville wheels.

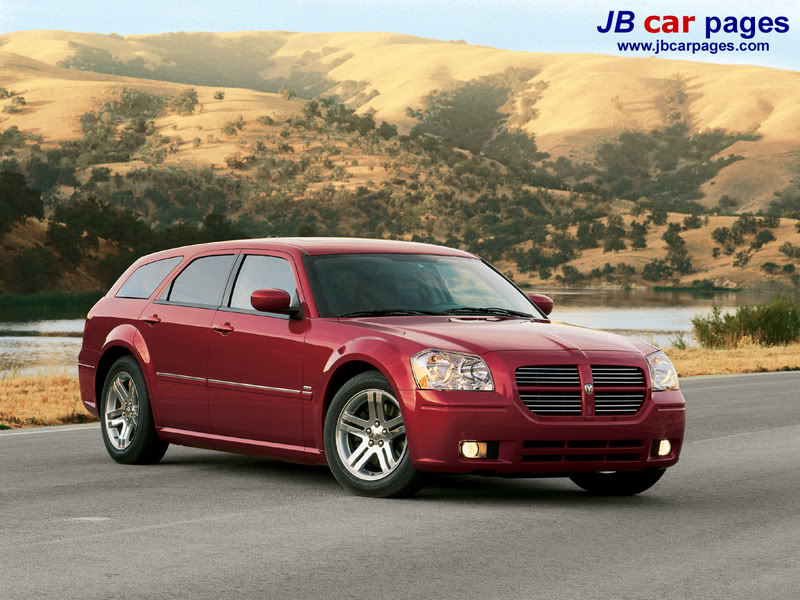

Name:  200520Dodge20Magnum20Red20front20ri.jpg
Views: 3
Size:  112.5 KB

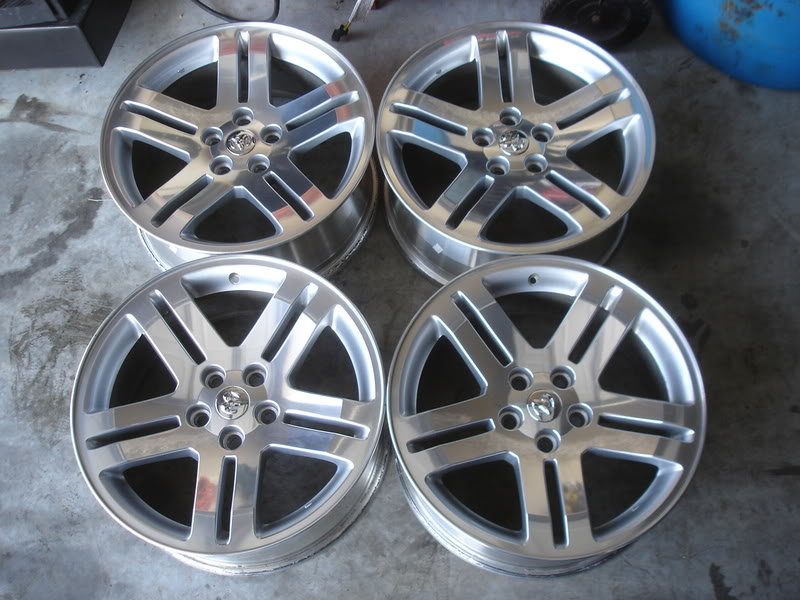

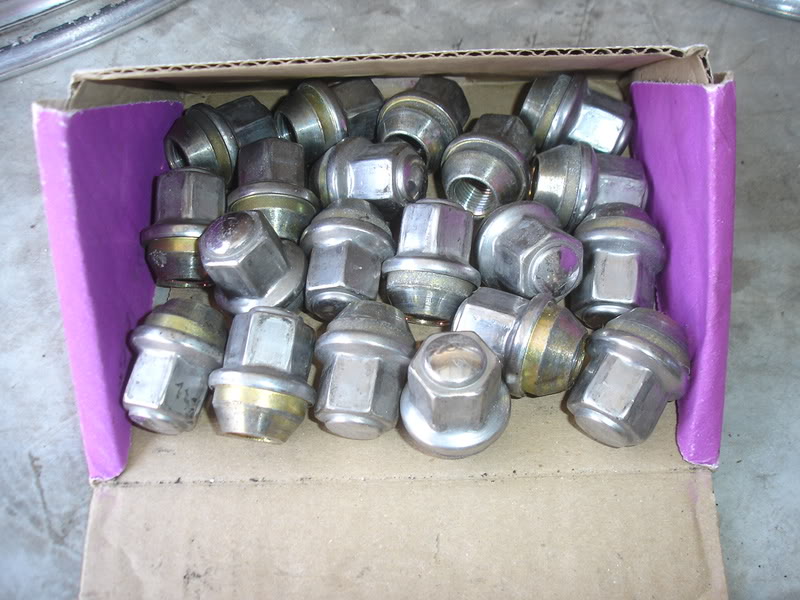

I just scored these from craigslist for $200 with lugnuts
Name:  DSC00383.jpg
Views: 3
Size:  94.2 KB
Name:  DSC00385.jpg
Views: 3
Size:  92.3 KB

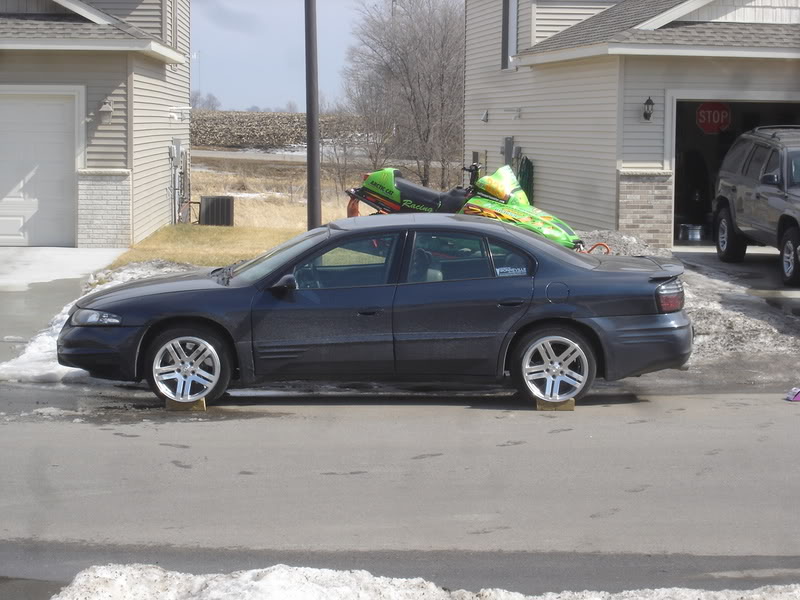

Name:  DSC00380.jpg
Views: 2
Size:  88.8 KB

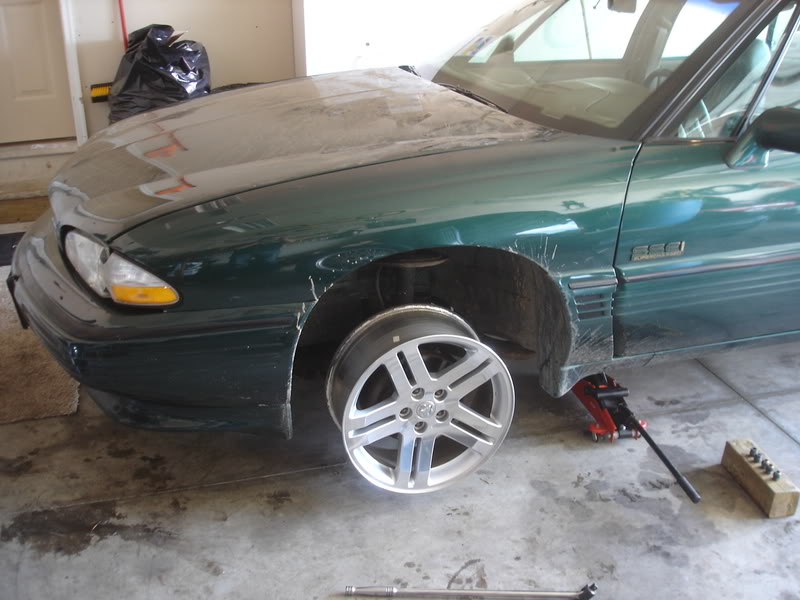

I would like to put them on the 95 if I can find a CHEAP CHEAP set of tires, 225/50/18'*, but the chances of that are slim. I will probably just sell them.
Name:  DSC00387.jpg
Views: 2
Size:  71.4 KB
harofreak00 is offline   Reply With Quote
Old 03-12-2008, 04:03 PM   #9
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,855
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

get a shot from the top or front, see how much they stick out?
rjolly87 is offline   Reply With Quote
Old 03-12-2008, 04:15 PM   #10
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

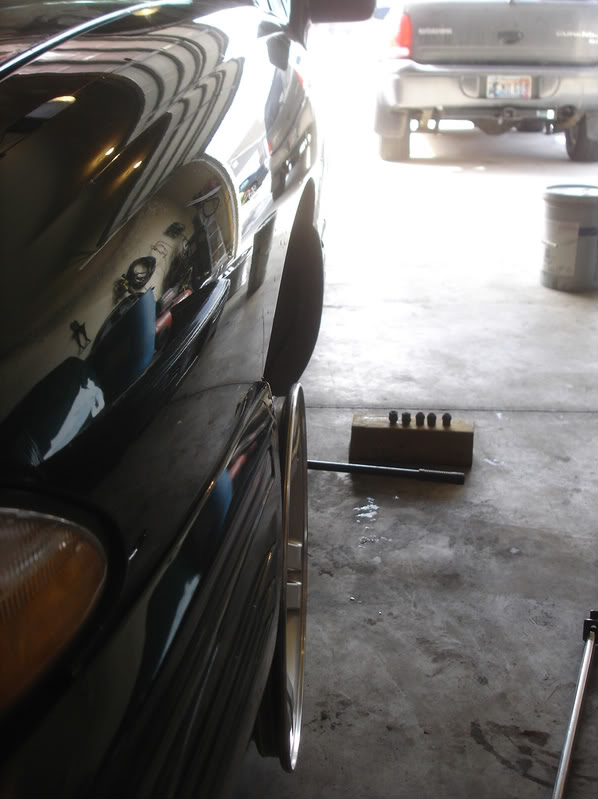

this test was done with the car lifted, so naturally the rim goes in a little, but but you can see the difference
Name:  DSC00389.jpg
Views: 3
Size:  65.9 KB

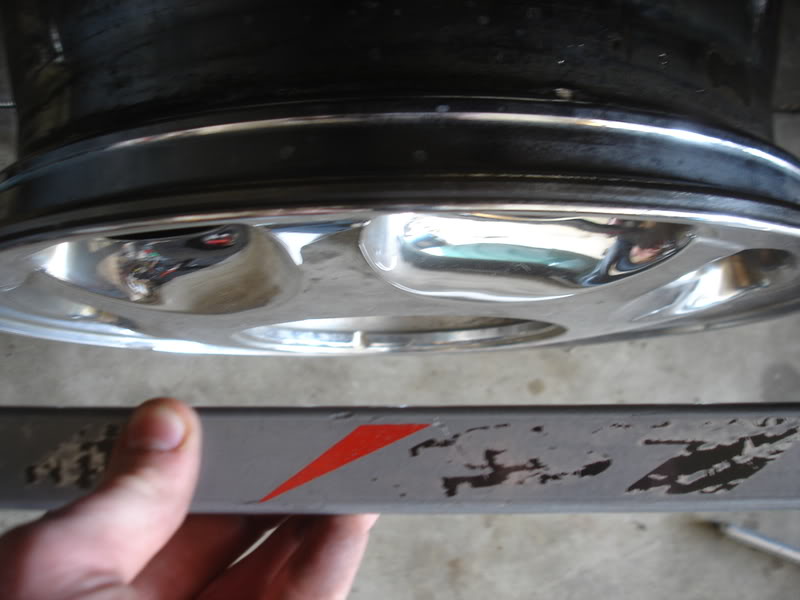

This is the stock chrome riviera rim I used as a tester since it doesn't have a tire on it.

I used a hockey stick against the body panels to show the distance
Name:  DSC00391.jpg
Views: 1
Size:  50.5 KB

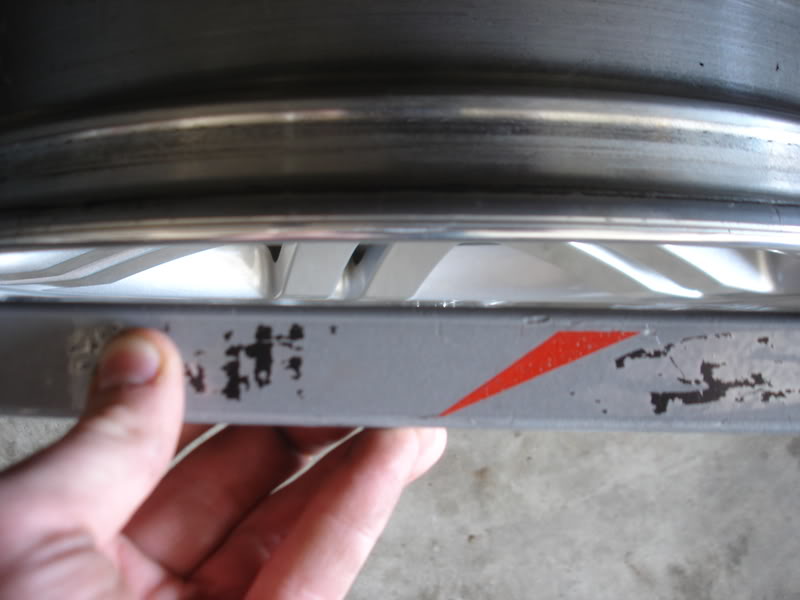

and the magnum rim
Name:  DSC00390.jpg
Views: 3
Size:  43.3 KB

mathmatically, it should stick out 1.6cm, right? but it looks more like 1"-1.5"

If I find tires, they are going on.
