Old 01-15-2006, 03:28 PM   #11
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'm absolutely moving forward with this. It'* a no-brainer on the M62.
willwren is offline   Reply With Quote
Old 01-24-2006, 05:55 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The fitting I chose is rated for 6000psi @ 70F, or 100psi @ 250-400F. Nosedrive temps from the WCBF crew (thanks to the Bullet) peaked at 160F after each run on a 100+ day. So a 200 rating would be safe (considering your fitting or valve, if you choose to do this, would be somewhat in the moving airstream).

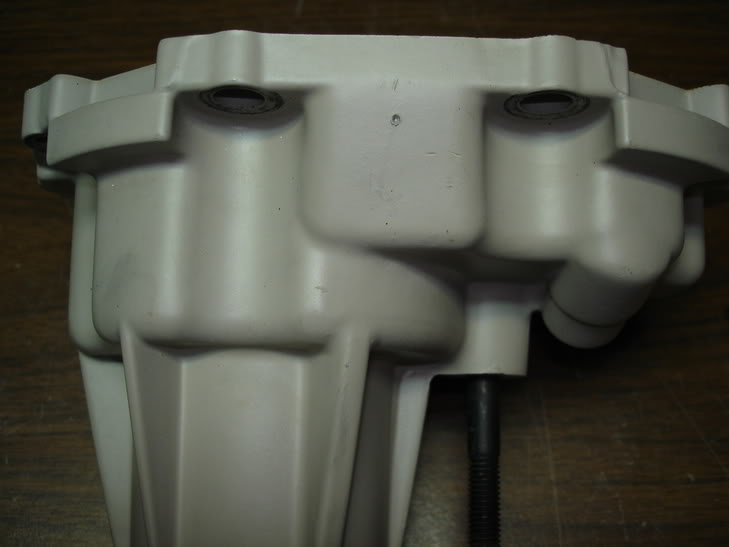

Centerpunch your start hole:
Name:  drain1.jpg
Views: 2
Size:  28.9 KB

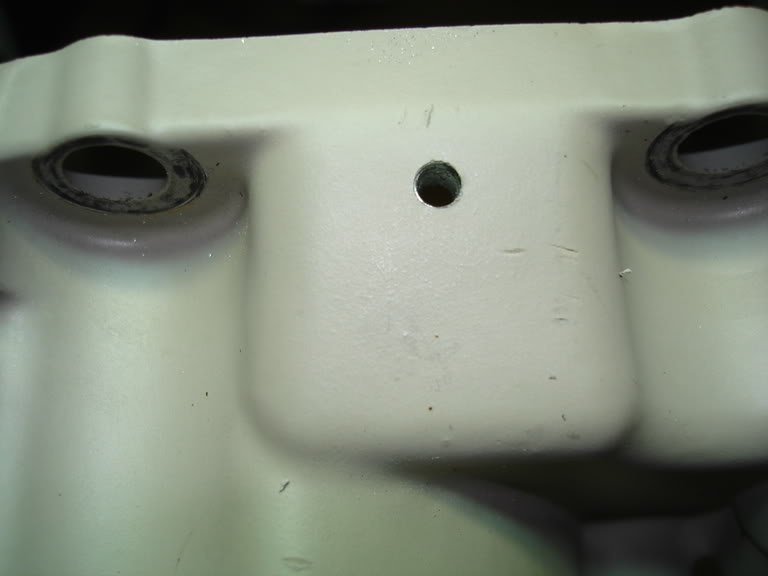

Drill a pilot hole:
Name:  drain2.jpg
Views: 2
Size:  27.8 KB

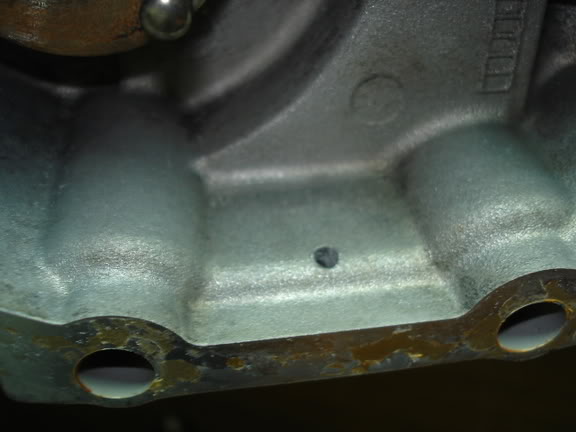

Notice how it will overlap the ridge? And pick up the 'low spot'?
Name:  drain3.jpg
Views: 1
Size:  30.4 KB

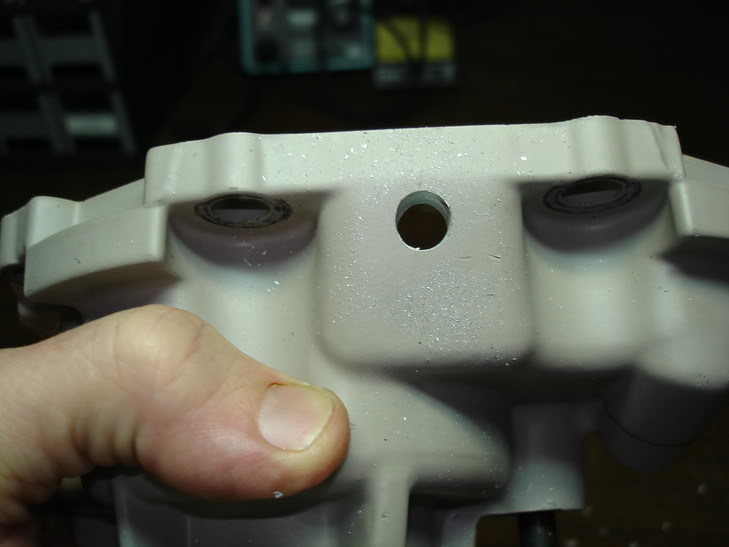

Drill with a letter "R" drill:
Name:  drain4.jpg
Views: 1
Size:  34.2 KB

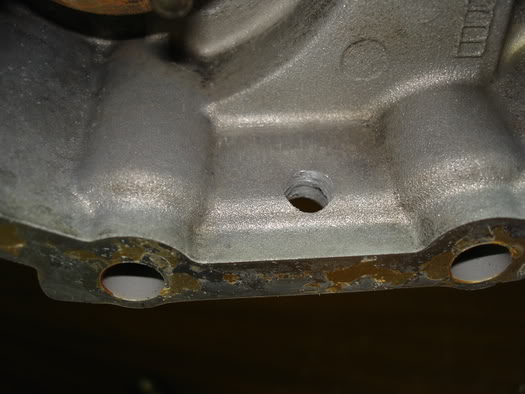

I missed by a tidbit, but it'll all work out in a minute or two:
Name:  drain5.jpg
Views: 2
Size:  35.3 KB

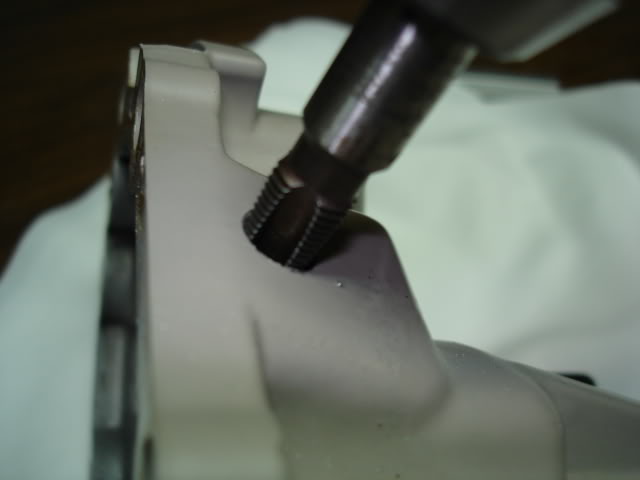

Tap with a 1/8-27 (NPT) tap:
Name:  drain6.jpg
Views: 2
Size:  19.9 KB

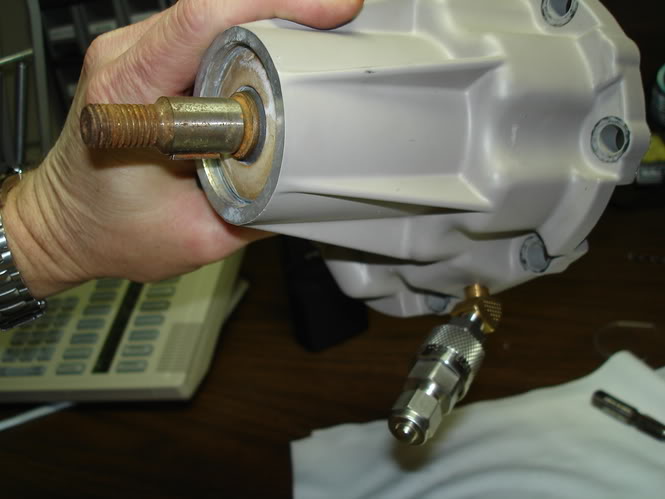

Test fit:
Name:  drain7.jpg
Views: 3
Size:  38.1 KB

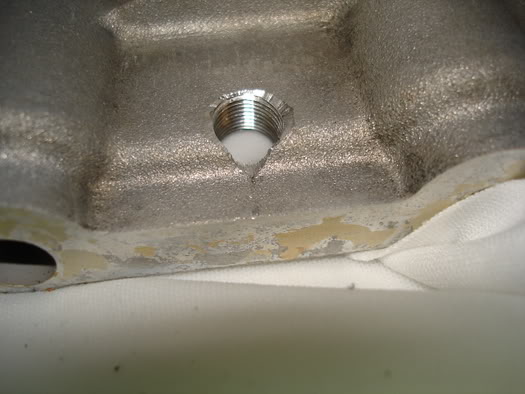

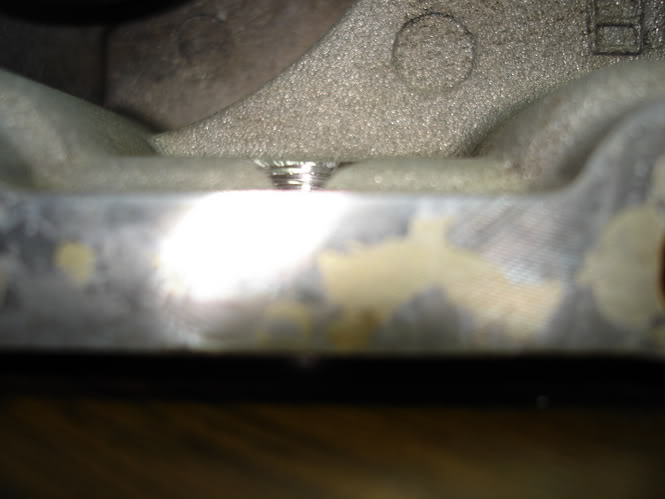

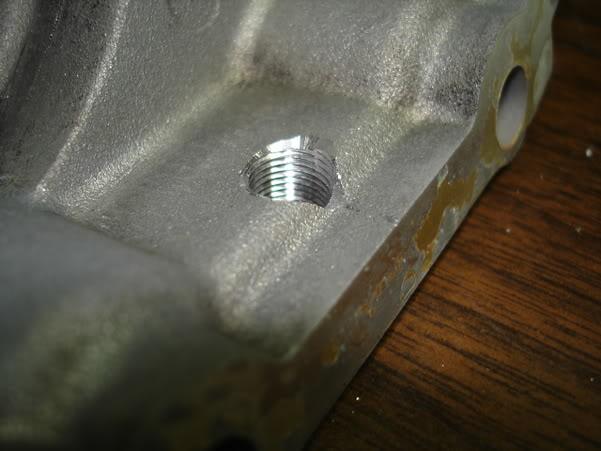

These 3 pics show how I shaped a 'cup' or 'pickup channel' to make sure it fully drains:
Name:  drain8.jpg
Views: 1
Size:  35.5 KB

Name:  drain9.jpg
Views: 1
Size:  36.6 KB

Name:  drain10.jpg
Views: 1
Size:  41.3 KB

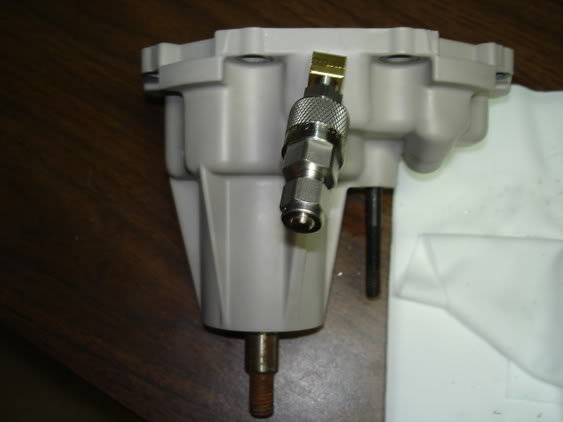

The angle you want for an M62 to be able to gain easy access. Roughly 'aimed' at the end of the ND shaft:
Name:  drain11.jpg
Views: 1
Size:  22.6 KB

Seal appropriately. I'm using the red goop. We're all familiar with that stuff.
willwren is offline   Reply With Quote
Old 01-24-2006, 06:06 PM   #13
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Due to sexually-explicit PM'*, let me explain that this APPENDAGE will not be very visible under the Nosedrive. The brass 45 fitting won't be visible at all. This will disconnect with no tools, but won't leak.

Easy to reach, too. And not in the belt path should I lose a belt.
willwren is offline   Reply With Quote
Old 01-24-2006, 06:11 PM   #14
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

At least we know your car is a male...

Seriously..good write up..great pics. Were you able to pick up the er..appendage locally or is this a buy online part for those of us that wish to do the same and ensure the gender of our cars
BillBoost37 is offline   Reply With Quote
Old 01-24-2006, 06:25 PM   #15
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

You mounted a johnson to your blower so you could change your oil more often?

I use colongne
PontiacDad is offline   Reply With Quote
Old 01-24-2006, 06:37 PM   #16
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Seriously..good write up..great pics. Were you able to pick up the er..appendage locally or is this a buy online part for those of us that wish to do the same and ensure the gender of our cars
Try www.mcmaster.com or any other hardware source. Home Depot may even have something. This was from the scrap bin at work (old Nitrogen disconnect).

Quote:
You mounted a johnson to your blower so you could change your oil more often?
You need cologne cuz you're an ugly ****. I use my good looks.
willwren is offline   Reply With Quote
Old 01-24-2006, 06:39 PM   #17
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by willwren
Quote:
Seriously..good write up..great pics. Were you able to pick up the er..appendage locally or is this a buy online part for those of us that wish to do the same and ensure the gender of our cars
Try www.mcmaster.com or any other hardware source. Home Depot may even have something. This was from the scrap bin at work (old Nitrogen disconnect).

Quote:
You mounted a johnson to your blower so you could change your oil more often?
You need cologne cuz you're an ugly f***. I use my good looks.
Bill...oddly enough the package I sent you the other day... you can use for this as well.

ps..Are you trying to make up for a shortfall with your car?
BillBoost37 is offline   Reply With Quote
Old 01-24-2006, 06:53 PM   #18
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

It'* a BOY!!!!!!!!!!!! Pass out the cigars, Bill.

So, if you were to "circumcise" the appendage, the brass fitting won't leak? Did I read that right? It'* not just a standard elbow?
J Wikoff is offline   Reply With Quote
Old 01-24-2006, 06:53 PM   #19
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

FYI, with 1/8NPT threads, you can use any kind of valve, plug, or any other type of device to drain. And they can interchange any time you want to drain the oil.
willwren is offline   Reply With Quote
Old 01-24-2006, 07:06 PM   #20
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

This one is getting a little out of hand. Let'* stick to the topic, considering there seems to be alot of interest in this idea.

John, NPT fittings won't leak. They're a tapered thread, and the SC nosedrive isn't under pressure. Use the right sealant, and you're good to go. The finished product will look a bit different, and I might put in some type of manual valve instead at a later date. I have 2 other nosedrives to do this to, and I can interchanged hardware whenever I want.
willwren is offline   Reply With Quote
