Quote:
Originally Posted by willwren
Well, that rules out that idea for me. I kinda need a cheaper one for myself.
yup cheapest i can find on Ebay is $200...BUT you get alot of parts for that price....here is an idea
1993 SLE is offline   Reply With Quote
Old 11-28-2006, 08:10 AM   #22
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Expensive yes, hmmmm

I'll keep licking my finger and putting it on the lower intake as a gauge.
BillBoost37 is offline   Reply With Quote
Old 11-28-2006, 11:04 PM   #23
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Well I bit the Bullet and used the credit card to purchase the Autometer gauge today.

It is just as shown in the pic......$330. with tax :(

But a quality piece.

Boosty, I could use your talents re-crafting my "made for a GTP" twin gauge pod. I brought it WCBF in the hopes we might find time to modify it but, sigh, never enough time.

For now I'll just duct tape it to the dash.

Now, I still need some opinions on optimum placement of both the temp probe and the water injection nozzle.
Three possible locations for two drilled 1/8" NPT holes.
Passenger side under the snout, rear of the engine between Cyl.2 & 4 and front of the engine between Cyl. 3 & 5. Both locations would be inside the pocket under the
SC so wouldn't be accessible without removing the SC so I need to get it right the first time.
The picture on the previous page shows the temp probe at the rear of the engine between Cyl.2 & 4.
2000SilverBullet is offline   Reply With Quote
Old 11-29-2006, 12:18 AM   #24
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Here are some pics to show what I mean.

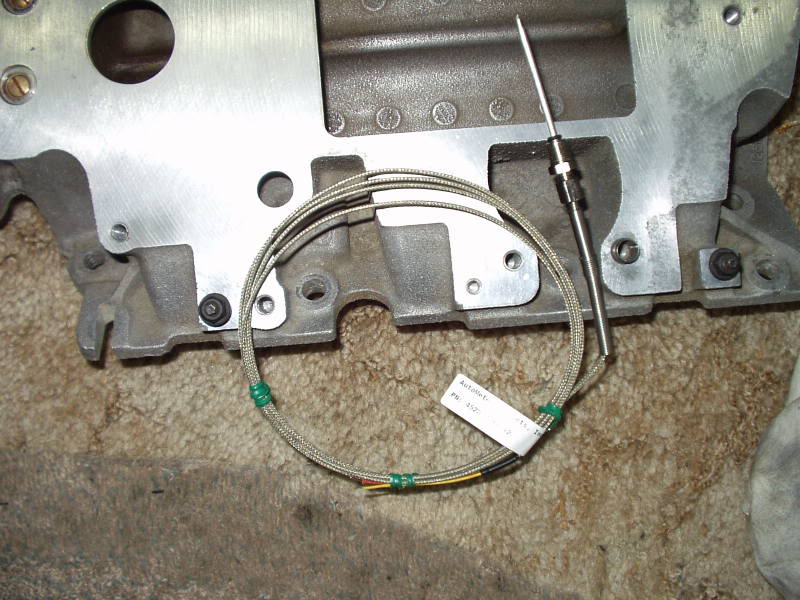

Name:  Nov27-06013.jpg
Views: 1
Size:  85.7 KB

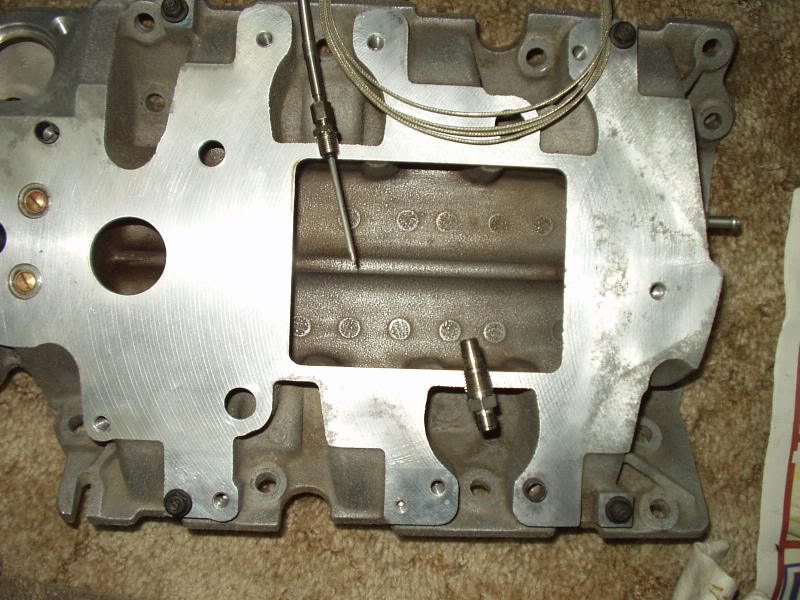

Name:  Nov27-06015.jpg
Views: 2
Size:  84.9 KB

So, do you think the nozzle and probe as shown above or reversed

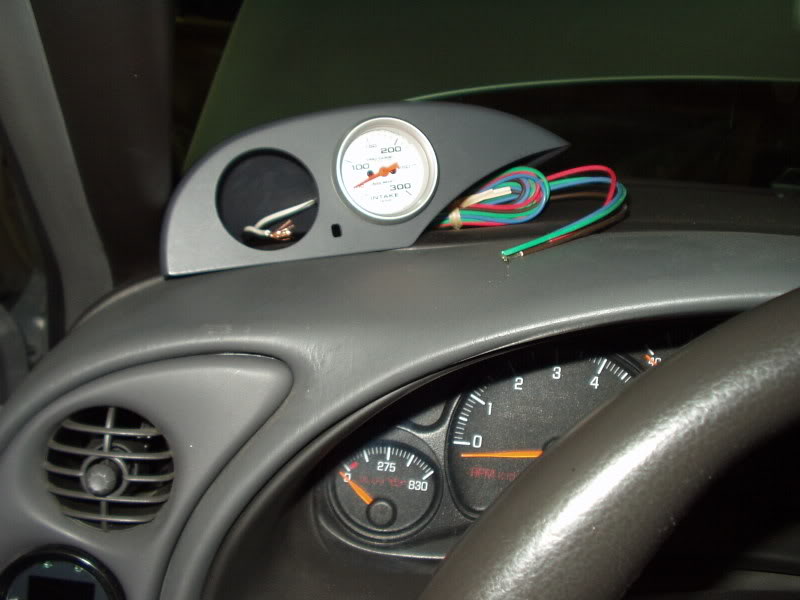

Name:  Nov27-06012.jpg
Views: 1
Size:  49.6 KB
2000SilverBullet is offline   Reply With Quote
Old 11-29-2006, 12:39 PM   #25
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

http://www.bonnevilleclub.com/forum/...ic.php?t=67187
Pod discussion split to Detailing and Appearance.
willwren is offline   Reply With Quote
Old 11-29-2006, 01:32 PM   #26
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Paul, on the air temp and injection nozzle. Is there any reason why the end of the LIM by the vacuum port for the MAP readings wouldn't be used?

Seems like an easier place to locate and later service those items if necessary.
BillBoost37 is offline   Reply With Quote
Old 11-30-2006, 12:44 AM   #27
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Bill, the reason I have dismissed this location is besides being a farther routing, the location is almost directly into intake port #1.

The location I have chosen is much closer and more central to all cylinders.

See the pics I posted in my Gen V swap thread.
