Default Snout shaft removal problem

Guys,
I cannot get this shaft out for the life of me. I have to be doing something wrong. Ive got the nose drive off, pulley off. odd retaing clip. I saw its odd because I thought it would be a snap ring but its not. anyway i thought you could tap the shaft out with a rubber mallet but its not budging. This is a M62 btw...

Suggestions?

thanks in advance for any info.
Tom
M62'edNeon is offline   Reply With Quote
Old 05-03-2007, 12:06 AM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Tap harder.
J Wikoff is offline   Reply With Quote
Old 05-03-2007, 12:08 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2007
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
M62'edNeon is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
Tap harder.
I def was tapen hard.....
M62'edNeon is offline   Reply With Quote
Old 05-03-2007, 12:14 AM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

IIRC, I was wailing on mine so hard I thought I'd break the handle on the mallet.
J Wikoff is offline   Reply With Quote
Old 05-03-2007, 12:14 AM   #5
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

a press!


if your "taping" it be sure not to mushroom the end of the shaft
Peterg22000 is offline   Reply With Quote
Old 05-03-2007, 12:14 AM   #6
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

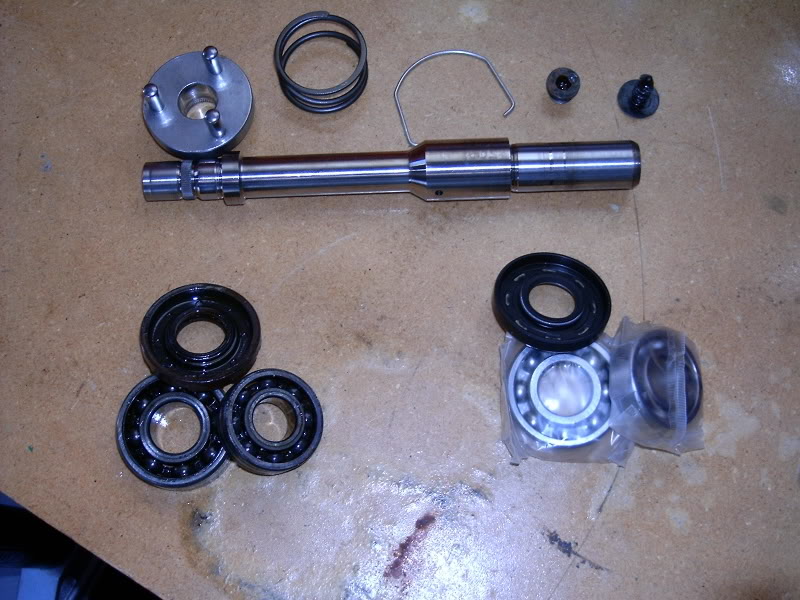

this is an M90 shalf.. but it will give you an idea of what you are working with

Name:  polishedm90.jpg
Views: 2
Size:  101.1 KB
harofreak00 is offline   Reply With Quote
Old 05-03-2007, 12:24 AM   #7
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

if i recale when i did mine 9before i had access to a press) i put a nut over the end of the shaft, put a large punch on the end, and hit hte punch with a Large ball peen hammer. 3-4 good hard whacks got it out with no damage.

knowing what i know now from doing it, i would say wait till you get to a press since you will need that to re-assemble anyway
Peterg22000 is offline   Reply With Quote
Old 05-03-2007, 09:08 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2007
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
M62'edNeon is on a distinguished road
Default

I have acces to a press. I just thought I could do the seal replacement without it. Unfortunitly I think It does need bearings tho.

They make horrible grinding sounds when I spin it. Whats weird is when the nose was on the charger I couldnt hear them.
M62'edNeon is offline   Reply With Quote
Old 05-03-2007, 09:10 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by M62'edNeon
They make horrible grinding sounds when I spin it. Whats weird is when the nose was on the charger I couldnt hear them.
Mine aren't horrible but..however I recently experienced the same thing. Rebuild and use the press with Rollingperformance'* instructions. Looks easy enough.
BillBoost37 is offline   Reply With Quote
Old 05-03-2007, 09:20 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

If it won't tap out with a block of wood on the end to protect the end of the shaft and the threads, you need to use a press.

Take careful measurements of the 3-prong coupler plate'* depth in the oil chamber with respect to the gasket surface so you know after rebuild you got everything back. When you go to press things back together, the sequence wants to work against you. You'll know what I mean when you start doing it.
willwren is offline   Reply With Quote
