Default The proof is in. Don't EVER paint a supercharger.

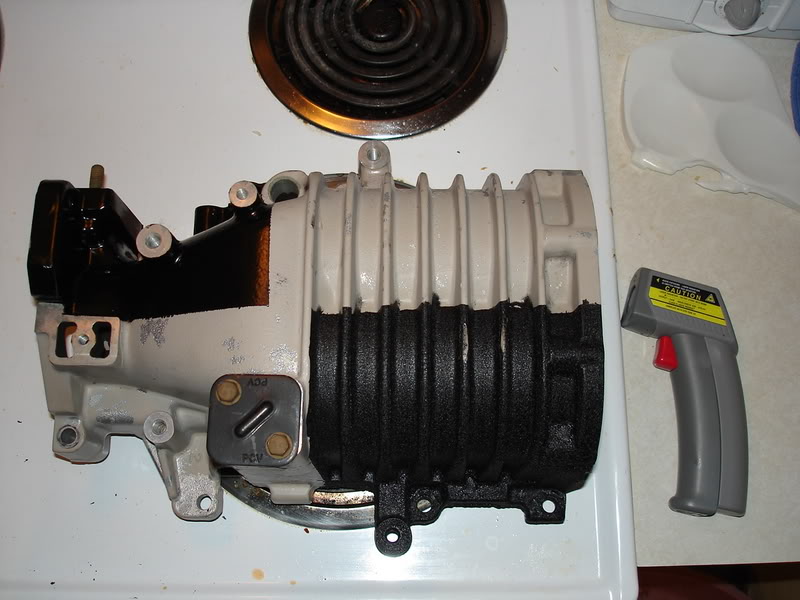

Name:  scpaint.jpg
Views: 145
Size:  72.5 KB

I did some playing today. Comparing side-to-side with two different paints. One I suspected wouldn't work, the other I hoped would work.

Top left corner is typical automotive paint. Any lacquer or enamel will have the same effect. It was an obvious negative effect on the ability of the SC to cool down. Test ran from 350 to 100 degrees.

Bottom right is something I may consider trying in the future. Results were positive on that one. But I won't tell you what it is until I see how it performs and holds up on the car.

Long story short, I'll get data up sometime later tonight.
willwren is offline   Reply With Quote
Old 03-18-2007, 01:04 AM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Fried Supercharger for dinner?

I'd like to see what paint that is on the bottom right. Looks promising.
Bonneville92V688 is offline   Reply With Quote
Old 03-18-2007, 01:24 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Supercharger (scrappy dude good for nothing but a paper weight) heated to 350 degrees F. Initial temp taken on all four quadrants.

Further data taken in 5-minute intervals only comparing top to bottom on each half (for thermal mass variation). Comparing OEM Eaton paint to 2 different options.

Name:  mystery.jpg
Views: 109
Size:  39.0 KB
willwren is offline   Reply With Quote
Old 03-18-2007, 01:27 AM   #4
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Oh wow. That is quite interesting. Is it a everyday paint you can buy in the local hardware store?
Bonneville92V688 is offline   Reply With Quote
Old 03-18-2007, 01:33 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Until I test it, you must find a brass lamp, rub it, and ask the Genie for some.
willwren is offline   Reply With Quote
Old 03-18-2007, 01:40 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Point #1:

I'm not going to let this out (this is strictly between another member and myself for the time being for specific techincal reasons) only to find out 3 of you impatient bastards jump on it, only to find out that it flakes off after multiple heating/cooling cycles or engine degreaser, or the fumes of it outgassing kill you and your car'* occupants as the climate control sucks in noxious fumes.

Point #2:

I don't know how this finish compares to the uncoated M90. I have my theories, but they're unproven until I get my hands on a scrap M90 housing, or strip the paint off my scrappy M62 bitch.
willwren is offline   Reply With Quote
Old 03-18-2007, 12:50 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Further thoughts now that I'm sitting here looking at it. When fully assembled, the SC can't cool from the inside out like it could in my kitchen. The seperation between the data in both graphs would probably be even greater on a fully-assembled SC. I may have to slap a set of rotors in this one and test it again.
willwren is offline   Reply With Quote
Old 03-18-2007, 01:21 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Too add to the complexity.. our chargers heat from the inside out more than throughout. The true test won't happen until Bill gets the charger on his car and gives it an honest true testing.
BillBoost37 is offline   Reply With Quote
Old 03-18-2007, 03:05 PM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Dead on the money, boosty. I can simulate it somewhat in the oven with rotors installed, but there are still alot of unanswered questions. How will it hold up, will it outgas under heat, can it handle engine cleaning, etc. I'm almost tempted NOT to do it, as this will be my 'hybrid' supercharger I'm doing it to.

I gotta know for sure though.
willwren is offline   Reply With Quote
Old 03-18-2007, 04:32 PM   #10
Sol
Senior Member
True Car Nut

Join Date: Sep 2002
Posts: 8,909
Thanks: 0
Thanked 0 Times in 0 Posts
Sol is on a distinguished road
Default

Isn't the M62 coated differently than the M90? Would this affect results?

What about some of the aftermarket roots blowers that come painted black or with a high polish coating?
Sol is offline   Reply With Quote
