Old 03-18-2007, 08:31 PM   #21
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

And all those superchargers would have run cooler without paint.
willwren is offline   Reply With Quote
Old 03-19-2007, 11:09 AM   #22
Senior Member
True Car Nut

Join Date: May 2003
Location: Holt, MI & Lima, OH
Posts: 3,022
Thanks: 0
Thanked 0 Times in 0 Posts
dbtk2 is on a distinguished road
Default

Quote:
Originally Posted by Sol
Quote:
Originally Posted by willwren
Reasons the M90'* are typically not coated:

1. Engine cover hides all but the nosedrive, which is painted.
2. Nosedrive is probably also painted to ease cleaning belt dust off it.
3. Coating is expensive.
4. Coating isn't as necessary on the M90, as it spins slower to produce the same boost-and should run cooler.
5. Coating and curing costs time in assembly.

Save labor and money. The bottom line.
Well, reason I ask these questions is because there are a lot of M90 powered cars running very fast times, which have painted or powdercoated blowers.
And like I've been telling them for 4 years, put a non-coated/non-painted blower on there and they will go faster.
dbtk2 is offline   Reply With Quote
Old 03-19-2007, 11:30 AM   #23
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

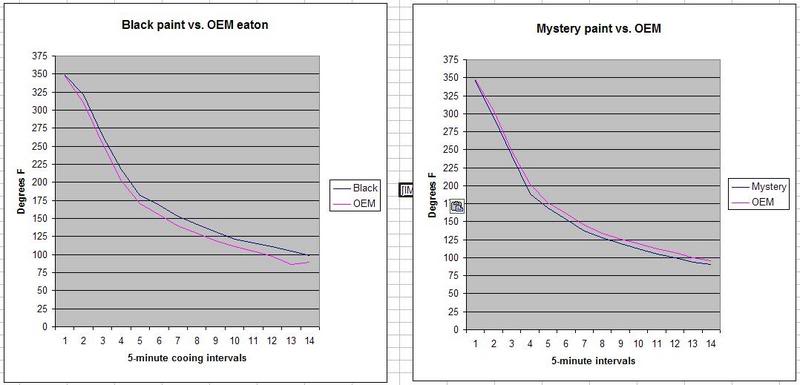

Here'* the graph again and the raw data to go with it, as it'* not really easy to tell from the graphs what the actual temp differentials are:

Name:  mystery.jpg
Views: 39
Size:  39.0 KB

Black OEM
348 347
322 310
264 253
218 202
182 171
168 155
153 140
142 129
132 119
121 111
116 105
111 98
105 86
99 89


Mystery OEM
346 347
295 304
242 248
189 202
169 176
153 162
137 145
128 134
120 126
112 119
105 112
100 107
94 100
91 96
willwren is offline   Reply With Quote
Old 03-19-2007, 11:34 AM   #24
Senior Member
Posts like a Northstar

Join Date: Jun 2005
Location: Yulee , FL ___ SEBF Survivor
Posts: 700
Thanks: 0
Thanked 0 Times in 0 Posts
ChaseSmith is on a distinguished road
Default

The M90 on my 96 L67 is coated like an M62. It is the only one I've ever seen like that, but then again it'* the only 96 L67 I've ever seen. My 98 GTPs M90 wasn't coated.
ChaseSmith is offline   Reply With Quote
Old 03-19-2007, 11:36 AM   #25
Senior Member
True Car Nut

Join Date: Aug 2003
Location: Salina, KS
Posts: 5,246
Thanks: 0
Thanked 0 Times in 0 Posts
TrueWildMan is on a distinguished road
Default

Quote:
Originally Posted by willwren
Mystery OEM
346 347
295 304
242 248
189 202
169 176
153 162
137 145
128 134
120 126
112 119
105 112
100 107
94 100
91 96
Wow, you've got me extremely curious...a paint or coating type that dissipates heat? Hmmm...
TrueWildMan is offline   Reply With Quote
Old 03-19-2007, 11:47 AM   #26
Sol
Senior Member
True Car Nut

Join Date: Sep 2002
Posts: 8,909
Thanks: 0
Thanked 0 Times in 0 Posts
Sol is on a distinguished road
Default

Must be made of copper or something...
Sol is offline   Reply With Quote
Old 03-19-2007, 01:37 PM   #27
Senior Member
Posts like a Northstar

Join Date: Apr 2004
Posts: 606
Thanks: 0
Thanked 0 Times in 0 Posts
Chinski is on a distinguished road
Default

Funny you did this. I had been thinking about it since that other post where Boost said to never paint a */C.

Did you do the test with that infrared gun? I would give it a try with a contact thermometer. Those infrared gun readings can vary from surface to surface.

I'd put my $ on a flat black coating working the best; and flat being better than glossy.

I'd also be curious vs a polished */c. I don't think polished would be good for cooling.
Chinski is offline   Reply With Quote
Old 03-19-2007, 01:40 PM   #28
Senior Member
Posts like a Turbo

Join Date: Jan 2007
Location: waterloo,ontario
Posts: 375
Thanks: 0
Thanked 0 Times in 0 Posts
rogers is on a distinguished road
Default

is that por15?
rogers is offline   Reply With Quote
Old 03-19-2007, 01:56 PM   #29
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by rogers
is that por15?
Huh? Who are you asking what about?

And Chinski, EACH SINGLE data point is an average of three 1/4" diameter measurement points, and my non-contact thermometer is calibrated by a very good lab. I have resources at my disposal that most don't.

Keep in mind also, the the 'mystery' coating would have performed better had the whole SC been coated with it. The entire SC would have cooled quicker.

The same is true for the black engine paint on the other end. Had the entire SC been coated with it, the results would have been far worse.
willwren is offline   Reply With Quote
Old 03-19-2007, 02:28 PM   #30
Senior Member
Posts like a Northstar

Join Date: Apr 2004
Posts: 606
Thanks: 0
Thanked 0 Times in 0 Posts
Chinski is on a distinguished road
Default

Its not the quality of the calibration, it is what it is calibrated to. They are calibrated to a certain finish type'* properties. So if you are taking readings on a different finish type it can be off. We use those at work, I have seen the differences. I'm just saying give it a try. Mignt not be much of a difference or might be a few degrees.
Chinski is offline   Reply With Quote
