Before we check the BCS. we have to look at another issue. From your post, you describe your operation as backwards.

With the car OFF, the arm should be all the way down, with the BCA extended.
At IDLE, the arm should be all the way UP with the BCA retracted.
When you rev in park or neutral, it SHOULD NOT MOVE. The PCM should be in bypass.
When you pull the TOP vacuum line off the BCA, it should EXTEND, pushing the arm DOWN.

Verify your vacuum connections:

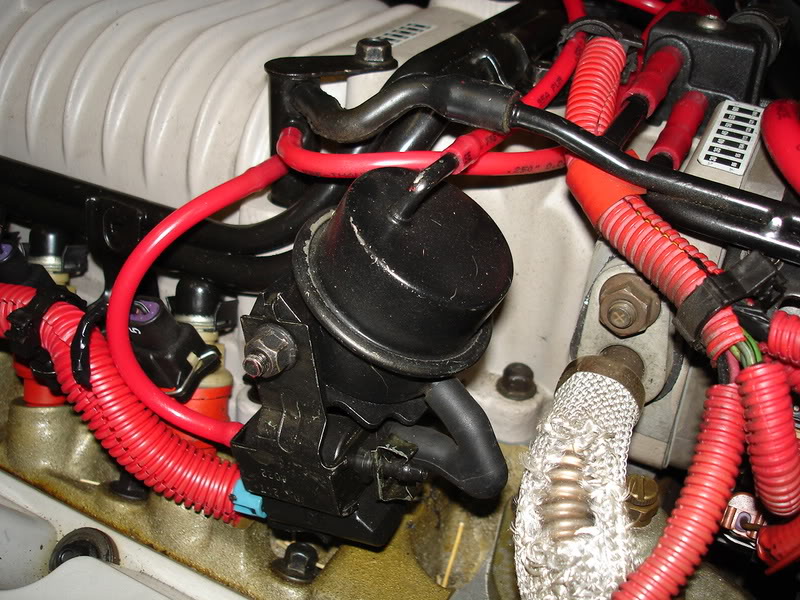

Name:  bca1.jpg
Views: 4
Size:  130.0 KB

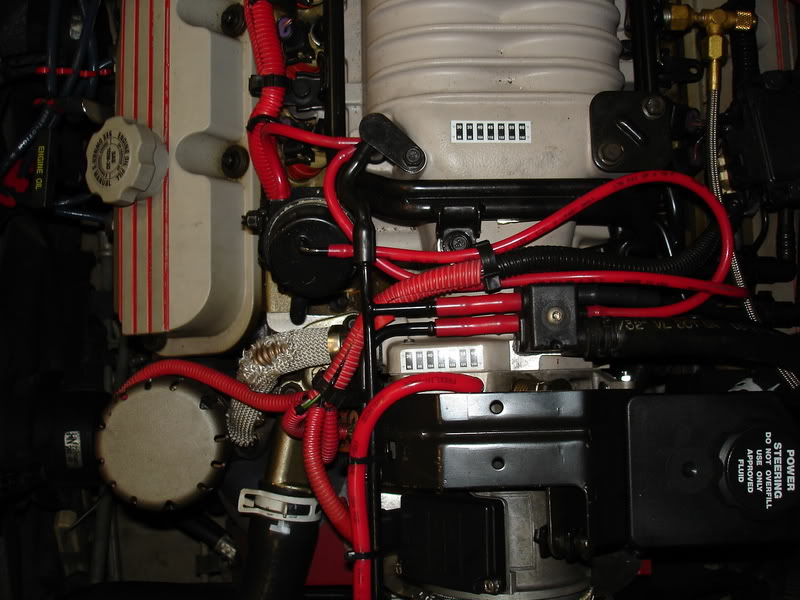

Name:  bca3.jpg
Views: 4
Size:  83.2 KB

The routing should be obvious with the red lines you see here. Ignore the unused port on the BCA (that'* for a vacuum-relief vent, and most of our foam filters deteriorated long ago).

AFTER we figure out why yours is acting funny, you'll want to go back to the rear of the engine to check your connections (vacuum and electrical) to the MAP sensor. The MAP is a rectangular box on a bracket just behind the #4 fuel injector (between the SC and firewall, above the rear valve cover). Small box. One vacuum line, one electrical connector.

Do the carb cleaner test on this one too (at idle).
willwren is offline   Reply With Quote
Old 11-18-2006, 12:34 PM   #32
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2006
Location: Milton,NH
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
smallengineguy is on a distinguished road
Default

Man, thanks for such detailed help!

When the car is off, the BCA is extended like you said.
When idling, the BCA is retracted as well.

BUT, when I rev it in park, it extends/retracts.....

When I remove the top line, it DOES extend like you said.

My hose connections do not look quite like yours. Out of the BCS the line goes toward the front of the charger to a small round silver thing at a tee fitting, the other line off the tee goes under the charger nose to another tee.
smallengineguy is offline   Reply With Quote
Old 11-18-2006, 12:36 PM   #33
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2006
Location: Milton,NH
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
smallengineguy is on a distinguished road
Default

I'm going to get a digital camera today and get photos of the routing, etc.
smallengineguy is offline   Reply With Quote
Old 11-18-2006, 12:43 PM   #34
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Excellent. That supercharger ever been off the car that you know of?
willwren is offline   Reply With Quote
Old 11-18-2006, 01:00 PM   #35
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Whoops, I just noticed something.... he has a 98, therefore a S2. Isn't the vac line setup dramatically different?
Bonneville92V688 is offline   Reply With Quote
Old 11-18-2006, 01:09 PM   #36
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2006
Location: Milton,NH
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
smallengineguy is on a distinguished road
Default

It does look WAY different than the pics Willwren posted. As far as I know, the charger has never been off. It had 125,000 miles on it when I bought it.

So you're saying the BCA should NOT move when I rev it in park?
smallengineguy is offline   Reply With Quote
Old 11-18-2006, 01:23 PM   #37
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

My goof. I was fixated on the older cars in your sig.

Check the TEE fitting under the nosedrive of the SC. Can someone please post pics of the S2 routing?
willwren is offline   Reply With Quote
Old 11-18-2006, 01:29 PM   #38
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Sorry that its freaking huge.

Bonneville92V688 is offline   Reply With Quote
Old 11-18-2006, 01:35 PM   #39
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2006
Location: Milton,NH
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
smallengineguy is on a distinguished road
Default

That'* mine, and it'* hooked up correctly. Now I know the "small round silver thing" is the fuel press. regulator...
smallengineguy is offline   Reply With Quote
Old 11-18-2006, 01:55 PM   #40
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by motorhead
Quote:
Originally Posted by motorhead
Have you tested the boost guage itself? Have you put a mechanical guage on the plenum to see what the pressure is when accelerating?
Seeing as how shotgunning parts at it is not fixing it, maybe we should try to diagnose it instead?
