Default Need some tips on cleaning SC.got the LIM off 05/09

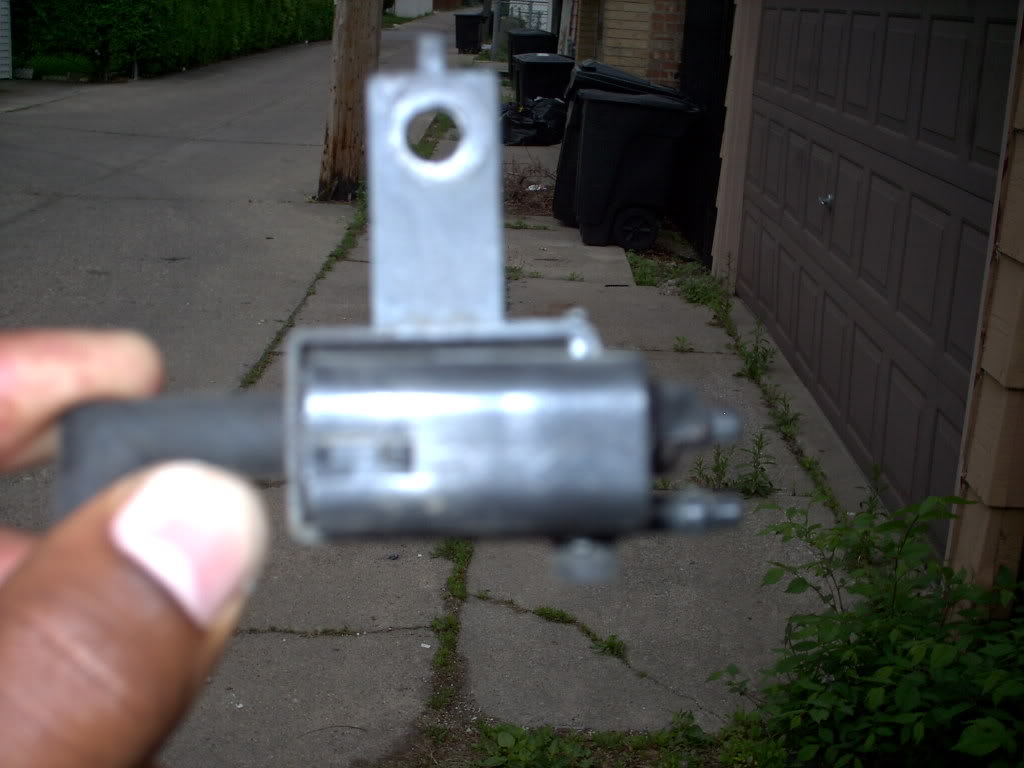

The first question is what hose goes into the top of this boost thing? The boost actuator plugs into the bottom but nothing was connected to the top.

Name:  engine004.jpg
Views: 1
Size:  75.2 KB

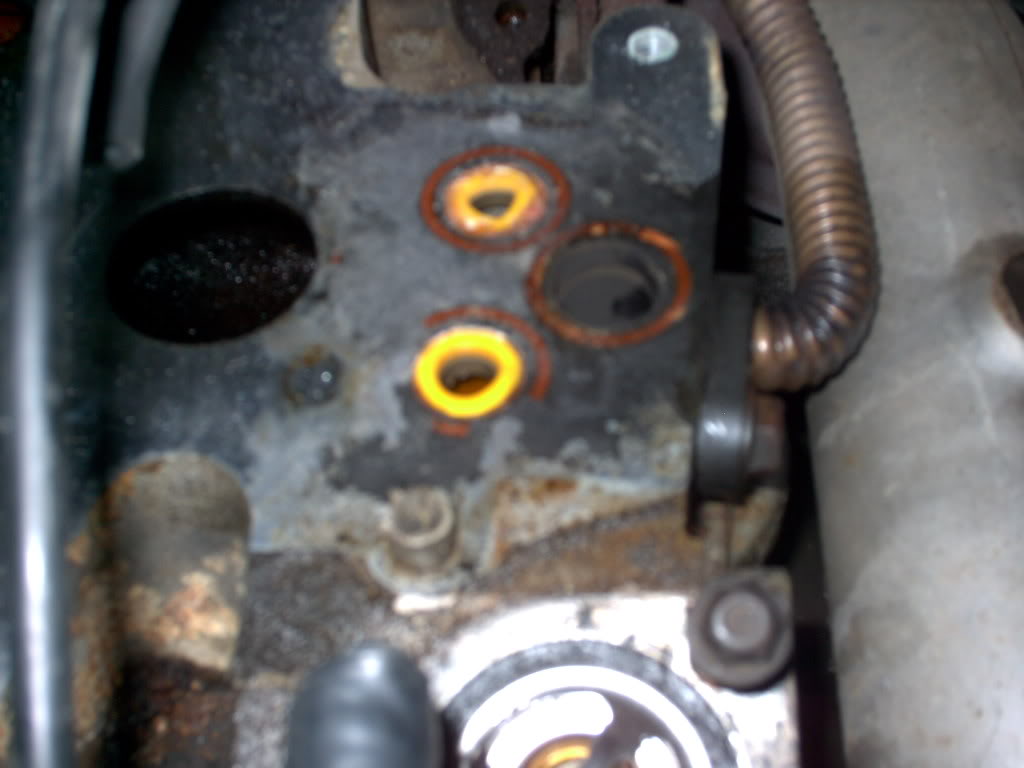

Also how does the lower intake look with 116k miles?

Name:  engine002.jpg
Views: 1
Size:  60.7 KB
Name:  engine005.jpg
Views: 2
Size:  119.9 KB

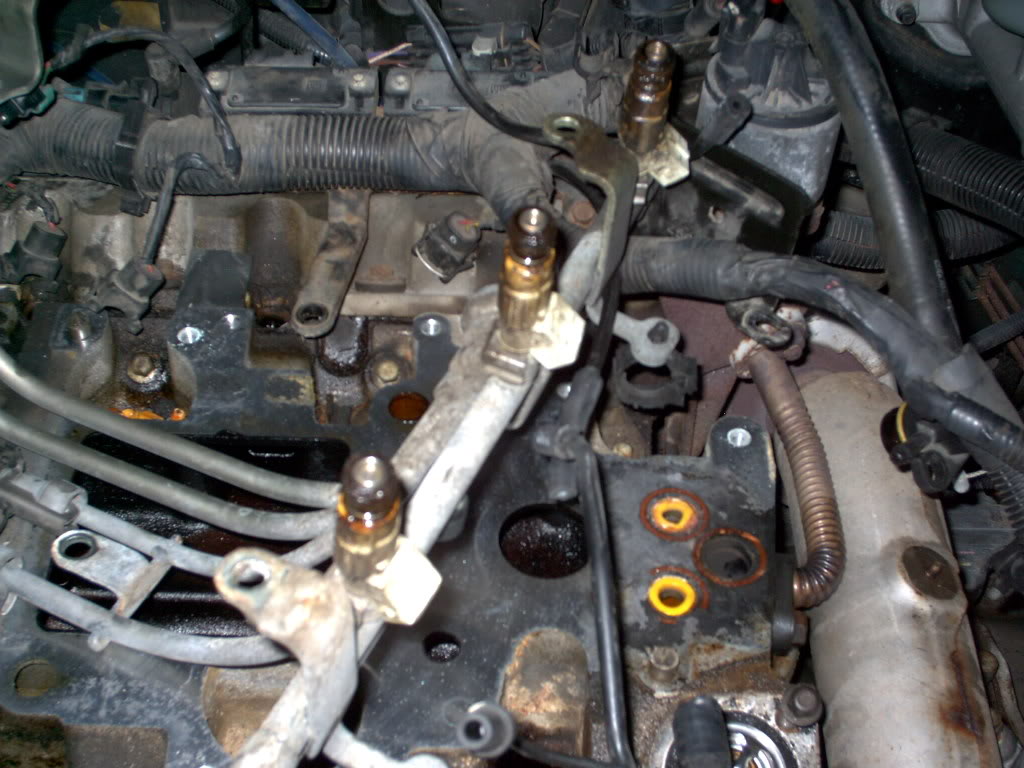

where could have all this sludge come from around the openings of the injectors?

Name:  engine005.jpg
Views: 2
Size:  119.9 KB

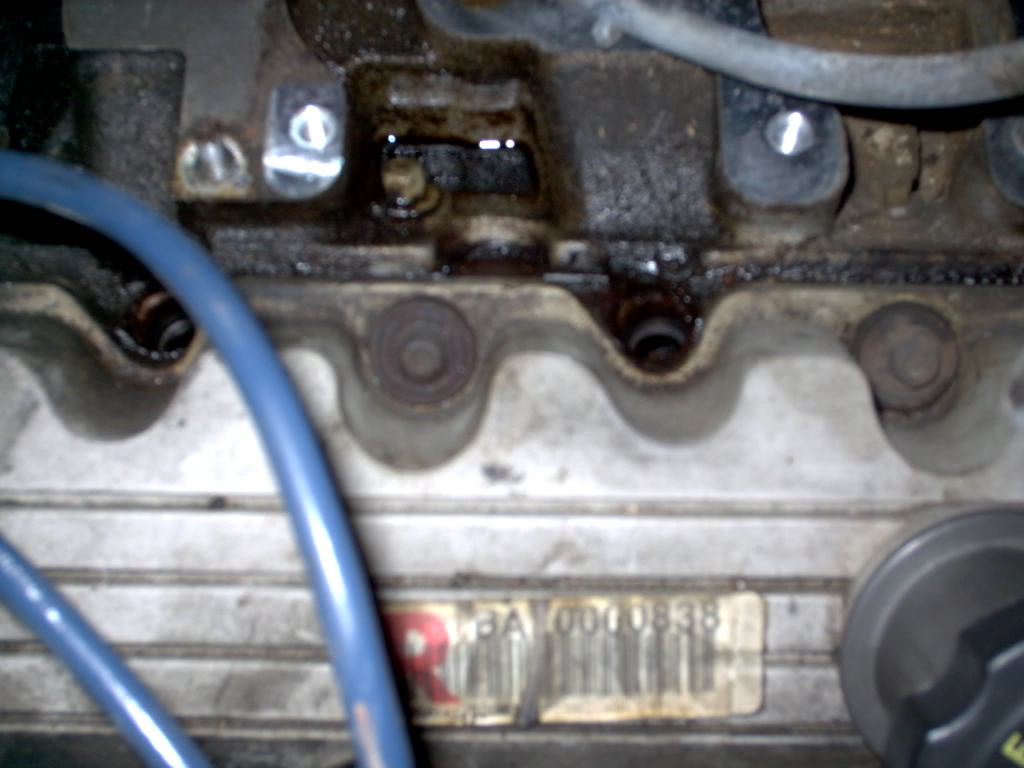

Name:  engine001.jpg
Views: 1
Size:  70.8 KB

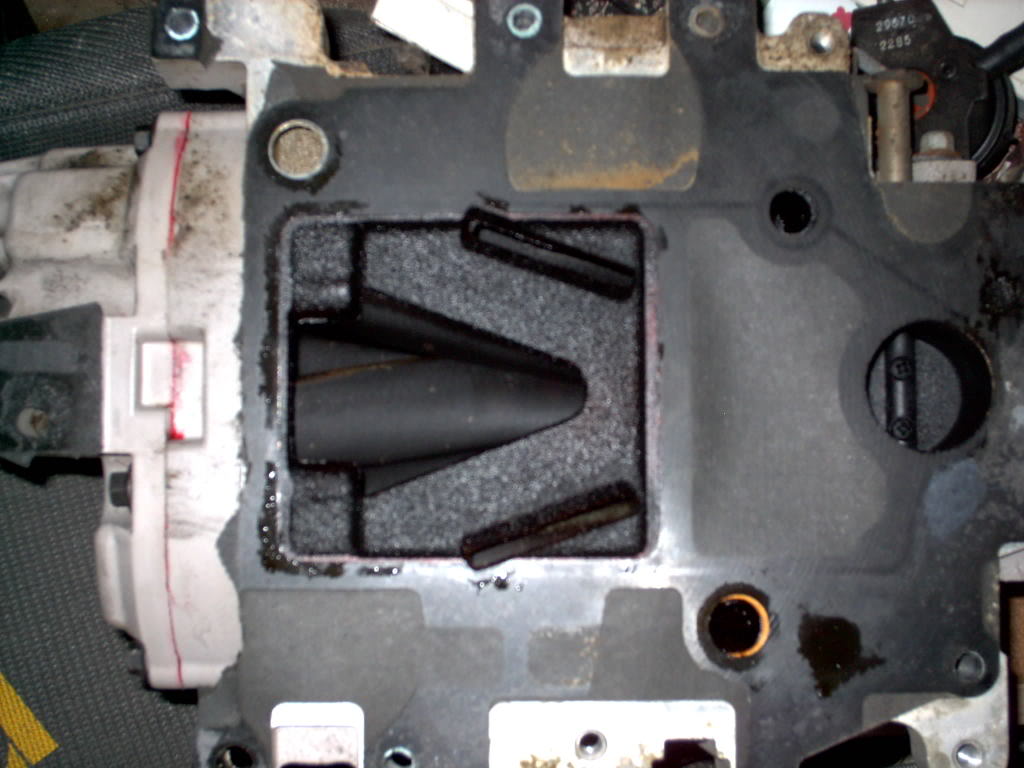

And what could I use to clean up the SC a little? From what I read on I see that the turbines shouldnt be cleaned so what should I do/use to clean this up a little?
Name:  engine003.jpg
Views: 1
Size:  85.4 KB

What do I use to get the gasket off the surfaces
Attached Images
File Type: jpg engine005.jpg (119.9 KB, 2 views)
bandit01 is offline   Reply With Quote
Old 05-08-2007, 03:38 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Scrape the gasket.. a razor blade or gasket scraper. Try not to scratch the surface bad and make an area that wouldn't seal. (no deep grooves).

Don't clean the SC or the housing internally. You will end up cleaning the grease out of the case bearings and need to redo them.
BillBoost37 is offline   Reply With Quote
Old 05-08-2007, 03:46 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I hope to god you're pulling that LIM to replace the gaskets, and ditching the DEX.

Nothing connects to the top of the BCS. It'* merely a vent.
willwren is offline   Reply With Quote
Old 05-08-2007, 04:04 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

As for the sludge on the edges of your injectors. Nothing against you. But your entire motor is covered in sludge. I'd say it'* normal road dirt that hasn't been cleaned in 116K miles.
BillBoost37 is offline   Reply With Quote
Old 05-08-2007, 06:46 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2007
Location: Chicago
Posts: 99
Thanks: 0
Thanked 0 Times in 0 Posts
bandit01 is on a distinguished road
Default

I will be replacing the LIM gaskets. I bought this car three months ago and this is the shape it was given to me.
bandit01 is offline   Reply With Quote
Old 05-09-2007, 12:55 AM   #6
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

It'* cool to see you doing the work yourself. You know about the aluminum framed lower gaskets, right?
dillcc is offline   Reply With Quote
Old 05-09-2007, 09:59 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2007
Location: Chicago
Posts: 99
Thanks: 0
Thanked 0 Times in 0 Posts
bandit01 is on a distinguished road
Default

Yes I will be getting the updated gaskets.. Check out these pics I took. Do this look good for a 116k car running Dex, and could this sludge build up be the reason for the kind of high temps on a 80* day? I do have a 180* stat but its not a intense one everyone is talking about.

:o :o :o :o :o :o

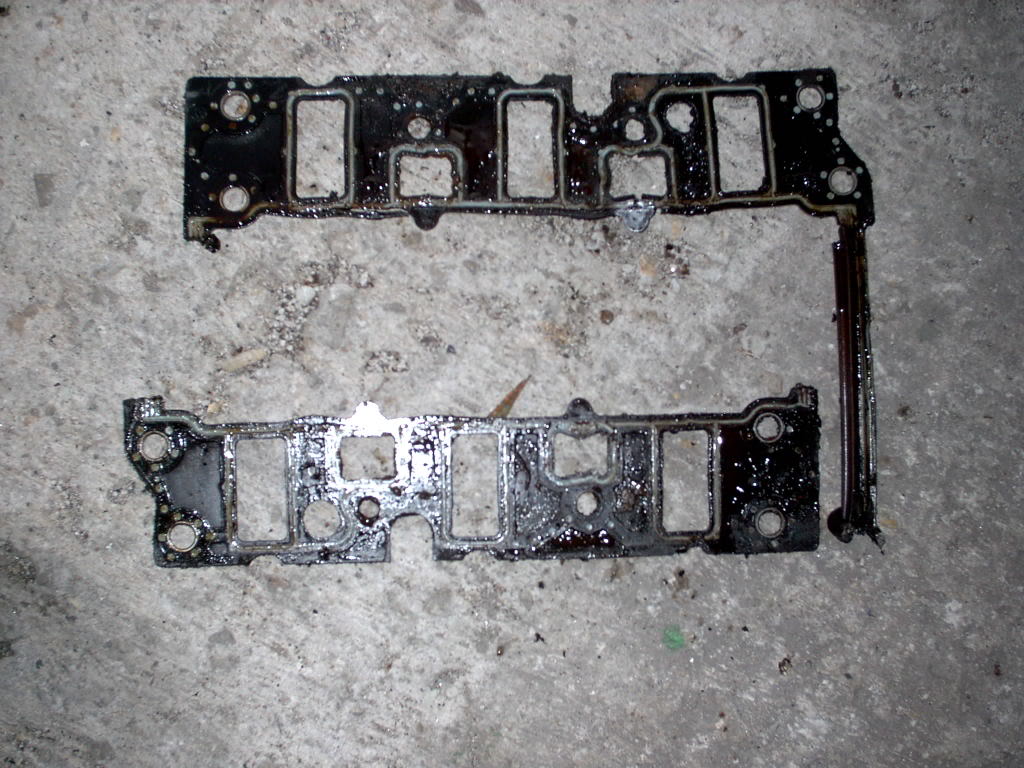

Name:  0509001.jpg
Views: 0
Size:  149.9 KB

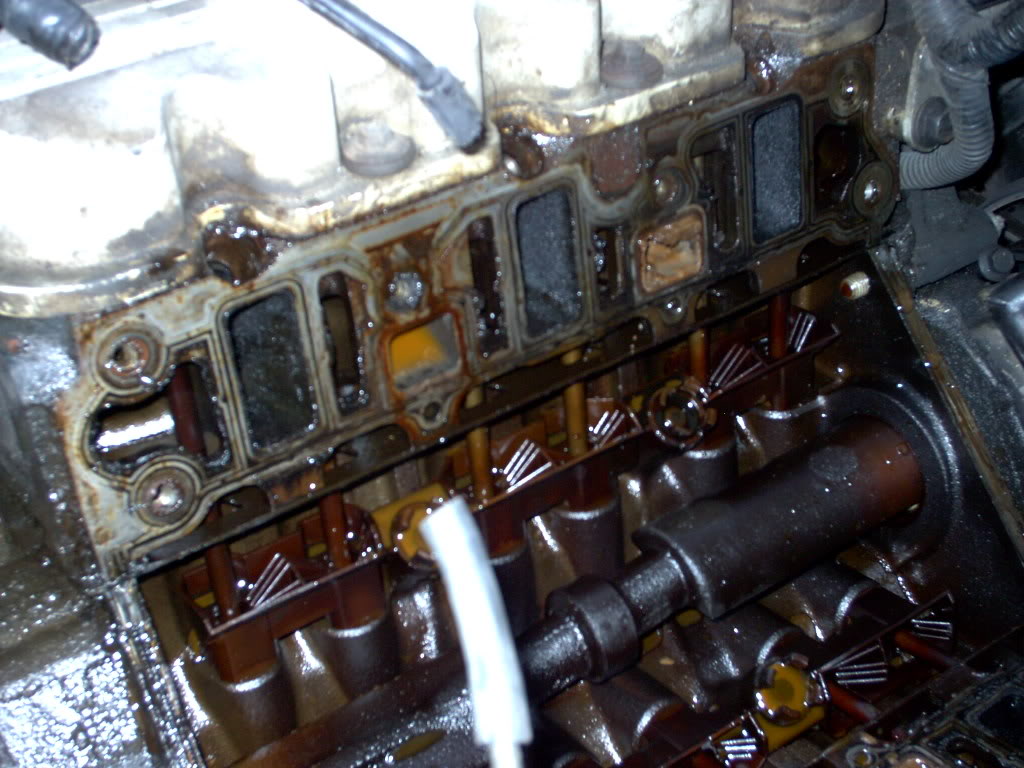

look at the coolant runner on the right side of the pic.. :o :o

Name:  0509004.jpg
Views: 0
Size:  125.3 KB

the valley..

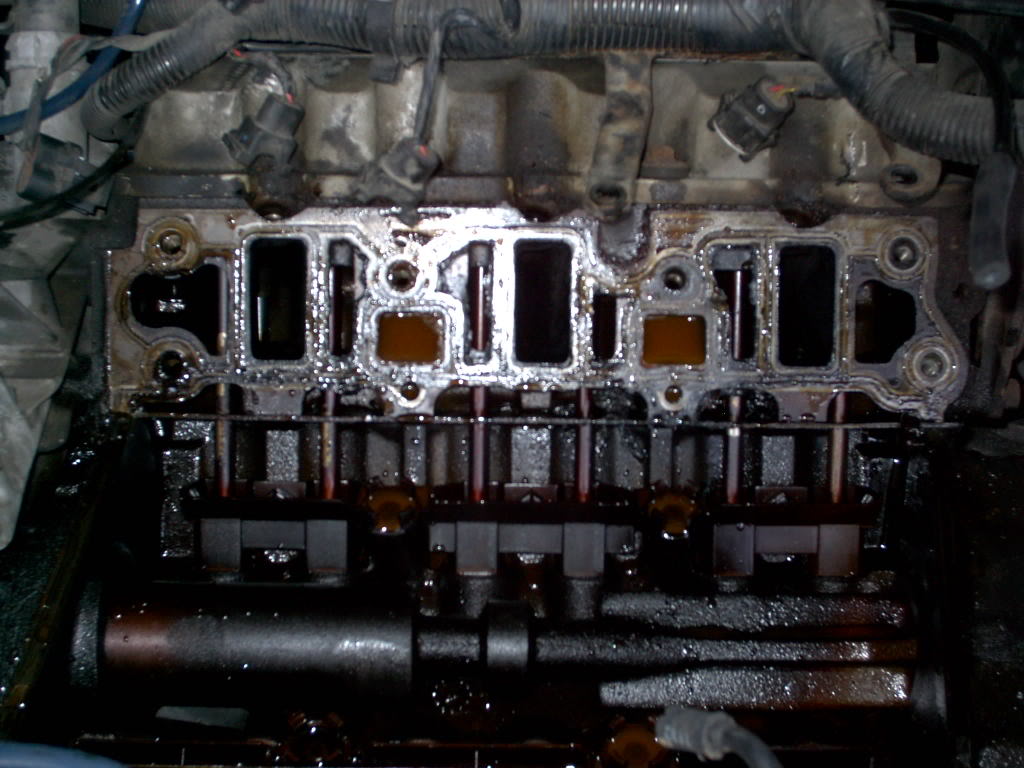

Name:  0509003.jpg
Views: 0
Size:  107.6 KB

and the lower intake...

Name:  0509002.jpg
Views: 0
Size:  171.6 KB

Thanks for the info..
