Old 06-19-2007, 09:13 PM   #11
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

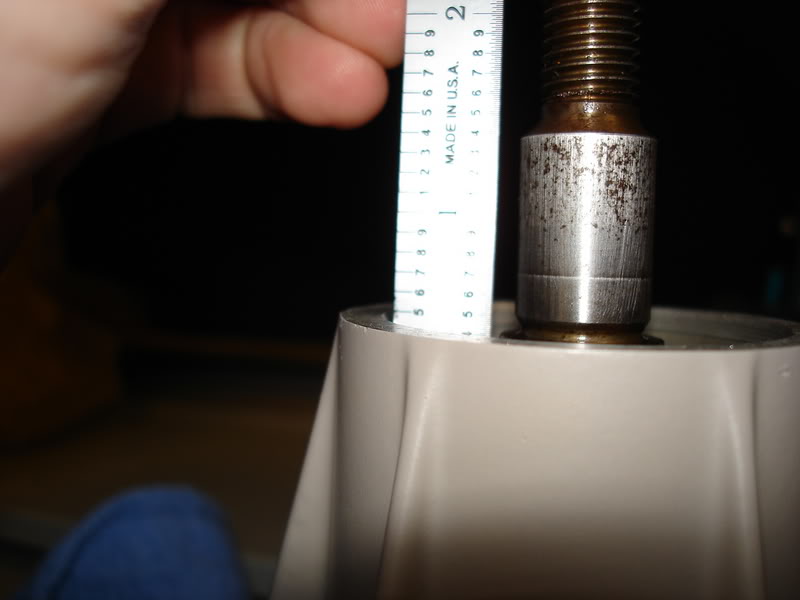

First two pics show the depth of the FRONT bearing depth before the snout seal is put in.

The second two show the depth of the 3-pin PLATE face, not the end of the pins. These two bearings are push-me-pull-you. If you press one, it'll try to press out the other. If you don't understand what I'm explaining, ask me. When you press the top, you have to rest on the pin plate, not the bottom of the nosedrive.

Name:  1-4.jpg
Views: 0
Size:  38.4 KB





Name:  4-3.jpg
Views: 0
Size:  38.0 KB


You have to press all the bearings out of the nosedrive and off the shaft. I have too many instructions and pictures to even show you. In other words, you NEED someone that'* done similar work to help you figure that out.

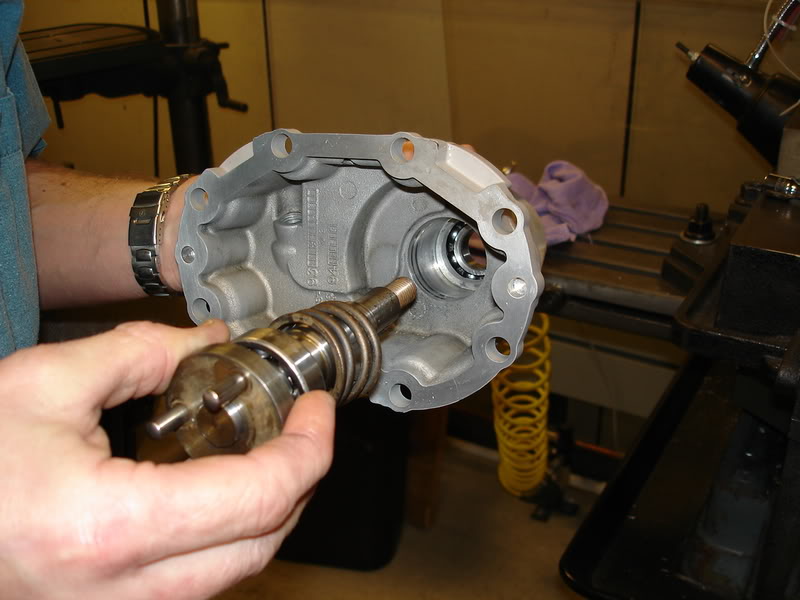

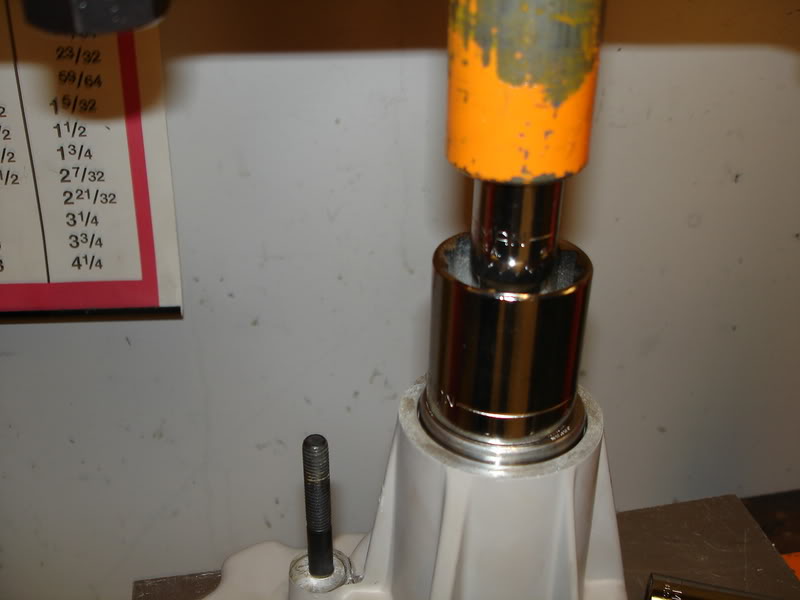

Reassembly in BASIC terms is this:

Name:  DSC01294.jpg
Views: 0
Size:  39.1 KB

Name:  DSC01295.jpg
Views: 0
Size:  62.2 KB

Name:  DSC01296.jpg
Views: 0
Size:  46.3 KB

In that order, then go back and compare to your original measurements shown in the first four pics I posted.

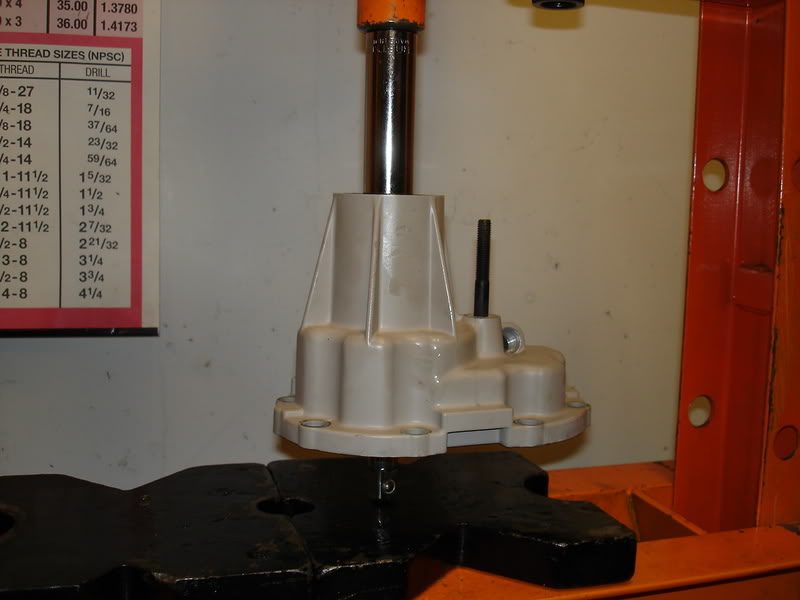

This is the technique for pressing at the final step in order to press the bearings TOWARDS each other:

Name:  DSC01297.jpg
Views: 0
Size:  47.2 KB
willwren is offline   Reply With Quote
Old 06-20-2007, 12:17 PM   #12
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

OI! What did I get myself into? Maybe I just need to try it myself and hope for the best. I know I can do it, i just always get a feeling of "Oh boy, am I gonna F this up?" It looks to be pretty straightforward. Now to go out to measure the depths.
Bonneville92V688 is offline   Reply With Quote
Old 06-20-2007, 12:30 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I took down some of the information on my supercharger pages for this reason. This isn't something you can attempt from looking at pics and reading. It'* something to do for the person who is already experienced in rebuilding things like this, pressing bearings and seals, etc.

I don't want to be even remotely responsible for people screwing up expensive superchargers. Sometimes too much information can be a bad thing.
willwren is offline   Reply With Quote
Old 06-20-2007, 12:44 PM   #14
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Yeah, I'm stopping here. I think I am just gonna buy the parts needed and find someone to rebuild it for me. I don't want to attempt something and screw it up. Anyone here wanna do it for me? :(
Bonneville92V688 is offline   Reply With Quote
Old 06-20-2007, 01:05 PM   #15
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

INTENSE is how far from you?
willwren is offline   Reply With Quote
Old 06-20-2007, 01:08 PM   #16
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Quote:
Originally Posted by willwren
INTENSE is how far from you?
120 Miles. I should give them a call here in a few minutes. I forgot that they rebuild nosedrives.
Bonneville92V688 is offline   Reply With Quote
Old 06-20-2007, 01:13 PM   #17
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Same bearings, seals, and coupler. The only difference is the length of the input shaft. Same techniques apply as the M90.
willwren is offline   Reply With Quote
Old 06-20-2007, 01:16 PM   #18
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

I left Todd a message. He should probably get back to me shortly.
Bonneville92V688 is offline   Reply With Quote
Old 06-20-2007, 02:55 PM   #19
Junior Member
Thread Starter

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Excellent, I found someone to take the job to rebuild it for me.
Bonneville92V688 is offline   Reply With Quote
Old 06-20-2007, 06:18 PM   #20
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

willwren is offline   Reply With Quote
