Default MPS problem solved, pics inside

simple question to those who have done it...

NUMBER 1

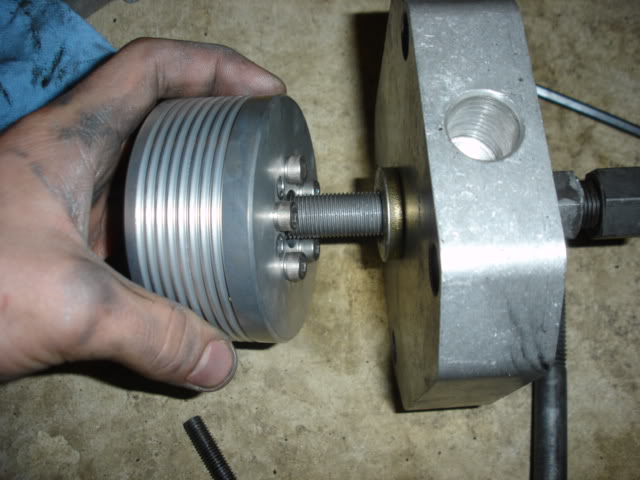

Name:  DSC07912.jpg
Views: 4
Size:  46.8 KB

OR

NUMBER 2

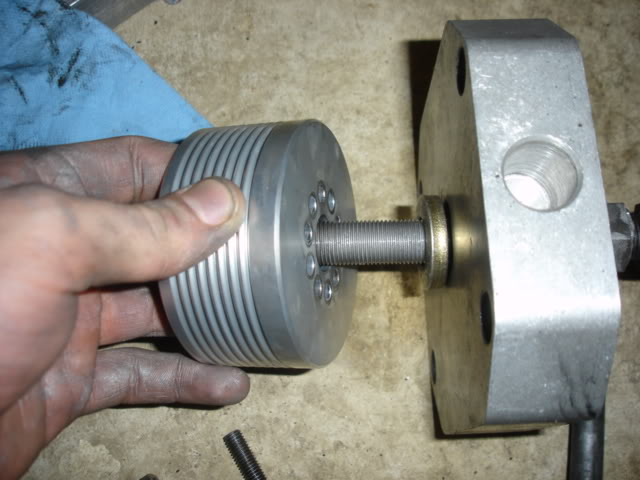

Name:  DSC07913.jpg
Views: 5
Size:  47.3 KB
harofreak00 is offline   Reply With Quote
Old 11-29-2005, 11:17 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Don't recall exactly. Making some calls.

Bullet coming.
willwren is offline   Reply With Quote
Old 11-29-2005, 11:22 PM   #3
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Quote:
Originally Posted by willwren
Don't recall exactly. Making some calls.

Bullet coming.

That means DUCK!!!!!!!!!!!



(sorry off topic I know couldn't resist)
LakevilleSSEi is offline   Reply With Quote
Old 11-29-2005, 11:30 PM   #4
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

What are you trying to do
Where is the hub

You don't install it with the actual pulley on
2000SilverBullet is offline   Reply With Quote
Old 11-29-2005, 11:46 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
What are you trying to do
Where is the hub

You don't install it with the actual pulley on
k lemme go take a new pic...

i didnt have any instructions with the MPS!
harofreak00 is offline   Reply With Quote
Old 11-29-2005, 11:51 PM   #6
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

i dont understand what would be stablizing it this way? but without the pulley???

Name:  DSC07918.jpg
Views: 2
Size:  35.9 KB
harofreak00 is offline   Reply With Quote
Old 11-30-2005, 12:08 AM   #7
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

You have to use the backing plate to push it on. You need that to square it up and to stop the SC shaft from rotating while you push on the hub.
And you definitely don't use the pulley
Push it on so it is flush with the end of the shaft.
2000SilverBullet is offline   Reply With Quote
Old 11-30-2005, 12:09 AM   #8
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

....and don't forget to thread the small setscrew into the shaft vent hole to center it up.
2000SilverBullet is offline   Reply With Quote
Old 11-30-2005, 12:21 AM   #9
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

like this???
Name:  DSC07919.jpg
Views: 2
Size:  41.8 KB

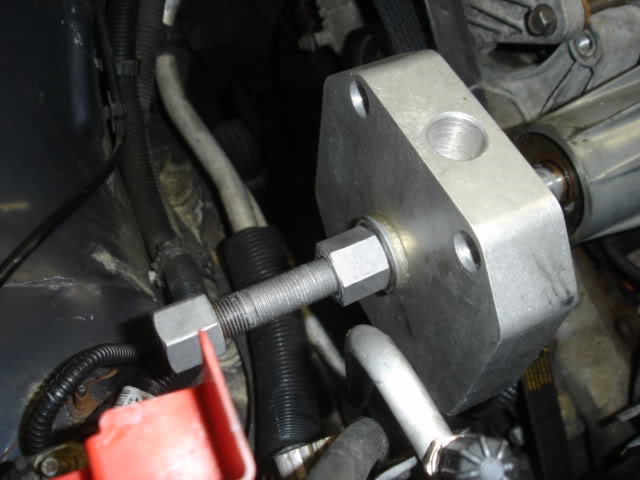

Name:  DSC07920.jpg
Views: 2
Size:  40.5 KB
harofreak00 is offline   Reply With Quote
Old 11-30-2005, 12:28 AM   #10
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

YES. Assuming you have threaded the small screw into both the puller threaded rod and the SC shaft to center things.
