Default Any series 1 L67'* ADD a boost gauge?

For those SCSE/SCSSE guys out there.....I'm looking at vacuum lines and I'm not seeing any appropriate that would read full boost. The main manifold comes off between the TB and inlet, and would only be manifold vacuum. The other downstream taps look like they'll read inlet only?

I'm thinking I might have to tap the LIM directly for the 95.
willwren is offline   Reply With Quote
Old 08-03-2005, 04:40 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Where does the SSEi get boost readings?
J Wikoff is offline   Reply With Quote
Old 08-03-2005, 05:00 PM   #3
Member
Posts like a V-Tak

Join Date: Jul 2005
Location: Kansas City, Mo
Posts: 40
Thanks: 0
Thanked 0 Times in 0 Posts
DiveMiguell is on a distinguished road
Default

map sensor maybee????I was wondering myself as I want to add a boost gauge to mine.
DiveMiguell is offline   Reply With Quote
Old 08-03-2005, 05:02 PM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Quote:
Originally Posted by DiveMiguell
map sensor maybee????I was wondering myself as I want to add a boost gauge to mine.
Where does the line to the MAP sensor come from?
J Wikoff is offline   Reply With Quote
Old 08-03-2005, 05:22 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

NM, I got it figured out on the 93 at lunch, but my MAP sensor on the 95 is in a different spot, and I can't find it! WTF???? I know where to tap into, and I don't need to know where the MAP sensor is, but it sure as H E L L would be nice to know!

Maybe I didn't get a MAP sensor because I have no boost gauge???????

Here'* a pic of Haro'* engine:
http://memimage.cardomain.net/member...34_62_full.jpg

Just to the left in the pic, just to the rear in reality of the "3800" on the SC cover, you see the rectangular MAP sensor. Not there on mine. Both are 95 L67'*. This would indicate that the sole purpose of the MAP sensor on the Series 1 L67'* is for the boost gauge. Can anyone with a 93/94 SC SE or SSE check?
willwren is offline   Reply With Quote
Old 08-03-2005, 06:53 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Two maps on the 97 boss...
BillBoost37 is offline   Reply With Quote
Old 08-03-2005, 07:29 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

One for the gauge, one for the PCM. Series 1 SSEi'* (with gauge) appear to be the only recipients. If you don't have a boost gauge, my bet is you don't have a MAP sensor (Series 1).

Can we get OldBlueEyes to confirm?
willwren is offline   Reply With Quote
Old 08-03-2005, 08:45 PM   #8
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

I have the guage on my 93 SSE SC, and am assuming I have the MAP sensor. The 92 PA ultra Super has one as well.
JimmyFloyd is offline   Reply With Quote
Old 08-03-2005, 09:06 PM   #9
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

wow....my engine used to look like that??
harofreak00 is offline   Reply With Quote
Old 08-03-2005, 09:14 PM   #10
Senior Member
True Car Nut

Join Date: May 2003
Posts: 7,262
Thanks: 0
Thanked 0 Times in 0 Posts
ssesc93 is on a distinguished road
Default

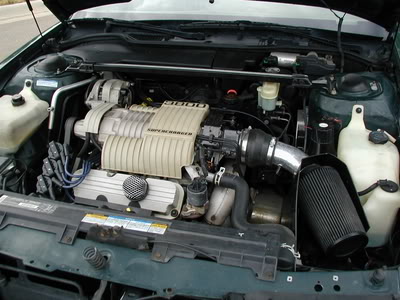

here is the pic from Marty'* thread when he took shots of his and his bro'* car. Your right, no MAP sensor behind the 3800 cover.
\


Name:  P1010541.jpg
Views: 6
Size:  33.9 KB
