Old 11-16-2010, 09:47 PM   #11
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

its because of the block difference from a 99 tensioner to a 2000 bloc and head, it bolts on the same but for some reason makes a much smaller belt rout and will not even take a half inch smaller than 905 length. I dont have 200.00 for a new tensioner and alternator that would correctly match the engine
bo58gardner is offline   Reply With Quote
Old 11-16-2010, 09:50 PM   #12
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Can you put a over sized pulley on?
Danthurs is offline   Reply With Quote
Old 11-16-2010, 09:54 PM   #13
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

I have the pulley out of a 3.4 camaro and its still loose
bo58gardner is offline   Reply With Quote
Old 11-16-2010, 09:56 PM   #14
Senior Member
Posts like a 4 Banger

PaulDFixr's Avatar

Join Date: Sep 2005
Location: Budd Lake, NJ
Posts: 105
Thanks: 0
Thanked 0 Times in 0 Posts
PaulDFixr is on a distinguished road
Default

Maybe some 'belt dressing' for a temporary fix? Can you even buy that stuff anymore?
PaulDFixr is offline   Reply With Quote
Old 11-16-2010, 10:05 PM   #15
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

it shreds serpintine belts
bo58gardner is offline   Reply With Quote
Old 11-16-2010, 10:13 PM   #16
Senior Member
Posts like a Supercharger

mike9fore's Avatar

Join Date: Mar 2010
Location: Beltsville,MD
Posts: 181
Thanks: 0
Thanked 0 Times in 0 Posts
mike9fore is on a distinguished road
Default

Test the battery and see if the your not putting a draw on your battery
mike9fore is offline   Reply With Quote
Old 11-16-2010, 10:26 PM   #17
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

I had it tested the other week and it was fine.
bo58gardner is offline   Reply With Quote
Old 11-17-2010, 07:47 AM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You stopped for a stoplight. At least I think that'* when it happened, please confirm.

When you stopped and with all the electrical load, AC etc etc running that the engine rpm dipped below the alternator cut off that is set in the PCM. This causes the alternator to literally turn off. Wtih all the stuff you had running, it'* no surprise that the voltage gauge dropped.

The tensioner, alternator and tensioner bracket do not need to match the year of the block. I've mixed and matched these pieces with 100% success in the right combinations. Please post a picture of your alternator to bracket. This is likely an easy fix up. However the larger issue of the voltage drop isn't the bracket, alt or tensioner unless this is a slippage issue and it didn't happen at a stoplight.

There is also another mod that may add voltage as long as the alternator is being commanded on by the pcm that we could have you do. But let'* back burner that until we can get you up and running properly.

I'm going to go reread the post as I may have missed a couple of things.

I'm back! Think I read into things a bit and may have some other ideas as well.
Please confirm that you have a 99 LeSabre alternator bracket and tensioner and the 95 Bonneville alternator.

If that is correct, then you have pretty much the same setup you had from the factory. How is your belt routed? Did you route it intuitively and then lift the belt off the water pump to the tensioner to be tensioned? (That is the correct way). Being that it'* shredding belts, something is out of place, whack or some odd thing. Did it just start shredding after the UIM change? If so.. let'* review how the pieces sit, if the belt is straight etc.
BillBoost37 is offline   Reply With Quote
Old 11-17-2010, 09:01 AM   #19
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

I have the belt Alternator, down to ac pump and under over to tensioner, to power steering up over motor mount to water pump and down under to crank to ac. and no it happened when I was on cruise control and kept happening when I got into city driving which scarred me a lil extra.
bo58gardner is offline   Reply With Quote
Old 11-17-2010, 09:12 AM   #20
Senior Member
Posts like a Northstar
Thread Starter

bo58gardner's Avatar

Join Date: Apr 2010
Posts: 518
Thanks: 0
Thanked 0 Times in 0 Posts
bo58gardner is on a distinguished road
Default

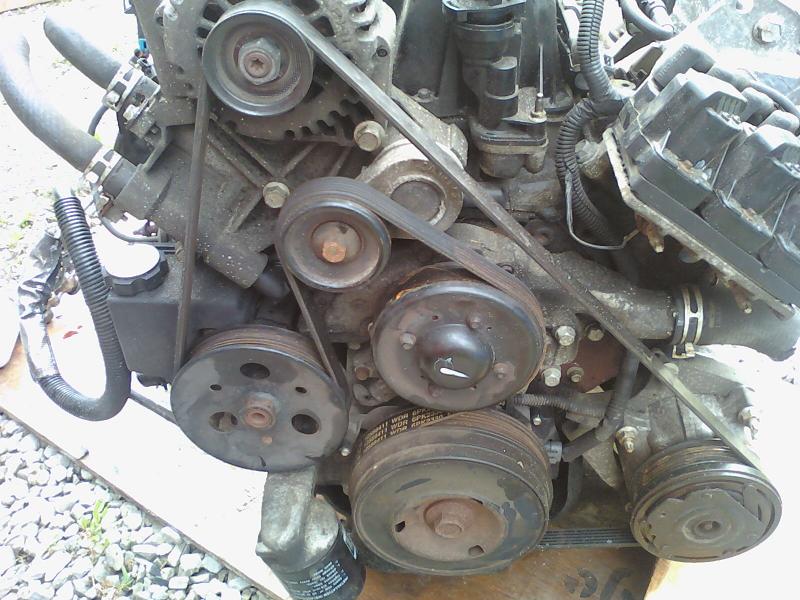

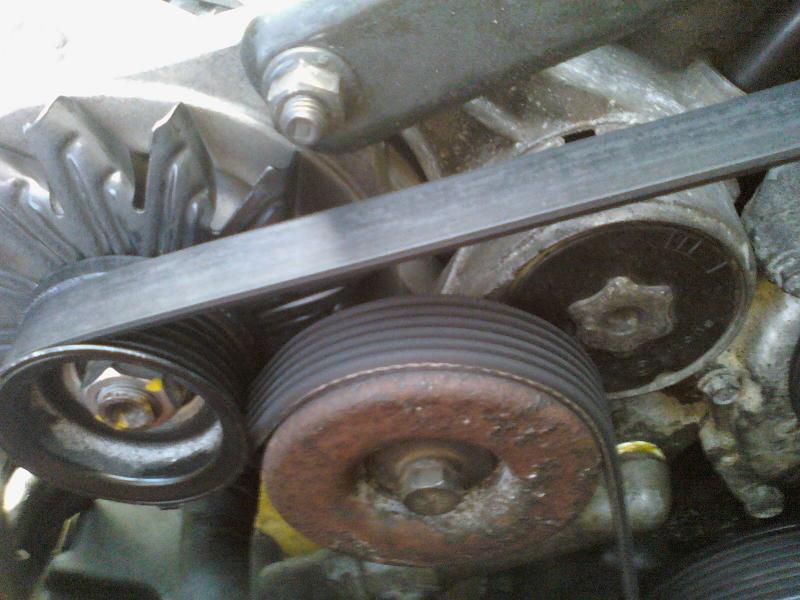

The first one is the engine before I ever touched it to go into the bonneville, the second is my tensioner off the 99 lesabre and I look at it now, I think I routed it wrong.
Attached Thumbnails
voltage drop-100823_103252.jpg   voltage drop-101117_080512.jpg
bo58gardner is offline   Reply With Quote
