Old 07-20-2007, 10:27 PM   #11
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Houston, TX
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
PogiGreg is on a distinguished road
Default

Well, I took the ground bus apart as stated in the tech article, and they were as clean and without corosion since the day it came off the assembly line. Both sides were fine. Inexplicably, I now have driver side front and rear operation, not passenger side. What should I check for now?

PogiGreg is offline   Reply With Quote
Old 07-20-2007, 10:45 PM   #12
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

If the driver'* control works, but not the others, it'* likely the connector or switch in your door. You can get it out of there without pulling the door panel. Gently pry it out and reseat the connector a couple times.

If that doesn't work, go to the wrecker and get a replacement switch, or post here in WANTED.

All 4 doors and windows go through the driver'* master switch. They won't work if it doesn't.
willwren is offline   Reply With Quote
Old 07-20-2007, 11:18 PM   #13
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Houston, TX
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
PogiGreg is on a distinguished road
Default

OK, thanks, It'* off to the Pick-a Part tomorrow.
PogiGreg is offline   Reply With Quote
Old 07-21-2007, 08:26 PM   #14
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Houston, TX
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
PogiGreg is on a distinguished road
Default

Well, I went to the pick a part and got another switch. Still the same result. I am now stumpped. Still nothing on the passenger side windows.
PogiGreg is offline   Reply With Quote
Old 07-22-2007, 05:00 PM   #15
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Houston, TX
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
PogiGreg is on a distinguished road
Default

Does anyone have a diagram they can pos of the fuses under the hood? Are the power windows fused seperatly?
PogiGreg is offline   Reply With Quote
Old 07-22-2007, 07:25 PM   #16
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

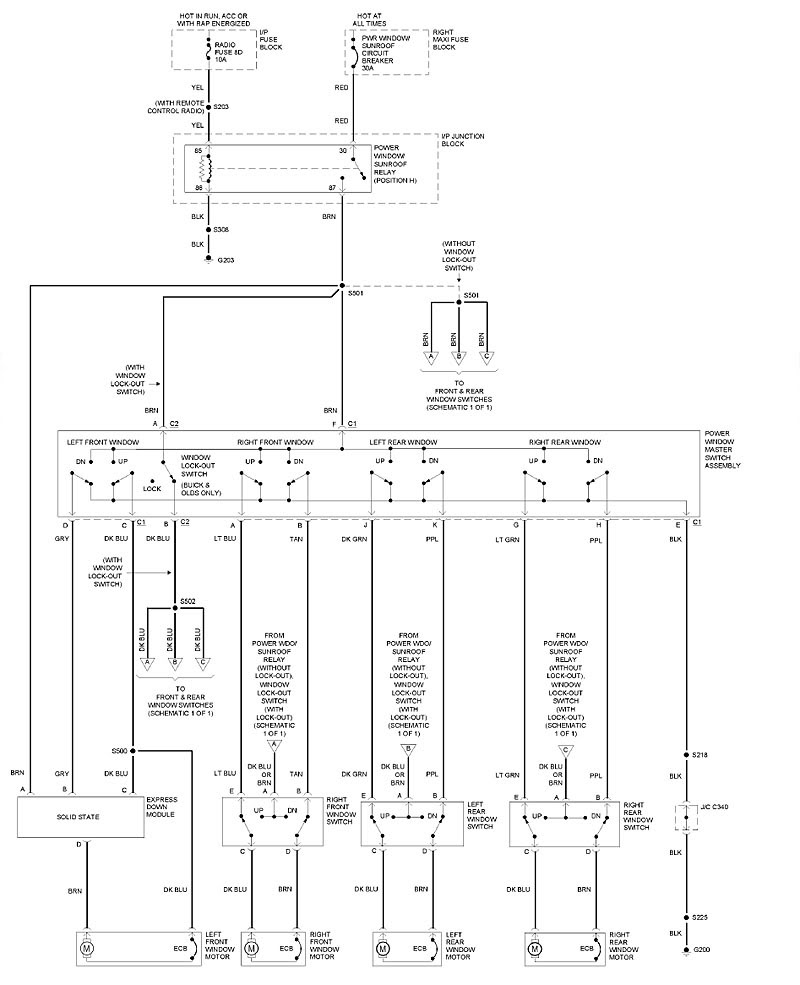

Here'* a wiring diagram. Let us know if you need help understanding anything.

Name:  98SEPowerWindows.jpg
Views: 2
Size:  89.3 KB
Technical Ted is offline   Reply With Quote
Old 07-22-2007, 07:31 PM   #17
Senior Member
Posts like a Supercharger

Join Date: Jun 2007
Location: central Tx
Posts: 189
Thanks: 0
Thanked 0 Times in 0 Posts
L67Silhouette is on a distinguished road
Default

Bring it over to Austin, I'll fix it.

It sounds as though you might have 2 bad window motors. It does happen as my van'* pass window was working fine when i got it and now it'* dead. I have a new motor, but haven't installed it.
L67Silhouette is offline   Reply With Quote
Old 07-22-2007, 08:45 PM   #18
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Houston, TX
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
PogiGreg is on a distinguished road
Default

Quote:
Originally Posted by L67Silhouette
Bring it over to Austin, I'll fix it.

It sounds as though you might have 2 bad window motors. It does happen as my van'* pass window was working fine when i got it and now it'* dead. I have a new motor, but haven't installed it.
You know I will take you up on that. I have to take my daughter to Texas State for the fall semester (Bobcat Dad). Please drop me a PM and I will give you my number. I am at my wits end with these windows.
PogiGreg is offline   Reply With Quote
Old 07-29-2007, 10:33 PM   #19
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Houston, TX
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
PogiGreg is on a distinguished road
Default

I don't see anyone chiming in on my problem with my power windows not working. I was content with the three windows not working, but then the drivers side stopped working today, so I had to tackle the problem. Can anyone tell me how the circuit breaker works? My guess is I have a bad circuit breaker. I couldn't find one at any of the auto part stores, so I am going to have to go to the dealer.
PogiGreg is offline   Reply With Quote
Old 07-30-2007, 09:49 AM   #20
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If the breaker goes bad..remove it and it should reset in a few minutes.

Having not needed to deal with window issues yet..I'm somewhat unsure what to have you do.

Do any of the windows operate from their individual switches?

It appears power is distributed to the master and all doors from the one relay/fuse. Therefore if you have power at one..you should have power at all.
BillBoost37 is offline   Reply With Quote
