Old 01-11-2006, 02:20 PM   #11
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Cold in Michigan? I've seen an ice dam INSIDE the maxifuse relay center. It thaws and leaves moisture in there.

Corrosion on a ground connection wouldn't cause more draw, it would cause less. I'd be looking for a short to a live (hot) wire somewhere or a supply problem.
willwren is offline
Old 01-11-2006, 02:27 PM   #12
Senior Member
Posts like a Turbo

Join Date: Oct 2005
Location: Bridgewater, MA
Posts: 343
Thanks: 0
Thanked 0 Times in 0 Posts
vptruman is on a distinguished road
Default

sort of related to this... when I start my car, a few seconds later, I hear a whirring sound like a motor (sounds like the seat motor does) and the lights dim and the rpms slow and such, then returns to normal in about one or two seconds. it seems pretty normal but i am curious as to what is drawing the power.
vptruman is offline
Old 01-11-2006, 02:29 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Probably your TCS/ABS selfcheck/pressure step. If it only happens once after startup, that'* likely it.
willwren is offline
Old 01-11-2006, 02:32 PM   #14
Senior Member
Posts like a Turbo

Join Date: Oct 2005
Location: Bridgewater, MA
Posts: 343
Thanks: 0
Thanked 0 Times in 0 Posts
vptruman is on a distinguished road
Default

yes it only happens once. thanks for the info.
vptruman is offline
Old 01-11-2006, 03:32 PM   #15
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Michigan
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Dave B is on a distinguished road
Default

BillBoost37

Are there any more ground busses other than that one? Ones I can check for corroded connections........ I want to check them all but dont have any manuals on this vehicle.



Willwren

I have checked the maxifuse center and its clean and dry, as well as no corrosion that I can see...... Is there something else in there that I need to check for this particular problem, maybe a relay or some other connection for an intermittent problem?

Thanks guys for your time
Dave B is offline
Old 01-11-2006, 03:33 PM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Not sure...Randman1 would know better...I'll pm him the link
BillBoost37 is offline
Old 01-11-2006, 03:54 PM   #17
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Try to duplicate the problem with no accessories or lights running. No radio, no climate control, no lights, that kind of thing.

Also try to pull codes (get a scan) and look for any history codes.

Two possibilities here:
1. You actually have an electrical supply issue.
2. What you see is the SYMPTOM of the motor bogging down.
willwren is offline
Old 01-11-2006, 03:59 PM   #18
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Michigan
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Dave B is on a distinguished road
Default

When my mechanic looked at it yesterday he didnt see any codes in the computer.

Why would this problem not be there when I purchased the vehicle a few years ago???

I still think it could be linked to either the PCM or ECM, or a ground connection.

My 92 Bonneville had to have the computer replaced when I had an electrical issue because it was telling the tester that it was receiving 29VDC instead of 12VDC. $200.00 later everything was just fine.
Dave B is offline
Old 01-11-2006, 06:34 PM   #19
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

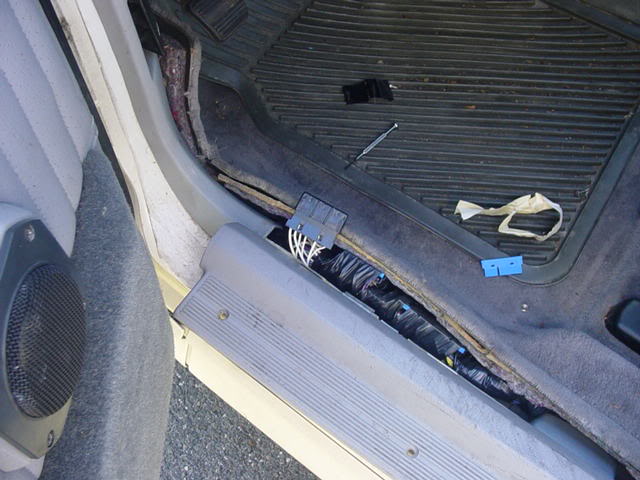

The ground busses that some have had problems with are located along both the left and right sills taped to the wire loom. There'* also a chassis ground in the right kick panel area. From the descriptions, I would not suspect corroded ground busses but it doesn't take long to check anyway. Here'* a pic of one in my 90. Yours will be in the same general area and on both sides:

Name:  DSC00977.jpg
Views: 13
Size:  53.0 KB

I would approach this as if it were a parasitic drain. If you start the car and let it idle, it sounds like the headlights will be dim and the volt gauge will show lower than expected. At this point, start pulling fuses for non engine related circuits one at a time. If the lights become bright and/or the volt gauge seems normal start digging into that circuit deeper. Use this testing after you have ruled out the batt and alternator.
randman1 is offline
Old 01-11-2006, 09:10 PM   #20
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default Re: 98 Bonneville power problem

Quote:
Originally Posted by Dave B
Serpentine belt could use a replacement when the funds are available, but doesnt slip yet
Are you sure? This may also be a stretch, but I would replace the accessory belt. The old one over time is probably stretched out, more than what the tensioner can compensate for. Just my $.02, it'* a starting point.
markwb is offline
