Default parking light wire for angel eyes 2000+

hey
im gonna go out sunday and buy the angel eyes for the 2001 SE

for the led ring instead of installing a seperate switch i wanna connect it to the parking lamps....where to i slice into for the "parking light" wire. I have been told its purple wire? would this be located in that connecter that attaches the headlamp lights to the wiring harness ... i.e if i unplug this particualar harness, the headlamp is detached from the car. is this the wire??

OH, if the bulb in the AE dies, can i just go to a pepboys and replace with the Silvistar H3 bulb?

pictures are helpful for me, its just how i learn.
thanks
ptrfair is offline
Old 04-28-2007, 09:30 AM   #2
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default Re: parking light wire for angel eyes

Quote:
Originally Posted by ptrfair
the "parking light" wire. I have been told its purple wire? would this be located in that connecter that attaches the headlamp lights to the wiring harness ...
Yes, that is correct. You are right on track. : )
markwb is offline
Old 04-28-2007, 08:00 PM   #3
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

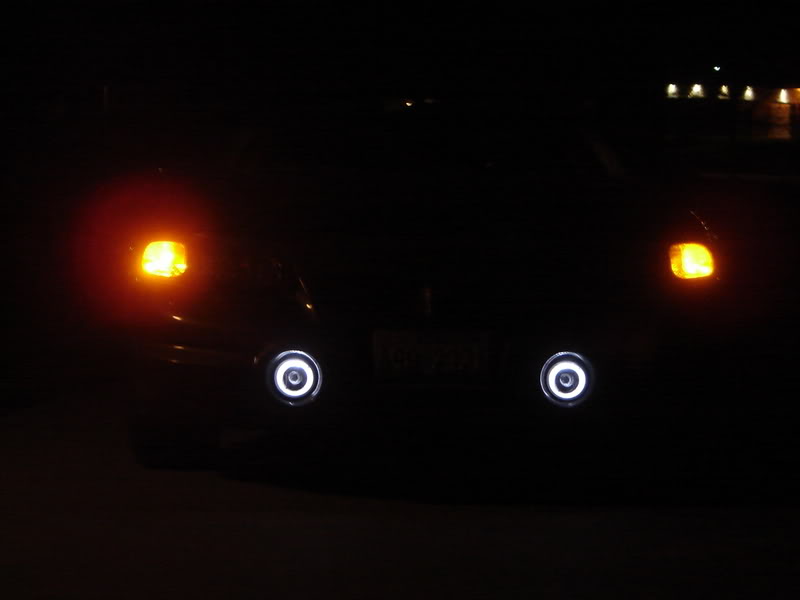

I just did mine yesterday. Drivers side was a purple wire, the one on the passenger side was a brown wire with a white stripe. I'm loving mine. I actually rigged up some harnesses using the sockets from my old bulbs so i didn't have to cut into the factory wiring. I took pictures of the whole process but im heading out the door right now and i will post it later.

Name:  AE.jpg
Views: 0
Size:  20.5 KB
1994se is offline
Old 04-28-2007, 08:02 PM   #4
Junior Member

Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
singscountry1967 is on a distinguished road
Default

Moved to electrical and I added "2000 +" in the title.
singscountry1967 is offline
Old 04-29-2007, 03:35 PM   #5
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

Answering your question from your other post, you don't have to find the negative wire for the parking lights. I cut the bullet connector off the negative for the LED halo then wired the negative to the negative for the fog. Works fine.
1994se is offline
Old 04-29-2007, 03:41 PM   #6
Senior Member
True Car Nut

Join Date: Dec 2003
Location: Corn Fields, IN
Posts: 2,766
Thanks: 0
Thanked 0 Times in 0 Posts
John Deere Boy is on a distinguished road
Default

Locked. Try to keep this in one thread.
