Default Need help finding connections.

I have my hi/lo speed fan switch connected to the Cigar lighter, that is powering my radar detector.

The AeroForce gauge is connected to the HUD power wire.

Where should I tie my new Autometer gauge power and light into

I intend to use the recommended 1 amp fuse for the gauge power and I want to wire a switch into the light.

If I don't get any better suggestions, I will tie into the Cigar lighter circuit but I'm afraid of overloading it.
2000SilverBullet is offline   Reply With Quote
Old 12-29-2006, 12:02 AM   #2
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

How about the wire into the overhead/map lights?
OLBlueEyesBonne is offline   Reply With Quote
Old 12-29-2006, 12:06 AM   #3
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I'd like to find a wire under the dash not up in the roof.

Do you know where (color) of wire that goes up there? It must start somewhere under the dash.
2000SilverBullet is offline   Reply With Quote
Old 12-29-2006, 12:12 AM   #4
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Paul, if you digging thru the dash, try the radio power suppy. You have a choice with switched and continous power from it
Cheetah is offline   Reply With Quote
Old 12-29-2006, 12:15 AM   #5
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default Re: Need help finding connections.

Quote:
Originally Posted by 2000SilverBullet
I have my hi/lo speed fan switch connected to the Cigar lighter, that is powering my radar detector.

The AeroForce gauge is connected to the HUD power wire.

Where should I tie my new Autometer gauge power and light into

I intend to use the recommended 1 amp fuse for the gauge power and I want to wire a switch into the light.

If I don't get any better suggestions, I will tie into the Cigar lighter circuit but I'm afraid of overloading it.
Your running out of options, the gauge is a low draw and should be fine tied in with the hud.
PontiacDad is offline   Reply With Quote
Old 12-29-2006, 12:17 AM   #6
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Will tying it into the HUD cause the HUD light to get any dimmer than it is now
2000SilverBullet is offline   Reply With Quote
Old 12-29-2006, 01:15 AM   #7
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Somewhere different on the globe every month....
Posts: 2,896
Thanks: 0
Thanked 0 Times in 0 Posts
Cheetah is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
Will tying it into the HUD cause the HUD light to get any dimmer than it is now
Install a relay
Cheetah is offline   Reply With Quote
Old 12-29-2006, 02:53 AM   #8
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
Install a relay
It'* just a gauge for frik sakes. Less than a milliamp draw. It shouldn't be necessary.

I have opened up the dash and exposed the wiring. Taking PDads advice, I will tie into the HUD feed wire using a 1 amp fuse. The light will come off the same power wire and I will install a switch on the ground wire, just in case the light bothers me at night. I did install a red cap over the bulb to give it that red glow.

I'm done for today.
2000SilverBullet is offline   Reply With Quote
Old 12-29-2006, 10:09 PM   #9
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Got down to business today with the wiring.

God, I hate wiring.

Used solder for the main connections.
All wires have disconnects.

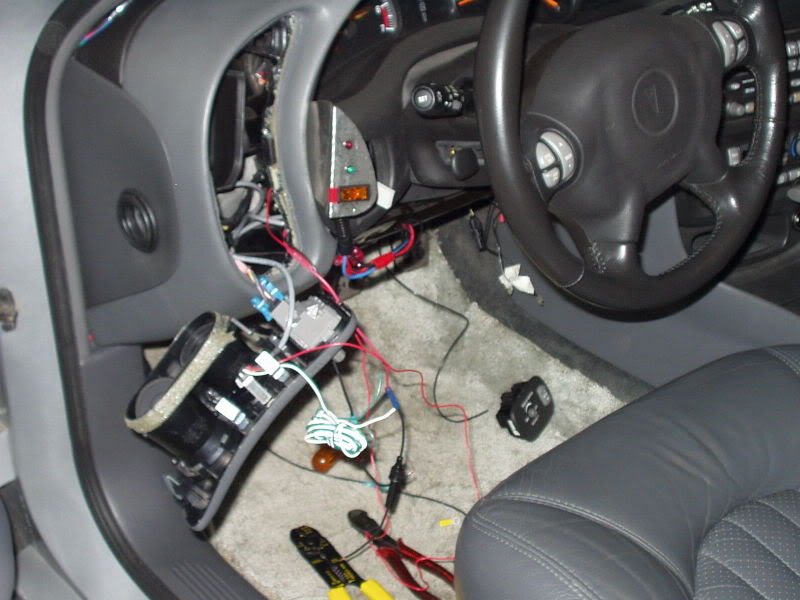

Name:  Dec-41.jpg
Views: 0
Size:  67.5 KB


First time I have put the key into the on position in 2 months.
A OK.
50 F trani temp.
50 F air temp....in and out.

Everything looks great.

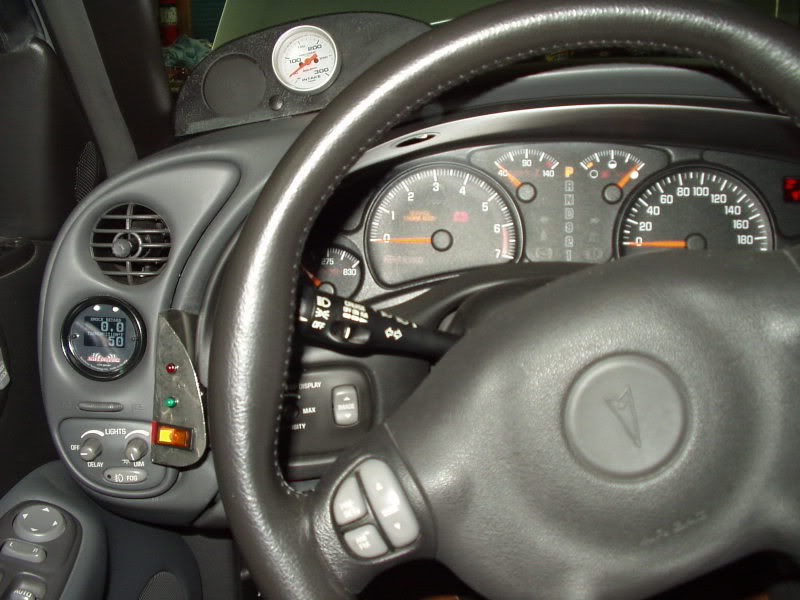

The red light is visible in the light. I'll try it in the dark but I have installed on on/off switch for it.

Name:  Dec-42.jpg
Views: 0
Size:  71.0 KB
2000SilverBullet is offline   Reply With Quote
