Default Instrument panel gremlins

Has anyone else fought the gremlin of loose wires and improper readings on the instrument panels of the '92 Bonnes? I first noticed that the water temp guage was showing very cold or very hot, depending on whether the fuel guage was showing full or empty, respectively. Then the whole IP started to flash and the dinger to ding, like it does on start up. I have pulled off the surrounds and bezels and removed the IP, cleaned it and reinstalled, with no improvement. I have clearly determined that the main connector, behind the speedo area, can be moved slightly back and forth to cause the loose wire symptom. So I need to figure out which wire or wires are not getting solid connections. But I'm not sure that will fix the fuel and temp cross talk. I think that may be a ground mess up. Any help would be greatly appreciated. Especially since I just ran out of gas, two blocks away, because the gas guage won't read low until it is nearly empty and it reads completely empty, when it is completely full.
jeduffey is offline   Reply With Quote
Old 12-14-2006, 11:42 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I think you're a prime candidate for this:

http://www.bonnevilleclub.com/forum/...e=article&k=93

Just had one last week. The member was apprehensive, but found it to be a rather simple procedure, and it solved his problems.

If that doesn't do it, go after the ground bus locations under the carpet at each front door sill. They're known to corrode as well. Check for moisture under the carpet while you're there.
willwren is offline   Reply With Quote
Old 12-14-2006, 12:07 PM   #3
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

As you've already had the cluster apart, this part of the procedure may be the most important part of it, for you.

Quote:
17) Look for cracks in soldered connections, especially where ribbon cables plug in. I was lucky and found none; my flickering displays were just due to oxidized connections, and the process of unplugging and reassembling was all that was needed to restore a solid display to the dash. If you find an obvious crack, use a hot pencil-tip soldering iron to melt and reflow the solder where necessary. Be careful here; a replacement cluster can run a few hundred dollars, so if you're not comfortable with pinpoint soldering, paying a pro for the repair at this point will be a lot cheaper (since you've gone to the trouble of pulling the board yourself).
I had a similar problem on a '93, removing and cleaning didn't solve it. Soldering several of the the larger connections, like where the boards connect together and some of the larger components are installed, solved the problem. You may not be able to see where the cracks or bad solder connection are.
Archon is offline   Reply With Quote
Old 12-14-2006, 12:23 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by willwren
I think you're a prime candidate for this:

http://www.bonnevilleclub.com/forum/...e=article&k=93

Just had one last week. The member was apprehensive, but found it to be a rather simple procedure, and it solved his problems.

If that doesn't do it, go after the ground bus locations under the carpet at each front door sill. They're known to corrode as well. Check for moisture under the carpet while you're there.
Since the first part is mentioned as not helping in his first post (tagging ya back bud), I'd check for the wet carpet and ground busses at the sills as mentioned.

Hoping someone with a 92-93 manual can check the ground in the cluster gauge schemaitc tonight and we can then trace back exactly which ground and where it gets the original ground from for you.
BillBoost37 is offline   Reply With Quote
Old 12-14-2006, 12:47 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Great topic guys. Where'* those pics of the ground bus? I'll move this over to Electrical for more specific help.
willwren is offline   Reply With Quote
Old 12-14-2006, 01:40 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by willwren
Great topic guys. Where'* those pics of the ground bus? I'll move this over to Electrical for more specific help.
In the GH Photobucket that you have access to :P (Off to a meeting or I'd link them in...)
BillBoost37 is offline   Reply With Quote
Old 12-14-2006, 01:57 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

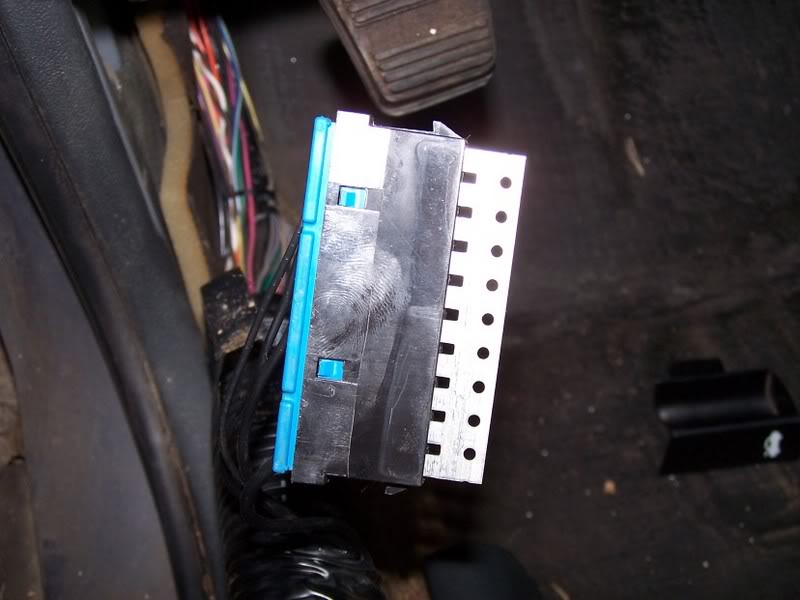

Name:  100_1929.jpg
Views: 13
Size:  51.1 KB

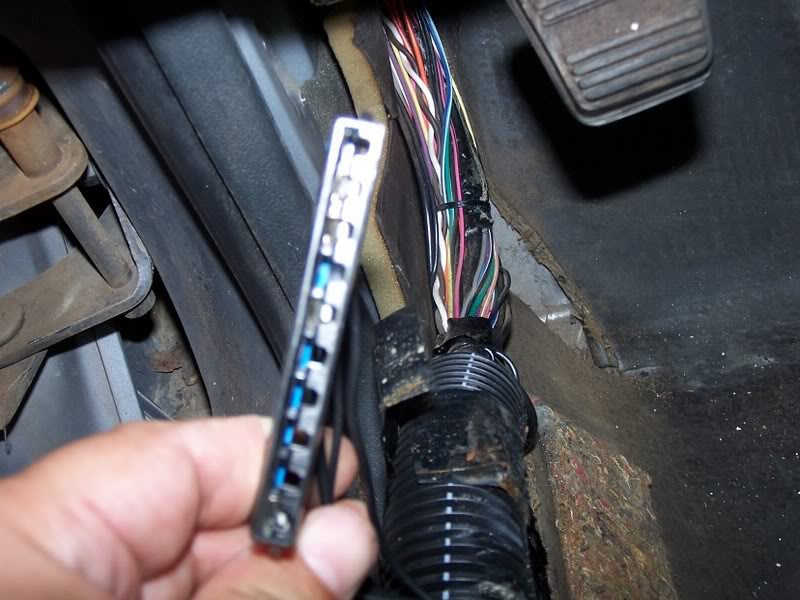

Name:  100_1930.jpg
Views: 13
Size:  77.3 KB

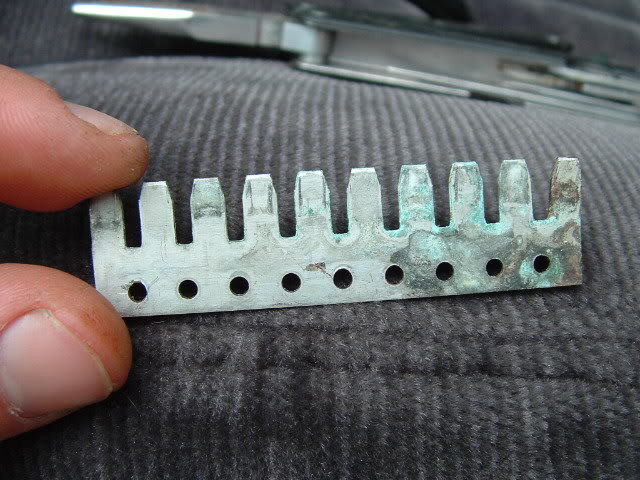

Name:  bussbar.jpg
Views: 14
Size:  70.0 KB

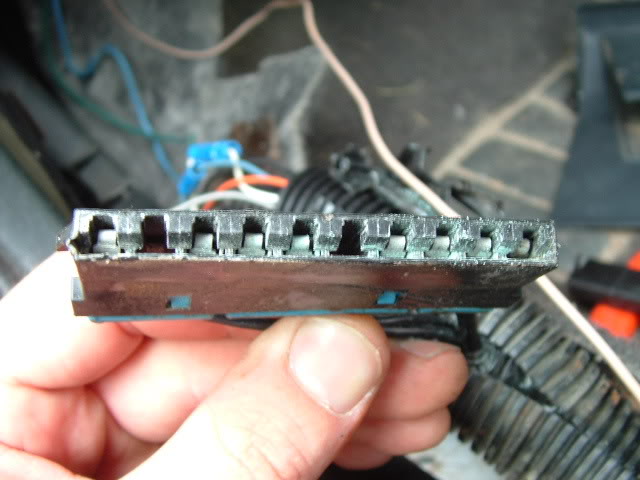

Name:  connector2.jpg
Views: 13
Size:  45.6 KB

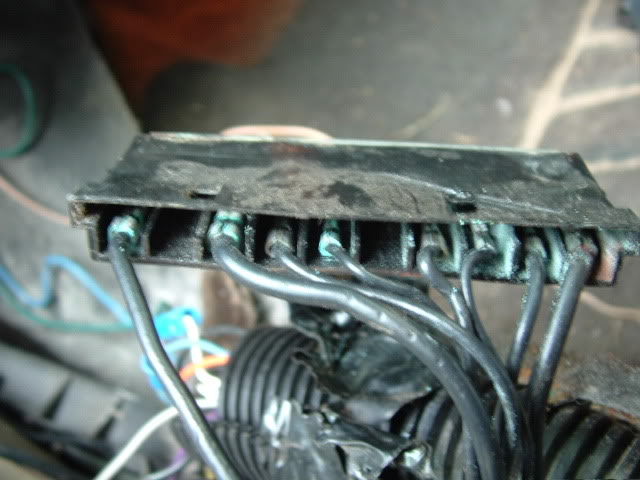

Name:  connector.jpg
Views: 6
Size:  50.0 KB

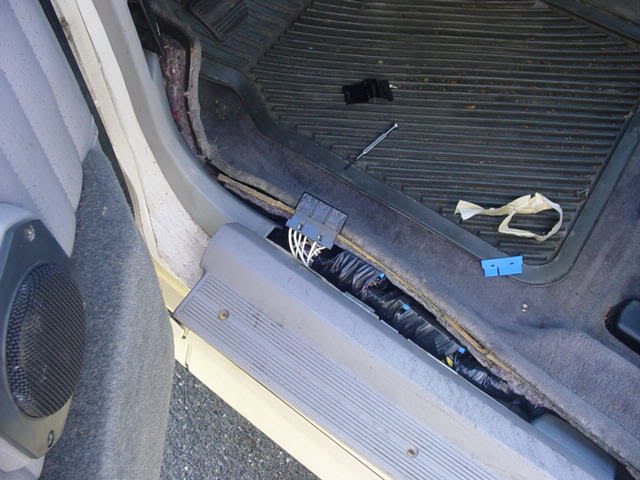

Name:  DSC00977.jpg
Views: 6
Size:  52.3 KB

There is one of these on EACH SIDE of the car as pictured. Check them both.
willwren is offline   Reply With Quote
Old 12-20-2006, 01:12 PM   #8
Senior Member
Posts like a Turbo

Join Date: Oct 2006
Location: St.Paul,Mn
Posts: 240
Thanks: 0
Thanked 0 Times in 0 Posts
LuvmySse is on a distinguished road
Default

I should check mine,my temp and oil gauges really bounce around,the gas gauge not so much but it still does a bit...
LuvmySse is offline   Reply With Quote
Old 12-20-2006, 01:27 PM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by LuvmySse
I should check mine,my temp and oil gauges really bounce around,the gas gauge not so much but it still does a bit...
it has been known for the Board on the right hand side of the cluster to fail.....
1993 SLE is offline   Reply With Quote
Old 12-20-2006, 01:43 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by LuvmySse
I should check mine,my temp and oil gauges really bounce around,the gas gauge not so much but it still does a bit...
it has been known for the Board on the right hand side of the cluster to fail.....
Meaning there is a fault that occurs in the little circuit board that drives the oil/temp and boost gauges.
