Old 03-08-2006, 05:56 PM   #21
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

I tapped into the power drop on my lumina. Not sure if the bonneville has one or not. I would do the seats or Cigarette lighter myself as i don't use those that often.
JimmyFloyd is offline   Reply With Quote
Old 03-08-2006, 06:41 PM   #22
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Any wire that you are tapping to power, use a 10 amp fuse on each.

I got the power for each relay under the seat at the power seat wire. I think it'* like 10 gauge..maybe 5. Also go ground there.

That should leave you with only 1 wire to the switches that you need ignition power for. I already had run one...
BillBoost37 is offline   Reply With Quote
Old 03-08-2006, 08:11 PM   #23
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2003
Location: GTA, ON, Canada
Posts: 594
Thanks: 0
Thanked 0 Times in 0 Posts
Mike G is on a distinguished road
Default

Thank-you Geoff. I hope to try this out in the couple of days.
Mike G is offline   Reply With Quote
Old 03-08-2006, 08:12 PM   #24
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2003
Location: GTA, ON, Canada
Posts: 594
Thanks: 0
Thanked 0 Times in 0 Posts
Mike G is on a distinguished road
Default

Thank-you Bill
I bought the fuse holders the other day- and I couldn't remember if it was 10 or 15 amp. What should I tap off for the run only circuit?
Mike G is offline   Reply With Quote
Old 03-10-2006, 09:01 AM   #25
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

It'* basically your choice. I forget which one I used..but found an used ignition circuit and used that.
BillBoost37 is offline   Reply With Quote
Old 03-10-2006, 02:52 PM   #26
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2003
Location: GTA, ON, Canada
Posts: 594
Thanks: 0
Thanked 0 Times in 0 Posts
Mike G is on a distinguished road
Default

This will be attempted on tuesday. All I need now is some 14 guage wire. Talked to the Randman...
Mike G is offline   Reply With Quote
Old 03-10-2006, 03:25 PM   #27
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

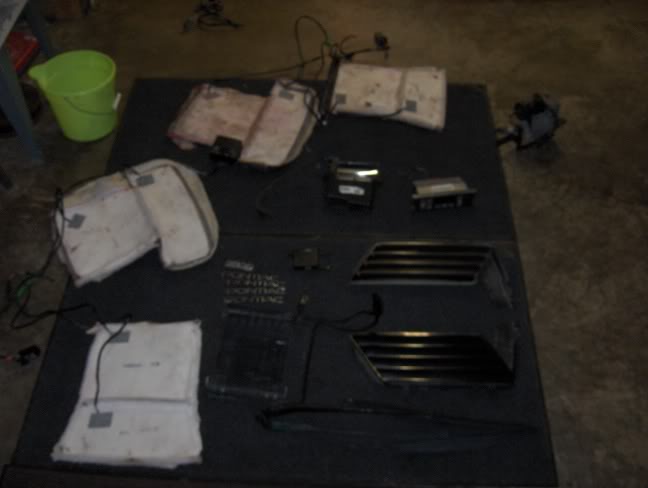

not ot hijack But i just got Caddy heated seats out of a STS
Name:  HPIM0149.jpg
Views: 1
Size:  26.0 KB

1993 SLE is offline   Reply With Quote
Old 03-10-2006, 03:26 PM   #28
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I've done two sets now and it'* really just as easy as it seems. You have tested the pads to make sure they all work before putting them into the seats right?

Under each seat you hook up power and ground for the relay.
Then supply the switches with power and ground.

Switches hook to relays, relays hook to seat pads.
BillBoost37 is offline   Reply With Quote
Old 03-11-2006, 03:01 AM   #29
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Jul 2003
Location: GTA, ON, Canada
Posts: 594
Thanks: 0
Thanked 0 Times in 0 Posts
Mike G is on a distinguished road
Default

I know what that feels like.....how much did they charge you?
Now I know what to do- just have to find the time...wendnesday I think....
pics for sure!
Mike G is offline   Reply With Quote
