Default Failed C/E light, Instrument cluster, and left signal return

All this week. It started with my mech tellin me when he was scanning that my c/e light wasn't wrking;maybe a burnout. Then several days later my guages began to intermediately go wacko. All but the RPM and MPH functions. So I pull the dash replace the 5 main bulbs just because and I switched the "fasten belts" bulb to the C/E light to cure the burnout and troubleshoot. I hook everything back and the clarity is great but still malfunctioning. I then read some more threads here and decided to go back in today because I hadnt sprayed the connections with the electric cleaner nor had I disassembled the the other 5 or so ribbon connections. So I did that I also tested my batt & alt w multimeter. I put it back together and still no C/E light and unit stilll malfunctioning also my left turn signal wont return automatically. I guess my cluster is sh :( ot, Right?
G2SSEi95 is offline   Reply With Quote
Old 07-04-2005, 01:11 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The CE light doesn't work? It shouldn't unless you have a code.

All the other gauges not working is odd. Usually it'* the three gauges off to the right that go bad. Fuel usually keeps working. I suppose it could be a bad cluster.
BillBoost37 is offline   Reply With Quote
Old 07-04-2005, 01:13 AM   #3
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

Quote:
Originally Posted by BillBost37
The CE light doesn't work? It shouldn't unless you have a code.

All the other gauges not working is odd. Usually it'* the three gauges off to the right that go bad. Fuel usually keeps working. I suppose it could be a bad cluster.
yea its usually the 3 gauges far right and im tryin to figure out what the prob is
Kennginn is offline   Reply With Quote
Old 07-04-2005, 01:18 AM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2002
Location: Philadelphia, PA
Posts: 266
Thanks: 0
Thanked 0 Times in 0 Posts
G2SSEi95 is on a distinguished road
Default

My gas guage is included in the malfunction. Along w my digital displays. My c/e light doesnt show at startup and I thought it was supp to, isn't it?
G2SSEi95 is offline   Reply With Quote
Old 07-04-2005, 01:20 AM   #5
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

u have any pics of the cluster?
Kennginn is offline   Reply With Quote
Old 07-04-2005, 01:20 AM   #6
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

Kennginn is offline   Reply With Quote
Old 07-04-2005, 01:44 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

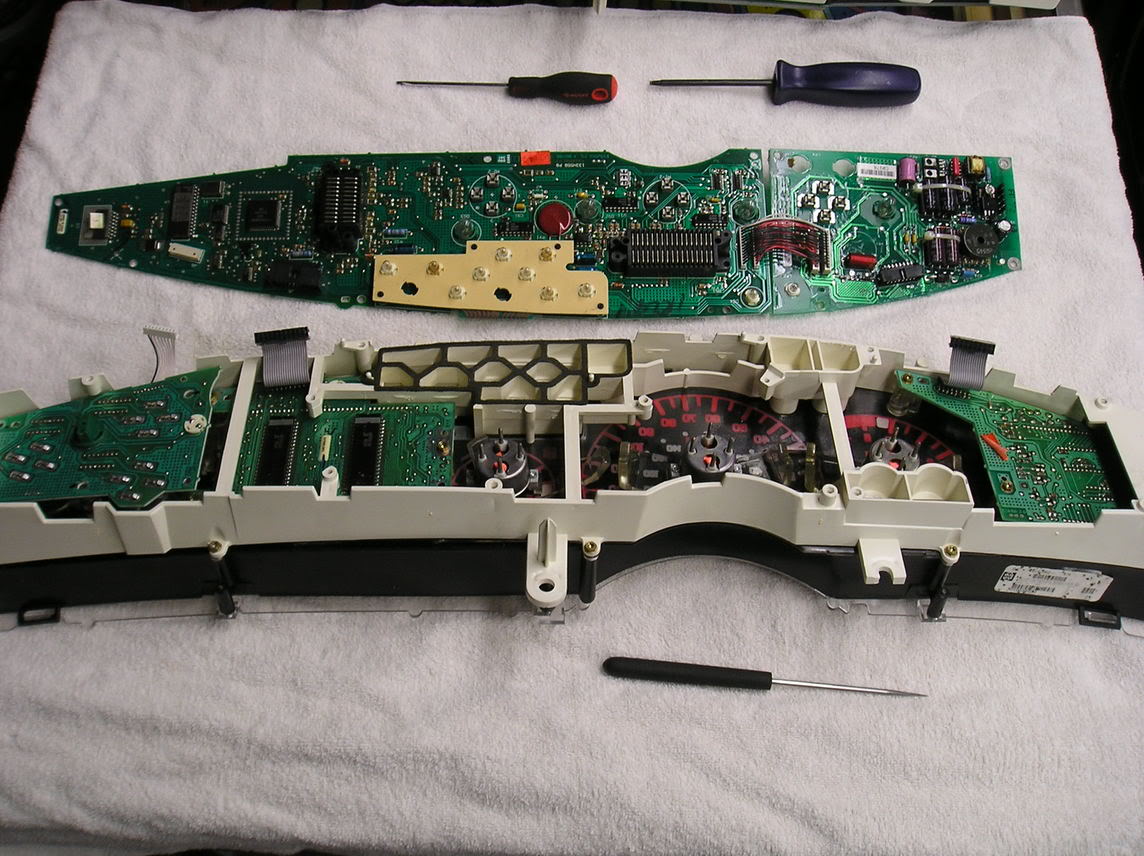

Cluster pic
Name:  Gauges1.jpg
Views: 1
Size:  179.2 KB
BillBoost37 is offline   Reply With Quote
Old 07-04-2005, 09:57 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Oct 2002
Location: Philadelphia, PA
Posts: 266
Thanks: 0
Thanked 0 Times in 0 Posts
G2SSEi95 is on a distinguished road
Default

BTW I noticed last night that when this malfunction is taking place, the right turn signal wont light either.
G2SSEi95 is offline   Reply With Quote
Old 07-04-2005, 04:47 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That adds a bit of complexity since they shouldn't be connected in any way. Please try and duplicate the situation and prove or disprove the blinker. I'd think that was a flasher relay.
BillBoost37 is offline   Reply With Quote
Old 07-04-2005, 04:57 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Pull the carpet up to the left of your driver'* footwell....just below the doorsill and check the ground block under the carpet for corrosion.
willwren is offline   Reply With Quote
