Default electrical service

ok, so it appears that i have some electrical issues they include: flashing ecc, both lights on the auto-level are on, my inter lights don't work, and neither do my dome lights... i have sourced some of the problems to leaking water, and i have sealed them with some epoxy... but now i need to know where i can get my cars elect. sys fixed, and at a good price....any thoughts?
(btw its a 98 ssei)
atauri_92 is offline   Reply With Quote
Old 01-23-2006, 03:39 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

your flashing ECC is typical of a problem with your ECC the dealer must pull the codes for that system

and also the same thing with teh Ride buttons....Both lights on mean there was a problem with the system, and you will have to disable the CCR
1993 SLE is offline   Reply With Quote
Old 01-23-2006, 04:02 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

To get the electrical fixed at a decent price, I say do it yourself.

The most common problem area from water leaks is right under the driverside carpet. You can pull it back and find the grounding buss for most of the electrical. Search on how others cleaned up the grounding issues and go with the best solution.

That'* all a mechanic is going to charge you through the roof to do anyhow.
BillBoost37 is offline   Reply With Quote
Old 01-23-2006, 04:13 PM   #4
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

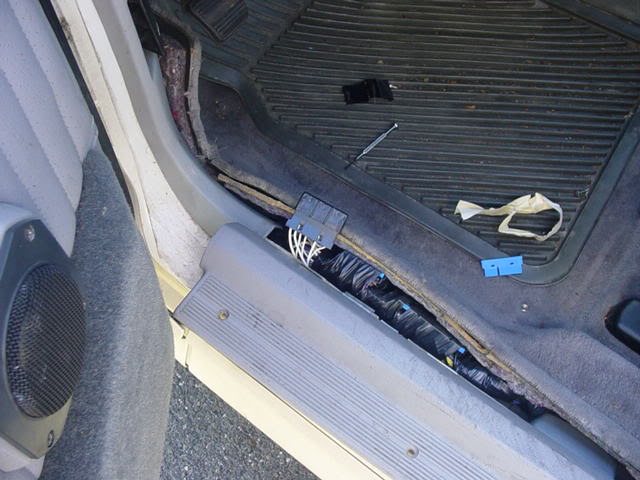

Ground Bus Connector Location:

Name:  DSC00977.jpg
Views: 3
Size:  52.3 KB
Echo SSEI is offline   Reply With Quote
Old 01-23-2006, 06:30 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2004
Location: Cincinnati
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
atauri_92 is on a distinguished road
Default

that seems like an intense job...? to be honest, when it comes to electrical i get nervous for the possibility of doing even more damage to the system... wait... what does CCR stand for?... and why would it need to be disabled?
atauri_92 is offline   Reply With Quote
Old 01-23-2006, 06:31 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2004
Location: Cincinnati
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
atauri_92 is on a distinguished road
Default

computer command ride, nevermind..
atauri_92 is offline   Reply With Quote
Old 01-26-2006, 03:00 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2004
Location: Cincinnati
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
atauri_92 is on a distinguished road
Default

i have pulled the carpet back to get to it, now how do i fix, or replace the ground bus connector?
atauri_92 is offline   Reply With Quote
Old 01-26-2006, 03:01 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Take a look at it.. any corrosiion needs to be cleaned off...

maybe a electrical cleaner from the parts store will work...maybe you need to go further...

Lemme see if I can find you a thread or two by searching

EDIT: Here are the results of the electrical search

I found the second one to give good diagnostic info..but not anything mentioning how he cleaned them up. I'd use electronics cleaner and probably a flat screwdriver, the dielectric grease to keep it from happening again.
BillBoost37 is offline   Reply With Quote
Old 01-26-2006, 04:21 PM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2004
Location: Cincinnati
Posts: 95
Thanks: 0
Thanked 0 Times in 0 Posts
atauri_92 is on a distinguished road
Default

thats it, take off the blue part, clean it with electric cleaner, and put the dielectic compund on it, that should be no problem at all... i will give it a try and let you know what the results are...
atauri_92 is offline   Reply With Quote
Old 01-26-2006, 04:36 PM   #10
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

What electrical cleaner do you use? Ive tried a couple one is said to lubricate components and is oily and I thought no way it would help but it did work,but makes me nervous to use again as it doesnt look like it will dry.
jdq is offline   Reply With Quote
