Default Electric problems

Good morning all,
When I open my door I hear the chimes like I left the lights on I do not have any dash lights, fog lights or tail lights. All fuses and bulbs are new. Could this be the head light switch or something else?

Thanks
rdncktek is offline   Reply With Quote
Old 10-19-2006, 12:45 PM   #2
Senior Member
True Car Nut

Join Date: Jan 2003
Location: Bonney Lake/Ellensburg, Washington- WCBF '04, '05, '06, '07 Survivor-
Posts: 7,098
Thanks: 0
Thanked 0 Times in 0 Posts
driverjohn2005 is on a distinguished road
Default

*MOVED TO Everything Electrical & Electronic*
driverjohn2005 is offline   Reply With Quote
Old 10-19-2006, 01:18 PM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

while it could be the HL switch....i would also like you to check your ground busses for corrosion, as this can cause massive electrical problems
1993 SLE is offline   Reply With Quote
Old 10-19-2006, 02:04 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Another thing it can be...is the key removal thingeee.

When you leave the key in the ignition..it dings. I've seen some those switches stick and think the key is still in the iginition.
BillBoost37 is offline   Reply With Quote
Old 10-19-2006, 03:15 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Location: Livermore,CA
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
rdncktek is on a distinguished road
Default

Thank you for the replys. Where would I find the grounds at?
rdncktek is offline   Reply With Quote
Old 10-19-2006, 04:46 PM   #6
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Quote:
Originally Posted by rdncktek
Thank you for the replys. Where would I find the grounds at?
under the doorsills/carpet on the driver'* and passenger'* sideThe rectangular box with wires and steel plate is one of the grounds. There is another on the driver'* side. When wet/corroded, these are often the culprit for many problems. Here are some pics of location, and good and bad ground Buss connectors. Dry everything up and clean up the ground busses so we can see if that helps any problems that you are having.

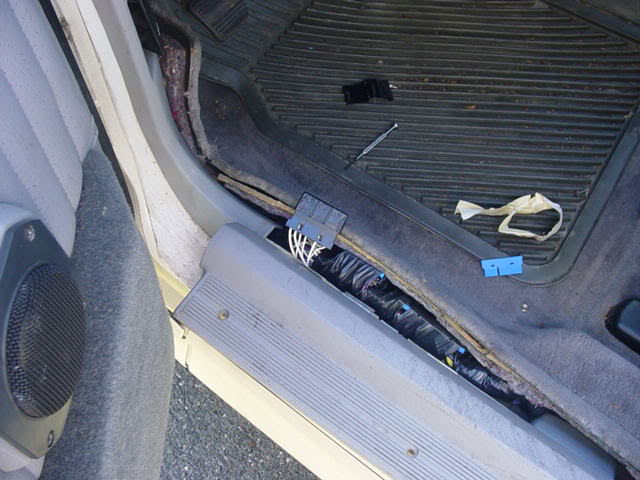

Location
Name:  DSC00977.jpg
Views: 6
Size:  52.3 KB

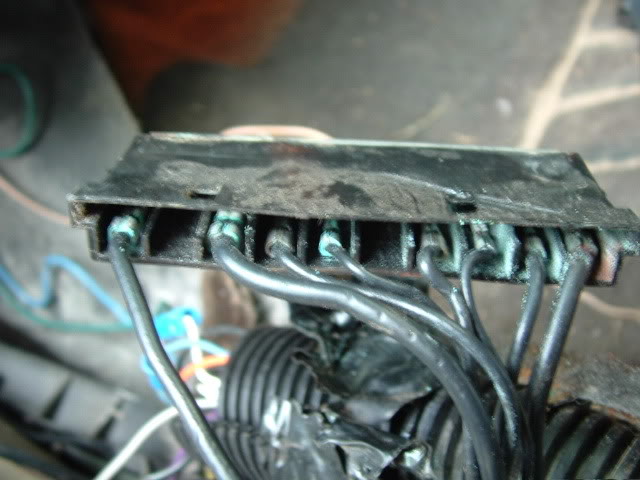

Bad
Name:  connector.jpg
Views: 4
Size:  50.0 KB

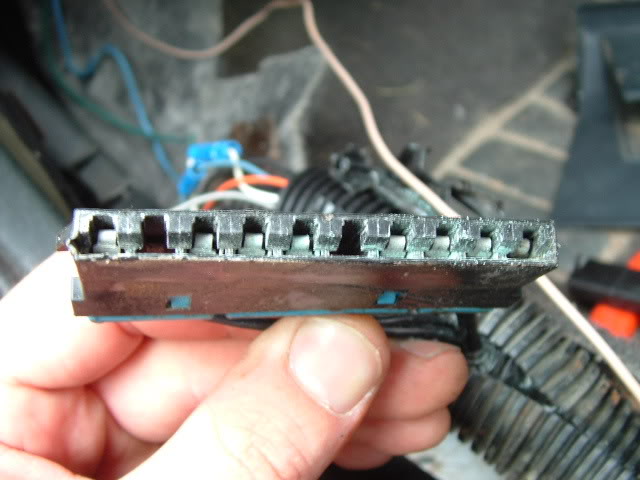

Name:  connector2.jpg
Views: 6
Size:  45.6 KB

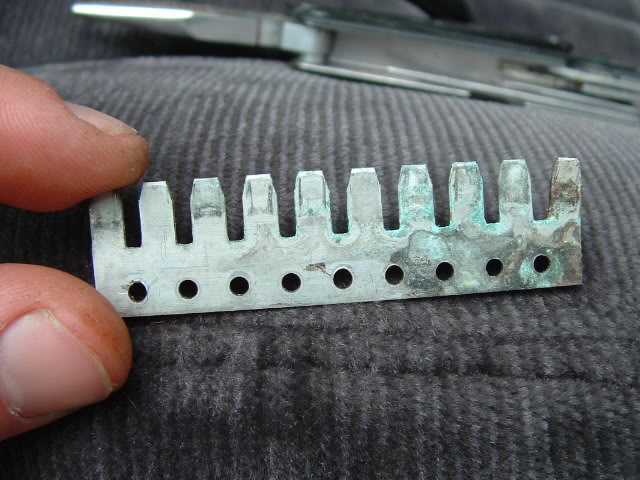

Name:  bussbar.jpg
Views: 5
Size:  70.0 KB

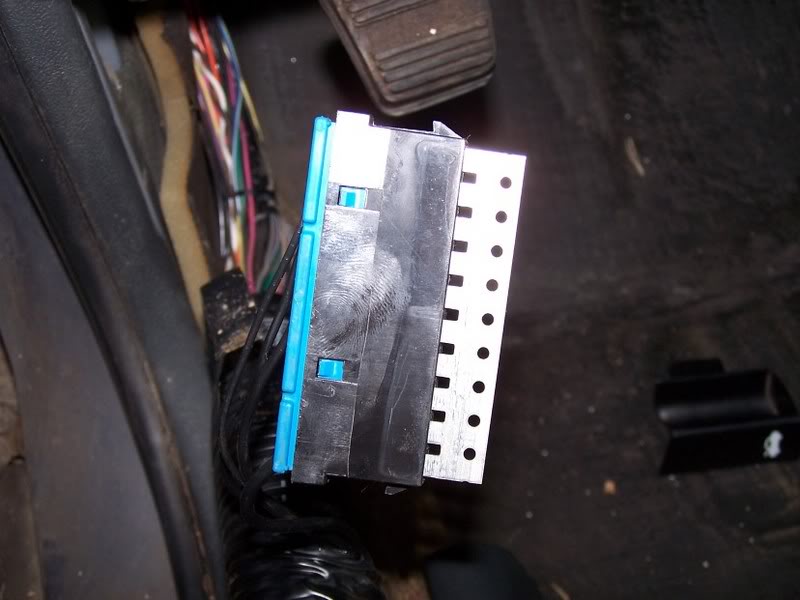

Good
Name:  100_1929.jpg
Views: 6
Size:  51.1 KB

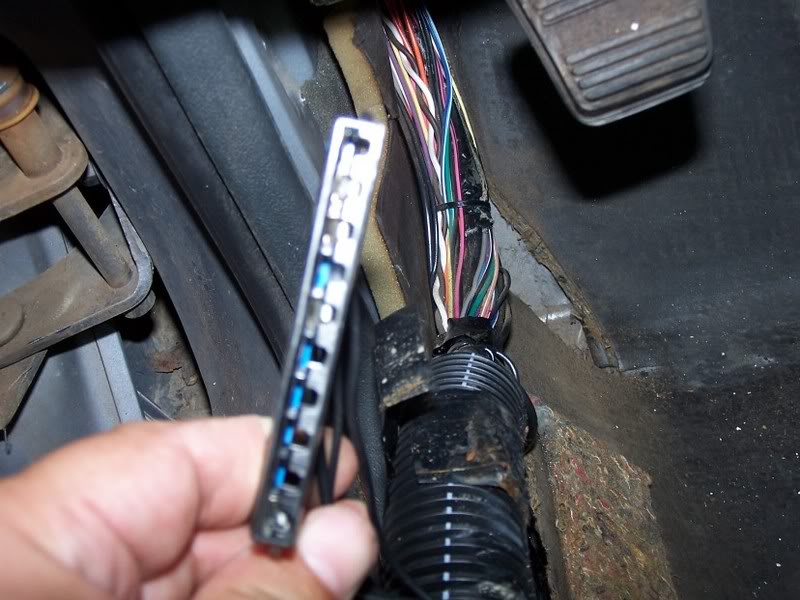

Name:  100_1930.jpg
Views: 5
Size:  77.3 KB
Echo SSEI is offline   Reply With Quote
Old 10-19-2006, 05:56 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Location: Livermore,CA
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
rdncktek is on a distinguished road
Default

Thanks for the reply. I will not be able to work on this until the weekend. I will update everyone then.
rdncktek is offline   Reply With Quote
Old 10-22-2006, 05:25 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Location: Livermore,CA
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
rdncktek is on a distinguished road
Default

So it is not the ground buses. I went to the parts store and they don not know if they find the part, but if they can it would be 135.00. Is that the right prce it seems high?
rdncktek is offline   Reply With Quote
Old 10-22-2006, 05:27 PM   #9
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by rdncktek
So it is not the ground buses. I went to the parts store and they don not know if they find the part, but if they can it would be 135.00. Is that the right prce it seems high?
what part are you talking about?
toastedoats is offline   Reply With Quote
Old 10-22-2006, 05:39 PM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Location: Livermore,CA
Posts: 47
Thanks: 0
Thanked 0 Times in 0 Posts
rdncktek is on a distinguished road
Default

Sorry the headlight switch
rdncktek is offline   Reply With Quote
