Old 05-03-2006, 06:40 PM   #11
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Okay....since the fuses check out okay, next is to check the terminals in the connector on the MALL and the wiring harness to the MALL. If all the connectors and terminals are not bad (i.e. broken/bent/missing) then there may be a short in the circuit OR the MALL may be bad.

It will take a little while for me to type out the "MALL module internal diagnostic procedures", so give me some time.
Echo SSEI is offline   Reply With Quote
Old 05-03-2006, 06:53 PM   #12
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Quote:
Originally Posted by Echo SSEI
Okay....since the fuses check out okay, next is to check the terminals in the connector on the MALL and the wiring harness to the MALL. If all the connectors and terminals are not bad (i.e. broken/bent/missing) then there may be a short in the circuit OR the MALL may be bad.

It will take a little while for me to type out the "MALL module internal diagnostic procedures", so give me some time.
I'm not that familiar with wiring - where is that located exactly? Thanks!
dillcc is offline   Reply With Quote
Old 05-03-2006, 07:28 PM   #13
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Oh boy........I knew you were going to ask that. I searched the club for a photo to help, but found nothing.

The MALL is behind the passenger side of the dash. Appears to be a small, rectangle box, with two wiring connectors. I'll see if I can provide a better depiction of the unit and location when I get home.
Echo SSEI is offline   Reply With Quote
Old 05-03-2006, 08:15 PM   #14
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Quote:
Originally Posted by Echo SSEI
Oh boy........I knew you were going to ask that. I searched the club for a photo to help, but found nothing.

The MALL is behind the passenger side of the dash. Appears to be a small, rectangle box, with two wiring connectors. I'll see if I can provide a better depiction of the unit and location when I get home.
Is that under the black plastic "maxifuse relay center"? I checked the fuses under there and noticed a bigger wiring harness, but I didn't look that closely. Is that it?

Edit - or did you mean inside the cabin and not the engine compartment?
dillcc is offline   Reply With Quote
Old 05-11-2006, 04:49 PM   #15
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Bump for an update and further exposure.

Since the last post, dillcc and I have been working through PMs to continue to address the issue.

We have established that there is no aftermarket alarm, remote start, etc installed and a VATS bypass has not been done. There are no other issues currently with the car or any other components. The connections to the MALL are tight and appear to be fine.

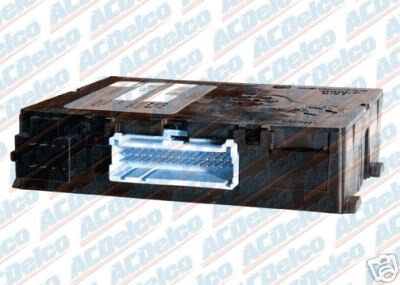

The MALL is a small thin box, probably about the size of a pack of cigarettes (maybe smaller, with two plug-in connectors (one large connector and one smaller one) that are plugged in on the long skinny side of the MALL. If you are on your passenger side floor, looking up under the dash, you should see the two connectors plugging up into the mall.

Name:  MALL.jpg
Views: 14
Size:  20.4 KB

I was also thinking about grounds and the driver side buss. This is the buss that is under the carpet, by the drivers side footwell. The MALL does not use that ground directly, but some of the components connected to the MALL do.

Name:  DSC00977.jpg
Views: 16
Size:  52.3 KB

I have typed up the internal MALL diagnostic procedures in hopes that this will guide us to a solution, but have never actually done these myself. If anyone has done these and would like to share their experience, it would be welcome.

The procedures are supposed to help tell you if there is a short in one of the components rendering the system bad.

MALL Diagnostic Procedures
Problem:
Power door locks, interior lamps, and “Key-In-Ignition” and/or “Fasten Seat Belt” chime do not function

Component Diagnosis: Body Control Module (MALL)

First Steps:
1. Check door lock fuse (Fuse 1 - 20 amp) and chime fuse (Fuse 1D – 15 amp)
2. Check Courtesy Lamp/Power Mirror fuse (Fuse 6A – 15 amp)
3. Check for poor terminal contact at MALL and wiring harness connectors
4. Check for broken or partially broken wires.

Second Step: Perform the “MALL Module Internal Diagnostic Procedure

The MALL module stores “history” codes if an electrical short occurs in the system during vehicle operation. The codes are “communicated audibly (a bong sound) by accessing the MALL module diagnostic mode. After providing any codes, the MALL module enters a functional test mode (called Input/Output or “I/O”) to assist in verifying that the inputs to the MALL are functioning properly.

1. To enter MALL module diagnostic mode:
a. Turn ignition switch to “ON”
b. Press AND hold the power door unlock switch while at the same time…
c. Cycling the headlamp switch six times, on and off, within 20 seconds of pressing and holding the power door unlock switch
d. Release power door unlock switch

Note: (To “Exit” the MALL module diagnostic mode, turn the ignition switch to “OFF”.)

The MALL will provide a number of audible “bong” sounds (and flash the “Fasten Seat Belt” indicator light with each bong) to identify the stored history codes for any malfunctions (short circuits) as follows:

# of “bongs” Circuit Short Condition
One Fasten Seat Belt Circuit
Two Battery Protection Circuit
Three Courtesy Lamps Circuit

The MALL module will cycle through the stored history code(*) three times pausing for two seconds between each of the three cycles.

If no codes exist the MALL immediately enters the I/O mode.

2. I/O Mode:

In the I/O mode, input from components in the system are “tested” by activating/deactivating each components input device and providing either one “bong”or NO, bongs (along with flashing the “Fasten Seat Belt” indicator light) to indicate whether a “short” is detected in the circuit as follows:

Component - Test
Auxiliary Chime - Apply Parking Brake/Release, then Repeat
Interior Lamps - Turn on interior lamp switches, then turn off, then Repeat
Dome Lamp - Turn on dome lamps, then turn off, then Repeat
Door Latch Switches - LH and RH Door latch switches (not too sure on this one)
Power Door Locks - Lock then Unlock, Repeat
Battery Protection - Turn on interior lamp switch, then turn off, then Repeat
“Lamps On” Chime - Turn on headlight switch, then turn off, then Repeat
Fasten Seat Belts Chime and Indicator Light - Latch, then unlatch driver’* Seatbelt, then repeat.
Turn Signal On Reminder Chime - Activate turn signal, then turn off, then Repeat
Trunk Lid Ajar Light - Activate/deactivate trunk lid latch switch, then repeat.

If you get a “bong” when testing a component, then the component is functioning properly.

If these components check out OK, then the MALL module itself needs to be tested for a short or the module may need to be replaced.

Again, any input is welcome fellow BCers.
Echo SSEI is offline   Reply With Quote
Old 11-09-2010, 02:26 PM   #16
Junior Member

Join Date: Oct 2009
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
Mang is on a distinguished road
Default

ECHO, you're the man. Thank you so much for the detailed description. While reading this, it made me look at my fuses again and found a blown fuse. I have a 1992 Bonnie that the #3 15Amp fuse on the passenger side was blown. The Bonnie lives to see another day!! (Manualing unlocking doors is almost as bad as losing the remote!)
Mang is offline   Reply With Quote
Old 11-09-2010, 02:55 PM   #17
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by Mang View Post
ECHO, you're the man. Thank you so much for the detailed description. While reading this, it made me look at my fuses again and found a blown fuse. I have a 1992 Bonnie that the #3 15Amp fuse on the passenger side was blown. The Bonnie lives to see another day!! (Manualing unlocking doors is almost as bad as losing the remote!)
This thread is 4 years old so I'm not sure if he'* still around, but I'm glad the forum was able to be of some assistance.

Welcome to GMForum by the way. You should introduce yourself in the member'* introduction section.
xtremerevolution is offline   Reply With Quote
Old 11-22-2010, 01:40 AM   #18
Junior Member

Join Date: Nov 2010
Location: Central Coast Of Calif
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Racing97 is on a distinguished road
Default

Mang, are you saying there are fuses on the passenger side of the car where would they be? ECHO provided some great detail it would be nice to know what fixed DILLCC problem. I have a 93 bonnie that has the same problem as DILLCC except my car has all the chimes but everything else is the same. Are the MALL boxes the same on other GM cars? I know you guys will know this.
Racing97 is offline   Reply With Quote
Old 11-28-2010, 01:36 PM   #19
Junior Member

Join Date: Nov 2010
Location: Central Coast Of Calif
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Racing97 is on a distinguished road
Default

The 15amp fuse on the passenger side was the problem. I thought I had checked all of them but didn’t know about the block of fuses on the passenger side, I do now.

Thanks for the help guys
