Default crazy radio and steering wheel thing going on....

steering wheel buttons dont work...infact they shut the radio off...but the lights work on it...its weird too that the radio will randomly tune up or down or if a CD is in...it will track up or down....what could it be?

crazy hay?

thanks
jason
Triple X is offline   Reply With Quote
Old 10-15-2007, 11:55 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

harofreak00 is offline   Reply With Quote
Old 10-16-2007, 10:07 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

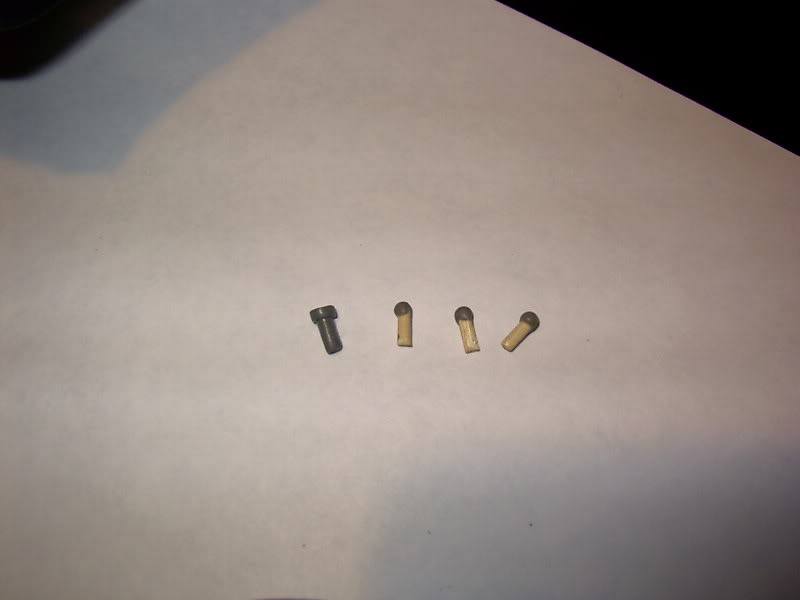

Haro once said.. Peanut butter is what the old push pins become and he was more than accurate.

Toothpicks are the best replacement I've seen to date as well.
BillBoost37 is offline   Reply With Quote
Old 11-20-2007, 09:48 AM   #4
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Sep 2007
Location: waukesha, WI
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
Triple X is on a distinguished road
Default

i will look into this but the buttons dont seem to stick they work fine...but there seems to be a crossed wire somewhere...if a press one it will just shut off my raido and sometimes but rarely it works fine...
Triple X is offline   Reply With Quote
Old 11-25-2007, 11:34 AM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Sep 2007
Location: waukesha, WI
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
Triple X is on a distinguished road
Default

what do you guys think it could be?
Triple X is offline   Reply With Quote
Old 11-25-2007, 12:11 PM   #6
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Sounds like you have one or a combination of stuck buttons.

The steering wheel controls are quite simple in operation. Instead of multiple outputs, there is only 1 output...a variable resistance to the headunit. The headunit reads the resistance, looks up the resistance table programmed into it, and executes the command based on the resistance that was read.

In this case, the toothpick mod wont work. The button switch is internally shot, so you would either have to replace all the buttons (hey you might as well if you gotta tear into it) or find a junkyard replacement. Even then, there are no guarantees.
sandrock is offline   Reply With Quote
Old 11-28-2007, 09:30 AM   #7
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Sep 2007
Location: waukesha, WI
Posts: 112
Thanks: 0
Thanked 0 Times in 0 Posts
Triple X is on a distinguished road
Default

ok thanks i will look into it
Triple X is offline   Reply With Quote
Old 11-28-2007, 02:27 PM   #8
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I should point out that Mouser Electronics has ample supply of tactile buttons that should be excellent replacements for the ones that are in the steering wheel controls. I also have a spare set sitting here that I may very well tear into, desolder one of the buttons from the board, and reference my Mouser catalog to see if any buttons they sell will work.
