Default Auto Down Passenger Window

Randman did this on his 93 SSEi and I've been pondering it for a long time. Waiting for a need to take off the passenger door panel actually.

The silly plastic trim on top of the panel broke when I got the windows tinted and since...I've been trying to get to it.

Good news...Alienboy was on a door panel pulling spree last Friday. I get home to find my two front and his two front panels off the cars.

The module (found in junkyard on driver door) is a 3 wire hook up. Two wires to the existing wires going to the motor and one to power. Simple is an understatement.

Now Alienboy and I have autodown passenger side windows.

Back windows seem like a mute point as by the time it started autodown, it would be down all the way.
BillBoost37 is offline   Reply With Quote
Old 05-16-2006, 09:55 AM   #2
Senior Member
Posts like a Northstar

mrbell83's Avatar

Join Date: Apr 2006
Location: In the mitten
Posts: 675
Thanks: 0
Thanked 0 Times in 0 Posts
mrbell83 is on a distinguished road
Default

Is this module out of a bonneville? Or will any pontiac or gm module do? Do you have a picture of what it looks like, I would like to have auto down on both my front windows if possible.
mrbell83 is offline   Reply With Quote
Old 05-16-2006, 10:33 AM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

yup its a standard module out of the drivers side door of the Bonneville, its simple and really easy...I know Bill has a few autodown Modules here at the house...PM him for one....


i even went as far as to change my window switches to reflect that i have 2 auto downs :P

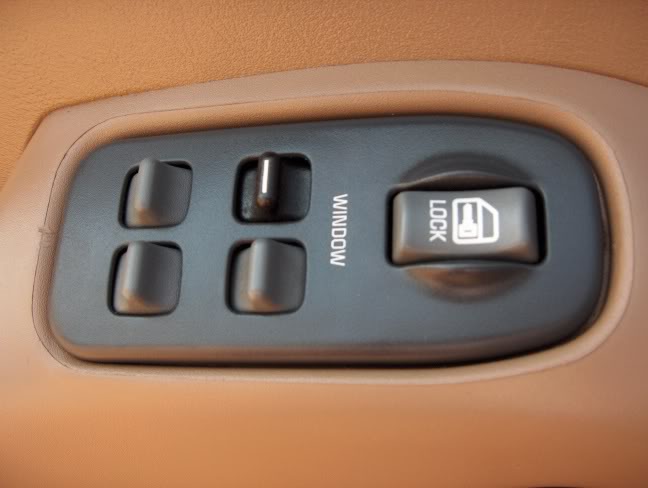

Before with only one Auto down Button
Name:  NEBFApr06002.jpg
Views: 2
Size:  35.5 KB

Now with 2 autodown buttons
Name:  NEBFApr06009.jpg
Views: 1
Size:  38.8 KB

excessive.....yes, that is how i like it
1993 SLE is offline   Reply With Quote
Old 05-16-2006, 11:34 AM   #4
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: Coon Rapids, Minnesota
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
GreenMachine98 is on a distinguished road
Default

Sweet thats another one on the to do list
GreenMachine98 is offline   Reply With Quote
Old 05-16-2006, 12:12 PM   #5
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

could i go to a junk yard and get a auto down for a left door and then just hook it up to the right door cause i like this idea for betsy *view sig*
wakefieldl is offline   Reply With Quote
Old 05-16-2006, 04:31 PM   #6
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Hmmmm, simple and effective, yet not thought of much before now....I like it!

And Wake, yes, that'* exactly what you do.
lash is offline   Reply With Quote
Old 05-16-2006, 04:33 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

yup..

Even better if someone removed the door panel for you already.

unplug the window motor connector....pull the module off door...and then you'll find..there'* 3 wires left to cut. Cut them with extra length if you can.
BillBoost37 is offline   Reply With Quote
Old 05-16-2006, 05:05 PM   #8
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

Awesome, I would like to do that. Unforunately, there isn't any u pull junkyards around here.

And this may be a startling question that may be a stupid question, but the passenger side switch will activate the auto down as well the driver side switch for the passenger side right?
PRD2BDF is offline   Reply With Quote
Old 05-16-2006, 05:08 PM   #9
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Easy way to find the auto-down module:

Remove driver'* door panel, look at random black box that you can't identify... there it is.
J Wikoff is offline   Reply With Quote
Old 05-16-2006, 06:02 PM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by fuelforthesoul1999

And this may be a startling question that may be a stupid question, but the passenger side switch will activate the auto down as well the driver side switch for the passenger side right?
LMAO that was one of the first tests we did......

yes it will work from either switch
